1 - ARMATURE COMPL. 230V
MET-310010930.A7
310010930
|
£61.08
|
£73.30
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311011930.A1
311011930
|
£42.65
|
£51.18
|
|
|
3 - SWITCH 1-POLE X2
MET-343410240.A1
343410240
|
£7.36
|
£8.83
|
|
|
4 - CABLE SLEEVE
MET-344100970.A336
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE W.CEE PLUG
MET-344499530.A7
344499530
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A558
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013530.A25
315013530
|
£11.78
|
£14.13
|
|
|
8 - BAFFLE
MET-339151190.A34
339151190
|
£15.41
|
£18.49
|
|
|
9 - BAFFLE
MET-339151200.A79
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 230V 50/60HZ
MET-343084020.A1
343084020
|
£32.88
|
£39.45
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A59
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A355
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A229
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A30
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A493
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A202
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433080.A25
343433080
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433040.A28
343433040
|
£5.62
|
£6.75
|
|
|
19 - END PIECE
MET-343433110.A20
343433110
|
£22.61
|
£27.13
|
|
|
20 - SWITCH SLIDE
MET-343437100.A95
343437100
|
£2.94
|
£3.53
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A189
339204500
|
£11.78
|
£14.13
|
|
|
24 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A168
316046590
|
£11.78
|
£14.13
|
|
|
26 - SPRING CLIP
MET-342022490.A175
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A208
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A235
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A352
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A522
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338072520.A0
338072520
|
-
|
|
|
|
40 - SPINDLE COMPL. WA M14
MET-316063430.A29
316063430
|
-
|
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A29
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A26
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A337
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A67
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A164
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A224
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A13
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316066830.A33
316066830
|
£15.41
|
£18.49
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A56
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054340.A22
316054340
|
£63.44
|
£76.13
|
|
|
56 - BRUSH HOLDER COMPL.
MET-316055230.A30
316055230
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054860.A2
316054860
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055190.A14
316055190
|
£13.63
|
£16.36
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A9
316066040
|
£15.41
|
£18.49
|
|
|
62 - O-RING
MET-143196000.A257
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A533
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A147
343433130
|
£1.66
|
£1.99
|
|
|
65 - BOLT
MET-341515640.A221
341515640
|
£2.94
|
£3.53
|
|
|
72 - WASHER
MET-339007800.A41
339007800
|
£1.50
|
£1.80
|
|
|
92 - O-RING
MET-143195640.A21
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A80
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A590
344130560
|
£19.18
|
£23.02
|
|
|

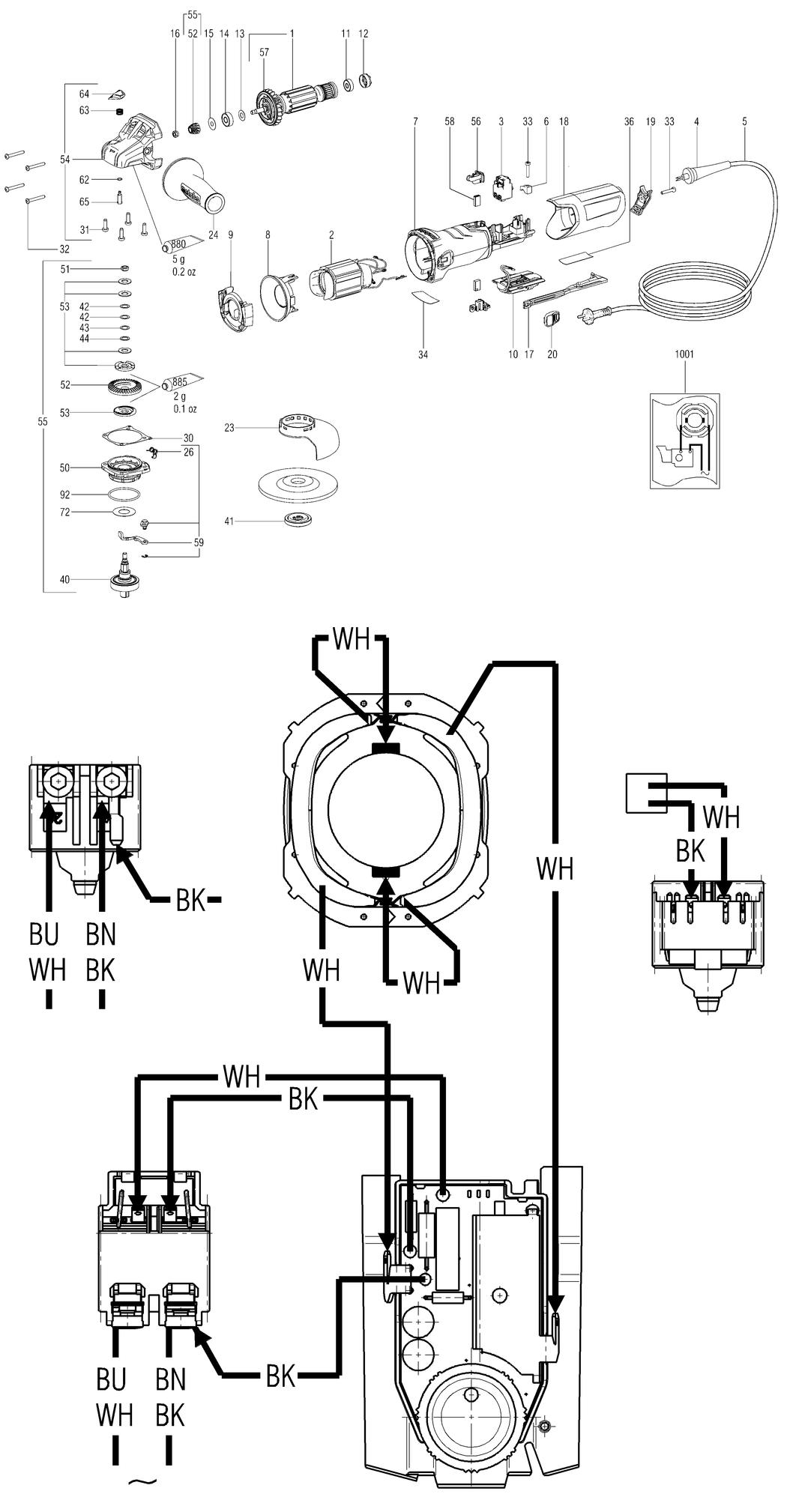

1001 - DIAGRAM
MET-338505690.A0
338505690
|
-
|
|
|
