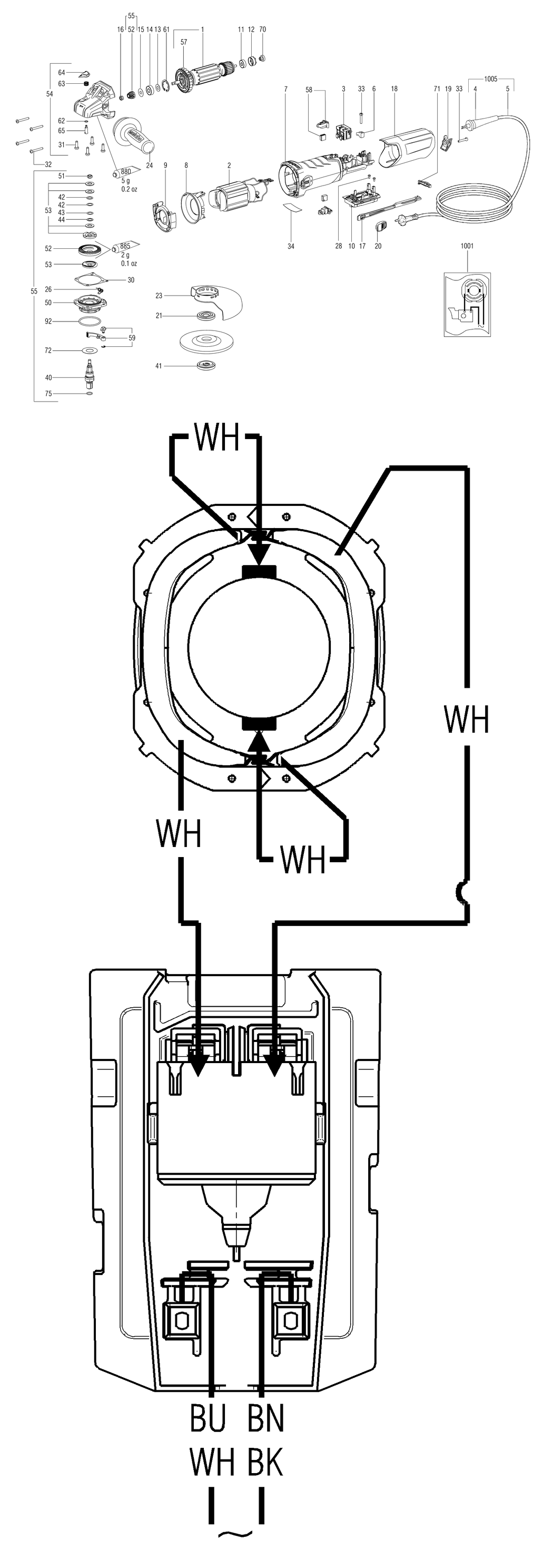

An exploded diagram and spare parts listing for the Metabo WE 17-125 Quick / 00515000 / EU 230V
Ex VAT Inc VAT
1 - ARMATURE COMPL. 230V MET-310010990.A3 310010990 £68.35 £82.02
2 - FIELD COIL ASSEMBLY 230V MET-311012980.A4 311012980 £42.65 £51.18
3 - SWITCH 2-POLE MET-343410120.A26 343410120 £13.63 £16.36
4 - PART NOT NEEDED MET-399999990.A2252 399999990 -
5 - PART NOT NEEDED MET-399999990.A2253 399999990 -
6 - CABLE CLIP MET-343362490.A1201 343362490 £3.20 £3.84
7 - MOTOR HOUSING 2 PART MET-315013520.A155 315013520 £13.63 £16.36
8 - BAFFLE MET-339151180.A188 339151180 £2.94 £3.53
9 - BAFFLE MET-339151200.A304 339151200 £2.94 £3.53
10 - ELECTRONIC UNIT 230V 50/60HZ MET-343084110.A6 343084110 £48.88 £58.66
11 - BALL BEARING 6X19X6 MET-143115690.A425 143115690 £3.82 £4.59
12 - RUBBER BUSHING MET-344097870.A30 344097870 £1.50 £1.80
13 - WASHER MET-339133060.A116 339133060 £1.50 £1.80
14 - BALL BEARING 8X22X7 MET-143115700.A249 143115700 £4.76 £5.71
15 - WASHER MET-339006390.A49 339006390 £1.50 £1.80
16 - HEXAGON NUT W.RECESS MET-341100940.A333 341100940 £3.20 £3.84
17 - SWITCH ROD MET-343433070.A91 343433070 £1.50 £1.80
18 - CAP MET-343433030.A9 343433030 £5.62 £6.75
19 - END CAP MET-343433100.A14 343433100 £2.94 £3.53
20 - SWITCH SLIDE MET-343437100.A204 343437100 £2.94 £3.53
21 - CLAMPING FLANGE MET-341031160.A71 341031160 £15.41 £18.49
23 - WHEEL GUARD D125 MET-339204500.A81 339204500 £11.78 £14.13
24 - ANTI-VIBRATION HANDLE M 8 MET-314000970.A249 314000970 £19.18 £23.02
26 - SPRING CLIP MET-342022490.A12 342022490 £2.94 £3.53
28 - FILL. HEAD SCREW(DIN 7985) MET-141121430.A98 141121430 £1.50 £1.80
30 - GASKET MET-339011970.A155 339011970 £1.50 £1.80
31 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A315 141121640 £1.50 £1.80
32 - SELF-TAP. FILL. H. SCREW MET-141116980.A10 141116980 £1.50 £1.80
33 - SELF-TAP. FILL. H. SCREW MET-141117060.A163 141117060 £3.20 £3.84
34 - RATING PLATE MET-338065660.A0 338065660 -
40 - SPINDLE M14 MET-341604420.A120 341604420 £17.55 £21.06
41 - CLAMPING NUT COMPL. M14 MET-316055350.A104 316055350 £15.41 £18.49
42 - WASHER 10 2 X 14 MET-141151120.A392 141151120 £1.50 £1.80
43 - WASHER 10 2 X 14 MET-141152300.A46 141152300 £3.20 £3.84
44 - WASHER 10 2 X 14 MET-141153920.A415 141153920 £1.50 £1.80
50 - FLANGE COMPL. MET-343433280.A20 343433280 £11.78 £14.13
51 - NUT MET-341102460.A49 341102460 £3.82 £4.59
52 - BEVEL GEAR W.PINION MET-316054980.A125 316054980 £22.61 £27.13
53 - FRICTION WASHER SET COMPL. MET-316055080.A243 316055080 £17.55 £21.06
54 - GEAR HOUSING COMPL. MET-316055100.A167 316055100 £54.94 £65.93
55 - SAFETY CLUTCH W.PINION MET-316054260.A24 316054260 £73.52 £88.23
57 - FAN W. DUST GUARD MET-316054850.A137 316054850 £5.62 £6.75
58 - CARBONBRUSH WITH BRUSHOLDER SET 230V MET-316067170.A32 316067170 £17.55 £21.06
59 - CLAMPING LEVER COMPL. MET-316066040.A268 316066040 £15.41 £18.49
61 - RETAINING RING MET-141156650.A168 141156650 £1.50 £1.80
62 - O-RING MET-143196000.A119 143196000 -
63 - PRESSURE SPRING MET-342003390.A275 342003390 £1.50 £1.80
64 - PUSH BUTTON MET-343433130.A26 343433130 £1.66 £1.99
65 - BOLT MET-341515640.A123 341515640 £2.94 £3.53
70 - TACHO DISC MET-343433060.A117 343433060 £3.82 £4.59
71 - PIVOTING SWITCH MET-343433090.A155 343433090 £1.50 £1.80
72 - WASHER MET-339007800.A109 339007800 £1.50 £1.80
75 - O-RING MET-143192490.A128 143192490 £3.20 £3.84
92 - O-RING MET-143195640.A157 143195640 £2.94 £3.53
880 - GREASE 100G MET-344130920.A467 344130920 £19.18 £23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A128 344130560 £19.18 £23.02
1001 - DIAGRAM MET-338505780.A39 338505780 -
1005 - CABLE WITH SLEEVE MET-316067320.A52 316067320 £32.88 £39.45
