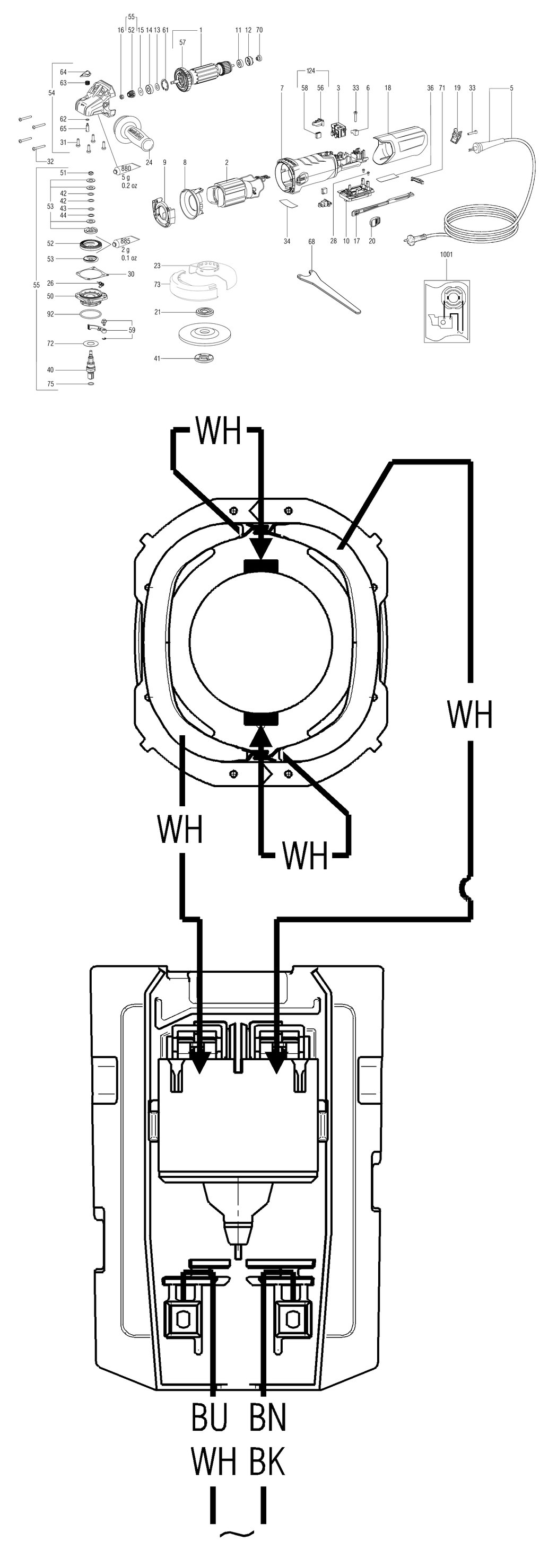

An exploded diagram and spare parts listing for the Metabo WE 15-125 S IK / 21030001 / 99
Ex VAT Inc VAT
1 - ARMATURE COMPL. 230V MET-310010990.A56 310010990 £68.35 £82.02
2 - FIELD COIL W.FIELD COIL 230 V MET-311012180.A18 311012180 £54.94 £65.93
3 - SWITCH 2-POLE MET-343410290.A11 343410290 £13.63 £16.36
5 - CABLE WITH SLEEVE MET-316067320.A22 316067320 £32.88 £39.45
6 - CABLE CLIP MET-343362490.A229 343362490 £3.20 £3.84
7 - MOTOR HOUSING 2 PART MET-315013520.A30 315013520 £13.63 £16.36
8 - BAFFLE MET-339151180.A13 339151180 £2.94 £3.53
9 - BAFFLE MET-339151200.A21 339151200 £2.94 £3.53
10 - ELECTRONIC UNIT 230V 50/60HZ MET-343083780.A6 343083780 £48.88 £58.66
11 - BALL BEARING 6X19X6 MET-143115690.A420 143115690 £3.82 £4.59
12 - RUBBER BUSHING MET-344097870.A473 344097870 £1.50 £1.80
13 - WASHER MET-339133060.A177 339133060 £1.50 £1.80
14 - BALL BEARING 8X22X7 MET-143115700.A156 143115700 £4.76 £5.71
15 - WASHER MET-339006390.A348 339006390 £1.50 £1.80
16 - HEXAGON NUT W.RECESS MET-341100940.A111 341100940 £3.20 £3.84
17 - SWITCH ROD MET-343433070.A33 343433070 £1.50 £1.80
18 - CAP MET-343433030.A146 343433030 £5.62 £6.75
19 - END CAP MET-343433100.A132 343433100 £2.94 £3.53
20 - SWITCH SLIDE MET-343437100.A40 343437100 £2.94 £3.53
21 - CLAMPING FLANGE MET-341031160.A498 341031160 £15.41 £18.49
23 - WHEEL GUARD D125 MET-339204500.A138 339204500 £11.78 £14.13
24 - ANTI-VIBRATION HANDLE M 8 MET-314000970.A86 314000970 £19.18 £23.02
26 - SPRING CLIP MET-342022490.A227 342022490 £2.94 £3.53
28 - FILL. HEAD SCREW(DIN 7985) MET-141121430.A16 141121430 £1.50 £1.80
30 - GASKET MET-339011970.A293 339011970 £1.50 £1.80
31 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A83 141121640 £1.50 £1.80
32 - SELF-TAP. FILL. H. SCREW MET-141116980.A265 141116980 £1.50 £1.80
33 - SELF-TAP. FILL. H. SCREW MET-141117060.A664 141117060 £3.20 £3.84
34 - RATING PLATE MET-338064390.A0 338064390 -
36 - PART NOT NEEDED MET-399999990.A437 399999990 -
40 - SPINDLE M14 MET-341604420.A50 341604420 £17.55 £21.06
41 - FLANGE NUT MET-341106900.A17 341106900 £11.78 £14.13
42 - WASHER 10 2 X 14 MET-141151120.A138 141151120 £1.50 £1.80
43 - WASHER 10 2 X 14 MET-141152300.A360 141152300 £3.20 £3.84
44 - WASHER 10 2 X 14 MET-141153920.A188 141153920 £1.50 £1.80
50 - FLANGE COMPL. MET-343433280.A235 343433280 £11.78 £14.13
51 - NUT MET-341102460.A287 341102460 £3.82 £4.59
52 - BEVEL GEAR W.PINION MET-316054980.A24 316054980 £22.61 £27.13
53 - FRICTION WASHER SET COMPL. MET-316055080.A110 316055080 £17.55 £21.06
54 - GEAR HOUSING COMPL. MET-316055100.A97 316055100 £54.94 £65.93
55 - SAFETY CLUTCH W.PINION MET-316054260.A16 316054260 £73.52 £88.23
56 - BRUSH HOLDER SET MET-316065420.A139 316065420 £17.55 £21.06
57 - FAN W. DUST GUARD MET-316054850.A229 316054850 £5.62 £6.75
58 - CARBON BRUSH SET CUT-OFF MET-316065450.A53 316065450 £15.41 £18.49
59 - CLAMPING LEVER COMPL. MET-316066040.A88 316066040 £15.41 £18.49
61 - RETAINING RING MET-141156650.A22 141156650 £1.50 £1.80
62 - O-RING MET-143196000.A195 143196000 -
63 - PRESSURE SPRING MET-342003390.A379 342003390 £1.50 £1.80
64 - PUSH BUTTON MET-343433130.A212 343433130 £1.66 £1.99
65 - BOLT MET-341515640.A296 341515640 £2.94 £3.53
68 - PIN SPANNER MET-344163920.A73 344163920 £4.76 £5.71
70 - TACHO DISC MET-343433060.A208 343433060 £3.82 £4.59
71 - PIVOTING SWITCH MET-343433090.A10 343433090 £1.50 £1.80
72 - WASHER MET-339007800.A93 339007800 £1.50 £1.80
75 - O-RING MET-143192490.A42 143192490 £3.20 £3.84
92 - O-RING MET-143195640.A140 143195640 £2.94 £3.53
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V MET-316067170.A111 316067170 £17.55 £21.06
880 - GREASE 100G MET-344130920.A184 344130920 £19.18 £23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A385 344130560 £19.18 £23.02
1001 - DIAGRAM MET-338505780.A102 338505780 -
