1 - ARMATURE COMPL. 230V
MET-310010990.A24
310010990
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311012180.A68
311012180
|
£54.94
|
£65.93
|
|
|
3 - SWITCH 2-POLE
MET-343410290.A35
343410290
|
£13.63
|
£16.36
|
|
|
4 - PART NOT NEEDED
MET-399999990.A1821
399999990
|
-
|
|
|
|
5 - PART NOT NEEDED
MET-399999990.A1822
399999990
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A866
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING 2 PART
MET-315013520.A119
315013520
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151180.A118
339151180
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A260
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 230V 50/60HZ
MET-343083780.A14
343083780
|
£48.88
|
£58.66
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A410
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A152
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A13
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A348
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A189
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A464
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433070.A152
343433070
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433030.A79
343433030
|
£5.62
|
£6.75
|
|
|
19 - END CAP
MET-343433100.A56
343433100
|
£2.94
|
£3.53
|
|
|
20 - SWITCH SLIDE
MET-343437100.A175
343437100
|
£2.94
|
£3.53
|
|
|
21 - CLAMPING FLANGE
MET-341031160.A193
341031160
|
£15.41
|
£18.49
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A63
339204500
|
£11.78
|
£14.13
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A354
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A94
342022490
|
£2.94
|
£3.53
|
|
|
28 - FILL. HEAD SCREW(DIN 7985)
MET-141121430.A63
141121430
|
£1.50
|
£1.80
|
|
|
30 - GASKET
MET-339011970.A61
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A460
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A162
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A327
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338060190.A1
338060190
|
£1.50
|
£1.80
|
|
|
36 - PART NOT NEEDED
MET-399999990.A1823
399999990
|
-
|
|
|
|
40 - SPINDLE M14
MET-341604420.A93
341604420
|
£17.55
|
£21.06
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A131
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A319
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A160
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A319
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A66
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A158
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A66
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A200
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A218
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054260.A50
316054260
|
£73.52
|
£88.23
|
|
|
56 - BRUSH HOLDER SET
MET-316065420.A34
316065420
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A90
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316065450.A26
316065450
|
£15.41
|
£18.49
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A169
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A239
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A58
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A104
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A64
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A51
341515640
|
£2.94
|
£3.53
|
|
|
70 - TACHO DISC
MET-343433060.A25
343433060
|
£3.82
|
£4.59
|
|
|
71 - PIVOTING SWITCH
MET-343433090.A94
343433090
|
£1.50
|
£1.80
|
|
|
72 - WASHER
MET-339007800.A158
339007800
|
£1.50
|
£1.80
|
|
|
75 - O-RING
MET-143192490.A100
143192490
|
£3.20
|
£3.84
|
|
|
92 - O-RING
MET-143195640.A247
143195640
|
£2.94
|
£3.53
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A45
316067170
|
£17.55
|
£21.06
|
|
|
880 - GREASE 100G
MET-344130920.A317
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A299
344130560
|
£19.18
|
£23.02
|
|
|

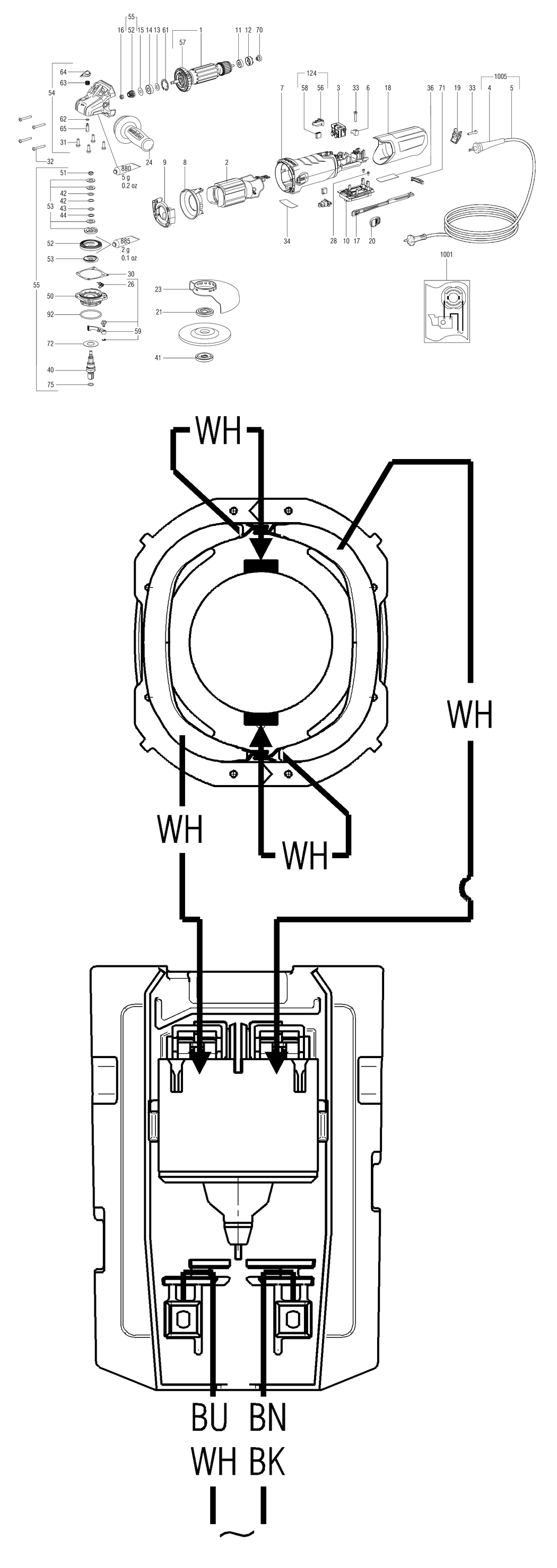

1001 - DIAGRAM
MET-338505780.A22
338505780
|
-
|
|
|
|
1005 - CABLE WITH SLEEVE
MET-316067320.A45
316067320
|
£32.88
|
£39.45
|
|
