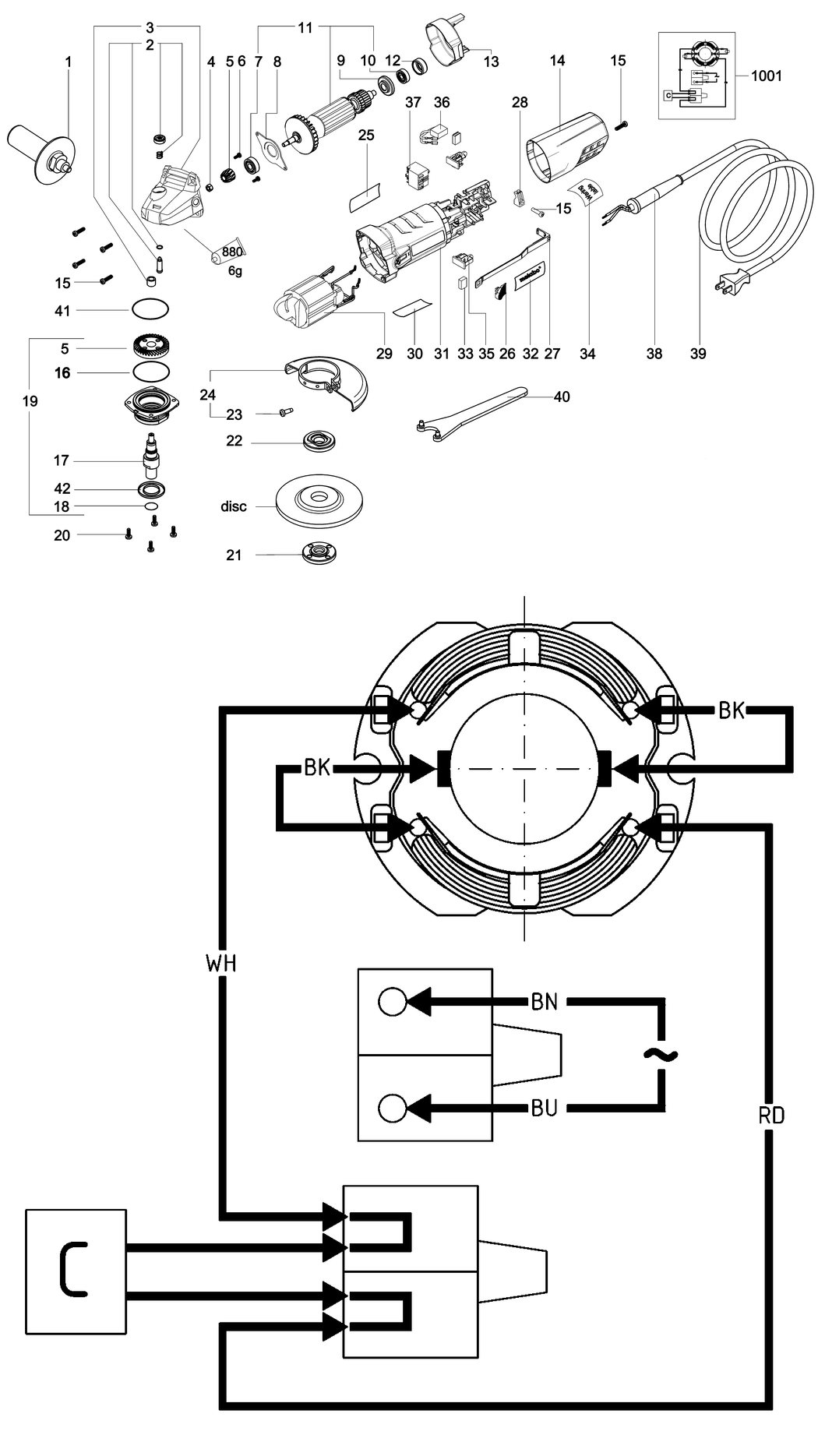

1 - HANDLE CPL.
MET-314000540.A42
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A223
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316063640.A19
316063640
|
£32.88
|
£39.45
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A278
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316047700.A5
316047700
|
£22.61
|
£27.13
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A116
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A2
143115420
|
£8.37
|
£10.04
|
|
|
8 - FIXED BEARING COVER
MET-315417490.A42
315417490
|
-
|
|
|
|
9 - SEALING WASHER
MET-343392740.A78
343392740
|
£6.38
|
£7.65
|
|
|
10 - BALL BEARING 6X19X6
MET-143115040.A10
143115040
|
£8.37
|
£10.04
|
|
|
11 - ARMATURE CPL. 230 V
MET-310010720.A12
310010720
|
-
|
|
|
|
12 - RUBBER BUSHING
MET-344095260.A193
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-339153510.A6
339153510
|
-
|
|
|
|
14 - MOTOR CAP
MET-343443940.A0
343443940
|
-
|
|
|
|
15 - SELF-TAP FILL H SCREW
MET-141116020.A543
141116020
|
£3.20
|
£3.84
|
|
|
16 - O-RING
MET-143195920.A31
143195920
|
-
|
|
|
|
17 - SPINDLE
MET-341604180.A8
341604180
|
-
|
|
|
|
18 - PART NOT NEEDED
MET-399999990.A2356
399999990
|
-
|
|
|
|
19 - FLANGE COMPL.
MET-316064050.A0
316064050
|
-
|
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A235
141120070
|
£1.50
|
£1.80
|
|
|
21 - CLAMPING NUT
MET-341102050.A19
341102050
|
£7.36
|
£8.83
|
|
|
22 - CLAMPING FLANGE
MET-341031890.A19
341031890
|
£4.76
|
£5.71
|
|
|
23 - FILLISTER HEAD SCREW
MET-141124060.A36
141124060
|
-
|
|
|
|
24 - WHEEL GUARD COMPL. dia100
MET-339203650.A10
339203650
|
-
|
|
|
|
25 - M-LABEL 08 52X22
MET-338122160.A94
338122160
|
£1.50
|
£1.80
|
|
|
26 - SWITCH SLIDE
MET-343409810.A6
343409810
|
£3.82
|
£4.59
|
|
|
27 - SWITCH ROD
MET-343411490.A0
343411490
|
£2.94
|
£3.53
|
|
|
28 - CABLE CLIP
MET-343362490.A1127
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL
MET-311011820.A10
311011820
|
-
|
|
|
|
30 - RATING PLATE
MET-338054300.A0
338054300
|
-
|
|
|
|
31 - MOTOR HOUSING
MET-343443930.A16
343443930
|
-
|
|
|
|
32 - METABO PLATE
MET-338122540.A124
338122540
|
£1.50
|
£1.80
|
|
|
33 - CARBON BRUSH
MET-316049670.A0
316049670
|
£13.63
|
£16.36
|
|
|
35 - BRUSH HOLDER
MET-343012950.A53
343012950
|
£3.82
|
£4.59
|
|
|
36 - CONDENSER
MET-343254290.A43
343254290
|
£2.94
|
£3.53
|
|
|
37 - SWITCH
MET-343408260.A46
343408260
|
£7.36
|
£8.83
|
|
|
38 - CABLE SLEEVE
MET-344097360.A55
344097360
|
£2.94
|
£3.53
|
|
|
39 - CABLE WITH PLUG
MET-344498430.A9
344498430
|
-
|
|
|
|
40 - PIN SPANNER
MET-344163930.A14
344163930
|
£3.82
|
£4.59
|
|
|
41 - COMPENSATING WASHER
MET-339060160.A134
339060160
|
£3.20
|
£3.84
|
|
|
880 - GREASE 100G
MET-344130910.A104
344130910
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338504470.A113
338504470
|
-
|
|
|
