1 - ANTI-VIBRATION HANDLE M 14
MET-314000960.A22
314000960
|
£30.06
|
£36.07
|
|
|
2 - SELF LOCKING NUT
MET-341100660.A141
341100660
|
£4.76
|
£5.71
|
|
|
3 - BEVEL GEAR
MET-316025280.A7
316025280
|
£68.35
|
£82.02
|
|
|
4 - SPACER RING
MET-341011510.A25
341011510
|
£7.36
|
£8.83
|
|
|
5 - ELT RING
MET-143192440.A29
143192440
|
£4.76
|
£5.71
|
|
|
6 - COVER WASHER
MET-339070080.A29
339070080
|
£3.20
|
£3.84
|
|
|
7 - BALL BEARING 12X37X12
MET-143110670.A4
143110670
|
£22.61
|
£27.13
|
|
|
8 - BEARING COVER
MET-339005920.A2
339005920
|
£3.82
|
£4.59
|
|
|
9 - ARMATURE COMPL. 230 V
MET-310009880.A1
310009880
|
£86.42
|
£103.71
|
|
|
10 - BALL BEARING 8X22X7
MET-143115800.A273
143115800
|
£3.83
|
£4.60
|
|
|
11 - RUBBER BEARING
MET-344094080.A29
344094080
|
£2.60
|
£3.12
|
|
|
12 - BAFFLE
MET-339150950.A10
339150950
|
£4.76
|
£5.71
|
|
|
13 - SELF-TAP. FILL. H. SCREW
MET-141121680.A8
141121680
|
£1.50
|
£1.80
|
|
|
14 - FIELD COIL
MET-311009590.A111
311009590
|
£36.59
|
£43.91
|
|
|
15 - STRAND
MET-344493690.A7
344493690
|
£3.20
|
£3.84
|
|
|
16 - SELF-TAP. FILL. H. SCREW
MET-141119370.A8
141119370
|
£1.50
|
£1.80
|
|
|
17 - FILLISTER HEAD SCREW
MET-141122020.A196
141122020
|
£1.50
|
£1.80
|
|
|
18 - GEAR HOUSING CPL.
MET-316031720.A32
316031720
|
£61.08
|
£73.30
|
|
|
19 - FILLISTER HEAD SCREW
MET-141119850.A89
141119850
|
£1.50
|
£1.80
|
|
|
20 - SEALING RING
MET-339060140.A10
339060140
|
£3.20
|
£3.84
|
|
|
21 - GEAR FLANGE CPL.
MET-316025680.A1
316025680
|
£48.88
|
£58.66
|
|
|
22 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A586
141121640
|
£1.50
|
£1.80
|
|
|
23 - SPINDLE SHAFT
MET-341602980.A41
341602980
|
£32.88
|
£39.45
|
|
|
24 - WHEEL GUARD CPL.
MET-316022730.A1
316022730
|
£54.94
|
£65.93
|
|
|
25 - CLAMPING FLANGE
MET-341031160.A222
341031160
|
£15.41
|
£18.49
|
|
|
26 - FLANGE NUT
MET-341106900.A327
341106900
|
£11.78
|
£14.13
|
|
|
27 - INDICATION LABEL
MET-338117330.A4
338117330
|
-
|
|
|
|
28 - SCREW
MET-341702050.A118
341702050
|
£1.50
|
£1.80
|
|
|
29 - COVER
MET-343376430.A22
343376430
|
£3.20
|
£3.84
|
|
|
30 - CARBON BRUSH
MET-316033950.A2
316033950
|
£22.61
|
£27.13
|
|
|
31 - BRUSH GUIDE
MET-343000770.A25
343000770
|
£8.37
|
£10.04
|
|
|
32 - MOTOR HOUSING
MET-315012760.A31
315012760
|
£26.35
|
£31.62
|
|
|
34 - HANDLE (UPPER+UNDER PART)
MET-343368540.A3
343368540
|
£30.06
|
£36.07
|
|
|
35 - SELF-TAP FILL H SCREW
MET-141116020.A268
141116020
|
£3.20
|
£3.84
|
|
|
36 - CONDENSER
MET-343253890.A5
343253890
|
£11.78
|
£14.13
|
|
|
37 - SWITCH
MET-343405810.A1
343405810
|
-
|
|
|
|
38 - CABLE CLIP
MET-339127730.A138
339127730
|
£1.50
|
£1.80
|
|
|
40 - CABLE SLEEVE
MET-344094550.A108
344094550
|
£3.82
|
£4.59
|
|
|
41 - CABLE CHINESE
MET-344493630.A11
344493630
|
£36.59
|
£43.91
|
|
|
42 - PIN SPANNER
MET-344160840.A52
344160840
|
£7.36
|
£8.83
|
|
|
43 - METABO LABEL
MET-338115980.A2
338115980
|
£3.82
|
£4.59
|
|
|
44 - RATING PLATE
MET-338043070.A0
338043070
|
-
|
|
|
|
45 - LOCKING LEVER
MET-343369570.A2
343369570
|
£3.82
|
£4.59
|
|
|
46 - PRESSURE SPRING
MET-342002170.A99
342002170
|
£1.50
|
£1.80
|
|
|
47 - PART NOT NEEDED
MET-399999990.A1323
399999990
|
-
|
|
|
|
48 - PART NOT NEEDED
MET-399999990.A1324
399999990
|
-
|
|
|
|
49 - PART NOT NEEDED
MET-399999990.A1325
399999990
|
-
|
|
|
|
50 - PART NOT NEEDED
MET-399999990.A1326
399999990
|
-
|
|
|
|
51 - PART NOT NEEDED
MET-399999990.A1327
399999990
|
-
|
|
|
|
52 - PART NOT NEEDED
MET-399999990.A1328
399999990
|
-
|
|
|
|
54 - PART NOT NEEDED
MET-399999990.A1329
399999990
|
-
|
|
|
|
55 - SEALING WASHER
MET-343370770.A4
343370770
|
£1.50
|
£1.80
|
|
|
56 - PUSH BUTTON
MET-343376440.A16
343376440
|
£3.82
|
£4.59
|
|
|
57 - PRESSURE SPRING
MET-342001730.A40
342001730
|
£1.50
|
£1.80
|
|
|
58 - GUIDE BUSH
MET-341003970.A27
341003970
|
£5.62
|
£6.75
|
|
|
59 - THRUST BOLT
MET-341513810.A15
341513810
|
£3.20
|
£3.84
|
|
|
880 - GREASE 100G
MET-344130910.A176
344130910
|
£19.18
|
£23.02
|
|
|

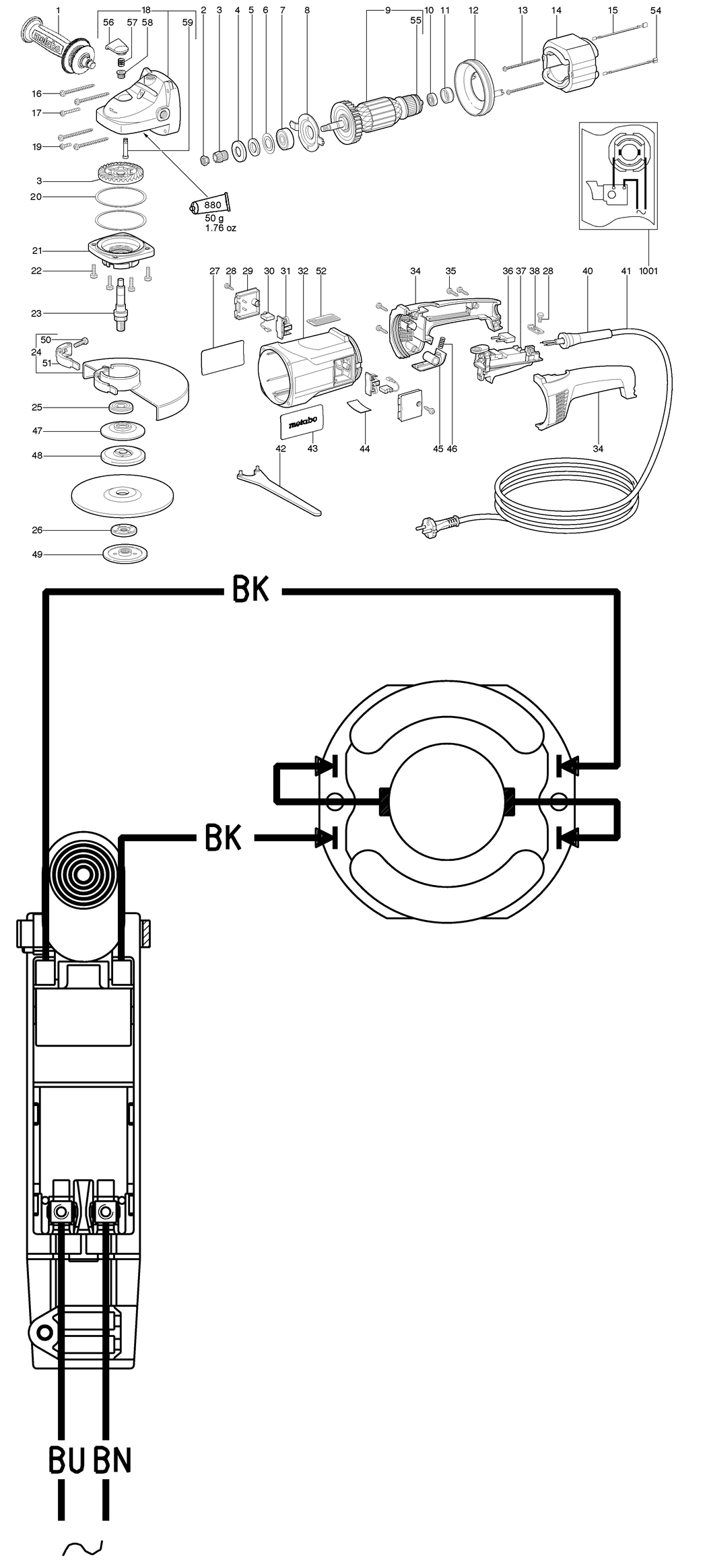

1001 - DIAGRAM
MET-338502110.A48
338502110
|
-
|
|
|
