1 - HANDLE CPL.
MET-314000960.A220
314000960
|
£30.06
|
£36.07
|
|
|
2 - PUSH BUTTON
MET-343376440.A13
343376440
|
£3.82
|
£4.59
|
|
|
3 - PRESSURE SPRING
MET-342001730.A36
342001730
|
£1.50
|
£1.80
|
|
|
4 - GUIDE BUSH
MET-341003970.A22
341003970
|
£5.62
|
£6.75
|
|
|
5 - GEAR HOUSING CPL.
MET-316031720.A36
316031720
|
£61.08
|
£73.30
|
|
|
6 - THRUST BOLT
MET-341513810.A11
341513810
|
£3.20
|
£3.84
|
|
|
7 - SELF LOCKING NUT
MET-341100660.A140
341100660
|
£4.76
|
£5.71
|
|
|
8 - BEVEL GEAR AND PINION
MET-316055460.A3
316055460
|
£42.65
|
£51.18
|
|
|
9 - SPACER RING
MET-341011510.A24
341011510
|
£7.36
|
£8.83
|
|
|
10 - ELT RING
MET-143192440.A28
143192440
|
£4.76
|
£5.71
|
|
|
11 - COVER WASHER
MET-339070080.A28
339070080
|
£3.20
|
£3.84
|
|
|
12 - BALL BEARING 12X37X12
MET-143115230.A13
143115230
|
£9.62
|
£11.54
|
|
|
13 - FIXED BEARING COVER
MET-339007280.A29
339007280
|
£4.76
|
£5.71
|
|
|
14 - ARMATURE CPL. 120 V
MET-310012320.A1
310012320
|
£60.03
|
£72.04
|
|
|
15 - BALL BEARING 8X22X7
MET-143115800.A272
143115800
|
£3.83
|
£4.60
|
|
|
16 - RUBBER BEARING
MET-344094080.A30
344094080
|
£2.60
|
£3.12
|
|
|
17 - BAFFLE
MET-339150950.A6
339150950
|
£4.76
|
£5.71
|
|
|
18 - SELF-TAP. FILL. H. SCREW
MET-141121680.A6
141121680
|
£1.50
|
£1.80
|
|
|
19 - FIELD COIL COMPL. 120V
MET-311012690.A0
311012690
|
£63.36
|
£76.03
|
|
|
20 - STRAND
MET-344494210.A6
344494210
|
£3.20
|
£3.84
|
|
|
21 - PART NOT NEEDED
MET-399999990.A1268
399999990
|
-
|
|
|
|
22 - STRAND
MET-344494200.A17
344494200
|
£3.20
|
£3.84
|
|
|
23 - SELF-TAP. FILL. H. SCREW
MET-141119370.A10
141119370
|
£1.50
|
£1.80
|
|
|
24 - FILLISTER HEAD SCREW
MET-141122020.A198
141122020
|
£1.50
|
£1.80
|
|
|
25 - FILLISTER HEAD SCREW
MET-141119850.A87
141119850
|
£1.50
|
£1.80
|
|
|
26 - SEALING RING
MET-339060140.A3
339060140
|
£3.20
|
£3.84
|
|
|
27 - GEAR FLANGE COMPL. D 230
MET-316047470.A18
316047470
|
£30.06
|
£36.07
|
|
|
28 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A588
141121640
|
£1.50
|
£1.80
|
|
|
29 - SPINDLE
MET-341604170.A0
341604170
|
-
|
|
|
|
31 - PART NOT NEEDED
MET-399999990.A1270
399999990
|
-
|
|
|
|
32 - FLANGE NUT
MET-341101480.A48
341101480
|
£11.78
|
£14.13
|
|
|
35 - CLAMPING FLANGE
MET-341031290.A102
341031290
|
£9.62
|
£11.54
|
|
|
36 - WHEEL GUARD COMPL. D 230
MET-316045000.A2
316045000
|
£26.35
|
£31.62
|
|
|
37 - SCREW
MET-341702050.A104
341702050
|
£1.50
|
£1.80
|
|
|
38 - COVER
MET-343376430.A27
343376430
|
£3.20
|
£3.84
|
|
|
39 - CARBON BRUSH SET 120V
MET-316047490.A5
316047490
|
£22.61
|
£27.13
|
|
|
40 - BRUSH GUIDE
MET-343000770.A20
343000770
|
£8.37
|
£10.04
|
|
|
41 - SELF-TAP FILL H SCREW
MET-141116020.A254
141116020
|
£3.20
|
£3.84
|
|
|
42 - HANDLE (UPPER+UNDER PART)
MET-343398260.A24
343398260
|
£15.41
|
£18.49
|
|
|
43 - SWITCH 230V/120V
MET-343409150.A34
343409150
|
£22.96
|
£27.55
|
|
|
44 - CABLE CLIP
MET-339127730.A129
339127730
|
£1.50
|
£1.80
|
|
|
45 - SELF-TAP. FILL. H. SCREW
MET-141116800.A52
141116800
|
£1.50
|
£1.80
|
|
|
46 - CABLE SLEEVE
MET-344094550.A124
344094550
|
£3.82
|
£4.59
|
|
|
47 - CABLE WITH PLUG
MET-344490920.A35
344490920
|
£36.59
|
£43.91
|
|
|
48 - INDICATION LABEL
MET-338117340.A11
338117340
|
£1.50
|
£1.80
|
|
|
49 - PIN SPANNER
MET-344160840.A66
344160840
|
£7.36
|
£8.83
|
|
|
50 - MOTOR HOUSING
MET-315012760.A33
315012760
|
£26.35
|
£31.62
|
|
|
51 - METABO LABEL
MET-338122080.A4
338122080
|
-
|
|
|
|
52 - RATING PLATE
MET-338060660.A0
338060660
|
-
|
|
|
|
53 - WARNING LABEL 52X22
MET-338122090.A148
338122090
|
-
|
|
|
|
54 - SNAP RING
MET-141180090.A11
141180090
|
£3.20
|
£3.84
|
|
|
55 - SEALING WASHER
MET-343435570.A6
343435570
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130910.A161
344130910
|
£19.18
|
£23.02
|
|
|

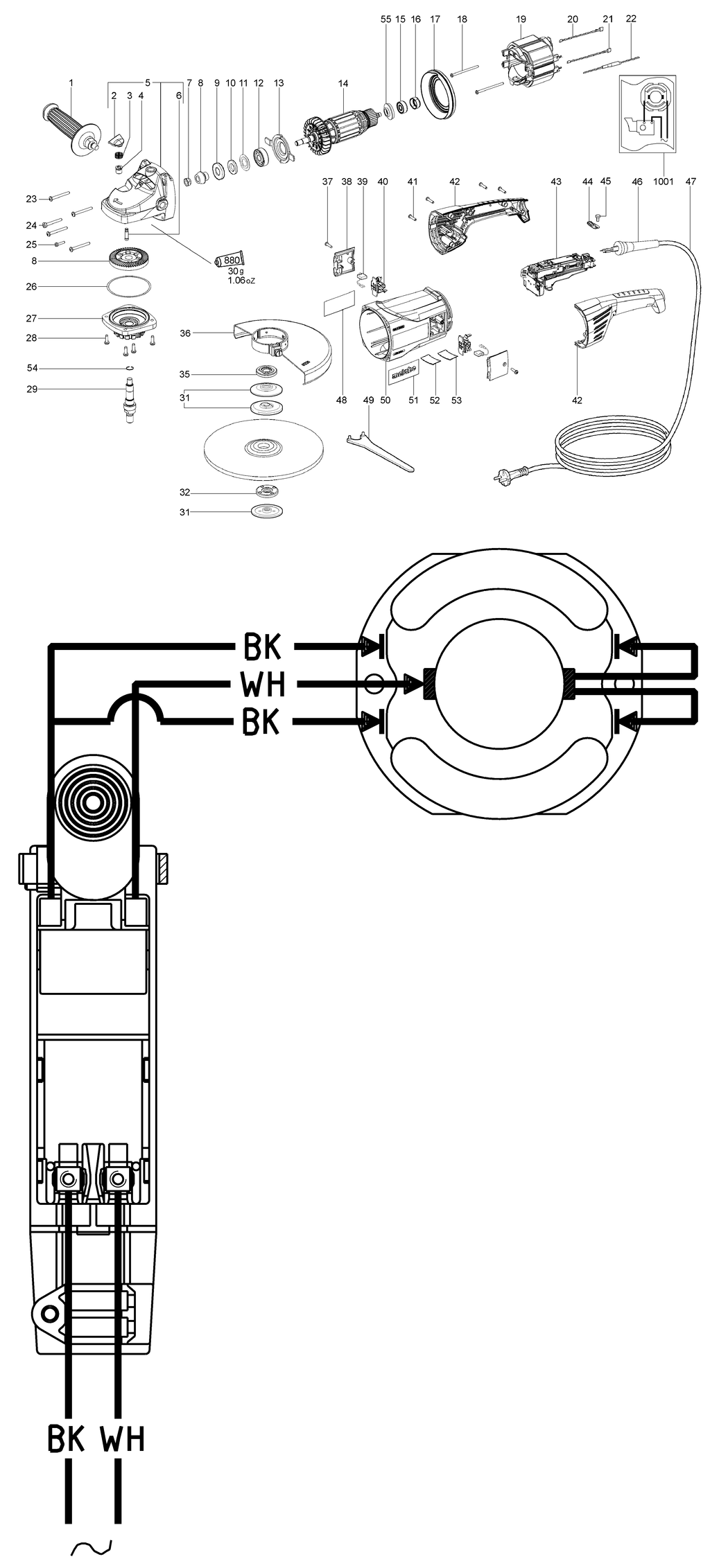

1001 - DIAGRAM
MET-338502660.A1
338502660
|
-
|
|
|
