1 - ANTI-VIBRATION HANDLE M 14
MET-314000960.A117
314000960
|
£30.06
|
£36.07
|
|
|
2 - PUSH BUTTON BLACK
MET-343399790.A70
343399790
|
£2.94
|
£3.53
|
|
|
3 - PRESSURE SPRING
MET-342003390.A431
342003390
|
£1.50
|
£1.80
|
|
|
4 - GUIDE BUSH
MET-341005830.A163
341005830
|
£5.62
|
£6.75
|
|
|
5 - GEAR HOUSING CPL.
MET-316045500.A160
316045500
|
£68.35
|
£82.02
|
|
|
6 - BOLT
MET-341515430.A161
341515430
|
£2.94
|
£3.53
|
|
|
7 - SELF LOCKING NUT
MET-341100660.A61
341100660
|
£4.76
|
£5.71
|
|
|
8 - BEVEL GEAR
MET-316045530.A105
316045530
|
£61.08
|
£73.30
|
|
|
9 - WASHER
MET-141123870.A144
141123870
|
£1.50
|
£1.80
|
|
|
10 - BALL BEARING 12X37X12
MET-143115510.A81
143115510
|
£6.38
|
£7.65
|
|
|
11 - FIXED BEARING COVER
MET-339007280.A155
339007280
|
£4.76
|
£5.71
|
|
|
12 - FAN W. DUST GUARD
MET-316045560.A4
316045560
|
£13.63
|
£16.36
|
|
|
13 - ARMATURE COMPL. 230 V
MET-310009480.A25
310009480
|
-
|
|
|
|
14 - SEALING WASHER
MET-343390630.A60
343390630
|
£2.94
|
£3.53
|
|
|
15 - BALL BEARING 8X22X7
MET-143115800.A263
143115800
|
£3.83
|
£4.60
|
|
|
16 - RUBBER BEARING
MET-344094080.A143
344094080
|
£2.60
|
£3.12
|
|
|
17 - BAFFLE
MET-339151130.A69
339151130
|
£2.94
|
£3.53
|
|
|
18 - SELF-TAP. FILL. H. SCREW
MET-141121680.A114
141121680
|
£1.50
|
£1.80
|
|
|
19 - FIELD COIL
MET-311009590.A91
311009590
|
£36.59
|
£43.91
|
|
|
20 - STRAND COMPL. 230V
MET-344498050.A21
344498050
|
-
|
|
|
|
21 - SELF-TAP. FILL. H. SCREW
MET-141119370.A154
141119370
|
£1.50
|
£1.80
|
|
|
22 - FILLISTER HEAD SCREW
MET-141122020.A64
141122020
|
£1.50
|
£1.80
|
|
|
23 - FILLISTER HEAD SCREW
MET-141119850.A152
141119850
|
£1.50
|
£1.80
|
|
|
24 - GASKET
MET-339011810.A98
339011810
|
£1.50
|
£1.80
|
|
|
25 - GEAR FLANGE CPL.
MET-316045550.A103
316045550
|
£54.94
|
£65.93
|
|
|
26 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A151
141121640
|
£1.50
|
£1.80
|
|
|
30 - SPINDLE SHAFT
MET-341602980.A80
341602980
|
£32.88
|
£39.45
|
|
|
31 - FLANGE NUT
MET-341106900.A157
341106900
|
£11.78
|
£14.13
|
|
|
32 - CLAMPING FLANGE
MET-341031160.A266
341031160
|
£15.41
|
£18.49
|
|
|
33 - WHEEL GUARD COMPL.
MET-316053510.A9
316053510
|
£32.88
|
£39.45
|
|
|
34 - SCREW
MET-341702050.A213
341702050
|
£1.50
|
£1.80
|
|
|
35 - BRUSH HOLDER COVER
MET-343395530.A110
343395530
|
£1.50
|
£1.80
|
|
|
36 - CARBON BRUSH SET 230 V
MET-316045570.A116
316045570
|
£19.18
|
£23.02
|
|
|
37 - BRUSH GUIDE
MET-343000950.A28
343000950
|
£9.62
|
£11.54
|
|
|
38 - SELF-TAP FILL H SCREW
MET-141116020.A1170
141116020
|
£3.20
|
£3.84
|
|
|
39 - HANDLE (UPPER+UNDER PART)
MET-343395510.A65
343395510
|
£13.63
|
£16.36
|
|
|
40 - RETAINING SHEET
MET-339007320.A91
339007320
|
£3.20
|
£3.84
|
|
|
41 - EDGE PROTECTION
MET-343398250.A35
343398250
|
£1.50
|
£1.80
|
|
|
42 - WITCH
MET-343409180.A9
343409180
|
£22.96
|
£27.55
|
|
|
43 - CABLE CLIP
MET-339127730.A84
339127730
|
£1.50
|
£1.80
|
|
|
44 - CABLE SLEEVE
MET-344094550.A60
344094550
|
£3.82
|
£4.59
|
|
|
45 - CABLE WITH PLUG
MET-344491990.A0
344491990
|
£54.94
|
£65.93
|
|
|
46 - PIN SPANNER
MET-344160840.A130
344160840
|
£7.36
|
£8.83
|
|
|
47 - MOTOR HOUSING
MET-315013300.A137
315013300
|
£22.61
|
£27.13
|
|
|
48 - RATING PLATE
MET-338054550.A2
338054550
|
-
|
|
|
|
49 - DAMPER
MET-343397490.A5
343397490
|
£11.78
|
£14.13
|
|
|
50 - LOCKING LEVER
MET-343395520.A51
343395520
|
£3.20
|
£3.84
|
|
|
51 - PRESSURE SPRING
MET-342002170.A46
342002170
|
£1.50
|
£1.80
|
|
|
52 - DUMMY PLUG
MET-343398410.A20
343398410
|
£2.94
|
£3.53
|
|
|
53 - SELF-TAP. FILL. H. SCREW
MET-141116800.A161
141116800
|
£1.50
|
£1.80
|
|
|
54 - PART NOT NEEDED
MET-399999990.A1004
399999990
|
-
|
|
|
|
71 - PART NOT NEEDED
MET-399999990.A1005
399999990
|
-
|
|
|
|
88 - SPACER BUSH
MET-341006090.A2
341006090
|
£2.94
|
£3.53
|
|
|
89 - FILLISTER HEAD SCREW
MET-141124190.A68
141124190
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A432
344130910
|
£19.18
|
£23.02
|
|
|

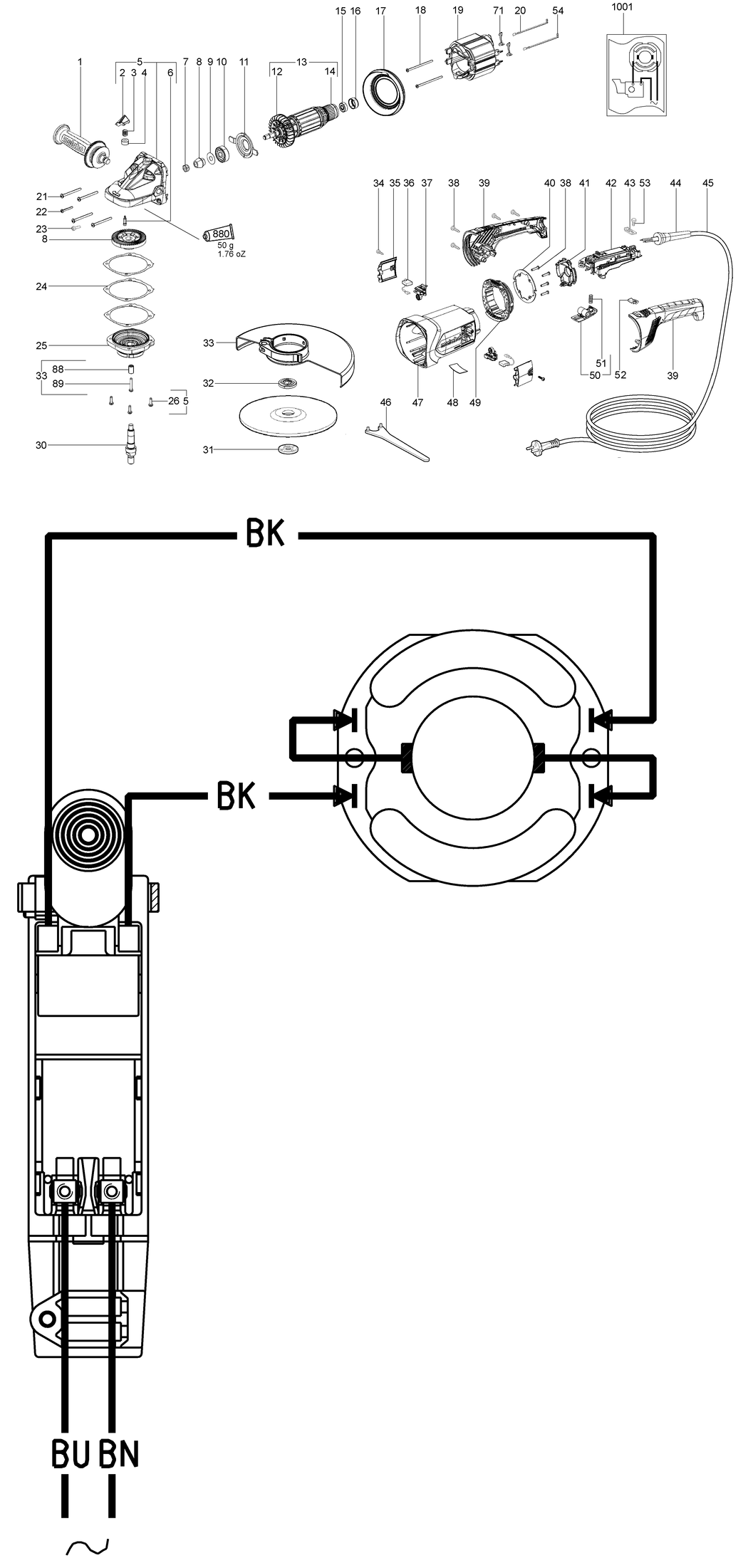

1001 - DIAGRAM
MET-338502110.A14
338502110
|
-
|
|
|
