Metabo UK 333 / 0103330000 12 / EU 230V Spare Parts

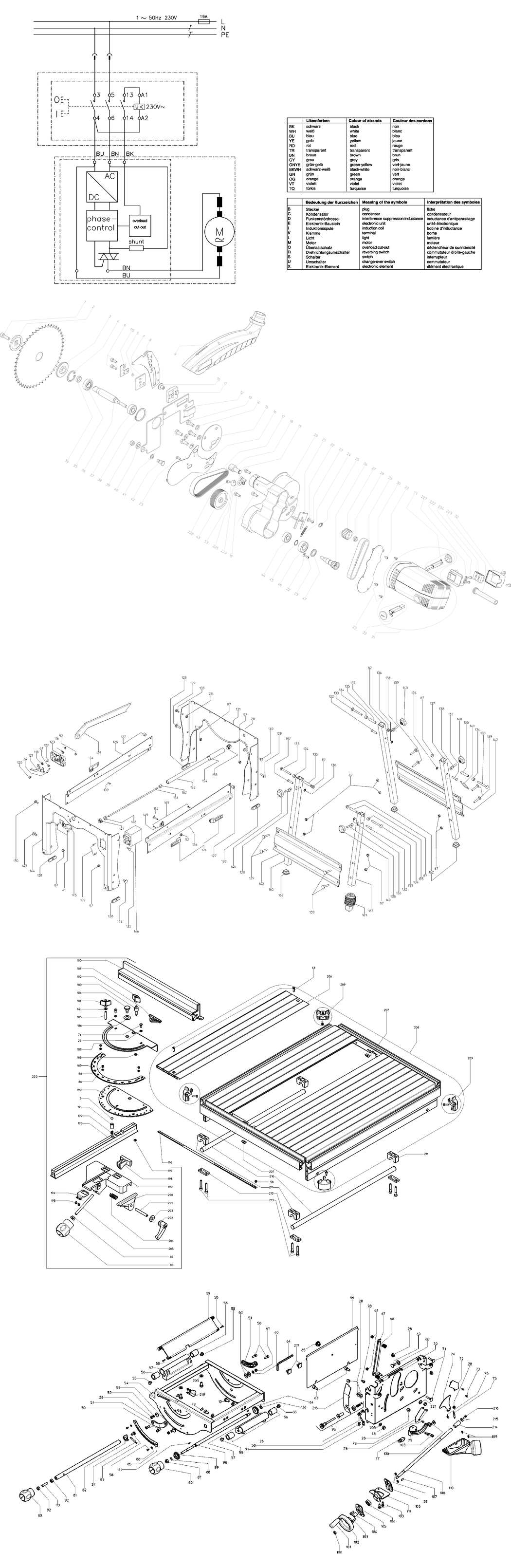

An exploded diagram and spare parts listing for the Metabo UK 333 / 0103330000 12 / EU 230V

	Ex VAT	Inc VAT
1 - CAP SCREW MET-6121000839.A27 6121000839	£1.50	£1.80
2 - BLADE COLLAR OUTER MET-1482221900.A18 1482221900	£7.36	£8.83
3 - BLADE COLLAR INNER MET-1485221618.A5 1485221618	£17.55	£21.06
4 - CIRCLIP FOR BORES MET-6401701620.A4 6401701620	£3.82	£4.59
5 - STEEL BALL RD 7 MET-7123148635.A20 7123148635	£1.50	£1.80
6 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6132661454.A16 6132661454	£1.50	£1.80
7 - RIVING KIFE PLATE MET-1482221595.A1 1482221595	£3.20	£3.84
8 - RIVING KNIFE MET-1482221587.A14 1482221587	£22.96	£27.55
9 - WHEEL GUARD CPL. MET-316057530.A3 316057530	£22.61	£27.13
10 - POSITIONING SCREW MET-1385701558.A3 1385701558	-
11 - RIVING KNIFE CARRIER UK333 MET-1380698273.A0 1380698273	-
12 - RIVING KNIFE CARRIER MET-1482701503.A1 1482701503	-
13 - HEX HEAD SCREW MET-6103001178.A72 6103001178	£1.50	£1.80
14 - CUP SPRING MET-7053075104.A10 7053075104	£1.50	£1.80
15 - FASTENING PLATE MET-1382701247.A3 1382701247	-
16 - COVER PLATE MET-1382701280.A3 1382701280	£15.41	£18.49
17 - POLY-RIB BELT MET-7233680626.A8 7233680626	£15.41	£18.49
18 - TIE BOLT MET-1385701302.A3 1385701302	£22.96	£27.55
19 - FILLISTER HEAD SCREW W.FLANGE MET-6143661561.A17 6143661561	£1.50	£1.80
20 - GEARBOX ENCLOSURE UK333 MET-1380698320.A4 1380698320	-
21 - SPINDLE LOCK MET-1482681839.A6 1482681839	£4.76	£5.71
22 - WASHER MET-141150020.A75 141150020	£1.50	£1.80
23 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A59 6172015687	£1.50	£1.80
24 - TENSION SPRING MET-7051074232.A14 7051074232	£3.20	£3.84
25 - RETAINING RING MET-141180060.A77 141180060	£1.50	£1.80
26 - INTERMEDIATE SHAFT MET-1385701205.A3 1385701205	£36.59	£43.91
27 - GEARWHEEL RD 30 5 Z=20 UK333 MET-7247701235.A2 7247701235	£30.06	£36.07
28 - FLANGE NUT MET-6209114230.A42 6209114230	£1.50	£1.80
29 - COGGED BELT MET-7231680580.A10 7231680580	£22.96	£27.55
30 - COVER PLATE MET-1382701263.A1 1382701263	£4.76	£5.71
31 - ELECTRIC MOTOR MET-1010701631.A1 1010701631	£249.12	£298.94
32 - LID TERMINAL BOX UK333 MET-1381707411.A4 1381707411	-
33 - CARBON BRUSH SET MET-1010710819.A1 1010710819	£42.65	£51.18
34 - BUSHING MET-1485701229.A1 1485701229	£6.38	£7.65
35 - DEEP GROOVE BALL BEARING MET-7100074090.A3 7100074090	£11.78	£14.13
36 - SAW BLADE SPINDLE MET-1385701213.A1 1385701213	£32.88	£39.45
37 - DEEP GROOVE BALL BEARING MET-7100083463.A2 7100083463	-
38 - RETAINING RING FOR SHAFTS MET-6400701600.A1 6400701600	£3.20	£3.84
39 - HEXAGONAL NUT MET-141131010.A34 141131010	£1.50	£1.80
40 - WASHER MET-6305713714.A3 6305713714	-
41 - CAP SCREW MET-141113690.A31 141113690	£3.20	£3.84
42 - BEARING BOLT MET-1395200611.A31 1395200611	£4.76	£5.71
43 - POLY-RIB PULLEY MET-1385701310.A1 1385701310	-
44 - DEEP GROOVE BALL BEARING MET-7100083463.A3 7100083463	-
45 - SNAP RING MET-141180090.A25 141180090	£3.20	£3.84
46 - DEEP GROOVE BALL BEARING MET-7100136915.A21 7100136915	£9.62	£11.54
47 - WASHER MET-1482680670.A6 1482680670	£1.50	£1.80
48 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6131714953.A3 6131714953	£2.94	£3.53
49 - COUNTERSUNK SCREW MET-6132175169.A19 6132175169	£1.50	£1.80
50 - CAP SCREW MET-6121023081.A20 6121023081	£1.50	£1.80
51 - SWIVEL SEGMENT MET-1380221442.A6 1380221442	£5.62	£6.75
52 - HEXAGONAL NUT MET-141130090.A41 141130090	£1.50	£1.80
53 - CAM PLATE MET-1485710066.A3 1485710066	-
54 - MOTORHEAD CARRIAGE MET-1010700766.A3 1010700766	-
55 - PLUG-IN BUFFER MET-2391203906.A28 2391203906	£1.50	£1.80
56 - LINEAR BALL BEARING MET-7121652050.A3 7121652050	£30.06	£36.07
57 - BEARING BLOCK RIGHT UK333 MET-1380698245.A4 1380698245	-
58 - RAISED CHEESE HEAD SCREW MET-6143639612.A0 6143639612	-
59 - SWIVEL PLATE UK333 MET-1381706318.A4 1381706318	-
60 - INSULATING WASHER MET-1321006635.A2 1321006635	-
61 - HEXAGONAL LOCK NUT MET-141130650.A149 141130650	£3.20	£3.84
62 - WASHER MET-141150130.A192 141150130	£1.50	£1.80
64 - ALLEN HEXAGON KEY MET-9102689833.A48 9102689833	£6.38	£7.65
65 - KNURLED NUT MET-6241125058.A23 6241125058	£3.20	£3.84
66 - COVER SAW BLADE HOUSING MET-1382701069.A3 1382701069	-
67 - GUIDE BRACKET MET-1482701538.A2 1482701538	-
68 - PRESSURE SPRING MET-7051207240.A61 7051207240	£1.50	£1.80
69 - CUP SQUARE NECK SCREW MET-6110000594.A43 6110000594	£1.50	£1.80
70 - SAW BLADE HOUSING MET-1382701085.A1 1382701085	-
71 - TRUSS HEAD SCREW MET-141124490.A1 141124490	£2.94	£3.53
72 - COVER PLATE MET-2382701359.A1 2382701359	-
73 - BLIND RIVET MUSHROOM HEAD MET-6621010474.A7 6621010474	£1.50	£1.80
74 - END CAP MET-1382710025.A1 1382710025	-
75 - TENSION SPRING RD 0 6X5 MET-7051710074.A2 7051710074	-
76 - THREAD CUTTING SCREW A MET-6175174166.A11 6175174166	£1.50	£1.80
77 - WING NUT MET-7005658068.A51 7005658068	£3.20	£3.84
79 - CLAMPING PLATE MET-1482704480.A0 1482704480	-
80 - KNOB RED MET-1388698264.A28 1388698264	£7.36	£8.83
81 - FEED ROD MET-1385701124.A2 1385701124	-
82 - LEVER MET-1482701112.A1 1482701112	-
83 - HEXAGON FIT BOLT MET-1485707430.A1 1485707430	-
84 - WOODRUFF KEY MET-6720083831.A3 6720083831	£2.94	£3.53
85 - ANGLE SCALE MET-1142215647.A3 1142215647	£6.38	£7.65
86 - WASHER MET-141150010.A29 141150010	£1.50	£1.80
87 - FLANGE NUT MET-6209110995.A11 6209110995	£1.50	£1.80
88 - RETAINING RING MET-141180030.A2 141180030	£1.50	£1.80
89 - GEARWHEEL UK333 MET-1380698214.A4 1380698214	-
90 - GEAR-WHEEL SHAFT MET-1485701571.A1 1485701571	-
91 - ANGLE POINTER MET-1482701368.A2 1482701368	-
92 - HEXAGON THIN NUT MET-6205029131.A51 6205029131	£1.50	£1.80
93 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A42 141124460	£2.94	£3.53
95 - BOLT UK 333 MET-1010723830.A3 1010723830	-
98 - CAP SCREW MET-141113840.A44 141113840	£3.20	£3.84
99 - WASHER MET-141151940.A164 141151940	£1.50	£1.80
100 - CAP NUT SELF-LOCKING MET-6208073395.A22 6208073395	£1.50	£1.80
101 - CRANK HANDLE RD 21X50/ M 6X13 DREHBAR MET-7004076740.A3 7004076740	-
102 - HANDWHEEL MET-7003079524.A2 7003079524	£22.61	£27.13
103 - HEXAGON SOCKET HEAD CAP SCREW MET-6127059193.A28 6127059193	£1.50	£1.80
104 - BUSHING MET-1485701334.A3 1485701334	-
105 - BEARING PLATE MET-1382701484.A2 1382701484	-
106 - DEEP GROOVE BALL BEARING MET-143115740.A31 143115740	£6.38	£7.65
107 - WOODRUFF KEY MET-6720008511.A1 6720008511	£1.50	£1.80
108 - FEED SPINDLE MET-1385701566.A2 1385701566	-
109 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6186602763.A6 6186602763	£1.50	£1.80
110 - DUST EXTRACTION PORT UK333 MET-1381701324.A9 1381701324	-
111 - ANGLE BRACKET MET-1382701387.A2 1382701387	-
114 - RAISED CHEESE HEAD SCREW MET-6123002049.A4 6123002049	£1.50	£1.80
115 - SPRING BAND MET-7052222014.A1 7052222014	£3.82	£4.59
118 - HEXAGON THIN NUT MET-6205029131.A52 6205029131	£1.50	£1.80
120 - HEX FIT BOLT MET-6104220876.A24 6104220876	£3.82	£4.59
121 - LOCKING LEVER MET-1482701031.A3 1482701031	-
122 - FLEXIBLE PRESSURE PIECE MET-7055043684.A2 7055043684	£9.62	£11.54
123 - COVER UK333 MET-1381708299.A3 1381708299	-
124 - CABLE BRACKET UK290/333 MET-1381706881.A0 1381706881	£2.94	£3.53
125 - PUSH STICK MET-1394201630.A72 1394201630	£9.62	£11.54
126 - SIDE-PANEL MET-1382700976.A2 1382700976	-
127 - BUSHING MET-1485700885.A3 1485700885	-
128 - RUBBER FOOT 57 3X13 MET-7057706400.A1 7057706400	£3.20	£3.84
129 - TRUSS HEAD SCREW MET-6110000659.A25 6110000659	£1.50	£1.80
130 - CUP SQUARE NECK SCREW MET-6110000608.A28 6110000608	£1.50	£1.80
131 - REAR PANEL MET-1382700925.A2 1382700925	-
132 - BOLT A MET-6632123360.A11 6632123360	-
133 - TRUSS HEAD SCREW MET-6110000667.A2 6110000667	£3.20	£3.84
134 - BUSHING MET-1485700850.A11 1485700850	-
135 - BUSHING MET-1485700877.A6 1485700877	-
136 - STARLOCK WITHOUT CAP MET-7016056183.A3 7016056183	£1.50	£1.80
137 - LEG MET-1383700848.A2 1383700848	-
138 - EYE BOLT MET-6141701671.A9 6141701671	-
139 - TRUSS HEAD SCREW MET-6110015990.A4 6110015990	£1.50	£1.80
140 - SETTING KNOB WITH RED CAP MET-1388701680.A1 1388701680	-
141 - RETAINING CLIP KGT 501 MET-1382680185.A9 1382680185	£3.82	£4.59
142 - CROSSHEAD MET-1382687112.A3 1382687112	£22.96	£27.55
143 - TRUSS HEAD SCREW MET-6110017942.A8 6110017942	£1.50	£1.80
144 - FRONT PANEL MET-1382700895.A2 1382700895	-
145 - SUPPORT PLATE MET-1382710050.A2 1382710050	-
146 - SWITCH KSK K570 UK333 MET-8133701649.A2 8133701649	-
147 - HOLDER CARRIAGE RETURN SPRING FÜR STOßD MET-1381216175.A2 1381216175	-
148 - VENT END PLUG MET-1381216167.A2 1381216167	-
149 - CABLE CLIP MET-8242051328.A2 8242051328	£3.82	£4.59
151 - PISTON ROD MET-1485701911.A2 1485701911	-
152 - PISTON SHOCK ABSORBER MET-1381216183.A2 1381216183	£3.20	£3.84
153 - PIPE MET-1381707489.A1 1381707489	-
154 - TENSION SPRING RDI 22X101X1 MET-7051221944.A2 7051221944	-
155 - VENT END PLUG MET-1381216159.A2 1381216159	-
157 - TRANSMISSION ASSEMBLY UK 333 MET-1010721004.A2 1010721004	-
160 - LEG MET-1383700821.A2 1383700821	-
161 - ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR MET-2010200787.A3 2010200787	£22.61	£27.13
162 - LAMELLAR PLUG BLACK MET-1391059264.A7 1391059264	£1.50	£1.80
163 - LEG MET-1383700830.A6 1383700830	-
180 - FENCE GUIDE EXTRUSIO MET-1010720490.A2 1010720490	£26.35	£31.62
181 - WING NUT MET-7005658068.A52 7005658068	£3.20	£3.84
182 - CLAMPING PAD UK333 MET-1381698285.A10 1381698285	£3.20	£3.84
183 - CAM BOLT MET-1485701997.A2 1485701997	-
184 - HEXAGON FIT BOLT MET-1485706620.A2 1485706620	-
185 - HEX. SOCKET SET SCREW FLAT PT MET-6161183502.A7 6161183502	£1.50	£1.80
186 - CUP SPRING MET-7053063343.A54 7053063343	£1.50	£1.80
187 - ANGLE BRACKET MET-1382701930.A3 1382701930	-
188 - STARLOCK MET-7016122305.A14 7016122305	£1.50	£1.80
189 - ANGLE SCALE MET-1142215949.A1 1142215949	£15.41	£18.49
190 - SHIM PLATE MET-1482215935.A2 1482215935	£22.61	£27.13
191 - LOCK BOLT MET-1485215979.A22 1485215979	£5.62	£6.75
192 - PRESSURE SPRING MITRE FENCE MET-7051148694.A8 7051148694	£1.50	£1.80
193 - GUIDE MET-1383701968.A4 1383701968	-
194 - POINTER MITRE FENCE MET-1482216010.A2 1482216010	-
195 - FILLISTER HEAD SCREW MET-6172028215.A65 6172028215	£1.50	£1.80
196 - SCALE MET-1142708309.A3 1142708309	-
197 - GLIDE PIECE MET-2391202772.A34 2391202772	£1.50	£1.80
198 - LOCK PLATE MET-1380215981.A13 1380215981	£9.62	£11.54
199 - CLAMPING PAD UK333 MET-1380701983.A7 1380701983	£63.36	£76.03
200 - CLAMPING LEVER MET-1380216031.A2 1380216031	-
201 - HEX. SOCKET SET SCREW FLAT PT MET-6161029120.A5 6161029120	£3.20	£3.84
202 - RATCHET LOCK LEVER FEMALE MET-7006028653.A2 7006028653	£9.62	£11.54
203 - WASHER MET-141151340.A100 141151340	£1.50	£1.80
204 - PRESSURE SPRING MET-7051207240.A60 7051207240	£1.50	£1.80
205 - HEX. SOCKET SET SCREW DOG PT. MET-6163198736.A16 6163198736	£5.62	£6.75
206 - REMOVABLE TABLE SECTION MET-1383696484.A3 1383696484	-
207 - CAGE NUT MET-6264714948.A3 6264714948	-
208 - TABLE ASSEMBLY MET-1010707508.A2 1010707508	-
209 - CORNER BRACKE MET-1010710835.A7 1010710835	-
210 - GUIDE BAR MET-1385701663.A1 1385701663	-
211 - PRISMENFUEHRUNG UK333 MET-1380698222.A1 1380698222	-
212 - FLAT BAR MET-1482653304.A2 1482653304	-
213 - CAP SCREW MET-141113910.A6 141113910	£3.20	£3.84
214 - BUSHING 16X1 8X32 UK333 MET-1482711290.A3 1482711290	-
215 - WASHER MET-1482711282.A1 1482711282	-
216 - RAISED CHEESE HEAD SCREW MET-6123612815.A32 6123612815	£1.50	£1.80
217 - CABLE BRACKET 19X19 MET-8242711301.A3 8242711301	-
218 - CHIP DEFLECTOR MET-1482712750.A1 1482712750	-
219 - PRALLBLECH MET-1482712769.A3 1482712769	-
220 - UNIVERSAL FENCE MET-0910063057.A3 0910063057	-
222 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6172001805.A15 6172001805	£1.50	£1.80
223 - SLEEVE CABLE SUPPORT TYP 15-561 MET-1341016980.A9 1341016980	£3.20	£3.84
224 - TERMINAL BLOCK 2 5 MM² VDE 5VD4 301 /NR. MET-8216103930.A2 8216103930	£1.50	£1.80
225 - WASHER MET-141150120.A17 141150120	£1.50	£1.80
226 - SERRATED LOCK WASHER MET-141150420.A4 141150420	£1.50	£1.80
227 - STRAIN RELIEF MET-8242033664.A9 8242033664	£1.50	£1.80
228 - HEXAGON SOCKET HEAD CAP SCREW MET-6121121296.A5 6121121296	£1.50	£1.80

Attribute Name	Value
Brand	Metabo

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Metabo UK 333 / 0103330000 12 / EU 230V Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
