Metabo Table REAR EXTENSION 1600MM L-KGS305 / 0910061887 10 / - Spare Parts

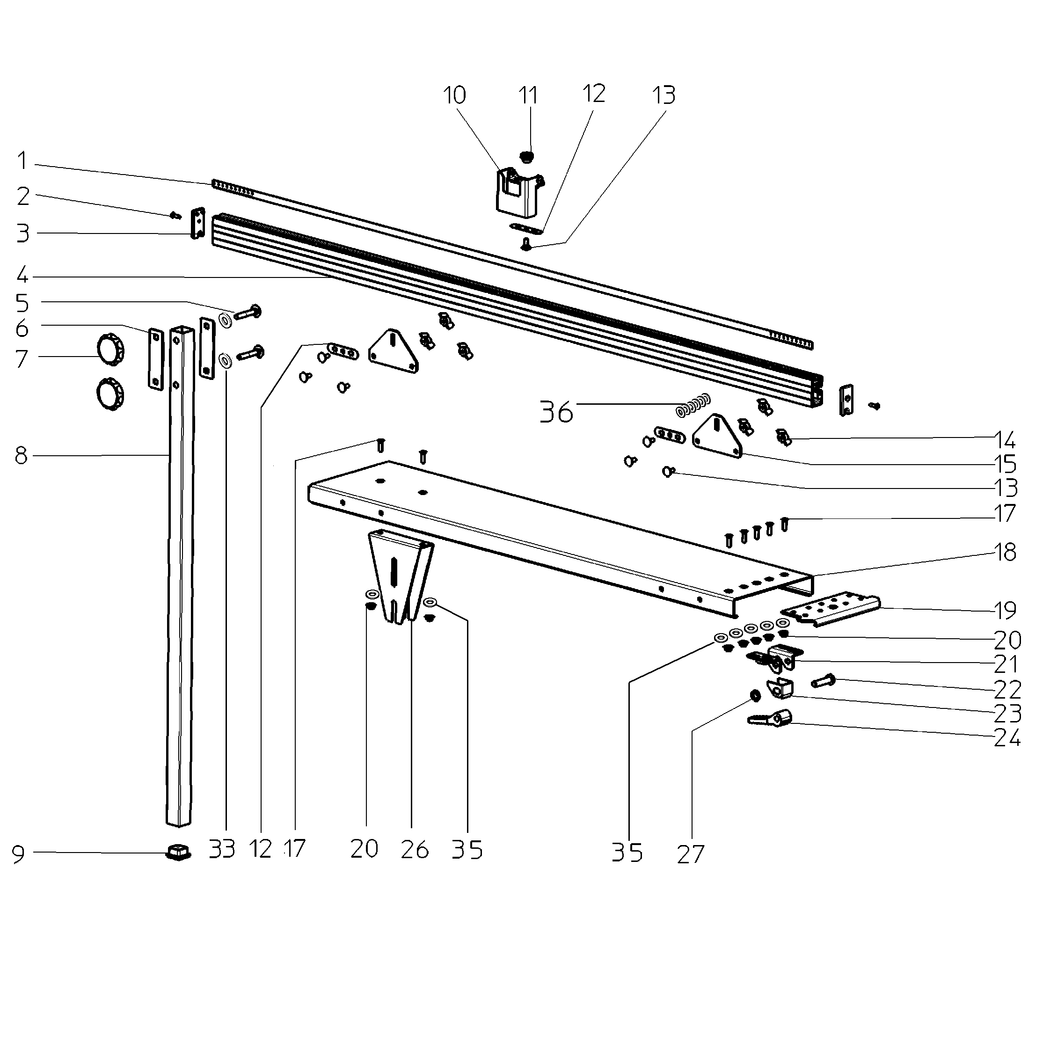

An exploded diagram and spare parts listing for the Metabo Table REAR EXTENSION 1600MM L-KGS305 / 0910061887 10 / -

	Ex VAT	Inc VAT
1 - SCALE 0 20X13X1410 26 MET-1142684701.A4 1142684701	£26.85	£32.22
2 - SELF-TAPP. COUNTERS. SCREW MET-6174155800.A46 6174155800	£1.50	£1.80
3 - END PIECE MET-2391203760.A11 2391203760	£3.20	£3.84
4 - MITRE FENCE EXTRUSION L=1410 MET-1393204296.A8 1393204296	-
5 - CUP SQUARE NECK SCREW M 8X50 VERZ. MET-6110080245.A6 6110080245	£1.50	£1.80
6 - STEEL PLATE BL 2X30X104 MET-1492057343.A4 1492057343	£2.60	£3.12
7 - STARKNOB NUT M 8 (DIN 934) VERZINKT MET-7000028937.A44 7000028937	£3.82	£4.59
8 - LEG 4KT 30X30X1 5X885 MET-1382690199.A1 1382690199	-
9 - LAMELLAR PLUG BLACK MET-1391059264.A17 1391059264	£1.50	£1.80
10 - FLIPSTOP MIT KLAPPE MET-2010200388.A23 2010200388	£8.37	£10.04
11 - KNURLED NUT MET-6241125058.A28 6241125058	£3.20	£3.84
12 - GUIDE PLATE FLIPSTOP MET-1392201587.A55 1392201587	£1.50	£1.80
13 - CUP SQUARE NECK SCREW MET-6110000594.A49 6110000594	£1.50	£1.80
14 - WING NUT M 6 GEW.-EINSATZ VERZINKT MET-7005125213.A11 7005125213	-
15 - FENCE PLATE BL 2 99X65X110 MET-1382690121.A3 1382690121	-
17 - SLOTTED FLAT HEAD SCREW M 6X20 VERZ. MET-6130019585.A24 6130019585	£1.50	£1.80
18 - EXTRUSION TABLE REAR EXTENSION BL 2 MET-1382690008.A1 1382690008	-
19 - CLAMPING PIECE BL 2 99X88X190 TVL MET-1382685063.A2 1382685063	-
20 - HEXAGONAL NUT MET-141130100.A85 141130100	£1.50	£1.80
21 - LEVER BEARING BL 2 99X60X112 TVL-KGS303 MET-1482684749.A7 1482684749	-
22 - BOLT WITH HEAD MET-6632111175.A34 6632111175	£3.82	£4.59
23 - CLAMPING PLATE BL 1X26X91 MET-1392205620.A40 1392205620	£3.20	£3.84
24 - CAM LOCK LEVER MET-2390205484.A28 2390205484	£9.62	£11.54
26 - LEG SUPPORT BL 2 00X120X320 MET-1492057106.A7 1492057106	£9.82	£11.79
27 - STARLOCK MET-7016050711.A98 7016050711	£1.50	£1.80
33 - WASHER MET-6300016705.A35 6300016705	£1.50	£1.80
35 - WASHER MET-141150130.A170 141150130	£1.50	£1.80
36 - SHIM RING MET-6306169970.A3 6306169970	-
