Metabo TPS 16000 S COMBI / 0251600000 10 / EU 230V Spare Parts

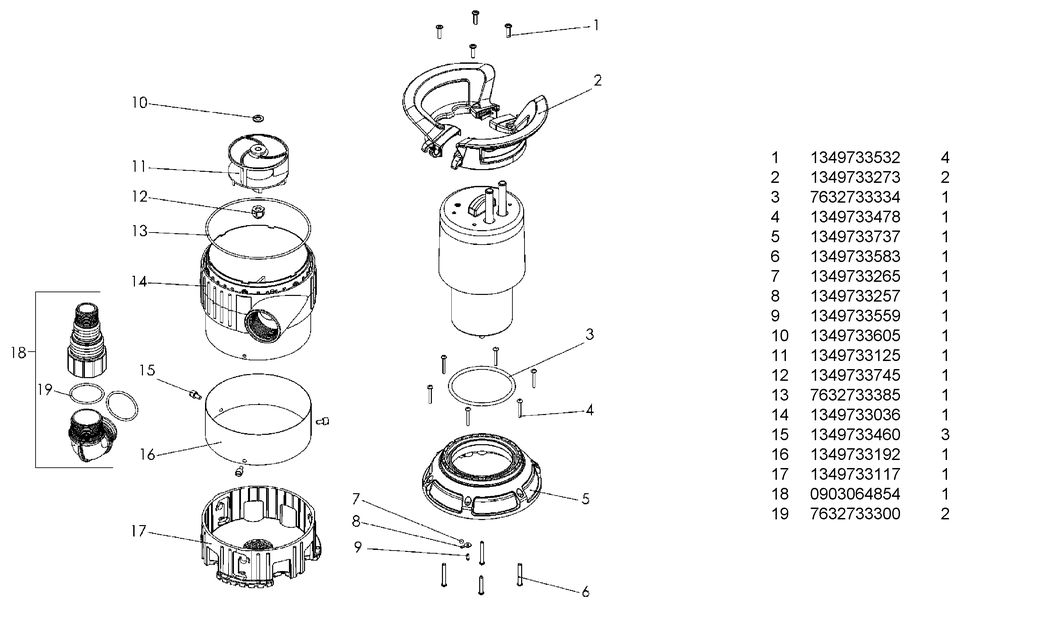

An exploded diagram and spare parts listing for the Metabo TPS 16000 S COMBI / 0251600000 10 / EU 230V

	Ex VAT	Inc VAT
1 - SCREW PT-KB 5X20 VA TP/TPF/TPS/PS MET-1349733532.A6 1349733532	-
2 - HANDLE TP/TPF/TPS/PS MET-1349733273.A4 1349733273	£22.61	£27.13
3 - O-RING 90X4 5 TP/TPF/TPS/PS MET-7632733334.A9 7632733334	-
4 - SCREW PT 30X3 5 TPS 14000/16000 S COMBI MET-1349733478.A0 1349733478	-
5 - INTERMEDIATE RING TPS 14000/16000 S COMB MET-1349733737.A1 1349733737	-
6 - SCREW PT-KB 5X45 VA TP/TPF/TPS/PS MET-1349733583.A2 1349733583	-
7 - BALL TP/TPF/TPS/PS MET-1349733265.A8 1349733265	-
8 - AIR WENT SHEET TP/TPF/TPS/PS MET-1349733257.A2 1349733257	-
9 - SCREW PT-KB 3X8 VA TP/TPF/TPS/PS MET-1349733559.A9 1349733559	-
10 - WASHER MET-1349733605.A2 1349733605	-
11 - IMPELLER TPS 16000 S COMBI MET-1349733125.A0 1349733125	-
12 - HEXAGONAL NUT MET-1349733745.A0 1349733745	-
13 - O-RING 150X3 TPS 14000/16000 S COMBI MET-7632733385.A1 7632733385	-
14 - PUMP CASING TPS 14000/16000 S COMBI MET-1349733036.A0 1349733036	-
15 - SCHRAUBBOLZEN M5 MET-1349733460.A1 1349733460	-
16 - SHAFT COLLAR TPS 14000/16000 S COMBI MET-1349733192.A1 1349733192	-
17 - PUMP BASE TPS 16000 S COMBI MET-1349733117.A0 1349733117	-
18 - ANGLE CONNECTION WITH MULTI-ADAPTOR MET-0903064854.A1 0903064854	£13.30	£15.96
19 - O-RING 45X3 MET-7632733300.A1 7632733300	-
