Metabo TPF 6600 SN / 0250660006 10 / EU 230V Spare Parts

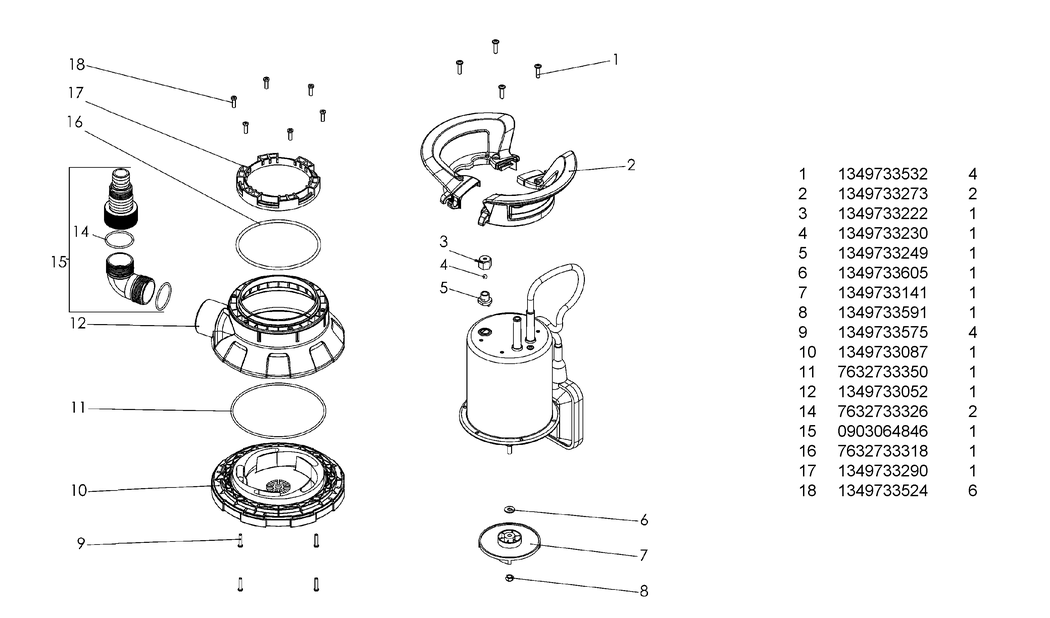

An exploded diagram and spare parts listing for the Metabo TPF 6600 SN / 0250660006 10 / EU 230V

	Ex VAT	Inc VAT
1 - SCREW PT-KB 5X20 VA TP/TPF/TPS/PS MET-1349733532.A3 1349733532	-
2 - HANDLE TP/TPF/TPS/PS MET-1349733273.A1 1349733273	£22.61	£27.13
3 - UNION NUT TPF 6600 SN PS 18000 SN MET-1349733222.A2 1349733222	-
4 - BALL TPF 6600 SN PS 18000 SN MET-1349733230.A0 1349733230	-
5 - SPHERICAL HOUSING VENTING MET-1349733249.A2 1349733249	-
6 - WASHER MET-1349733605.A0 1349733605	-
7 - IMPELLER TP/TPF/PS MET-1349733141.A0 1349733141	£22.61	£27.13
8 - HEXAGONAL NUT M6 A2-70 MET-1349733591.A4 1349733591	-
9 - SCREW PT-KB 4X20 VA TPF 6600 SN/TPF 7000 MET-1349733575.A2 1349733575	-
10 - PUMP BASE TPF 6600 SN / TPF 7000 S MET-1349733087.A1 1349733087	-
11 - O-RING TPF 6600 SN TPF 7000 S MET-7632733350.A0 7632733350	-
12 - PUMP CASING TPF 6600 SN MET-1349733052.A1 1349733052	-
14 - O-RING 38X2 5 TP/TPF/PS MET-7632733326.A4 7632733326	-
15 - ANGLE CONNECTION WITH MULTI-ADAPTOR MET-0903064846.A8 0903064846	-
16 - O-RING 122 2X4 MET-7632733318.A0 7632733318	-
17 - INTERMEDIATE RING TPF 6600 SN MET-1349733290.A1 1349733290	-
18 - SCREW D4 6X15 TPF 6600 SN MET-1349733524.A0 1349733524	-
