Metabo MT 18 LTX / 13021000 / - Spare Parts

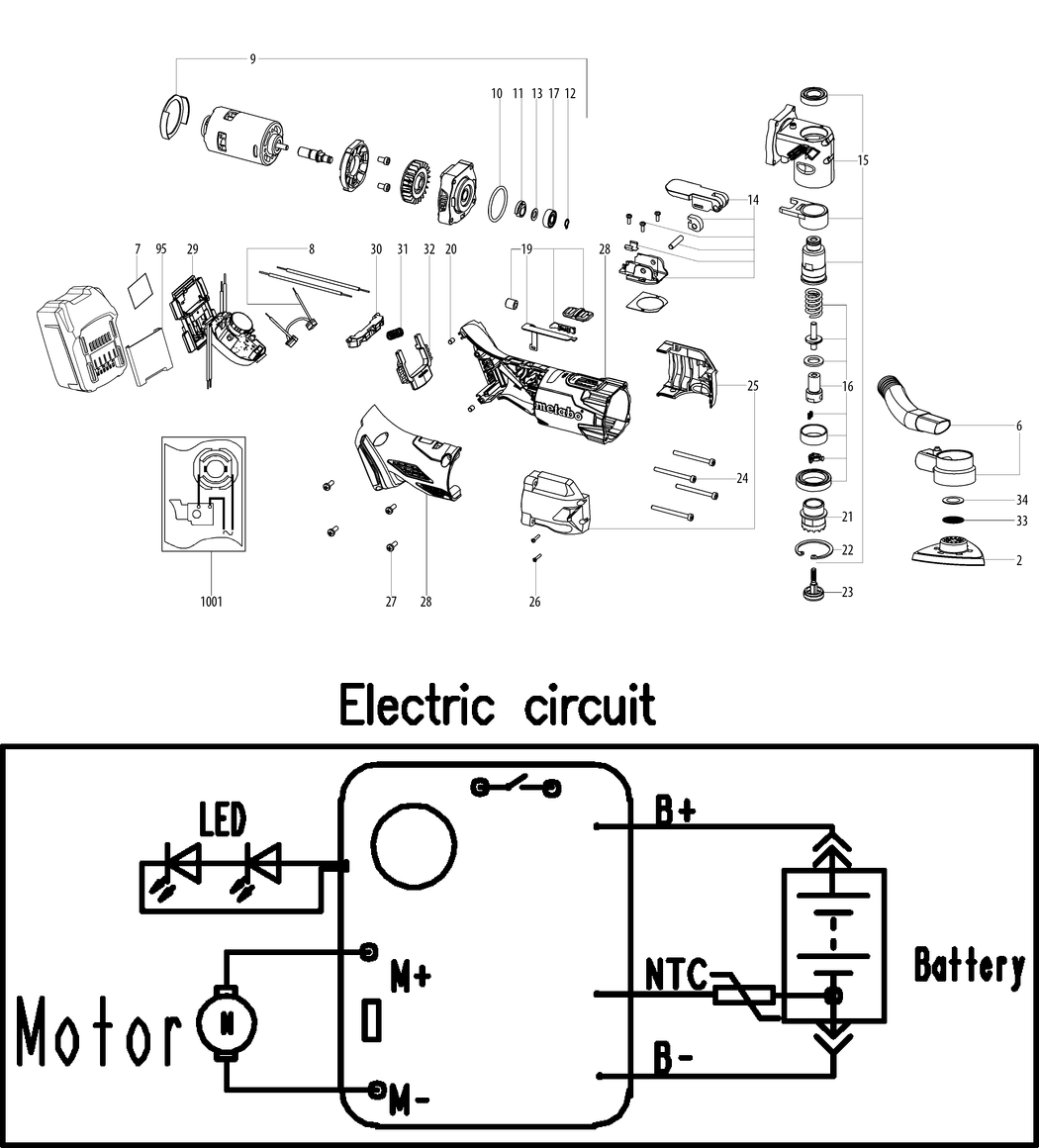

An exploded diagram and spare parts listing for the Metabo MT 18 LTX / 13021000 / -

	Ex VAT	Inc VAT
2 - SANDING BASE-PLATE MET-344199200.A0 344199200	£22.96	£27.55
6 - DUST COLLECTION CPL. MET-343441490.A0 343441490	£13.63	£16.36
7 - RATING PLATE MET-338064490.A0 338064490	£2.94	£3.53
8 - STRAND SET COMPL. MET-316092350.A0 316092350	£26.35	£31.62
9 - MOTOR COMPL. MET-316092360.A0 316092360	£79.43	£95.32
10 - 344113180 MET-344113150.A1 344113150	£2.94	£3.53
11 - COUPLING MET-343441560.A0 343441560	£2.94	£3.53
12 - SEALING RING MET-342024040.A0 342024040	£2.94	£3.53
13 - WASHER MET-339009330.A0 339009330	£2.94	£3.53
14 - CLAMPING LEVER CPL. MET-316092370.A0 316092370	£42.65	£51.18
15 - GEAR-BOX COMPL. MET-316092380.A1 316092380	£100.42	£120.50
16 - LOCKING ELEMENT COMPL. MET-316092390.A0 316092390	£42.65	£51.18
17 - BEARING MET-320054040.A1 320054040	£11.78	£14.13
19 - SWITCH SLIDE COMPL. MET-316092400.A0 316092400	£15.41	£18.49
20 - RUBBER BUFFER MET-344113170.A0 344113170	£5.62	£6.75
21 - TOOL HOLDER MET-341211230.A0 341211230	£30.06	£36.07
22 - SEALING RING MET-342024050.A0 342024050	£3.20	£3.84
23 - HOLDER MET-341211240.A0 341211240	£13.63	£16.36
24 - SCREW MET-341722220.A1 341722220	£2.94	£3.53
25 - COVER (F. GEAR) MET-343441570.A1 343441570	£11.78	£14.13
26 - SCREW MET-341722230.A0 341722230	£2.94	£3.53
27 - SCREW MET-341722240.A0 341722240	£2.94	£3.53
28 - MOTOR HOUSING COMPL. MET-316092410.A0 316092410	£42.65	£51.18
29 - ELECTRONIC UNIT MET-343084610.A0 343084610	£67.04	£80.45
30 - LOCKING PIECE MET-343430520.A70 343430520	£2.94	£3.53
31 - PRESSURE SPRING MET-342003030.A58 342003030	£1.50	£1.80
32 - SWITCH SLIDE MET-343430530.A9 343430530	£3.20	£3.84
33 - MULTI-ADAPTOR MT 18 LTX MET-344199150.A1 344199150	£13.63	£16.36
34 - WASHER MET-339009360.A0 339009360	£1.50	£1.80
95 - COVER CAP MET-343439680.A6 343439680	£2.94	£3.53
1001 - WIRING DIAGRAM MET-338510030.A0 338510030	-

Attribute Name	Value
Brand	Metabo
