1 - ARMATURE COMPL. 230V
MET-310011140.A36
310011140
|
£55.90
|
£67.08
|
|
|
2 - FIELD COIL ASSEMBLY 230V
MET-311012980.A22
311012980
|
£42.65
|
£51.18
|
|
|
3 - SWITCH 2-POLE
MET-343410280.A4
343410280
|
£11.78
|
£14.13
|
|
|
4 - PART NOT NEEDED
MET-399999990.A2214
399999990
|
-
|
|
|
|
5 - PART NOT NEEDED
MET-399999990.A2215
399999990
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A1245
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013710.A103
315013710
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151210.A2
339151210
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A327
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 230V / 50/60HZ
MET-343084060.A14
343084060
|
£54.94
|
£65.93
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A546
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A75
344097870
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A283
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A68
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A318
341100940
|
£3.20
|
£3.84
|
|
|
17 - SHIFT LEVER
MET-343434570.A49
343434570
|
£4.76
|
£5.71
|
|
|
18 - MOTOR CAP 2 PARTS BLACK
MET-316070220.A6
316070220
|
£15.41
|
£18.49
|
|
|
19 - LIGHT GUIDE
MET-343435170.A32
343435170
|
£2.94
|
£3.53
|
|
|
21 - STRAP
MET-341162180.A9
341162180
|
-
|
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A100
339204500
|
£11.78
|
£14.13
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A267
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A29
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A130
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A341
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-341701470.A53
341701470
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141116980.A29
141116980
|
£1.50
|
£1.80
|
|
|
34 - RATING PLATE
MET-338066670.A2
338066670
|
-
|
|
|
|
36 - PART NOT NEEDED
MET-399999990.A2211
399999990
|
-
|
|
|
|
40 - SPINDLE COMPL. WBA M14
MET-316054500.A22
316054500
|
£36.59
|
£43.91
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A92
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A407
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A31
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A376
141153920
|
£1.50
|
£1.80
|
|
|
49 - SELF-TAP. FILL. H. SCREW
MET-141117060.A144
141117060
|
£3.20
|
£3.84
|
|
|
50 - FLANGE COMPL.
MET-343433280.A29
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A31
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A108
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A231
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A182
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054410.A19
316054410
|
£75.74
|
£90.89
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A119
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A22
316067170
|
£17.55
|
£21.06
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A255
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A178
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A136
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A265
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A17
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A148
341515640
|
£2.94
|
£3.53
|
|
|
70 - TACHO DISC
MET-343433060.A108
343433060
|
£3.82
|
£4.59
|
|
|
72 - WASHER
MET-339007800.A129
339007800
|
£1.50
|
£1.80
|
|
|
76 - SEALING CAP
MET-343438780.A6
343438780
|
-
|
|
|
|
77 - TYPE LABEL
MET-338127640.A9
338127640
|
-
|
|
|
|
80 - BUTTING PLATE
MET-339011590.A122
339011590
|
£9.62
|
£11.54
|
|
|
81 - BRAKE DISC
MET-341013460.A35
341013460
|
£17.55
|
£21.06
|
|
|
82 - SUPPORTING PLATE
MET-343433710.A85
343433710
|
£2.94
|
£3.53
|
|
|
83 - SHIFT LEVER
MET-339136010.A99
339136010
|
£3.20
|
£3.84
|
|
|
84 - SHIFT ELEMENT
MET-343433700.A16
343433700
|
£2.94
|
£3.53
|
|
|
85 - PRESSURE SPRING
MET-342003420.A40
342003420
|
£1.50
|
£1.80
|
|
|
86 - PRESSURE SPRING
MET-342003930.A66
342003930
|
£2.94
|
£3.53
|
|
|
87 - SPACER SLEEVE
MET-341212170.A23
341212170
|
£3.82
|
£4.59
|
|
|
88 - INTERMEDIATE FLANGE
MET-343435920.A59
343435920
|
£7.36
|
£8.83
|
|
|
90 - PART NOT NEEDED
MET-399999990.A2208
399999990
|
-
|
|
|
|
92 - O-RING
MET-143195640.A174
143195640
|
£2.94
|
£3.53
|
|
|
104 - PART NOT NEEDED
MET-399999990.A2209
399999990
|
-
|
|
|
|
105 - PART NOT NEEDED
MET-399999990.A2210
399999990
|
-
|
|
|
|
880 - GREASE 100G
MET-344130920.A488
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A112
344130560
|
£19.18
|
£23.02
|
|
|

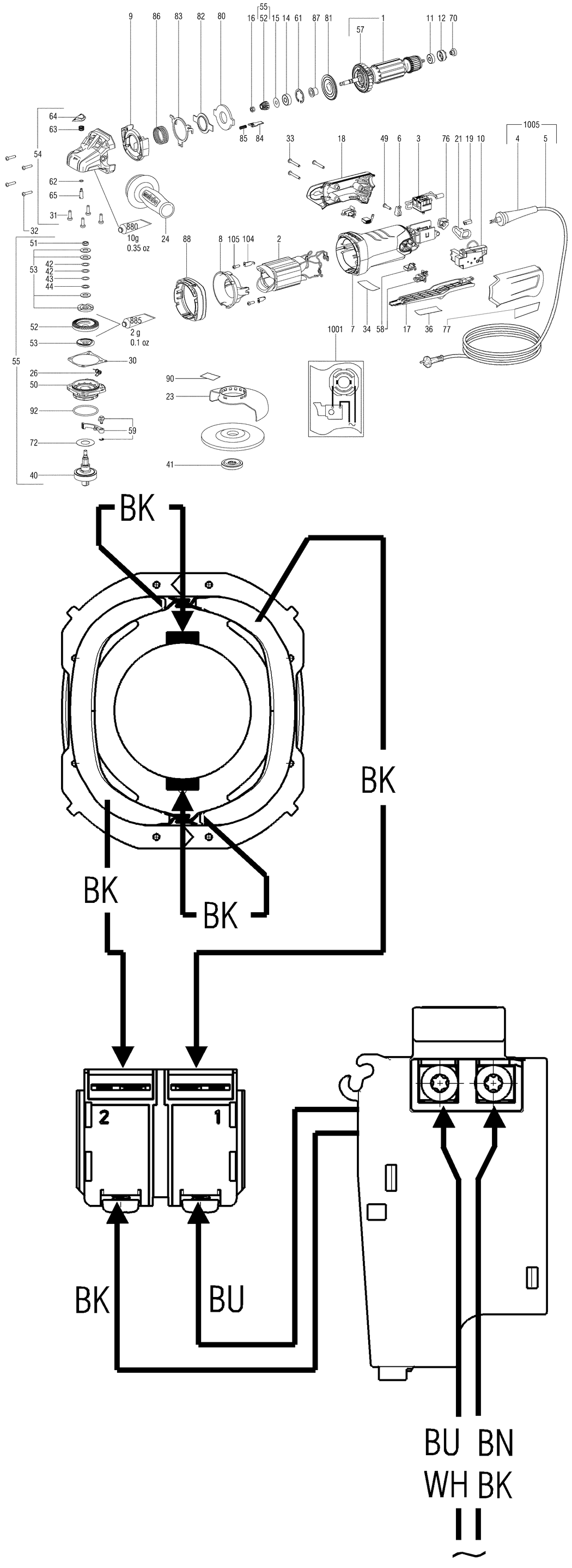

1001 - DIAGRAM
MET-338505950.A74
338505950
|
-
|
|
|
|
1005 - CABLE WITH SLEEVE
MET-316067340.A2
316067340
|
£26.35
|
£31.62
|
|
