2 - ARMATURE CPL. 120V
MET-310013080.A2
310013080
|
-
|
|
|
|
3 - FIELD COIL W.ADAPT. 120 V
MET-311012100.A1
311012100
|
£42.65
|
£51.18
|
|
|
4 - CABLE WITH UL-CSA-PLUG
MET-344492750.A59
344492750
|
£22.61
|
£27.13
|
|
|
5 - CABLE SLEEVE
MET-344097360.A163
344097360
|
£2.94
|
£3.53
|
|
|
6 - CABLE CLIP
MET-343362490.A544
343362490
|
£3.20
|
£3.84
|
|
|
7 - SELF-TAP. FILL. H. SCREW
MET-141117060.A533
141117060
|
£3.20
|
£3.84
|
|
|
8 - BRUSH HOLDER COMPL. CUT OUT
MET-316046890.A86
316046890
|
£15.42
|
£18.51
|
|
|
10 - SWITCH WITH ELEKTRONIC 120 V / 50-60 HZ
MET-316051300.A7
316051300
|
£54.94
|
£65.93
|
|
|
11 - STRAND COMPL.
MET-344498880.A17
344498880
|
£1.50
|
£1.80
|
|
|
12 - CARRIER
MET-341071720.A0
341071720
|
-
|
|
|
|
13 - BUFFER
MET-344099140.A4
344099140
|
£3.82
|
£4.59
|
|
|
14 - BEARING FLANGE
MET-315202620.A19
315202620
|
£22.61
|
£27.13
|
|
|
15 - MOTOR HOUSING
MET-315013660.A43
315013660
|
£15.41
|
£18.49
|
|
|
16 - SWITCH ROD
MET-343430940.A55
343430940
|
£1.50
|
£1.80
|
|
|
17 - SWITCH SLIDE H/L
MET-343397810.A25
343397810
|
£1.50
|
£1.80
|
|
|
18 - BALL BEARING 6X19X6
MET-143115690.A52
143115690
|
£3.82
|
£4.59
|
|
|
19 - RUBBER BUSHING
MET-344097870.A342
344097870
|
£1.50
|
£1.80
|
|
|
20 - BAFFLE
MET-343436590.A5
343436590
|
£3.82
|
£4.59
|
|
|
21 - MOTOR CAP 2 PART
MET-343433980.A14
343433980
|
£17.55
|
£21.06
|
|
|
22 - SELF-TAP. FILL. H. SCREW
MET-141113180.A164
141113180
|
£1.50
|
£1.80
|
|
|
24 - BALL BEARING 8X22X7
MET-143115560.A86
143115560
|
£8.37
|
£10.04
|
|
|
25 - WHEEL GUARD COMPL.
MET-316055590.A6
316055590
|
£48.88
|
£58.66
|
|
|
26 - EXTENSION
MET-341210700.A28
341210700
|
£7.36
|
£8.83
|
|
|
27 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A159
316046590
|
£11.78
|
£14.13
|
|
|
28 - CLAMPING FLANGE
MET-341031290.A54
341031290
|
£9.62
|
£11.54
|
|
|
29 - FLANGE NUT
MET-341101480.A71
341101480
|
£11.78
|
£14.13
|
|
|
30 - RATING PLATE
MET-338060580.A1
338060580
|
-
|
|
|
|
33 - PIN SPANNER
MET-344163920.A37
344163920
|
£4.76
|
£5.71
|
|
|
34 - WARNING LABEL 52X22
MET-338122090.A80
338122090
|
-
|
|
|
|
45 - INSERT SELFSTICKING
MET-344100790.A11
344100790
|
£1.50
|
£1.80
|
|
|
46 - SHRINK HOSE
MET-344099590.A8
344099590
|
£1.50
|
£1.80
|
|
|
47 - CARBON BRUSH SET CUT-OFF
MET-316046900.A54
316046900
|
£15.41
|
£18.49
|
|
|
49 - PART NOT NEEDED
MET-399999990.A852
399999990
|
-
|
|
|
|
60 - BALL BEARING 8X22X7
MET-143115560.A85
143115560
|
£8.37
|
£10.04
|
|
|
61 - BEARING COVER
MET-315418240.A24
315418240
|
£3.20
|
£3.84
|
|
|
62 - FILLISTER HEAD SCREW
MET-141124260.A21
141124260
|
£2.94
|
£3.53
|
|
|
63 - RI.KU.LA. 6X 19X 6
MET-143114790.A59
143114790
|
£5.62
|
£6.75
|
|
|
64 - BALL BEARING 8X22X7
MET-143115700.A410
143115700
|
£4.76
|
£5.71
|
|
|
65 - COMPENSATING WASHER
MET-339012160.A6
339012160
|
£2.94
|
£3.53
|
|
|
66 - RETAINING RING
MET-141156860.A6
141156860
|
-
|
|
|
|
67 - GEAR HOUSING COMPL.
MET-316055700.A23
316055700
|
£32.88
|
£39.45
|
|
|
70 - COUNTERSUNK SCREW
MET-141122320.A18
141122320
|
£2.94
|
£3.53
|
|
|
72 - FLANGE
MET-315202970.A0
315202970
|
£11.78
|
£14.13
|
|
|
73 - BEVEL GEAR AND BEVEL GEAR
MET-316068740.A6
316068740
|
£42.65
|
£51.18
|
|
|
74 - DRIVE SHAFT
MET-341604480.A26
341604480
|
£7.36
|
£8.83
|
|
|
75 - SPACER BUSH
MET-341006140.A27
341006140
|
£7.36
|
£8.83
|
|
|
76 - CARRIER
MET-341071350.A24
341071350
|
£9.62
|
£11.54
|
|
|
77 - SPRING CLIP
MET-342022040.A136
342022040
|
£1.50
|
£1.80
|
|
|
78 - TIGHT-FIT SCREW
MET-341701490.A12
341701490
|
£1.50
|
£1.80
|
|
|
80 - FAN
MET-330002060.A32
330002060
|
-
|
|
|
|
81 - SPINDLE COMPL.
MET-316069030.A16
316069030
|
-
|
|
|
|
98 - O-RING
MET-143195530.A36
143195530
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A65
344130920
|
£19.18
|
£23.02
|
|
|

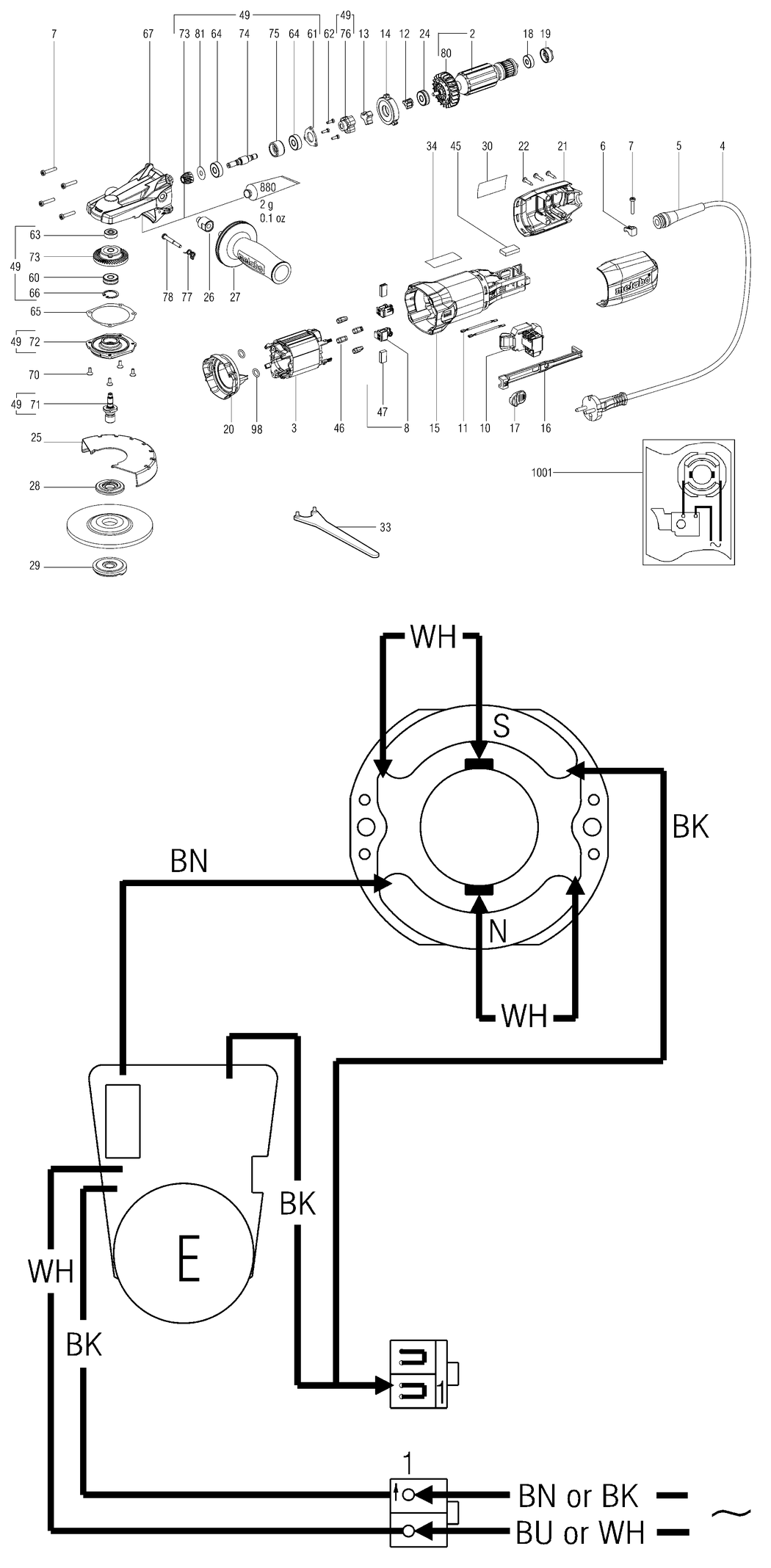

1001 - WIRING DIAGRAM
MET-338505710.A44
338505710
|
-
|
|
|
