1 - ARMATURE COMPL. 230V
MET-310010990.A31
310010990
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL ASSEMBLY 230V
MET-311012980.A44
311012980
|
£42.65
|
£51.18
|
|
|
3 - SWITCH 2-POLE
MET-343410120.A1
343410120
|
£13.63
|
£16.36
|
|
|
4 - CABLE SLEEVE
MET-344101220.A106
344101220
|
£3.20
|
£3.84
|
|
|
5 - CABLE WITH PLUG
MET-344490850.A10
344490850
|
£26.35
|
£31.62
|
|
|
6 - CABLE CLIP
MET-343362490.A888
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING 2 PART
MET-315013520.A104
315013520
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151180.A133
339151180
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A245
339151200
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 230V 50/60HZ
MET-343084110.A13
343084110
|
£48.88
|
£58.66
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A456
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A176
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A36
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A418
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A221
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A426
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433070.A128
343433070
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433030.A51
343433030
|
£5.62
|
£6.75
|
|
|
19 - END CAP
MET-343433100.A35
343433100
|
£2.94
|
£3.53
|
|
|
20 - SWITCH SLIDE
MET-343437100.A152
343437100
|
£2.94
|
£3.53
|
|
|
23 - WHEEL GUARD D125
MET-339204500.A28
339204500
|
£11.78
|
£14.13
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A382
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A104
342022490
|
£2.94
|
£3.53
|
|
|
28 - FILL. HEAD SCREW(DIN 7985)
MET-141121430.A71
141121430
|
£1.50
|
£1.80
|
|
|
30 - GASKET
MET-339011970.A90
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A429
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A170
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A366
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338060420.A2
338060420
|
£1.50
|
£1.80
|
|
|
40 - SPINDLE COMPL. WA M14
MET-316063430.A16
316063430
|
-
|
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A153
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A325
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A213
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A265
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A89
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A117
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A81
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316066830.A17
316066830
|
£15.41
|
£18.49
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A233
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054340.A11
316054340
|
£63.44
|
£76.13
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A64
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A48
316067170
|
£17.55
|
£21.06
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A135
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A243
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A100
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A131
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A77
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A60
341515640
|
£2.94
|
£3.53
|
|
|
70 - TACHO DISC
MET-343433060.A44
343433060
|
£3.82
|
£4.59
|
|
|
71 - PIVOTING SWITCH
MET-343433090.A119
343433090
|
£1.50
|
£1.80
|
|
|
72 - WASHER
MET-339007800.A177
339007800
|
£1.50
|
£1.80
|
|
|
92 - O-RING
MET-143195640.A206
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A328
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A291
344130560
|
£19.18
|
£23.02
|
|
|

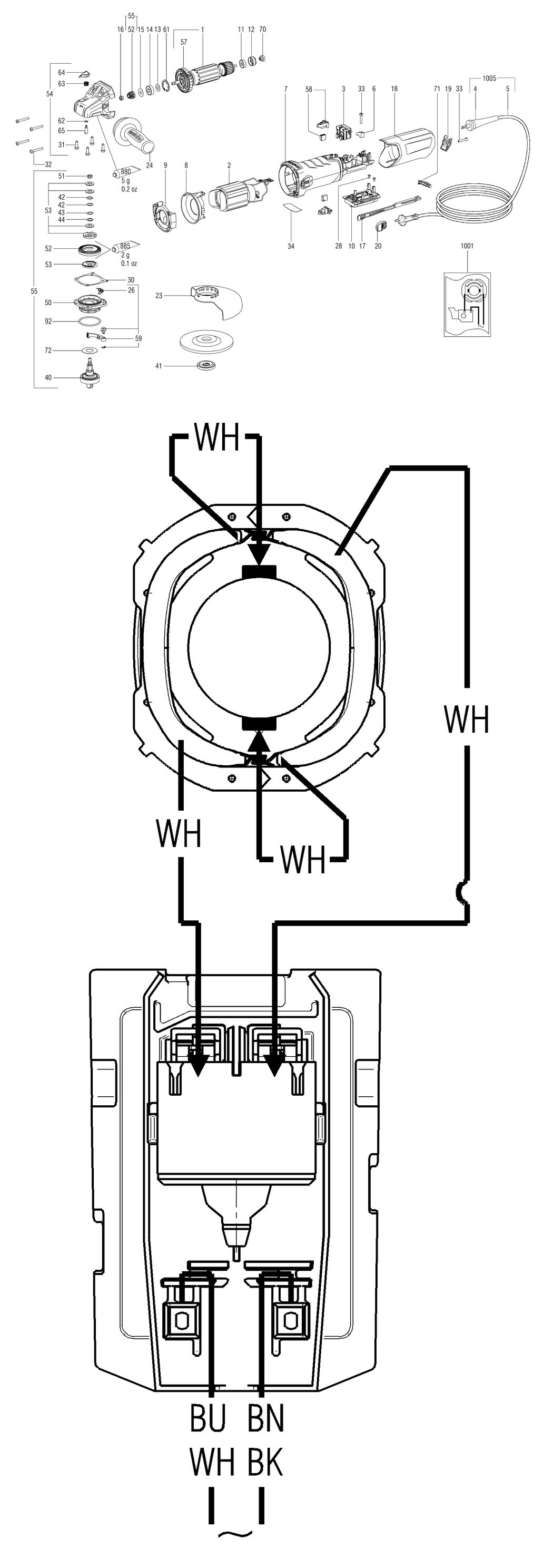

1001 - DIAGRAM
MET-338505780.A1
338505780
|
-
|
|
|
|
1005 - PART NOT NEEDED
MET-399999990.A1789
399999990
|
-
|
|
|
