Metabo W 650-100 / 03600310 / CN 220V Spare Parts

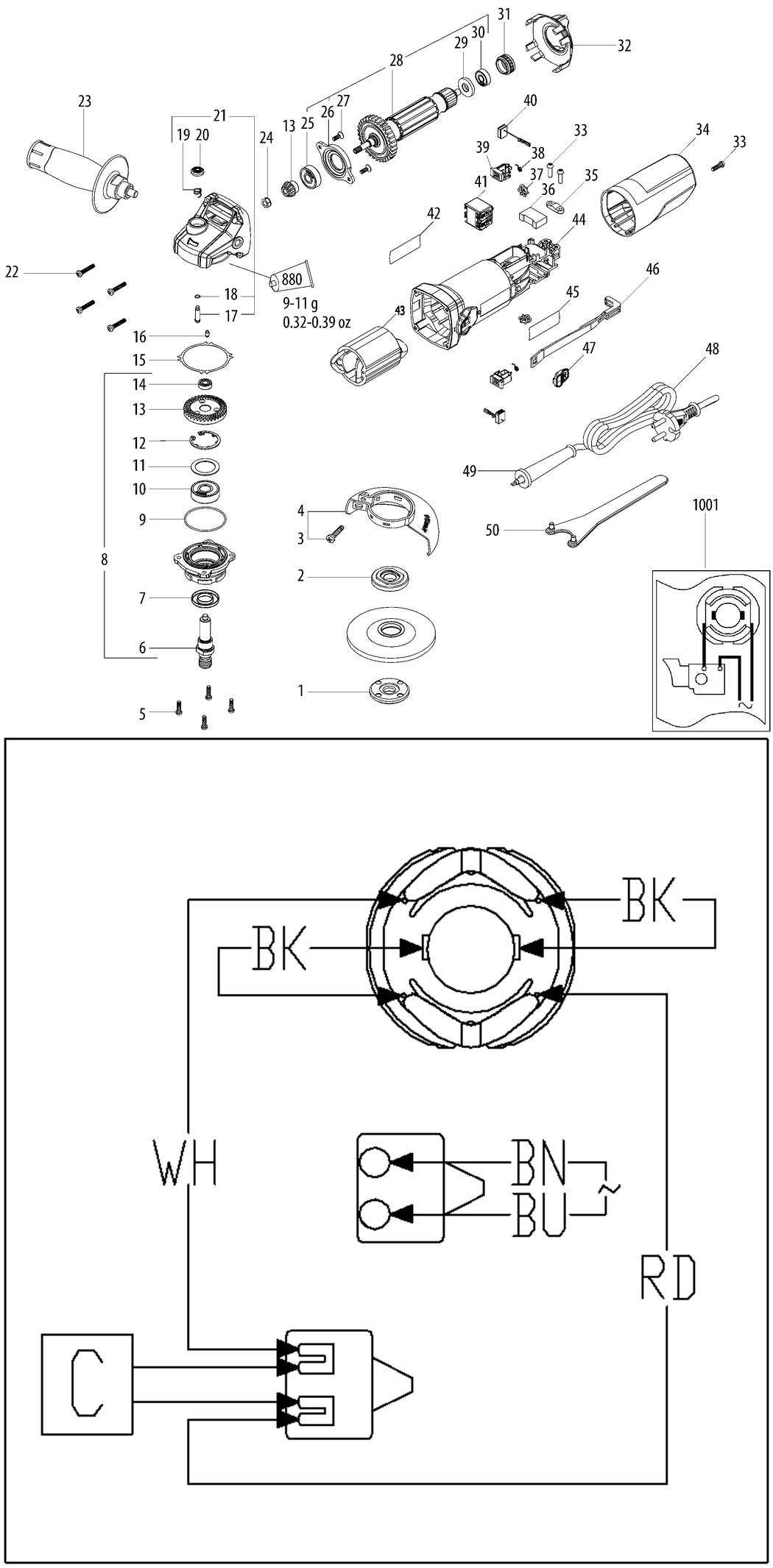

An exploded diagram and spare parts listing for the Metabo W 650-100 / 03600310 / CN 220V

	Ex VAT	Inc VAT
1 - CLAMPING FLANGE MET-341031890.A28 341031890	£4.76	£5.71
2 - CLAMPING NUT MET-341102050.A6 341102050	£7.36	£8.83
4 - WHEEL GUARD MET-339203640.A1 339203640	-
5 - FILL. HEAD SCREW MET-141120070.A79 141120070	£1.50	£1.80
8 - INTERMEDIATE FLANGE 100MM MET-315203290.A1 315203290	-
15 - COMPENSATING WASHER MET-339013280.A1 339013280	-
16 - RUBBER PLUG MET-344114520.A1 344114520	-
21 - GEAR HOUSING COMPL. MET-316098300.A1 316098300	-
22 - SELF-TAP FILL H SCREW MET-141116020.A881 141116020	£3.20	£3.84
23 - SIDE SUPPORT HANDLE MET-343449500.A0 343449500	-
24 - HEX NUT MET-341109200.A2 341109200	-
27 - CAP SCREW MET-341723490.A1 341723490	-
28 - ARMATURE COMPL. MET-310013000.A0 310013000	-
31 - NEEDLE SLEEVE MET-342200760.A2 342200760	-
32 - AIR BAFFLE MET-343449510.A1 343449510	-
33 - CAP SCREW MET-341723500.A1 341723500	-
34 - MOTOR CAP MET-343449520.A2 343449520	-
35 - WIRE TERMINAL MET-343449530.A0 343449530	-
36 - CONDENSER MET-343255230.A1 343255230	-
37 - CHOKE MET-343255240.A1 343255240	-
38 - SPRING MET-342024540.A1 342024540	-
39 - CARBON BRUSH HOLDER COMPL. MET-316098310.A1 316098310	-
40 - CARBON BRUSH MET-343013560.A2 343013560	-
41 - SWITCH MET-343412220.A0 343412220	-
42 - RATING PLATE MET-338071630.A0 338071630	-
43 - FIELD MET-311013120.A1 311013120	-
44 - MOTOR HOUSING MET-315015060.A1 315015060	-
46 - SWITCH ROD MET-343449540.A1 343449540	-
47 - CONTROL KNOB SLIDE MET-343449550.A1 343449550	-
48 - CABLE CHINESE MET-344532130.A0 344532130	-
49 - CABLE SLEEVE MET-344114530.A0 344114530	-
50 - PIN SPANNER MET-344163930.A29 344163930	£3.82	£4.59
880 - GREASE 100G MET-344130910.A332 344130910	£19.18	£23.02
1001 - DIAGRAM MET-338510290.A0 338510290	-
