1 - ARMATURE COMPL. 230V
MET-310010980.A18
310010980
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311011980.A33
311011980
|
£54.94
|
£65.93
|
|
|
3 - SWITCH 2-POLE X2
MET-343410100.A8
343410100
|
£13.63
|
£16.36
|
|
|
4 - CABLE SLEEVE
MET-344100970.A106
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE CHINESE
MET-344495280.A1
344495280
|
£30.06
|
£36.07
|
|
|
6 - CABLE CLIP
MET-343362490.A811
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING 2 PART
MET-315013520.A87
315013520
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151180.A102
339151180
|
£2.94
|
£3.53
|
|
|
9 - BAFFLE
MET-339151200.A276
339151200
|
£2.94
|
£3.53
|
|
|
10 - COVER
MET-343433140.A28
343433140
|
£2.94
|
£3.53
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A327
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A122
344097870
|
£1.50
|
£1.80
|
|
|
13 - WASHER
MET-339133060.A86
339133060
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A458
143115700
|
£4.76
|
£5.71
|
|
|
15 - WASHER
MET-339006390.A108
339006390
|
£1.50
|
£1.80
|
|
|
16 - HEXAGON NUT W.RECESS
MET-341100940.A512
341100940
|
£3.20
|
£3.84
|
|
|
17 - SWITCH ROD
MET-343433070.A121
343433070
|
£1.50
|
£1.80
|
|
|
18 - CAP
MET-343433030.A83
343433030
|
£5.62
|
£6.75
|
|
|
19 - END PIECE
MET-343433110.A61
343433110
|
£22.61
|
£27.13
|
|
|
20 - SWITCH SLIDE
MET-343437100.A119
343437100
|
£2.94
|
£3.53
|
|
|
21 - CLAMPING FLANGE
MET-341031160.A151
341031160
|
£15.41
|
£18.49
|
|
|
23 - WHEEL GUARD D150
MET-339204510.A46
339204510
|
£13.63
|
£16.36
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A314
314000970
|
£19.18
|
£23.02
|
|
|
26 - SPRING CLIP
MET-342022490.A47
342022490
|
£2.94
|
£3.53
|
|
|
30 - GASKET
MET-339011970.A0
339011970
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A544
141121640
|
£1.50
|
£1.80
|
|
|
32 - SELF-TAP. FILL. H. SCREW
MET-141116980.A81
141116980
|
£1.50
|
£1.80
|
|
|
33 - SELF-TAP. FILL. H. SCREW
MET-141117060.A234
141117060
|
£3.20
|
£3.84
|
|
|
34 - RATING PLATE
MET-338059990.A0
338059990
|
-
|
|
|
|
36 - PART NOT NEEDED
MET-399999990.A1569
399999990
|
-
|
|
|
|
40 - SPINDLE M14
MET-341604420.A99
341604420
|
£17.55
|
£21.06
|
|
|
41 - CLAMPING NUT COMPL. M14
MET-316055350.A121
316055350
|
£15.41
|
£18.49
|
|
|
42 - WASHER 10 2 X 14
MET-141151120.A230
141151120
|
£1.50
|
£1.80
|
|
|
43 - WASHER 10 2 X 14
MET-141152300.A225
141152300
|
£3.20
|
£3.84
|
|
|
44 - WASHER 10 2 X 14
MET-141153920.A211
141153920
|
£1.50
|
£1.80
|
|
|
50 - FLANGE COMPL.
MET-343433280.A47
343433280
|
£11.78
|
£14.13
|
|
|
51 - NUT
MET-341102460.A62
341102460
|
£3.82
|
£4.59
|
|
|
52 - BEVEL GEAR W.PINION
MET-316054980.A103
316054980
|
£22.61
|
£27.13
|
|
|
53 - FRICTION WASHER SET COMPL.
MET-316055080.A213
316055080
|
£17.55
|
£21.06
|
|
|
54 - GEAR HOUSING COMPL.
MET-316055100.A200
316055100
|
£54.94
|
£65.93
|
|
|
55 - SAFETY CLUTCH W.PINION
MET-316054260.A52
316054260
|
£73.52
|
£88.23
|
|
|
56 - BRUSH HOLDER COMPL.
MET-316055240.A8
316055240
|
£17.55
|
£21.06
|
|
|
57 - FAN W. DUST GUARD
MET-316054850.A14
316054850
|
£5.62
|
£6.75
|
|
|
58 - CARBON BRUSH SET CUT-OFF
MET-316055210.A32
316055210
|
£13.63
|
£16.36
|
|
|
59 - CLAMPING LEVER COMPL.
MET-316066040.A224
316066040
|
£15.41
|
£18.49
|
|
|
61 - RETAINING RING
MET-141156650.A216
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A5
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A38
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433130.A47
343433130
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A93
341515640
|
£2.94
|
£3.53
|
|
|
71 - PIVOTING SWITCH
MET-343433090.A125
343433090
|
£1.50
|
£1.80
|
|
|
72 - WASHER
MET-339007800.A228
339007800
|
£1.50
|
£1.80
|
|
|
73 - PART NOT NEEDED
MET-399999990.A1568
399999990
|
-
|
|
|
|
75 - O-RING
MET-143192490.A87
143192490
|
£3.20
|
£3.84
|
|
|
92 - O-RING
MET-143195640.A201
143195640
|
£2.94
|
£3.53
|
|
|
880 - GREASE 100G
MET-344130920.A409
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A212
344130560
|
£19.18
|
£23.02
|
|
|

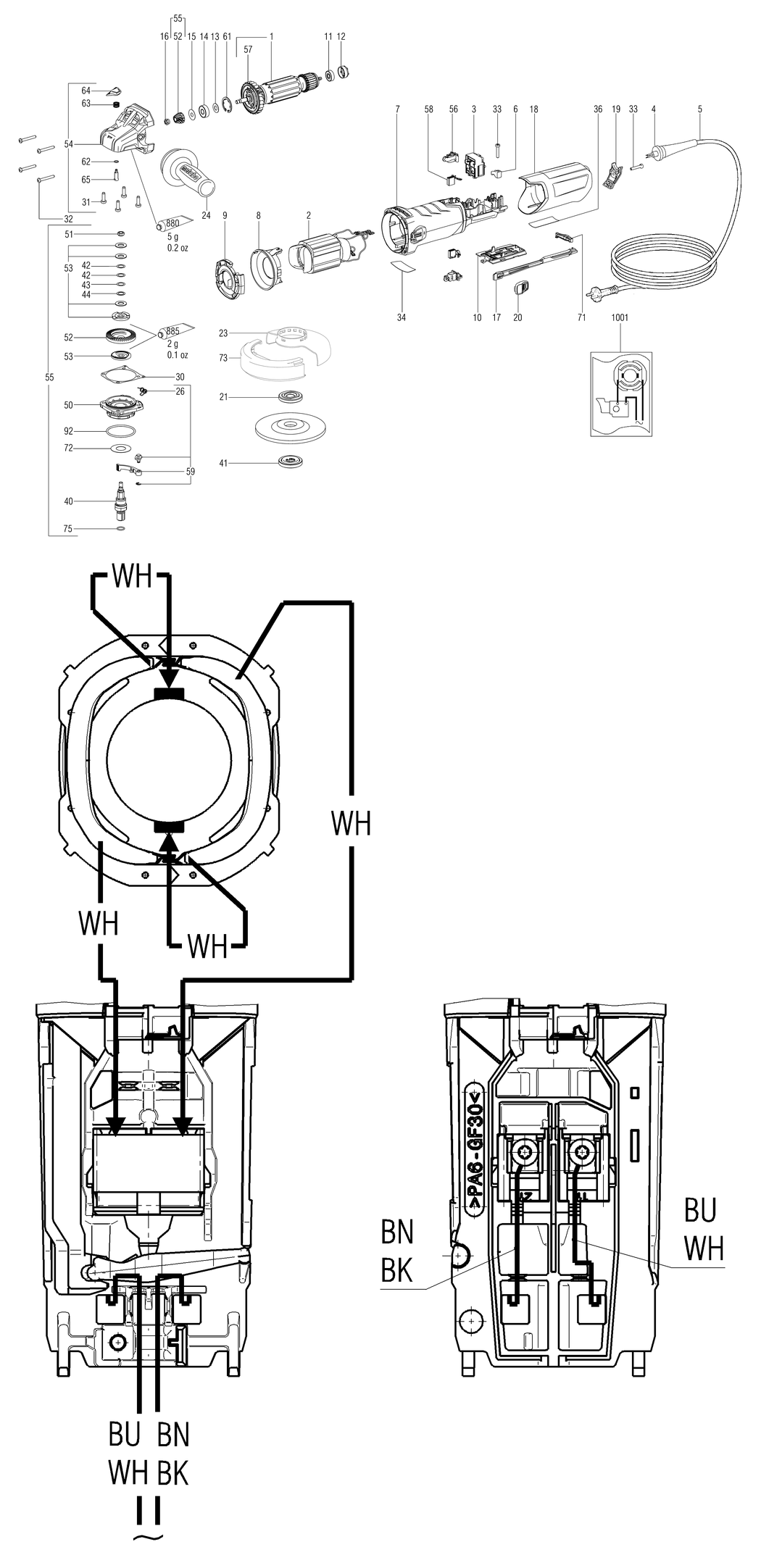

1001 - DIAGRAM
MET-338505810.A61
338505810
|
-
|
|
|
