Metabo TP 6600 / 0250660000 10 / EU 230V Spare Parts

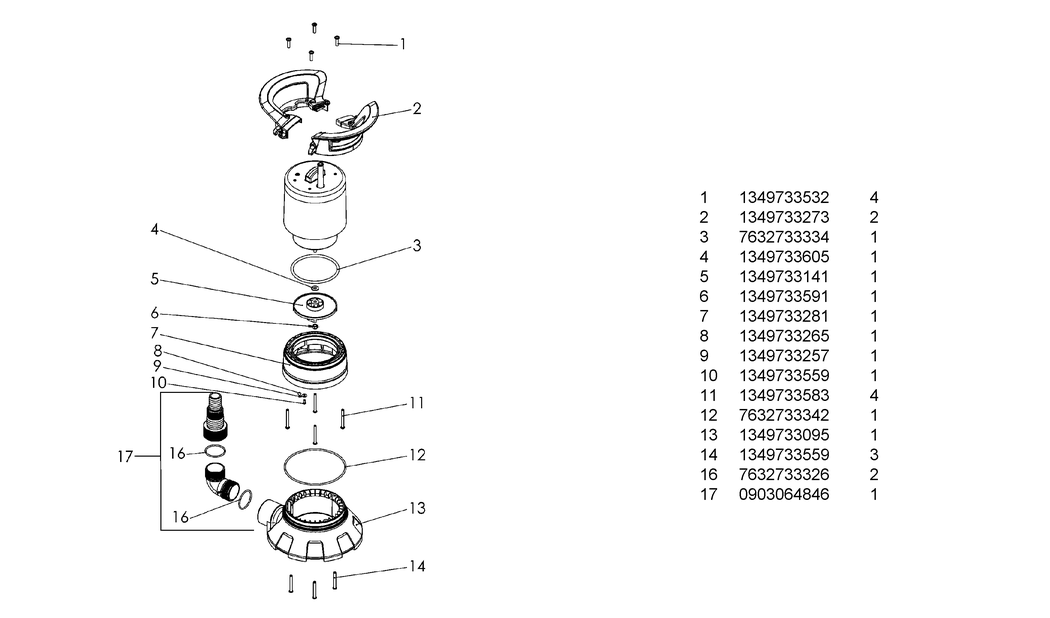

An exploded diagram and spare parts listing for the Metabo TP 6600 / 0250660000 10 / EU 230V

	Ex VAT	Inc VAT
1 - SCREW PT-KB 5X20 VA TP/TPF/TPS/PS MET-1349733532.A7 1349733532	-
2 - HANDLE TP/TPF/TPS/PS MET-1349733273.A12 1349733273	£22.61	£27.13
3 - O-RING 90X4 5 TP/TPF/TPS/PS MET-7632733334.A1 7632733334	-
4 - WASHER MET-1349733605.A6 1349733605	-
5 - IMPELLER TP/TPF/PS MET-1349733141.A3 1349733141	£22.61	£27.13
6 - HEXAGONAL NUT M6 A2-70 MET-1349733591.A0 1349733591	-
7 - INTERMEDIATE RING TP 6600S TP 8000S PS 7 MET-1349733281.A2 1349733281	-
8 - BALL TP/TPF/TPS/PS MET-1349733265.A1 1349733265	-
9 - AIR WENT SHEET TP/TPF/TPS/PS MET-1349733257.A9 1349733257	-
10 - SCREW PT-KB 3X8 VA TP/TPF/TPS/PS MET-1349733559.A2 1349733559	-
11 - SCREW PT-KB 5X45 VA TP/TPF/TPS/PS MET-1349733583.A10 1349733583	-
12 - O-RING 135X3 TP/PS MET-7632733342.A6 7632733342	-
13 - PUMP BASE TP6600 S TP 8000 S TP 13000 S MET-1349733095.A3 1349733095	£42.65	£51.18
14 - SCREW PT-KB 3X8 VA TP/TPF/TPS/PS MET-1349733559.A1 1349733559	-
16 - O-RING 38X2 5 TP/TPF/PS MET-7632733326.A10 7632733326	-
17 - ANGLE CONNECTION WITH MULTI-ADAPTOR MET-0903064846.A2 0903064846	-
