Metabo KS 66 / 00542420 / US 120V Spare Parts

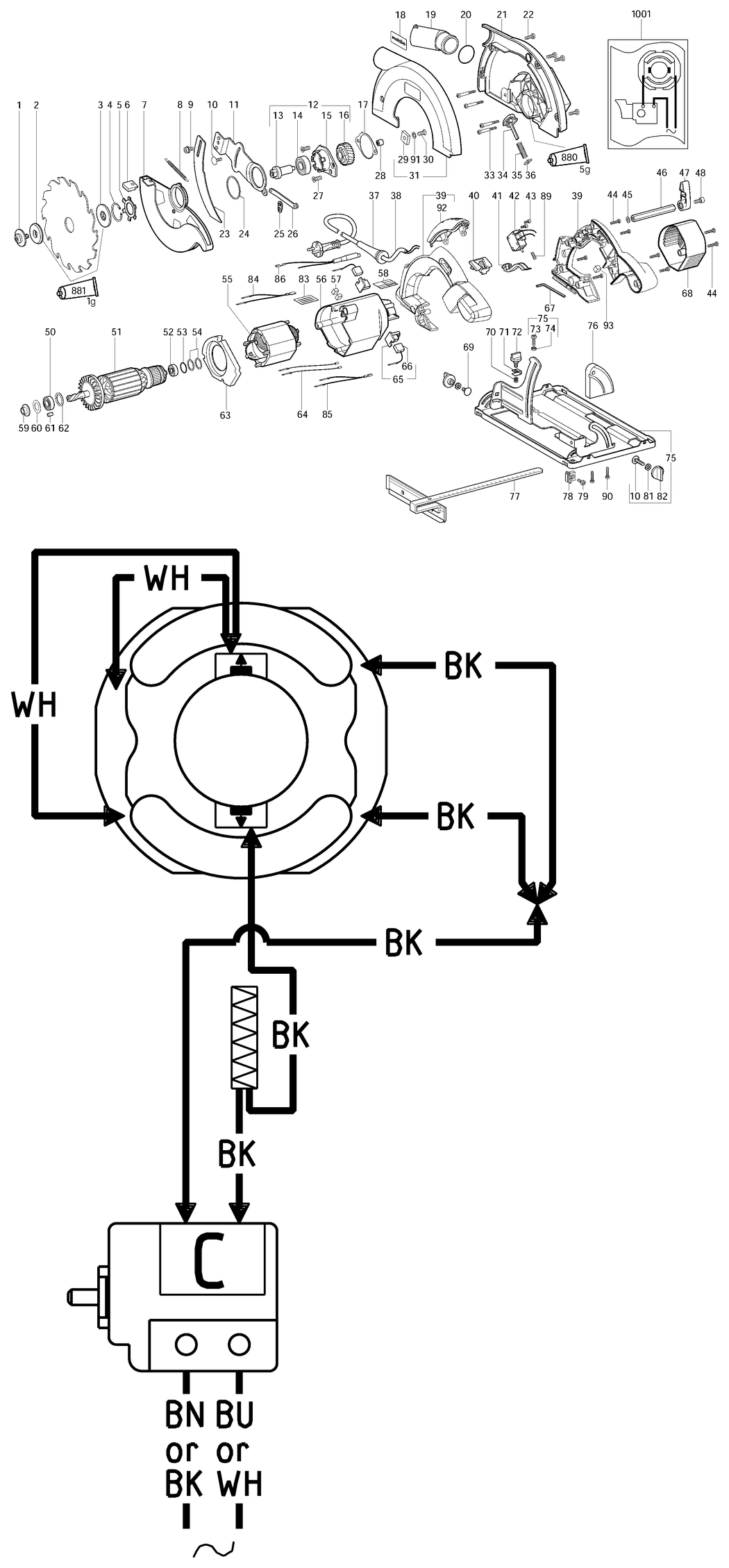

An exploded diagram and spare parts listing for the Metabo KS 66 / 00542420 / US 120V

	Ex VAT	Inc VAT
1 - SCREW COMPL. MET-316034800.A0 316034800	£11.78	£14.13
2 - CLAMPING FLANGE MET-341031790.A6 341031790	£8.37	£10.04
3 - CLAMPING FLANGE MET-341031780.A8 341031780	£8.37	£10.04
4 - RETAINING RING MET-141180390.A24 141180390	£3.20	£3.84
5 - TOOTHED SEGMENT MET-339131510.A12 339131510	£3.82	£4.59
6 - CAP MET-343378080.A2 343378080	£3.20	£3.84
7 - SAFETY GUARD MET-339133380.A9 339133380	£42.65	£51.18
8 - TENSION SPRING MET-342010260.A2 342010260	£1.50	£1.80
9 - CYLINDER HEAD SCREW MET-141122830.A11 141122830	£3.20	£3.84
10 - TRUSS HEAD SCREW MET-341703660.A8 341703660	£1.50	£1.80
11 - RIV.KNIFE GUIDE MET-339131520.A1 339131520	£15.41	£18.49
12 - SAW SPINDLE CPL. MET-316034590.A3 316034590	£68.35	£82.02
13 - SAW AXLE MET-341057010.A8 341057010	£22.61	£27.13
14 - BALL BEARING 15X35X11 MET-143114870.A9 143114870	£19.18	£23.02
15 - GEAR FLANGE MET-315415670.A14 315415670	£26.35	£31.62
16 - SPUR GEAR MET-341057020.A6 341057020	£9.62	£11.54
17 - GEARGASKET MET-339210870.A4 339210870	£1.50	£1.80
18 - METABO PLATE MET-338121810.A0 338121810	-
19 - EXHAUST NOZZLE MET-343377760.A12 343377760	£4.76	£5.71
20 - O-RING MET-143194270.A5 143194270	£1.50	£1.80
21 - SAW HOUSING MET-316034570.A3 316034570	£63.44	£76.13
22 - FILL. HEAD SCREW(DIN 7985) MET-141121640.A358 141121640	£1.50	£1.80
23 - RIVING KNIFE MET-339131570.A10 339131570	£9.62	£11.54
24 - WASHER MET-141154070.A3 141154070	£3.20	£3.84
25 - SHEET COVER MET-339131580.A1 339131580	£3.82	£4.59
26 - SHEET COVER MET-339131670.A1 339131670	£3.20	£3.84
27 - COUNTERSUNK SCREW MET-141123040.A9 141123040	£1.50	£1.80
28 - NEEDLE BUSHING MET-143111180.A13 143111180	£11.78	£14.13
29 - RUBBER BUFFER MET-344096260.A9 344096260	-
30 - COUNTERSUNK SCREW MET-141123190.A6 141123190	-
31 - COVER CPL. MET-316034580.A8 316034580	£61.08	£73.30
33 - TIGHT-FIT SCREW MET-341701490.A43 341701490	£1.50	£1.80
34 - SPINDLE LOCK MET-316034810.A9 316034810	£9.62	£11.54
35 - PRESSURE SPRING MET-342007800.A17 342007800	£3.20	£3.84
36 - FELT MET-344070600.A12 344070600	£1.50	£1.80
37 - CABLE SLEEVE MET-344100970.A89 344100970	£3.20	£3.84
38 - CABLE WITH UL-CSA-PLUG MET-344494030.A14 344494030	£26.35	£31.62
39 - HANDLE COMPL. MET-316041860.A11 316041860	£42.65	£51.18
40 - SWITCH LOCK RED MET-343394510.A14 343394510	-
41 - SWITCH TRIGGER MET-343394500.A2 343394500	-
42 - SWITCH MET-343406260.A18 343406260	£11.78	£14.13
43 - FILLISTER HEAD SCREW MET-141116970.A138 141116970	£3.20	£3.84
44 - SELF-TAP FILL H SCREW MET-141116020.A305 141116020	£3.20	£3.84
45 - WASHER MET-339004350.A9 339004350	£9.62	£11.54
46 - SPACING ELEMENT MET-341056960.A10 341056960	£7.36	£8.83
47 - CLAMPING LEVER MET-343398140.A8 343398140	£3.82	£4.59
48 - CAP SCREW MET-141113840.A17 141113840	£3.20	£3.84
50 - BALL BEARING 10X26X8 MET-143114840.A6 143114840	£15.41	£18.49
51 - ARMATURE CPL. 120V MET-310008450.A2 310008450	£86.42	£103.71
52 - BALL BEARING 8X22X7 MET-143115800.A75 143115800	£3.83	£4.60
53 - O-RING MET-143192130.A6 143192130	£3.20	£3.84
54 - WASHER MET-141151320.A2 141151320	£3.20	£3.84
55 - FIELD COIL MET-311010120.A5 311010120	£63.36	£76.03
56 - MOTOR HOUSING MET-343377690.A0 343377690	£22.96	£27.55
57 - INSERT MET-344098520.A12 344098520	-
58 - RATING PLATE MET-338043300.A0 338043300	-
59 - SLEEVE MET-343377790.A2 343377790	£1.50	£1.80
60 - WASHER MET-141153220.A10 141153220	£1.50	£1.80
61 - RUBBER PLUG MET-344097580.A44 344097580	£1.50	£1.80
62 - WASHER MET-141152930.A5 141152930	£3.20	£3.84
63 - BAFFLE MET-343377740.A2 343377740	£5.62	£6.75
64 - PART NOT NEEDED MET-399999990.A2112 399999990	-
65 - BRUSH HOLDER CP 120V MET-316032100.A7 316032100	£22.61	£27.13
66 - BRUSH SET 120V MET-316034690.A6 316034690	£22.61	£27.13
67 - CRANKED WRENCH KEY MET-344161520.A54 344161520	£3.20	£3.84
68 - MOTOR COVER MET-343377730.A12 343377730	£9.62	£11.54
69 - TRUSS HEAD SCREW MET-141116050.A3 141116050	£3.20	£3.84
70 - PRESSURE SPRING MET-342001430.A4 342001430	£3.20	£3.84
71 - PRESSURE PLATE MET-339131590.A5 339131590	£3.20	£3.84
72 - THUMBSCREW MET-341111920.A9 341111920	£3.82	£4.59
73 - FILLISTER HEAD SCREW MET-141116780.A17 141116780	£1.50	£1.80
74 - HEXAGONAL NUT MET-141130090.A25 141130090	£1.50	£1.80
75 - GUIDE PLATE CPL. MET-316034560.A6 316034560	£55.90	£67.08
76 - CONSOLE MET-343377670.A11 343377670	£7.36	£8.83
77 - PARALLEL GUIDE MET-331050710.A9 331050710	£26.35	£31.62
78 - CUT INDICATOR MET-343378070.A7 343378070	£1.50	£1.80
79 - SELF-TAP. FILL. H. SCREW MET-141118730.A71 141118730	£1.50	£1.80
81 - WASHER MET-141151940.A36 141151940	£1.50	£1.80
82 - THUMB-NUT MET-341111870.A21 341111870	£3.82	£4.59
83 - WARNING LABEL MET-338115880.A20 338115880	-
84 - TWIN WIRE STRAND MET-344495050.A2 344495050	-
85 - TWIN LEAD MET-344495060.A1 344495060	-
86 - SUPPRESSOR COMPL. MET-344495040.A1 344495040	-
89 - PRESSURE SPRING MET-342003140.A13 342003140	£1.50	£1.80
90 - SELF-TAP. FILL. H. SCREW MET-141116800.A71 141116800	£1.50	£1.80
91 - WASHER ZN5BK MET-141153390.A6 141153390	£1.50	£1.80
92 - HANDLE ELEMENT MET-343393720.A13 343393720	-
93 - INSERT MET-344098540.A3 344098540	£2.94	£3.53
880 - GREASE 100G MET-344130920.A562 344130920	£19.18	£23.02
881 - GREASE SF 011 50GR 1.8oz MET-344130560.A10 344130560	£19.18	£23.02
1001 - DIAGRAM MET-338503960.A1 338503960	-
