Metabo SXE 150-2.5 BL / 15025000 / EU 230V Spare Parts

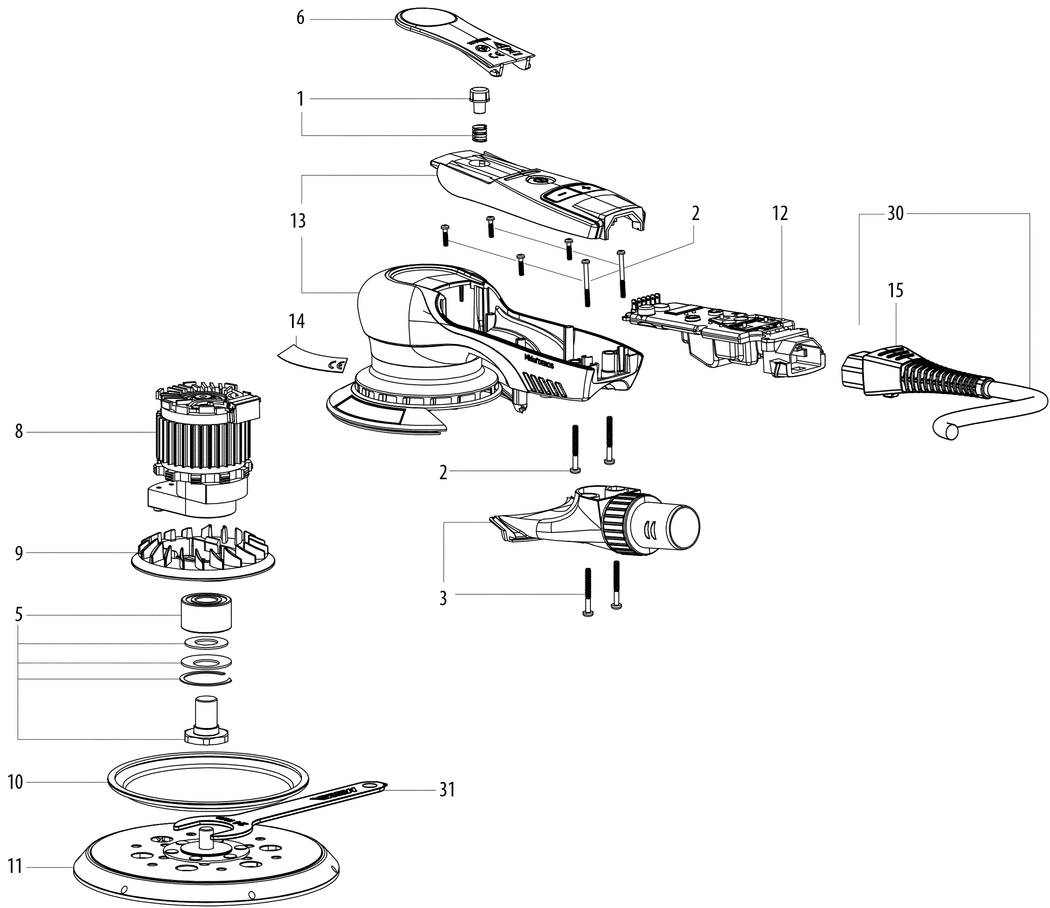

An exploded diagram and spare parts listing for the Metabo SXE 150-2.5 BL / 15025000 / EU 230V

	Ex VAT	Inc VAT
1 - GUARD BUTTON COMP. MET-316096340.A3 316096340	£22.61	£27.13
2 - SCREW SET MET-316096350.A0 316096350	-
3 - EXHAUST CPL. MET-316096360.A3 316096360	-
5 - SPINDLE COMPL. MET-316096380.A0 316096380	£94.04	£112.85
6 - LEVER 2 5 MM (150 MM) MET-343445540.A1 343445540	£13.63	£16.36
8 - MOTOR MET-317004910.A0 317004910	£266.93	£320.32
9 - FAN MET-330007060.A1 330007060	-
10 - BRAKE RING MET-344113630.A3 344113630	£19.18	£23.02
11 - GRINDING PLATE 150 MM MEDIUM MET-630259000.A0 630259000	£27.49	£32.99
12 - ELECTRONIC UNIT COMPL. MET-316096390.A1 316096390	£184.46	£221.35
13 - HOUSING COMPL. MET-316096400.A2 316096400	-
14 - RATING PLATE MET-338068320.A1 338068320	-
15 - CONNECTOR MET-344531740.A3 344531740	£26.35	£31.62
30 - CABLE W.CEE PLUG MET-344531170.A1 344531170	£54.94	£65.93
31 - OPEN-END SPANNER MET-344164210.A0 344164210	£8.37	£10.04
