Metabo SSD 18 LTX 200 BL / 02396370 / - Spare Parts

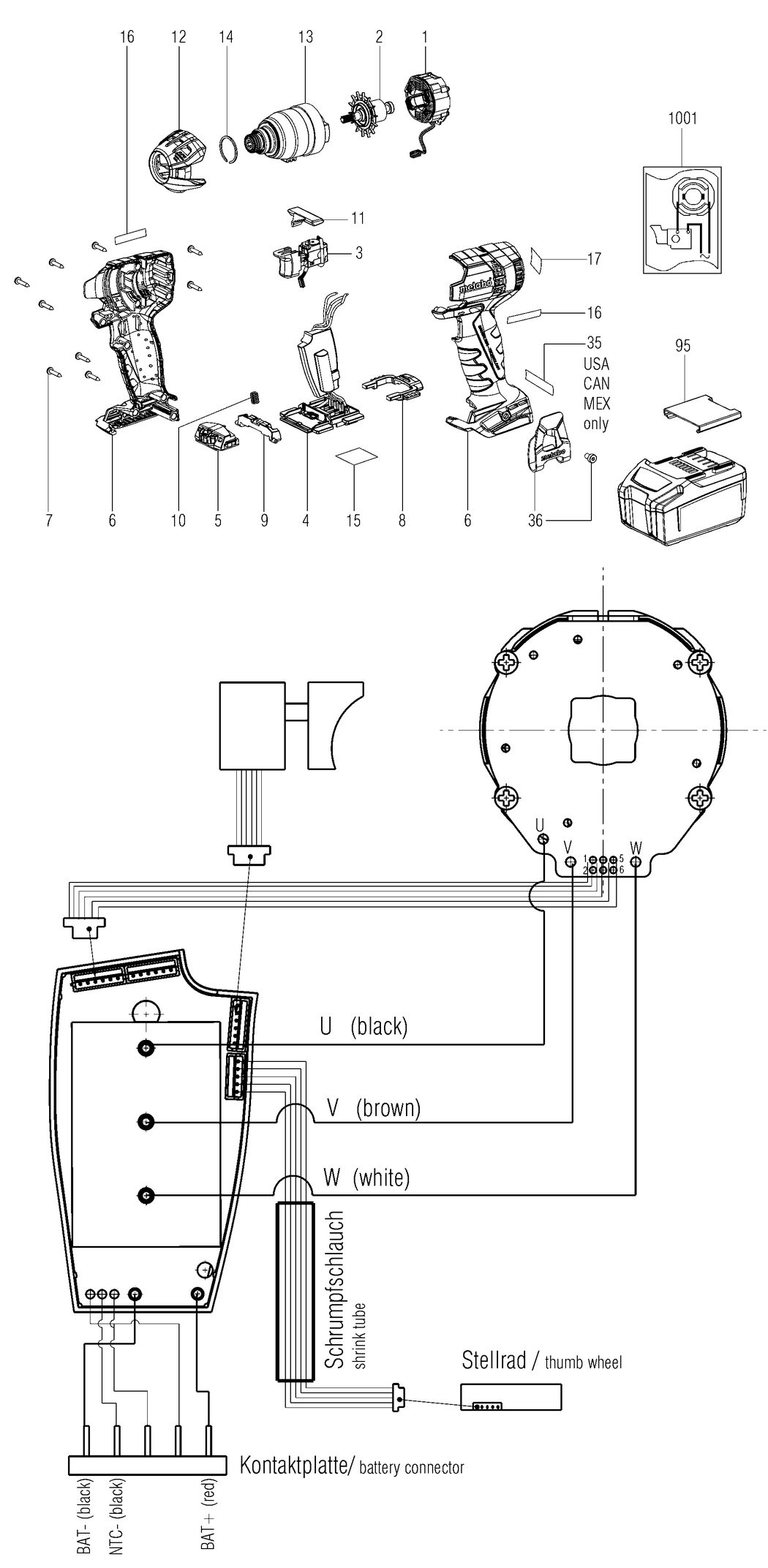

An exploded diagram and spare parts listing for the Metabo SSD 18 LTX 200 BL / 02396370 / -

	Ex VAT	Inc VAT
1 - FIELD COMPL. 18 V MET-311012730.A0 311012730	£61.08	£73.30
2 - ARMATURE COMPL. 18V MET-310012370.A0 310012370	£63.36	£76.03
3 - POTI SWITCH MET-316081550.A9 316081550	£17.48	£20.98
4 - ELECTRONIC UNIT FOR SSW 18 LTX MET-343086410.A0 343086410	£121.97	£146.36
5 - THUMB WHEEL COMPL. 18V SSD LTX BL MET-343086420.A2 343086420	£36.59	£43.91
6 - HOUSING W.COVER MET-343445210.A2 343445210	£22.61	£27.13
7 - SELF-TAP. FILL. H. SCREW MET-141113180.A193 141113180	£1.50	£1.80
8 - LOCKING SLIDE MET-343438580.A14 343438580	£3.20	£3.84
9 - LOCKING PIECE MET-343430520.A30 343430520	£2.94	£3.53
10 - PRESSURE SPRING MET-342004070.A8 342004070	£2.94	£3.53
11 - SWITCH SLIDE R/L MET-343433260.A16 343433260	£2.94	£3.53
12 - CAP MET-343445410.A0 343445410	£4.76	£5.71
13 - GEARBOX COMPL. MET-316067580.A1 316067580	-
14 - CIRCLIP MET-141156820.A0 141156820	£3.20	£3.84
15 - RATING PLATE MET-338069050.A0 338069050	-
16 - RATING PLATE MET-338129060.A2 338129060	-
17 - INDICATION LABEL MET-338129940.A54 338129940	£3.20	£3.84
36 - HOOK MET-339137270.A16 339137270	£3.82	£4.59
95 - COVER CAP MET-343439680.A41 343439680	£2.94	£3.53
1001 - WIRING DIAGRAM MET-338506300.A1 338506300	-

Attribute Name	Value
Brand	Metabo
