1 - BRUSH WITH HOLDER
MET-316033670.A6
316033670
|
£15.41
|
£18.49
|
|
|
2 - DUMMY PLUG
MET-343371240.A2
343371240
|
£1.50
|
£1.80
|
|
|
3 - RATING PLATE
MET-338034030.A1
338034030
|
£1.50
|
£1.80
|
|
|
4 - KNOB CPL.
MET-316025200.A9
316025200
|
£11.78
|
£14.13
|
|
|
5 - FILL. HEAD SCREW(DIN 7985)
MET-141119440.A55
141119440
|
£1.50
|
£1.80
|
|
|
6 - TAPPED-HOLE PLATE
MET-339127860.A9
339127860
|
£3.20
|
£3.84
|
|
|
7 - FIELD COIL 240 V
MET-311009670.A9
311009670
|
£54.94
|
£65.93
|
|
|
8 - SELF-TAP. FILL. H. SCREW
MET-141118820.A6
141118820
|
£3.20
|
£3.84
|
|
|
9 - BAFFLE
MET-343371250.A4
343371250
|
£4.76
|
£5.71
|
|
|
10 - O-RING
MET-143191620.A13
143191620
|
£3.20
|
£3.84
|
|
|
11 - WASHER
MET-141153400.A77
141153400
|
£3.20
|
£3.84
|
|
|
12 - BALL BEARING 6X 19X 6
MET-143115810.A88
143115810
|
£7.04
|
£8.45
|
|
|
13 - ARMATURE CPL. 230 V
MET-310007410.A8
310007410
|
£64.30
|
£77.16
|
|
|
14 - FAN
MET-330001120.A10
330001120
|
£6.38
|
£7.65
|
|
|
15 - WASHER
MET-141152830.A8
141152830
|
£3.82
|
£4.59
|
|
|
16 - BALL BEARING 10X30X9
MET-143115650.A18
143115650
|
£4.76
|
£5.71
|
|
|
17 - SELF-TAP FILL H SCREW
MET-141116020.A563
141116020
|
£3.20
|
£3.84
|
|
|
18 - HOUSING COVER
MET-343371230.A4
343371230
|
£22.61
|
£27.13
|
|
|
19 - CABLE CLIP
MET-343362490.A1155
343362490
|
£3.20
|
£3.84
|
|
|
20 - CYLINDRICAL PIN
MET-141162570.A21
141162570
|
£3.20
|
£3.84
|
|
|
21 - LEVER
MET-343371450.A8
343371450
|
£3.20
|
£3.84
|
|
|
22 - FILLISTER HEAD SCREW
MET-141113220.A26
141113220
|
£1.50
|
£1.80
|
|
|
23 - BEARING FLANGE CPL.
MET-316025950.A2
316025950
|
£68.35
|
£82.02
|
|
|
24 - LEVER
MET-343371440.A4
343371440
|
£3.20
|
£3.84
|
|
|
25 - DUST BAG HOLDER COMPL.
MET-316026300.A5
316026300
|
£17.55
|
£21.06
|
|
|
26 - WASHER
MET-339111090.A3
339111090
|
£1.50
|
£1.80
|
|
|
27 - PAPER DUST BAG
MET-344100960.A8
344100960
|
£5.62
|
£6.75
|
|
|
28 - MOTOR HOUSING
MET-343371220.A8
343371220
|
£32.88
|
£39.45
|
|
|
29 - M-LABEL 08 52X22
MET-338122160.A111
338122160
|
£1.50
|
£1.80
|
|
|
30 - STRAND CPL. AWG18SW
MET-344492110.A3
344492110
|
£3.20
|
£3.84
|
|
|
31 - INSULATING HOSE
MET-339040660.A3
339040660
|
£1.50
|
£1.80
|
|
|
32 - PRESSURE SWITCH BLACK
MET-343408920.A23
343408920
|
£9.62
|
£11.54
|
|
|
33 - CLAMPING STRAP
MET-339127870.A4
339127870
|
£1.50
|
£1.80
|
|
|
34 - FILL. HEAD SCREW(DIN 7985)
MET-141119570.A5
141119570
|
£1.50
|
£1.80
|
|
|
35 - SWIVEL PIN
MET-344094850.A6
344094850
|
£6.38
|
£7.65
|
|
|
36 - FAN
MET-316025750.A6
316025750
|
£8.37
|
£10.04
|
|
|
37 - FILLISTER HEAD SCREW
MET-141116970.A160
141116970
|
£3.20
|
£3.84
|
|
|
38 - EXTRACTION COVER
MET-343371260.A8
343371260
|
£5.62
|
£6.75
|
|
|
39 - TORSION SPRING
MET-342020930.A12
342020930
|
£1.50
|
£1.80
|
|
|
40 - ROD
MET-341514760.A1
341514760
|
£1.50
|
£1.80
|
|
|
41 - PRESSURE SPRING
MET-316026740.A3
316026740
|
£5.62
|
£6.75
|
|
|
43 - OSCILLATING PLATE
MET-315414290.A0
315414290
|
£32.88
|
£39.45
|
|
|
44 - FELT RING
MET-143190500.A7
143190500
|
£3.20
|
£3.84
|
|
|
45 - COVER WASHER
MET-339070070.A9
339070070
|
£3.20
|
£3.84
|
|
|
46 - BALL BEARING 17X35X10
MET-143111450.A13
143111450
|
£11.78
|
£14.13
|
|
|
47 - COUNTERWEIGHT
MET-315414380.A1
315414380
|
£17.55
|
£21.06
|
|
|
48 - WASHER
MET-339000090.A5
339000090
|
£1.50
|
£1.80
|
|
|
49 - COUNTERSUNK SCREW
MET-141112220.A7
141112220
|
£1.50
|
£1.80
|
|
|
50 - COVER
MET-339160430.A12
339160430
|
£1.50
|
£1.80
|
|
|
51 - SANDING BASE-PLATE CPL.
MET-339160250.A0
339160250
|
£32.88
|
£39.45
|
|
|
52 - CABLE SLEEVE
MET-344100640.A20
344100640
|
£3.82
|
£4.59
|
|
|
53 - CABLE WITH PLUG
MET-344493180.A34
344493180
|
£26.35
|
£31.62
|
|
|
54 - PART NOT NEEDED
MET-399999990.A2367
399999990
|
-
|
|
|
|
55 - CABLE SET
MET-344494020.A6
344494020
|
£3.20
|
£3.84
|
|
|
56 - CHOKE
MET-343254030.A4
343254030
|
£4.76
|
£5.71
|
|
|

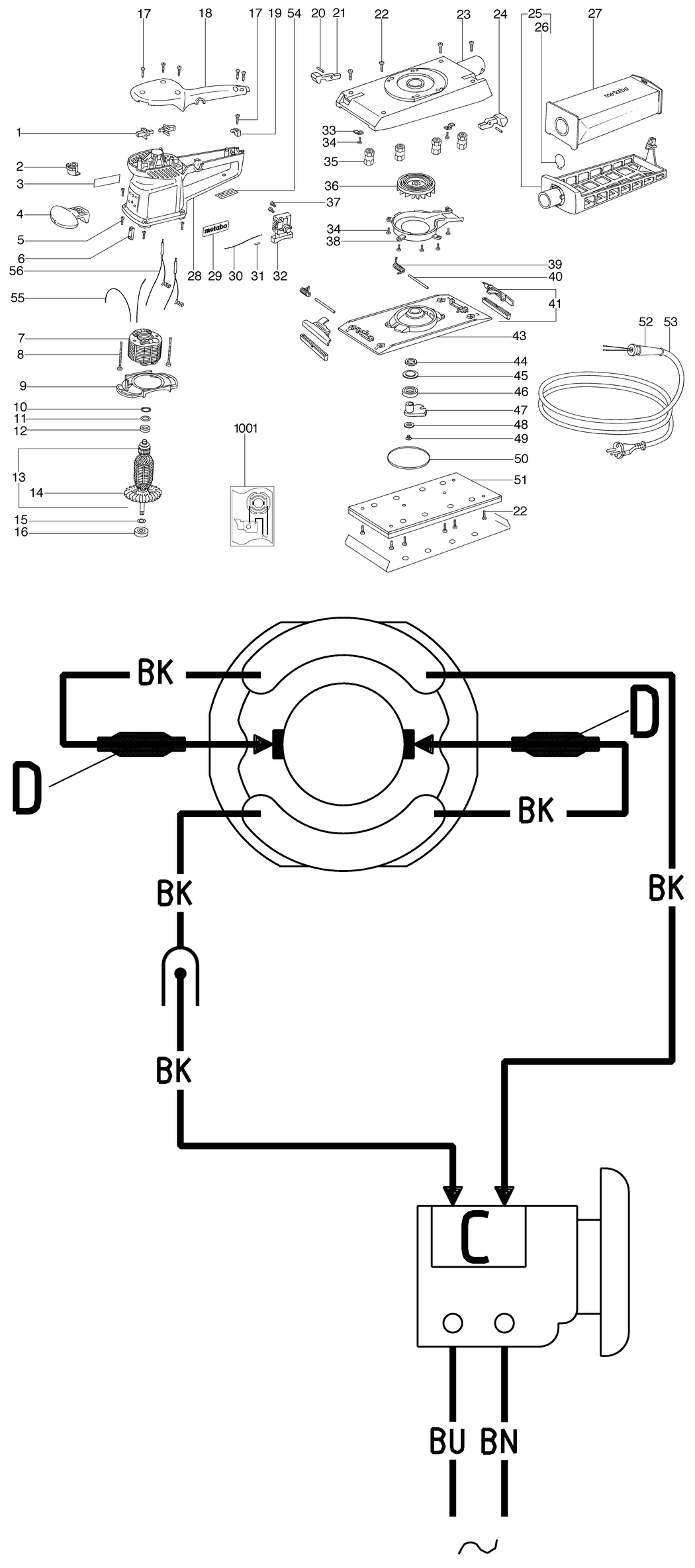

1001 - DIAGRAM
MET-338501040.A5
338501040
|
-
|
|
|
