1 - ARMATURE COMPL. 230 V
MET-310009680.A3
310009680
|
-
|
|
|
|
2 - SELF-TAP. FILL. H. SCREW
MET-141118270.A4
141118270
|
£3.20
|
£3.84
|
|
|
3 - SWITCH
MET-343409450.A17
343409450
|
£15.41
|
£18.49
|
|
|
4 - CABLE SLEEVE
MET-344100970.A5
344100970
|
£3.20
|
£3.84
|
|
|
5 - CABLE WITH PLUG
MET-344497150.A5
344497150
|
£22.61
|
£27.13
|
|
|
6 - CABLE CLIP
MET-343362490.A1099
343362490
|
£3.20
|
£3.84
|
|
|
7 - SELF-TAP FILL H SCREW
MET-141116020.A52
141116020
|
£3.20
|
£3.84
|
|
|
8 - ELECTRONIC UNIT 230V / 50/60HZ
MET-343082140.A3
343082140
|
£48.88
|
£58.66
|
|
|
9 - TEMPERATURE SENSOR
MET-343083590.A2
343083590
|
-
|
|
|
|
10 - MOTOR HOUSING
MET-315013230.A21
315013230
|
£11.78
|
£14.13
|
|
|
11 - BAFFLE
MET-339151040.A59
339151040
|
£3.20
|
£3.84
|
|
|
12 - BALL BEARING 6X19X6
MET-143115690.A223
143115690
|
£3.82
|
£4.59
|
|
|
13 - RUBBER BUSHING
MET-344097870.A126
344097870
|
£1.50
|
£1.80
|
|
|
14 - WASHER
MET-339133060.A97
339133060
|
£1.50
|
£1.80
|
|
|
15 - BALL BEARING 8X22X7
MET-143115700.A464
143115700
|
£4.76
|
£5.71
|
|
|
16 - WASHER
MET-339006390.A101
339006390
|
£1.50
|
£1.80
|
|
|
17 - HEXAGON NUT W.RECESS
MET-341102260.A59
341102260
|
-
|
|
|
|
18 - SWITCH ROD
MET-343393530.A12
343393530
|
£1.50
|
£1.80
|
|
|
19 - HOUSING COVER
MET-343393460.A37
343393460
|
£7.36
|
£8.83
|
|
|
20 - SWITCH SLIDE
MET-343392980.A69
343392980
|
£1.50
|
£1.80
|
|
|
21 - HOUSING BLACK
MET-343395630.A24
343395630
|
£5.62
|
£6.75
|
|
|
22 - FILLISTER HEAD SCREW
MET-141123490.A83
141123490
|
£1.50
|
£1.80
|
|
|
23 - CLAMPING FLANGE
MET-341031160.A131
341031160
|
£15.41
|
£18.49
|
|
|
24 - FLANGE NUT
MET-341106900.A290
341106900
|
£11.78
|
£14.13
|
|
|
25 - SCHUTZHAUBE VOLLST
MET-316051710.A6
316051710
|
£60.03
|
£72.04
|
|
|
26 - LOOP HANDLE COMPL.
MET-343399690.A37
343399690
|
£19.18
|
£23.02
|
|
|
27 - SLOTTED DISC
MET-341070990.A15
341070990
|
£2.94
|
£3.53
|
|
|
28 - THUMBSCREW COMPL.
MET-341112690.A5
341112690
|
£2.94
|
£3.53
|
|
|
29 - O-RING
MET-143193650.A71
143193650
|
£1.50
|
£1.80
|
|
|
30 - BOLT
MET-341515280.A94
341515280
|
£1.50
|
£1.80
|
|
|
31 - PRESSURE SPRING
MET-342003390.A44
342003390
|
£1.50
|
£1.80
|
|
|
32 - PUSH BUTTON
MET-343393410.A0
343393410
|
£1.50
|
£1.80
|
|
|
33 - SPINDLE M 14
MET-341604450.A0
341604450
|
-
|
|
|
|
34 - LAGERFLANSCH VORMONTIERT
MET-316056670.A2
316056670
|
-
|
|
|
|
35 - WASHER 10 2 X 14
MET-141155550.A30
141155550
|
£1.50
|
£1.80
|
|
|
36 - WASHER 10 2 X 14
MET-141151120.A237
141151120
|
£1.50
|
£1.80
|
|
|
37 - WASHER 10 2 X 14
MET-141152300.A216
141152300
|
£3.20
|
£3.84
|
|
|
38 - GASKET
MET-339011570.A31
339011570
|
£1.50
|
£1.80
|
|
|
39 - FILLISTER HEAD SCREW
MET-141123660.A32
141123660
|
£1.50
|
£1.80
|
|
|
40 - SELF-TAP FILL H SCREW
MET-141116020.A53
141116020
|
£3.20
|
£3.84
|
|
|
41 - PIN SPANNER OFFSET
MET-344160700.A15
344160700
|
-
|
|
|
|
42 - RATING PLATE
MET-338061010.A0
338061010
|
-
|
|
|
|
43 - M-SCHILD 08 TR 49-52X22
MET-338124630.A2
338124630
|
-
|
|
|
|
44 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311010750.A16
311010750
|
£73.52
|
£88.23
|
|
|
45 - TACHO DISC
MET-343399850.A23
343399850
|
£3.20
|
£3.84
|
|
|
46 - BEVEL GEAR W.PINION
MET-316058210.A0
316058210
|
-
|
|
|
|
47 - FRICTION WASHER CPL.
MET-316041650.A117
316041650
|
£17.55
|
£21.06
|
|
|
48 - GEAR HOUSING COMPL.
MET-316049770.A5
316049770
|
-
|
|
|
|
49 - BRUSH HOLDER COMPL. CUT OUT 230V
MET-316045170.A9
316045170
|
£13.63
|
£16.36
|
|
|
50 - FAN W. PROT. GRID
MET-316041450.A25
316041450
|
£7.36
|
£8.83
|
|
|
51 - CARBON BRUSH SET 230V
MET-316042070.A10
316042070
|
£13.63
|
£16.36
|
|
|
54 - COVER COMPL.
MET-316052780.A4
316052780
|
£22.96
|
£27.55
|
|
|
55 - WIRE STRAP
MET-342200680.A6
342200680
|
-
|
|
|
|
56 - PROTECTION PLATE
MET-339135870.A2
339135870
|
-
|
|
|
|
57 - PRESSURE SPRING
MET-342003810.A10
342003810
|
-
|
|
|
|
58 - TIGHTENING PIN
MET-141160850.A6
141160850
|
£1.50
|
£1.80
|
|
|
59 - WASHER
MET-141150110.A71
141150110
|
£1.50
|
£1.80
|
|
|
60 - FILLISTER HEAD SCREW
MET-141123980.A18
141123980
|
-
|
|
|
|
67 - GEAR HOUSING COATED
MET-315105050.A3
315105050
|
-
|
|
|
|
68 - BUSHING
MET-341005880.A5
341005880
|
-
|
|
|
|
69 - NEEDLE SLEEVE
MET-143111430.A36
143111430
|
£7.36
|
£8.83
|
|
|
70 - PART NOT NEEDED
MET-399999990.A1502
399999990
|
-
|
|
|
|
75 - BRUSH COMPL. D 125
MET-344080650.A5
344080650
|
£22.61
|
£27.13
|
|
|
76 - SPACER BUSH
MET-341006120.A0
341006120
|
-
|
|
|
|
880 - GREASE 100G
MET-344130920.A421
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A186
344130560
|
£19.18
|
£23.02
|
|
|

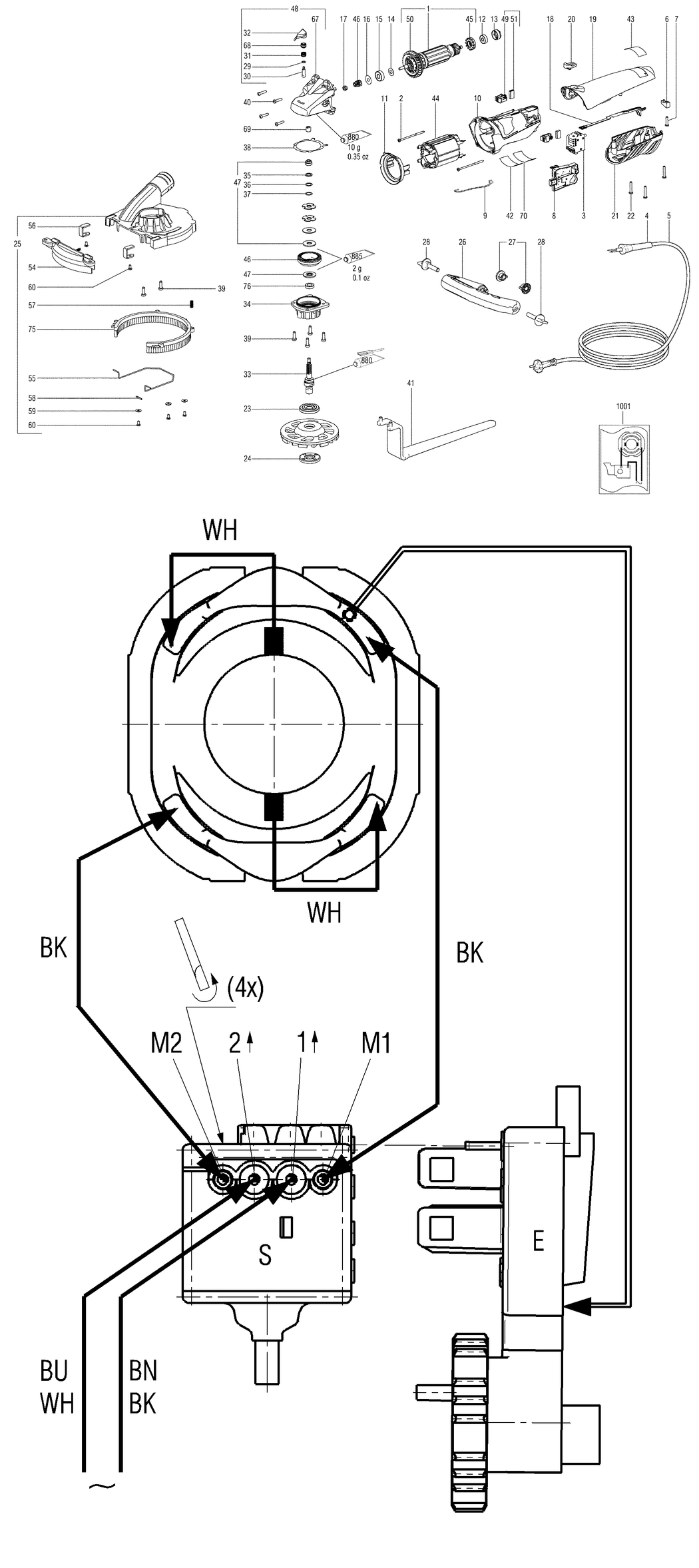

1001 - WIRING DIAGRAM 230V
MET-338504700.A33
338504700
|
-
|
|
|
