1 - SAW GUIDE
MET-316037790.A0
316037790
|
-
|
|
|
|
2 - CIRCLIP
MET-339132250.A2
339132250
|
£1.50
|
£1.80
|
|
|
3 - INSULATION COVER
MET-344096990.A0
344096990
|
£12.36
|
£14.83
|
|
|
4 - EXCENTRIC SETTING RING
MET-341013280.A2
341013280
|
£26.85
|
£32.22
|
|
|
5 - TORSION SPRING
MET-342022410.A0
342022410
|
£5.38
|
£6.45
|
|
|
6 - TAP TITE SCREW TORX 20 X 10
MET-341703770.A0
341703770
|
£1.50
|
£1.80
|
|
|
7 - RETRAINING SHEET
MET-339132210.A0
339132210
|
£1.50
|
£1.80
|
|
|
8 - TIGHT FIT SREW TORX 20 X 58
MET-341703760.A2
341703760
|
£1.50
|
£1.80
|
|
|
9 - RUBBER PACKING
MET-344097010.A2
344097010
|
£3.89
|
£4.67
|
|
|
10 - SCREW
MET-341703720.A2
341703720
|
£6.19
|
£7.43
|
|
|
11 - GEAR COVER
MET-315104370.A2
315104370
|
£49.88
|
£59.86
|
|
|
12 - FELT RING
MET-344070820.A0
344070820
|
£3.89
|
£4.67
|
|
|
13 - BALL BEARING 15X32X9
MET-320050530.A0
320050530
|
£22.40
|
£26.88
|
|
|
14 - RETAINING RING
MET-339132230.A1
339132230
|
£1.50
|
£1.80
|
|
|
15 - SPACER
MET-341057510.A0
341057510
|
£1.50
|
£1.80
|
|
|
16 - RETAINING RING
MET-339132240.A1
339132240
|
£1.50
|
£1.80
|
|
|
17 - WOBBLE ASSY
MET-341090030.A0
341090030
|
£54.44
|
£65.33
|
|
|
18 - SUPPOR+D15097T SLEEVE
MET-341057490.A1
341057490
|
£28.45
|
£34.14
|
|
|
19 - BALL W. RECESS
MET-341006190.A1
341006190
|
£11.20
|
£13.44
|
|
|
20 - RAM
MET-341210840.A1
341210840
|
£41.44
|
£49.73
|
|
|
21 - BALL BEARING 8X22X7
MET-320050520.A2
320050520
|
£14.71
|
£17.65
|
|
|
22 - DRIVE SHAFT
MET-341057520.A2
341057520
|
£40.73
|
£48.88
|
|
|
23 - SPUR GEAR
MET-340012450.A0
340012450
|
£45.80
|
£54.96
|
|
|
24 - HANDLE WITH COVER
MET-343393850.A2
343393850
|
-
|
|
|
|
25 - SCREW TORX 20 X 18
MET-341703730.A0
341703730
|
£1.50
|
£1.80
|
|
|
26 - CONVERSION KIT + SWITCH 230 V
MET-343407630.A0
343407630
|
£41.44
|
£49.73
|
|
|
29 - GUIDE LEVER
MET-316037810.A2
316037810
|
£14.71
|
£17.65
|
|
|
30 - TIGTHENING PIN
MET-341520090.A2
341520090
|
£2.94
|
£3.53
|
|
|
31 - FELT RING
MET-344070810.A2
344070810
|
£1.50
|
£1.80
|
|
|
32 - WASHER
MET-339006820.A1
339006820
|
£3.89
|
£4.67
|
|
|
33 - GUIDE LOCKING PLATE
MET-339132220.A0
339132220
|
£4.64
|
£5.57
|
|
|
34 - ALLEN HEAD SCREW
MET-341703550.A0
341703550
|
£1.50
|
£1.80
|
|
|
35 - SCREW W. BEARING PIN
MET-341703710.A0
341703710
|
£7.04
|
£8.45
|
|
|
36 - CONDENSER
MET-343254270.A1
343254270
|
-
|
|
|
|
38 - METABO PLATE
MET-338118620.A1
338118620
|
£1.50
|
£1.80
|
|
|
39 - TERMINAL
MET-343050230.A1
343050230
|
-
|
|
|
|
40 - BRUSH SET CPL. 120/230 V
MET-316037840.A0
316037840
|
£22.61
|
£27.13
|
|
|
41 - PLASTITE SCREW TORX 20 X 18
MET-341703740.A1
341703740
|
-
|
|
|
|
42 - FELT RING
MET-344070830.A1
344070830
|
£1.50
|
£1.80
|
|
|
43 - TAP TITE SCREW TORX 20 X 9
MET-341703780.A0
341703780
|
£1.50
|
£1.80
|
|
|
44 - FAN
MET-330001660.A1
330001660
|
£12.36
|
£14.83
|
|
|
45 - ARMATURE CPL. 230 V
MET-310008690.A1
310008690
|
£70.49
|
£84.59
|
|
|
46 - RUBBER BUSHING
MET-344097040.A1
344097040
|
£1.50
|
£1.80
|
|
|
47 - SPRING
MET-342050790.A1
342050790
|
-
|
|
|
|
48 - INTERMEDIATE FLANGE
MET-315202250.A0
315202250
|
£26.85
|
£32.22
|
|
|
49 - BALL BEARING 10X26X8
MET-320050540.A1
320050540
|
£20.12
|
£24.14
|
|
|
50 - FELT RING
MET-344070840.A1
344070840
|
£3.11
|
£3.73
|
|
|
51 - OSCILLATING SWITCH
MET-316037800.A0
316037800
|
£7.04
|
£8.45
|
|
|
53 - SREW 5 3X50 TX 20
MET-341703680.A2
341703680
|
-
|
|
|
|
54 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311010330.A0
311010330
|
£49.88
|
£59.86
|
|
|
55 - NAME PLATE
MET-338045550.A0
338045550
|
-
|
|
|
|
56 - MOTOR HOUSING
MET-343390590.A2
343390590
|
£26.85
|
£32.22
|
|
|
57 - HOLDER INSULATION
MET-339011470.A1
339011470
|
£3.11
|
£3.73
|
|
|
58 - FET HOLDER
MET-343390690.A0
343390690
|
£5.38
|
£6.45
|
|
|
59 - PLASTIC STRIP
MET-341147750.A1
341147750
|
-
|
|
|
|
60 - NUT
MET-343050180.A1
343050180
|
£3.89
|
£4.67
|
|
|
63 - CABLE WITH PLUG
MET-344488350.A0
344488350
|
£22.96
|
£27.55
|
|
|
64 - CABLE SLEEVE
MET-344097030.A1
344097030
|
£8.62
|
£10.34
|
|
|
65 - PART NOT NEEDED
MET-399999990.A499
399999990
|
-
|
|
|
|
66 - PART NOT NEEDED
MET-399999990.A500
399999990
|
-
|
|
|
|
67 - PART NOT NEEDED
MET-399999990.A501
399999990
|
-
|
|
|
|
68 - PART NOT NEEDED
MET-399999990.A502
399999990
|
-
|
|
|
|
69 - BRUSH HOLDER
MET-343000890.A1
343000890
|
£8.70
|
£10.44
|
|
|
75 - SNAP RING
MET-141180090.A53
141180090
|
£3.20
|
£3.84
|
|
|
880 - SPECIAL GREASE
MET-631800000.A16
631800000
|
£4.16
|
£4.99
|
|
|

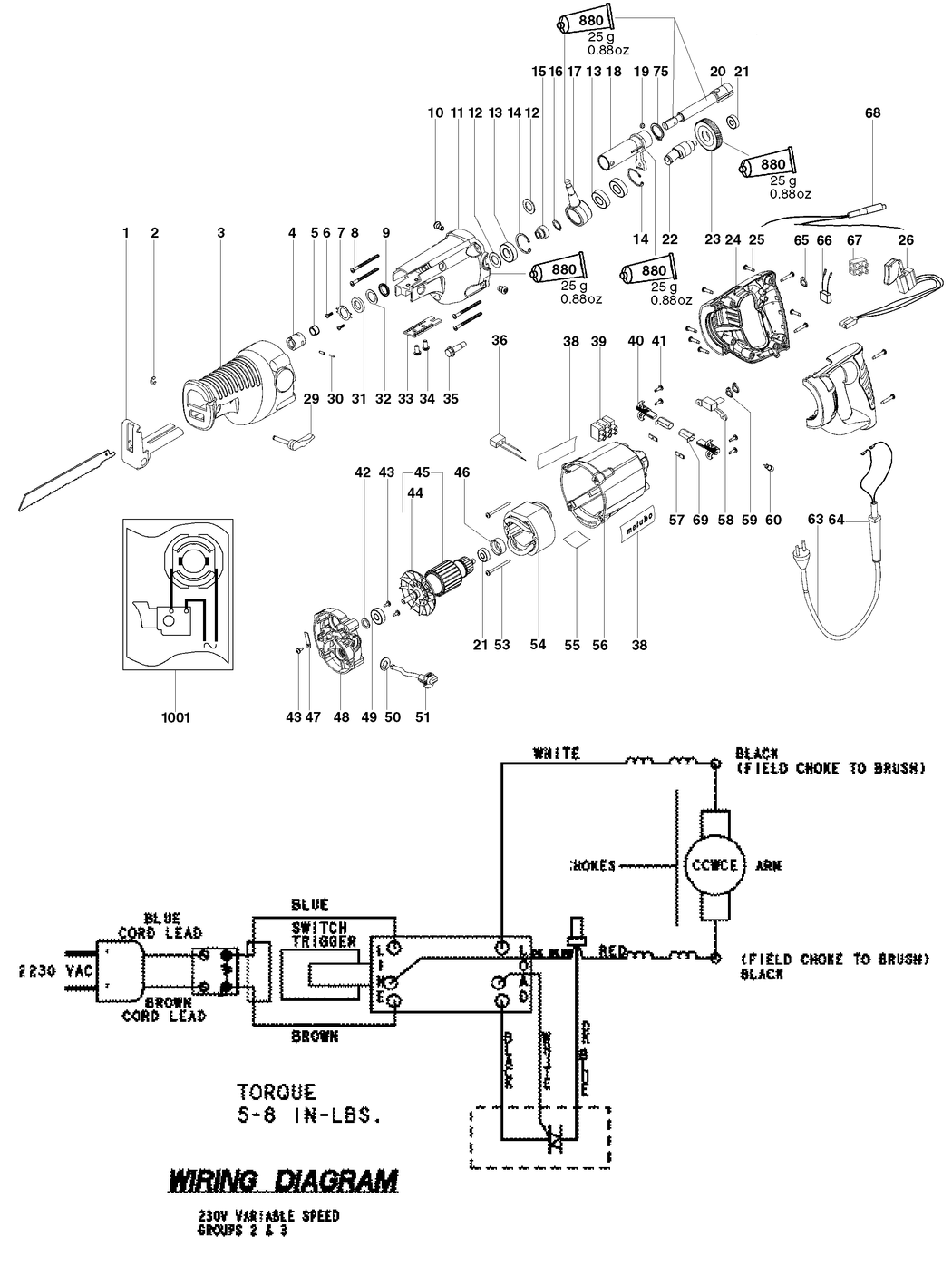

1001 - DIAGRAM
MET-338504220.A0
338504220
|
-
|
|
|
