Metabo OF E 1229 SIGNAL / 01229181 / CH 230V Spare Parts

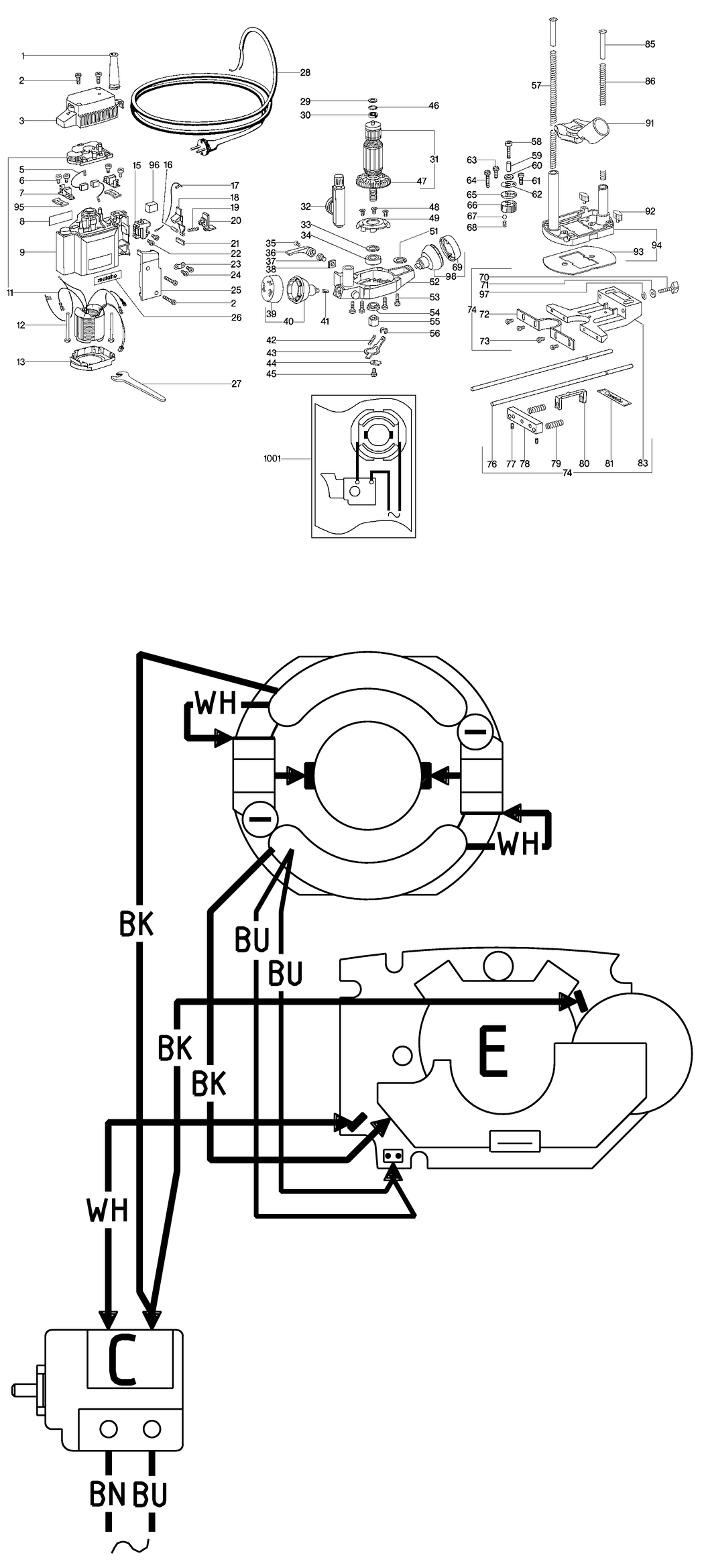

An exploded diagram and spare parts listing for the Metabo OF E 1229 SIGNAL / 01229181 / CH 230V

	Ex VAT	Inc VAT
1 - CABLE SLEEVE MET-344100640.A4 344100640	£3.82	£4.59
2 - SELF-TAP FILL H SCREW MET-141116020.A12 141116020	£3.20	£3.84
3 - MOTOR CAP MET-343365780.A3 343365780	£26.35	£31.62
5 - CARBON BRUSH MET-316033420.A2 316033420	£22.61	£27.13
6 - SELF-TAPP. FILL. H. SCREW MET-141119900.A26 141119900	£1.50	£1.80
7 - BRUSH HOLDER MET-343000480.A5 343000480	£9.62	£11.54
8 - RATING PLATE MET-338024650.A5 338024650	£1.50	£1.80
9 - MOTOR HOUSING MET-343363830.A3 343363830	£42.65	£51.18
11 - FIELD WITH ELEKTRONIC MET-316067690.A1 316067690	-
12 - SELF-TAP. FILL. H. SCREW MET-141121680.A38 141121680	£1.50	£1.80
13 - BAFFLE COVER MET-343363850.A3 343363850	£9.62	£11.54
15 - SWITCH MET-343406260.A10 343406260	£11.78	£14.13
16 - CYLINDRICAL PIN MET-141160290.A5 141160290	£1.50	£1.80
17 - STRAND CPL. AWG18SW MET-344489180.A1 344489180	£3.20	£3.84
18 - SWITCH ROD MET-343363720.A2 343363720	£6.38	£7.65
19 - PRESSURE SPRING MET-342001830.A1 342001830	£1.50	£1.80
20 - SWITCH SLIDE CPL. MET-316021590.A1 316021590	£8.37	£10.04
21 - GUIDE MET-339124560.A1 339124560	£4.76	£5.71
22 - FILLISTER HEAD SCREW MET-141116970.A107 141116970	£3.20	£3.84
23 - CABLE CLIP MET-339187200.A10 339187200	£3.20	£3.84
24 - SELF-TAP. FILL. H. SCREW MET-141116130.A66 141116130	£1.50	£1.80
25 - COVER MET-343363840.A2 343363840	£11.78	£14.13
26 - M-LABEL 56X25 MET-338122370.A30 338122370	£3.20	£3.84
27 - TREN-END SPANNER 19MM MET-623902000.A4 623902000	-
28 - CABLE WITH PLUG MET-344489580.A28 344489580	£17.55	£21.06
29 - WASHER MET-141151320.A18 141151320	£3.20	£3.84
30 - BALL BEARING 8X22X7 MET-143115800.A109 143115800	£3.83	£4.60
31 - ARMATURE CPL. 220 V MET-310005780.A3 310005780	£94.04	£112.85
32 - DIAL GAUGE ADJUSTER MET-316017080.A1 316017080	£51.54	£61.85
33 - SNAP RING MET-141180090.A20 141180090	£3.20	£3.84
34 - BALL BEARING 15X35X11 MET-143114020.A9 143114020	£17.55	£21.06
35 - COUNTERSUNK SCREW MET-141112120.A2 141112120	£1.50	£1.80
36 - CLAMPING LEVER MET-343360210.A2 343360210	£4.76	£5.71
37 - HEXAGON HEAD SCREW MET-341702130.A3 341702130	£3.82	£4.59
38 - SUPPORT MET-339124980.A2 339124980	£3.20	£3.84
39 - HANDLE UPPER PART MET-341111560.A6 341111560	£7.36	£8.83
40 - HANDLE BOTTOM PART MET-316033050.A1 316033050	£8.37	£10.04
41 - BOLT MET-341052670.A4 341052670	£3.20	£3.84
42 - PRESSURE SPRING MET-342001770.A5 342001770	£1.50	£1.80
43 - SLIDE MET-339124490.A5 339124490	£6.38	£7.65
44 - PLATE MET-339004950.A2 339004950	£3.20	£3.84
45 - FILL. HEAD SCREW MET-141120070.A172 141120070	£1.50	£1.80
46 - O-RING MET-143192130.A12 143192130	£3.20	£3.84
47 - FAN MET-330000950.A0 330000950	£6.38	£7.65
48 - COUNTERSUNK SCREW MET-141122320.A34 141122320	£2.94	£3.53
49 - BEARING FLANGE MET-339124720.A4 339124720	£17.55	£21.06
51 - RETAINING RING MET-141180120.A2 141180120	£3.20	£3.84
52 - BEARING FLANGE CPL. MET-316021600.A4 316021600	£63.44	£76.13
53 - SELF-TAP. FILL. H. SCREW MET-141116980.A71 141116980	£1.50	£1.80
54 - FLANGE NUT MET-341101500.A5 341101500	£6.38	£7.65
55 - COLLET 8 MM WITH FLANGE NUT (HEXAGON) MET-631946000.A5 631946000	£11.20	£13.44
56 - TRIGGER MET-343364110.A4 343364110	£3.82	£4.59
57 - PRESSURE SPRING MET-342001980.A6 342001980	£5.62	£6.75
58 - CAP SCREW MET-141113900.A22 141113900	£3.20	£3.84
59 - SLEEVE MET-341052660.A4 341052660	£3.20	£3.84
60 - CUP SPRING MET-141152620.A2 141152620	£1.50	£1.80
61 - CAP SCREW MET-141111230.A4 141111230	£1.50	£1.80
62 - WASHER MET-339000660.A0 339000660	£4.76	£5.71
63 - FILLISTER HEAD SCREW MET-141116780.A43 141116780	£1.50	£1.80
64 - FILLISTER HEAD SCREW MET-141115970.A5 141115970	£3.20	£3.84
65 - COMPENSATING WASHER MET-344093280.A0 344093280	£4.76	£5.71
66 - BUSH MET-341052650.A1 341052650	£11.78	£14.13
67 - BALL MET-143120300.A4 143120300	£1.50	£1.80
68 - PRESSURE SPRING MET-342000050.A5 342000050	£3.20	£3.84
69 - HANDLE UPPER PART MET-341111320.A0 341111320	£8.37	£10.04
70 - THUMBSCREW MET-341110800.A2 341110800	£3.82	£4.59
71 - WASHER MET-141150130.A223 141150130	£1.50	£1.80
72 - GUIDE MET-343363630.A2 343363630	£11.78	£14.13
73 - FILLISTER HEAD SCREW MET-141113220.A43 141113220	£1.50	£1.80
74 - FINE-ADJUSTMENT PARALLEL EDGE GUIDE MET-631507000.A5 631507000	-
76 - GUIDE ROD MET-341051890.A4 341051890	£8.37	£10.04
77 - GRUB SCREW MET-141115000.A2 141115000	£3.20	£3.84
78 - BRIDGE MET-341142480.A2 341142480	£15.41	£18.49
79 - PRESSURE SPRING MET-342001760.A1 342001760	£3.20	£3.84
80 - POINTER MET-344350280.A1 344350280	£15.41	£18.49
81 - SCALE MET-338113730.A0 338113730	£3.20	£3.84
83 - GUIDE HOLDER MET-315412570.A3 315412570	£54.94	£65.93
85 - TUBULAR RIVET MET-141163410.A4 141163410	£3.20	£3.84
86 - PRESSURE SPRING MET-342001820.A6 342001820	£4.76	£5.71
91 - EXHAUST NOZZLE MET-316025140.A6 316025140	£22.96	£27.55
92 - THUMBSCREW MET-341111030.A10 341111030	£3.82	£4.59
93 - SUPPORT MET-339124480.A4 339124480	£6.38	£7.65
94 - BASE PLATE CPL. MET-316020730.A6 316020730	£55.90	£67.08
95 - INSULATING PLATE MET-339010870.A1 339010870	£1.50	£1.80
96 - INSERT MET-344100070.A1 344100070	£1.50	£1.80
97 - O-RING MET-143190060.A5 143190060	£1.50	£1.80
98 - HANDLE BOTTOM PART MET-316033040.A9 316033040	£7.36	£8.83
1001 - DIAGRAM MET-338501130.A1 338501130	-
