Metabo TK - Motor 3 10 WNB / 0100013134 10 / EU 230V Spare Parts

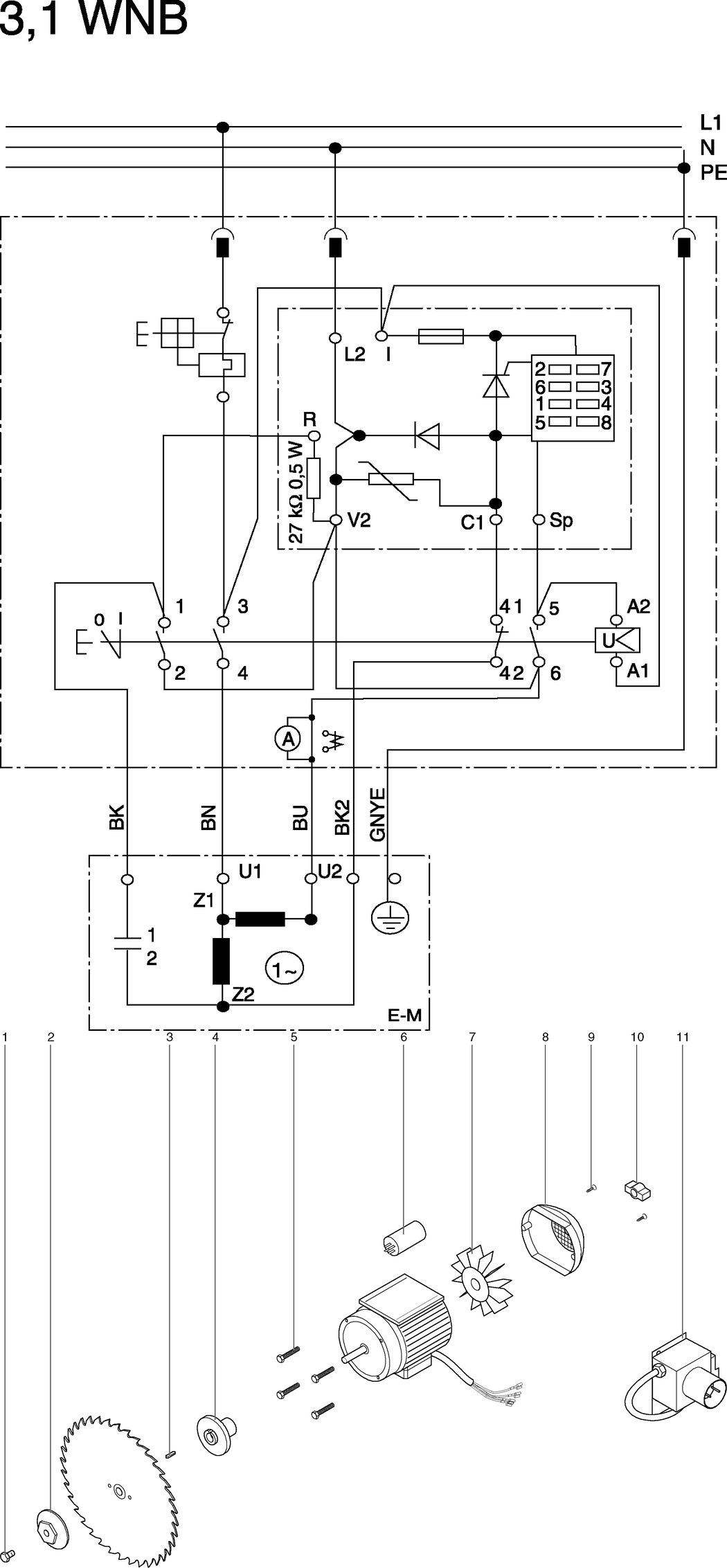

An exploded diagram and spare parts listing for the Metabo TK - Motor 3 10 WNB / 0100013134 10 / EU 230V

	Ex VAT	Inc VAT
1 - HEX HEAD SCREW MET-6103001267.A5 6103001267	£3.20	£3.84
2 - BLADE COLLAR OUTER D 276 MET-1330025316.A4 1330025316	£13.63	£16.36
3 - FEATHER KE A 6X4X45 MET-6721046190.A0 6721046190	-
4 - BLADE COLLAR INNER MET-1330025308.A7 1330025308	£26.35	£31.62
5 - HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC MET-6103001356.A40 6103001356	£1.50	£1.80
6 - CAPACITOR COMPL. 37 5UF/400V MET-8050011829.A2 8050011829	£30.06	£36.07
7 - FAN WING 120/13 WELLEND. 16 MET-1331408839.A4 1331408839	£3.82	£4.59
8 - FAN COVER 120/13 MET-1331408847.A11 1331408847	£4.76	£5.71
9 - FILLISTER HEAD SCREW W.FILL. HEAD SCREW MET-6172001805.A12 6172001805	£1.50	£1.80
10 - CAP MOTORWELLE MET-1381083779.A10 1381083779	£1.50	£1.80
11 - SWITCH WNB 14 AMP. ELEKTRONIKKAB.1000MM MET-1010000749.A0 1010000749	-

Attribute Name	Value
Brand	Metabo
