Metabo KHE 76 / 00341421 / US 120V Spare Parts

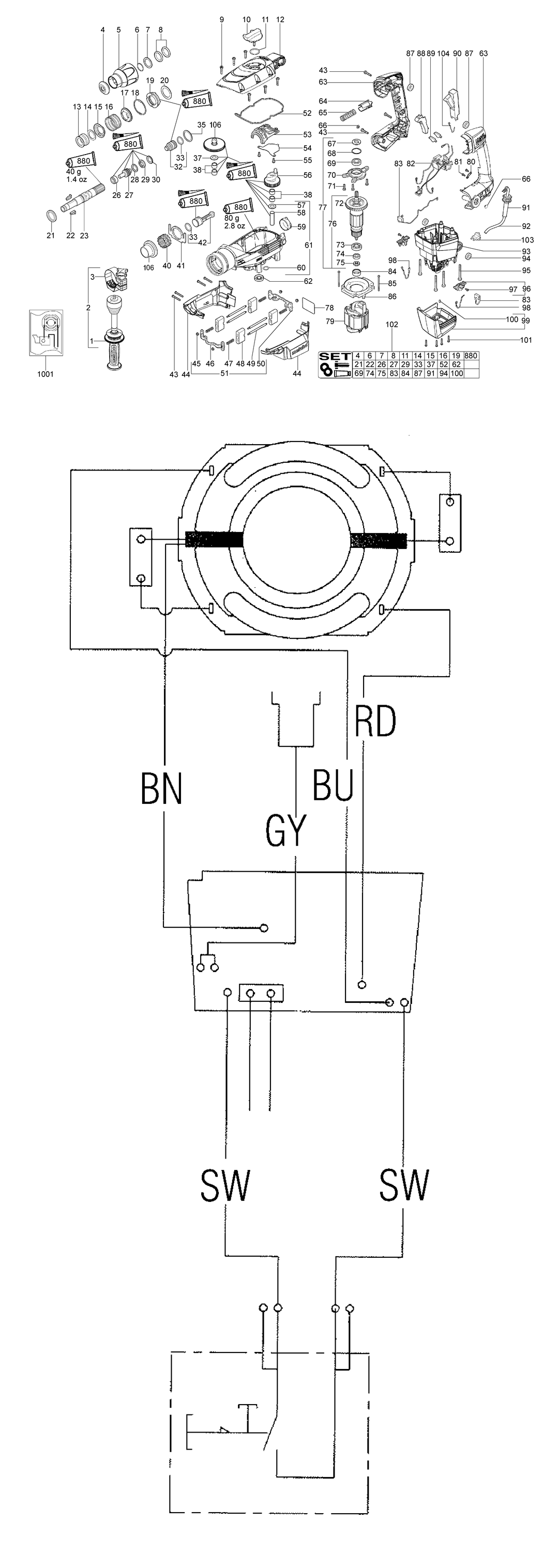

An exploded diagram and spare parts listing for the Metabo KHE 76 / 00341421 / US 120V

	Ex VAT	Inc VAT
1 - HANDLE MET-314001160.A2 314001160	£44.38	£53.26
2 - SIDE SUPPORT HANDLE COMPL. MET-314001150.A9 314001150	£108.01	£129.61
3 - CLAMPING BAND COMPL. MET-316043870.A2 316043870	£17.55	£21.06
4 - RUBBER CAP MET-344098250.A32 344098250	£9.62	£11.54
5 - SLIDING SLEEVE MET-341059120.A1 341059120	£32.88	£39.45
6 - CIRCLIP MET-141155450.A70 141155450	£1.50	£1.80
7 - WASHER MET-341012930.A2 341012930	£15.41	£18.49
8 - O-RING MET-344098130.A1 344098130	£1.50	£1.80
9 - FILLISTER HEAD SCREW MET-141123560.A19 141123560	£1.50	£1.80
10 - CONTROL KNOB COMPL. MET-316043950.A2 316043950	£26.35	£31.62
11 - O-RING MET-344098090.A73 344098090	£1.50	£1.80
12 - GEAR-BOX COVER MET-315416320.A27 315416320	£73.52	£88.23
13 - SLEEVE MET-341058670.A18 341058670	£32.88	£39.45
14 - WASHER MET-341012940.A42 341012940	£8.37	£10.04
15 - GUIDE SHEET MET-339133290.A18 339133290	£15.41	£18.49
16 - PRESSURE SPRING MET-342003510.A19 342003510	£3.82	£4.59
17 - GUIDE PLATE MET-339133310.A26 339133310	£4.76	£5.71
18 - RETAINING RING MET-141156340.A18 141156340	£3.82	£4.59
19 - HOLDER COMPL. MET-316043960.A9 316043960	£63.36	£76.03
20 - RING MET-341013050.A2 341013050	-
21 - O-RING MET-143195000.A3 143195000	£4.76	£5.71
22 - CARRIER MET-339133320.A18 339133320	£19.18	£23.02
23 - SERVICE SET SPINDLE MET-316068050.A2 316068050	£170.22	£204.26
26 - BRAKE RING MET-341012960.A42 341012960	£26.35	£31.62
27 - PISTON COMPL. MET-316043900.A8 316043900	£60.03	£72.04
28 - STOP RING MET-341012860.A1 341012860	£19.18	£23.02
29 - RUBBER RING MET-344098260.A12 344098260	£5.62	£6.75
30 - WASHER MET-341059110.A29 341059110	£19.18	£23.02
32 - STRIKER COMPL. MET-316043940.A9 316043940	-
33 - O-RING MET-344098170.A2 344098170	£1.50	£1.80
35 - WASHER MET-341012880.A8 341012880	£3.82	£4.59
37 - WASHER MET-341012950.A2 341012950	£5.62	£6.75
38 - NEEDLE ROLLER AND CAGE MET-320050640.A42 320050640	£8.37	£10.04
40 - SETTING RING MET-343394390.A37 343394390	£22.96	£27.55
41 - RETAINING SHEET MET-339133180.A1 339133180	-
42 - PISTON COMPL. MET-316044290.A8 316044290	£73.52	£88.23
43 - SCREW L5X35 T2025 MET-341704270.A43 341704270	£1.50	£1.80
44 - GEAR BOX COVER 2-PART MET-343396630.A8 343396630	-
45 - HEX NUT W.FLANGE M4 MET-341102160.A3 341102160	-
46 - SUPPORT FRONT MET-315416940.A3 315416940	-
47 - PRESSURE SPRING MET-342003580.A3 342003580	-
48 - COUNTERWEIGHT MET-315416960.A1 315416960	-
49 - GUIDE ROD MET-341515410.A9 341515410	-
50 - SUPPORT REAR MET-315416950.A10 315416950	-
51 - VIBRATION DAMPER COMPL. MET-316043880.A10 316043880	-
52 - SEAL MET-344098230.A25 344098230	£9.62	£11.54
53 - SHIFT ELEMENT COMPL. MET-316042630.A10 316042630	£8.37	£10.04
54 - RETAINING SHEET MET-339133220.A27 339133220	£9.62	£11.54
55 - FILLISTER HEAD SCREW MET-141123580.A15 141123580	£1.50	£1.80
56 - BEVEL GEAR COMPL. MET-316043920.A2 316043920	£67.04	£80.45
57 - WASHER MET-341012910.A10 341012910	-
58 - BEARING BOLT MET-341515310.A28 341515310	£26.35	£31.62
59 - BEARING MET-320050680.A16 320050680	-
60 - RETAINING RING MET-141180080.A11 141180080	£1.50	£1.80
61 - GEAR HOUSING COMPL. MET-316043860.A11 316043860	-
62 - SHAFT SEALING RING MET-339011650.A44 339011650	£19.18	£23.02
63 - HANDLE 2 PART MET-343394330.A10 343394330	£61.08	£73.30
64 - PRESSURE PLATE MET-343394430.A17 343394430	£8.37	£10.04
65 - PRESSURE SPRING MET-342003520.A25 342003520	£2.94	£3.53
66 - COVER CAP MET-343394290.A2 343394290	£3.20	£3.84
67 - SEALING RING MET-344098080.A16 344098080	£26.35	£31.62
68 - RETAINING RING MET-342022070.A61 342022070	£2.94	£3.53
69 - BALL BEARING MET-320050670.A55 320050670	£22.61	£27.13
70 - GEAR COVER MET-315300630.A4 315300630	£61.08	£73.30
71 - FILLISTER HEAD SCREW MET-141123550.A25 141123550	-
72 - FAN MET-330001870.A3 330001870	£6.38	£7.65
73 - DUST SEAL MET-344098070.A27 344098070	£13.63	£16.36
74 - BALL BEARING MET-320050650.A17 320050650	£15.41	£18.49
75 - TACHO DISC MET-343394310.A7 343394310	£26.35	£31.62
76 - ARMATURE COMPL. 110-120 V MET-310009560.A3 310009560	£198.70	£238.44
77 - ARMATURE W.FLANGE 110 - 120 V MET-316043980.A4 316043980	-
78 - NAME PLATE MET-338051640.A1 338051640	-
79 - FIELD COIL W.FIELD COIL 110-120 V MET-311010840.A1 311010840	£51.54	£61.85
80 - CABLE CLIP MET-343394210.A6 343394210	£1.50	£1.80
81 - SCREW MET-341704240.A11 341704240	£1.50	£1.80
82 - ELECTRONIC UNIT 110-120 V MET-343081720.A3 343081720	£64.30	£77.16
83 - CARBON BRUSH SET MET-316042650.A5 316042650	£36.59	£43.91
84 - RUBBER BUSHING MET-344098220.A19 344098220	£5.62	£6.75
85 - SCREW 4 X 74 MET-341704350.A10 341704350	-
86 - BAFFLE MET-339151150.A1 339151150	-
87 - DAMPING RING MET-339011780.A0 339011780	-
88 - PRESSURE PLATE MET-343394360.A1 343394360	-
89 - LIGHT TRANSMITTER MET-343394380.A8 343394380	£7.36	£8.83
90 - ON-OFF SWITCH MET-343408100.A10 343408100	-
91 - CABLE SLEEVE MET-344098210.A24 344098210	£5.62	£6.75
92 - CABLE WITH PLUG MET-344497460.A5 344497460	-
93 - MOTOR HOUSING MET-315013370.A2 315013370	-
94 - DAMPING RING MET-339011640.A0 339011640	£19.18	£23.02
95 - FILLISTER HEAD SCREW MET-141123540.A20 141123540	£2.94	£3.53
96 - BRUSH HOLDER MET-343000920.A11 343000920	£9.62	£11.54
97 - SCREW MET-341704240.A12 341704240	£1.50	£1.80
98 - LEAD WIRE (SWITCH) MET-344497400.A60 344497400	£3.20	£3.84
99 - MOTOR CAP MET-343396620.A1 343396620	-
100 - PLUG 5 X 7 MET-344098270.A2 344098270	£1.50	£1.80
101 - SCREW MET-341704260.A2 341704260	£2.94	£3.53
102 - MAINTENANCE KIT MET-316043890.A0 316043890	£157.18	£188.61
103 - PART NOT NEEDED MET-399999990.A532 399999990	-
104 - PART NOT NEEDED MET-399999990.A533 399999990	-
106 - GEAR SET MET-316059770.A15 316059770	£157.18	£188.61
880 - TUBE GREASE 45 G URETHYN MET-344131170.A53 344131170	£26.35	£31.62
1001 - WIRING DIAGRAM MET-338504740.A28 338504740	-
