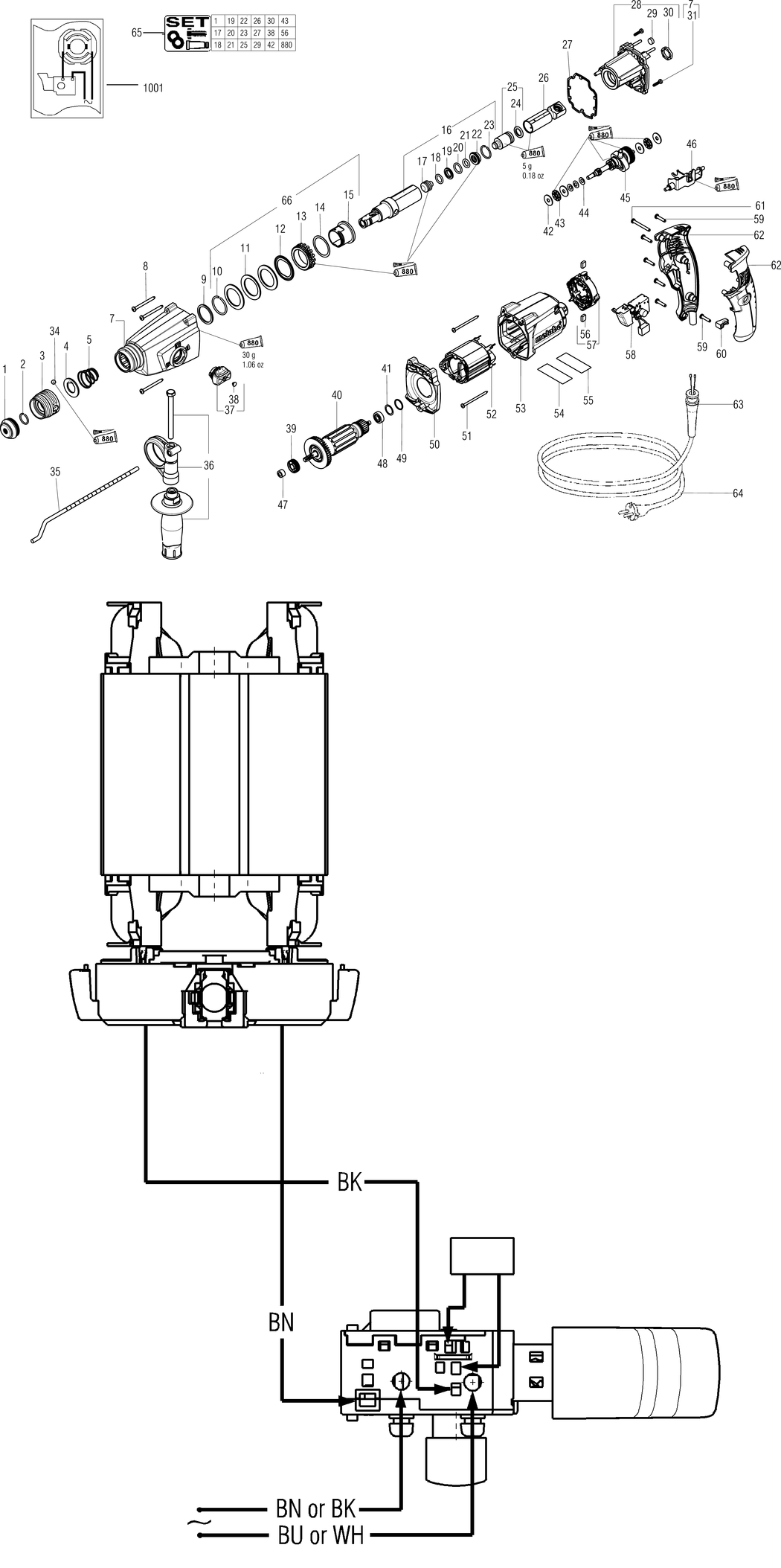

1 - RUBBER CAP
MET-344099390.A6
344099390
|
£2.94
|
£3.53
|
|
|
2 - CIRCLIP
MET-342022340.A10
342022340
|
£1.50
|
£1.80
|
|
|
3 - ADJUSTING RING
MET-343432920.A17
343432920
|
£3.82
|
£4.59
|
|
|
4 - WASHER
MET-339007650.A2
339007650
|
£1.50
|
£1.80
|
|
|
5 - PRESSURE SPRING
MET-342003890.A0
342003890
|
£1.50
|
£1.80
|
|
|
7 - GEAR HOUSING W.FLANGE
MET-316064040.A6
316064040
|
-
|
|
|
|
8 - SELF-TAP. FILL. H. SCREW
MET-141123610.A101
141123610
|
£1.50
|
£1.80
|
|
|
9 - SUPPORTING DISC
MET-341013270.A0
341013270
|
-
|
|
|
|
10 - CIRCLIP
MET-141181290.A36
141181290
|
£1.50
|
£1.80
|
|
|
11 - CUP SPRING
MET-342070340.A36
342070340
|
£4.76
|
£5.71
|
|
|
12 - FRICTION WASHER
MET-339004870.A11
339004870
|
£3.20
|
£3.84
|
|
|
13 - SPUR GEAR
MET-340004090.A22
340004090
|
£9.62
|
£11.54
|
|
|
14 - FRICTION SLICE
MET-339006380.A8
339006380
|
£1.50
|
£1.80
|
|
|
15 - COUPLING SLEEVE
MET-341059230.A10
341059230
|
£22.61
|
£27.13
|
|
|
16 - DRILL DRIVING SLEEVE COMPL.
MET-316053030.A10
316053030
|
£61.08
|
£73.30
|
|
|
17 - PISTON
MET-341210610.A21
341210610
|
-
|
|
|
|
18 - O-RING
MET-143194790.A17
143194790
|
£1.50
|
£1.80
|
|
|
19 - DAMPING RING
MET-341210600.A3
341210600
|
£3.82
|
£4.59
|
|
|
20 - O-RING
MET-143194640.A38
143194640
|
£3.20
|
£3.84
|
|
|
21 - O-RING
MET-143193920.A90
143193920
|
£8.37
|
£10.04
|
|
|
22 - CATCHING SLEEVE
MET-341059310.A18
341059310
|
£6.38
|
£7.65
|
|
|
23 - CIRCLIP
MET-141181840.A26
141181840
|
£1.50
|
£1.80
|
|
|
24 - SEALING RING
MET-344093140.A7
344093140
|
£6.38
|
£7.65
|
|
|
25 - STRIKER COMPL.
MET-316048010.A35
316048010
|
£17.55
|
£21.06
|
|
|
26 - EXCITER SLEEVE COMPL.
MET-341210800.A12
341210800
|
£15.41
|
£18.49
|
|
|
27 - SEALING RING
MET-342022350.A34
342022350
|
£2.94
|
£3.53
|
|
|
28 - GEAR FLANGE COMPL.
MET-316053470.A14
316053470
|
£36.59
|
£43.91
|
|
|
29 - FELT SEAL
MET-344070670.A67
344070670
|
£1.50
|
£1.80
|
|
|
30 - RUBBER BUFFER
MET-344095920.A49
344095920
|
£1.50
|
£1.80
|
|
|
31 - FILL. HEAD SCREW(DIN 7985)
MET-141119440.A23
141119440
|
£1.50
|
£1.80
|
|
|
34 - BALL
MET-143115330.A32
143115330
|
£1.50
|
£1.80
|
|
|
35 - DEPTH STOP
MET-341511630.A5
341511630
|
£6.38
|
£7.65
|
|
|
36 - SUPPORT HANDLE CPL.
MET-314000840.A49
314000840
|
£11.78
|
£14.13
|
|
|
37 - CONTROL KNOB COMPL.
MET-316052990.A31
316052990
|
£6.38
|
£7.65
|
|
|
38 - SEAL
MET-343398340.A31
343398340
|
£1.50
|
£1.80
|
|
|
39 - BALL BEARING 8X 22X 7
MET-143115890.A20
143115890
|
£6.38
|
£7.65
|
|
|
40 - ARMATURE COMPL. 230V
MET-310012200.A6
310012200
|
£42.65
|
£51.18
|
|
|
41 - WASHER
MET-141153400.A4
141153400
|
£3.20
|
£3.84
|
|
|
42 - THRUST WASHER
MET-143115300.A30
143115300
|
£1.50
|
£1.80
|
|
|
43 - AXIAL NEEDLE BEARING
MET-143115310.A14
143115310
|
£4.76
|
£5.71
|
|
|
44 - CUP SPRING
MET-141154920.A38
141154920
|
£3.20
|
£3.84
|
|
|
45 - PINION SHAFT COMPL.
MET-316054920.A4
316054920
|
£68.35
|
£82.02
|
|
|
46 - SHIFT ELEMENT COMPL.
MET-316045610.A28
316045610
|
£9.62
|
£11.54
|
|
|
47 - SEALING WASHER
MET-343398310.A23
343398310
|
£1.50
|
£1.80
|
|
|
48 - BALL BEARING 6X19X6
MET-143115660.A221
143115660
|
£3.82
|
£4.59
|
|
|
49 - O-RING
MET-143195230.A23
143195230
|
£1.50
|
£1.80
|
|
|
50 - FLANGE
MET-343398300.A23
343398300
|
£4.76
|
£5.71
|
|
|
51 - SELF-TAP. FILL. H. SCREW
MET-341722860.A4
341722860
|
-
|
|
|
|
52 - FIELD COIL COMPL. 230V
MET-311012630.A14
311012630
|
£32.88
|
£39.45
|
|
|
53 - MOTOR HOUSING
MET-343398290.A14
343398290
|
£15.41
|
£18.49
|
|
|
55 - RATING PLATE
MET-338060590.A2
338060590
|
-
|
|
|
|
56 - CARBON BRUSH SET 230 V
MET-316046950.A13
316046950
|
£17.56
|
£21.07
|
|
|
58 - ELECTRONIC SWITCH WITHOUT DIAL 230V
MET-343411660.A17
343411660
|
£22.61
|
£27.13
|
|
|
59 - SELF-TAP FILL H SCREW
MET-141116020.A998
141116020
|
£3.20
|
£3.84
|
|
|
60 - CABLE CLIP
MET-343362490.A439
343362490
|
£3.20
|
£3.84
|
|
|
61 - SELF-TAP. FILL. H. SCREW
MET-141116990.A35
141116990
|
£3.20
|
£3.84
|
|
|
62 - PISTOL GRIP 2 PART
MET-343398280.A21
343398280
|
£15.41
|
£18.49
|
|
|
63 - CABLE SLEEVE
MET-344101140.A30
344101140
|
£3.82
|
£4.59
|
|
|
64 - CABLE WITH PLUG
MET-344492020.A1
344492020
|
£48.88
|
£58.66
|
|
|
65 - MAINTENANCE KIT
MET-316054900.A9
316054900
|
£79.43
|
£95.32
|
|
|
66 - SAFETY CLUTCH CPL.
MET-316045700.A20
316045700
|
£36.59
|
£43.91
|
|
|
1001 - WIRING DIAGRAM 230 V
MET-338505160.A23
338505160
|
-
|
|
|
