Metabo KGS 216 Plus / 0102160200 10 / EU 230V Spare Parts

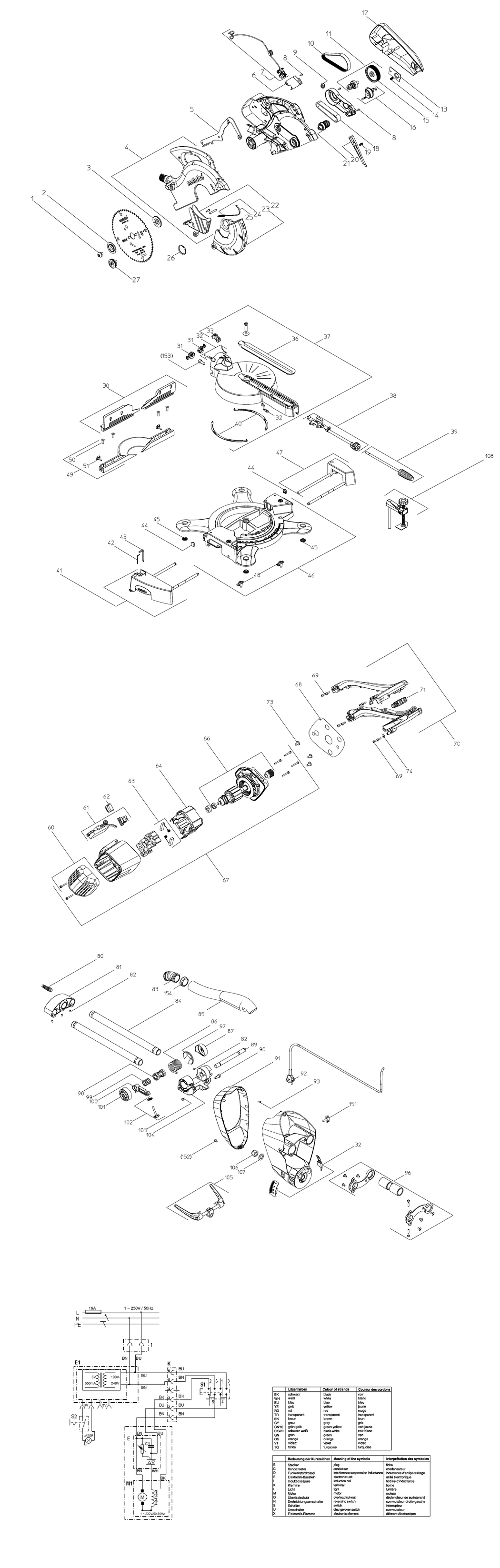

An exploded diagram and spare parts listing for the Metabo KGS 216 Plus / 0102160200 10 / EU 230V

	Ex VAT	Inc VAT
1 - SAW SPINDLE BOLT M 8X20 LEFT MET-1395739162.A12 1395739162	£11.78	£14.13
2 - BLADE COLLAR OUTER MET-1482736560.A4 1482736560	£15.41	£18.49
3 - BLADE COLLAR INNER MET-1485221618.A29 1485221618	£17.55	£21.06
4 - WHEEL GUARD KGS 216 PLUS MET-1010739469.A3 1010739469	£55.90	£67.08
5 - SWIVEL LEVER COMPL. KGS 216 PLUS MET-1010739477.A0 1010739477	£22.61	£27.13
6 - TRANSFORMATOR KGS PLUS MET-8056736540.A4 8056736540	£42.65	£51.18
7 - LASER COMPL. KGS 216/254 PLUS MET-1010739205.A3 1010739205	£61.08	£73.30
8 - FLAT HEADED SCREW MET-141123670.A3 141123670	-
9 - GROMMET MET-8243740097.A8 8243740097	£2.94	£3.53
10 - POLY-RIB BELT 5 PJ 381 KGS 216 MET-7233739493.A3 7233739493	£36.59	£43.91
11 - INTERMEDIATE SHAFT KGS 216/254/315 PLUS MET-1010739248.A3 1010739248	£61.08	£73.30
12 - BELT GUARD KGS 216 PLUS MET-1381739500.A0 1381739500	£22.61	£27.13
13 - SAW BLADE ARREST COMPL. MET-1010739230.A8 1010739230	£61.08	£73.30
14 - PRESSURE SPRING MET-7051722854.A12 7051722854	£3.82	£4.59
15 - POLY-RIB PULLEY KGS 216/254/315 PLUS MET-1380739255.A11 1380739255	£61.08	£73.30
16 - TRANSPORTATION LOCK COMPL. KGS 216/254/3 MET-1010739035.A8 1010739035	£11.78	£14.13
18 - COGGED BELT HTD 300-5M-20 CXP KGT300 MET-7231703351.A14 7231703351	£32.88	£39.45
19 - PRESSURE SPRING MET-7051711623.A0 7051711623	£2.94	£3.53
20 - LOCK LEVER LOWER GUARD MET-1381736799.A4 1381736799	£1.50	£1.80
21 - SAW BLADE SHAFT COMPL. KGS 216/254/315 MET-1010739132.A0 1010739132	£61.08	£73.30
22 - REAR LOWER GUARD KGS 216 PLUS MET-1394729177.A3 1394729177	£11.78	£14.13
23 - SAFETY GUARD COMPL. KGS 216 PLUS MET-1010739515.A3 1010739515	£19.18	£23.02
24 - RETURN SPRING KGS 216 MET-7051739528.A3 7051739528	£2.94	£3.53
25 - PLASTIC STRIP KGS 216 MET-1381739488.A3 1381739488	£3.20	£3.84
26 - RETAINING RING SHAFT MET-6400736810.A12 6400736810	£1.50	£1.80
27 - FLANGE BOLT MET-1010736893.A12 1010736893	£54.94	£65.93
30 - AUXILIARY GUIDE COMPL. KGS 216 PLUS MET-1010739574.A0 1010739574	£42.65	£51.18
31 - BEVEL STOP COMPL. KGS PLUS MET-1010736257.A4 1010736257	£4.76	£5.71
32 - POINTER COMPL. KGS 216/254/315 PLUS MET-1010739108.A12 1010739108	-
33 - CATCH CLAMB COMPL KGS 216/254/315 PLUS MET-1010739124.A12 1010739124	£61.08	£73.30
36 - TABLE INSERT COMPL. KGS 216/254/315 PLUS MET-1010739116.A0 1010739116	£11.78	£14.13
37 - TURNTABLE COMPL. KGS 216 PLUS MET-1010739639.A0 1010739639	£121.97	£146.36
38 - TURNTABLE ACCESSORIES KGS 216 PLUS MET-1010739140.A3 1010739140	-
39 - CONTROL GRIP COMPL. KGS 216 PLUS MET-1010739655.A3 1010739655	£22.61	£27.13
40 - SLIDE BLOCK KGS 216 PLUS MET-1388739610.A3 1388739610	£5.62	£6.75
41 - TABLE SIDE EXTENSION LEFT KGS 216 PLUS MET-1010739590.A0 1010739590	£79.43	£95.32
42 - ALLEN HEXAGON KEY SW 2 5 SCHWARZ MET-9102076823.A8 9102076823	£1.50	£1.80
43 - ALLEN HEXAGON KEY MET-9102689833.A19 9102689833	£6.38	£7.65
44 - STAR GRIP SCREW MET-341704570.A4 341704570	-
45 - RUBBER FOOT MET-341147920.A12 341147920	£8.37	£10.04
46 - TABLE KGS 216 PLUS MET-1010740297.A3 1010740297	£121.97	£146.36
47 - TABLE SIDE EXTENSION LEFT KGS 216 PLUS MET-1010739604.A3 1010739604	£68.35	£82.02
48 - EXTENSION DETENT COMPL. KS 254/305 MET-1010737555.A11 1010737555	£13.63	£16.36
49 - STOP COMPL. KGS 216 PLUS MET-1010739582.A3 1010739582	£63.36	£76.03
50 - HEX.SOCKET COUNTERS.HEAD SCREW MET-6132002060.A4 6132002060	£1.50	£1.80
51 - STAR GRIP SCREW MET-341704580.A8 341704580	£3.82	£4.59
60 - END CAP KGS 216/254 MET-1010739400.A5 1010739400	£61.08	£73.30
61 - ELECTRONIC UNIT MET-343081380.A3 343081380	£73.52	£88.23
62 - CONNECTOR COVER MET-1381737167.A3 1381737167	£3.82	£4.59
63 - CARBON BRUSH COMPL. 230V MET-1010739043.A2 1010739043	£19.18	£23.02
64 - STATOR 230V KGS 216 PLUS MET-8011739270.A2 8011739270	£68.35	£82.02
66 - AMATURE 230V COMPL. KGS 216 PLUS MET-1010739078.A0 1010739078	£63.44	£76.13
67 - MOTOR COMPL. KGS 216 MET-1010739450.A2 1010739450	£128.14	£153.77
68 - GASKET MET-7631740116.A10 7631740116	-
69 - SCREW MET-341702050.A121 341702050	£1.50	£1.80
70 - HANDLE COMPL. MET-1010736168.A11 1010736168	£42.65	£51.18
71 - ON-OFF SWITCH KS 254/305 MET-8111737712.A17 8111737712	£26.35	£31.62
73 - FILLISTER HEAD SCREW W.FLANGE MET-6143661561.A13 6143661561	£1.50	£1.80
74 - RETAINING SHEET MET-339135110.A0 339135110	-
80 - STRAIN RELIEF MET-8402736722.A3 8402736722	£1.50	£1.80
81 - STABILIZER KGS 216 PLUS (REAR PIVOT) MET-1380739530.A3 1380739530	-
82 - GRUB SCREW W.INTERNAL HEXAGON MET-6164029245.A16 6164029245	£1.50	£1.80
83 - DUST EXTRACTION PORT 44/35-44/32 MET-1381691566.A23 1381691566	£6.38	£7.65
84 - FEED ROD KGS 216 MET-1385739547.A1 1385739547	-
85 - SUCTION HOSE MET-1381736535.A12 1381736535	£6.38	£7.65
86 - TORSION SPRING MET-7051736600.A0 7051736600	-
87 - COVER CAP MET-1381736594.A0 1381736594	£3.20	£3.84
89 - MOTOR HEAD AXLE MET-1385736505.A2 1385736505	-
90 - STOP SCREW MET-1485735689.A1 1485735689	£9.62	£11.54
91 - COVER PIVOT REAR KGS 216 PLUS MET-1381739550.A1 1381739550	-
92 - CABLE W.SOCKET 2X1 MET-8402736632.A0 8402736632	£15.41	£18.49
93 - SCREW MET-341702050.A124 341702050	£1.50	£1.80
96 - REP-SET LINEAR-BEARING COMPL. MET-1010739426.A2 1010739426	£61.08	£73.30
97 - SEALING WASHER MET-7631738677.A1 7631738677	£2.94	£3.53
98 - BUSHING (TORSION SPRING BUSH) MET-1381736497.A11 1381736497	£2.94	£3.53
99 - PRESSURE SPRING MET-7051736413.A12 7051736413	£1.50	£1.80
100 - DEPTH STOP MET-1380736787.A4 1380736787	£9.62	£11.54
101 - CONTROL KNOB MET-1381736519.A1 1381736519	£3.82	£4.59
102 - KNURLED THUMB SCREW MET-6143736880.A1 6143736880	£2.94	£3.53
103 - HEX FIT BOLT MET-6104220876.A10 6104220876	£3.82	£4.59
104 - SWIVEL CASTING KGS 216 PLUS (FRONT PIVOT MET-1380739565.A1 1380739565	£61.08	£73.30
105 - CLAMPING LEVER COMPL. KGS 216/254/315 PL MET-1010739027.A3 1010739027	£36.59	£43.91
106 - HEX NUT SELF-LOCKING MET-141132000.A4 141132000	-
107 - WASHER MET-141156740.A26 141156740	£2.94	£3.53
108 - WORK CLAMB ASSY COMPL. KS PLUS MET-1010737440.A11 1010737440	£61.08	£73.30
151 - THUMBSCREW MET-341704560.A11 341704560	£4.76	£5.71
152 - FILLISTER HEAD SCREW MET-141123800.A1 141123800	-
153 - PART NOT NEEDED MET-399999990.A269 399999990	-
154 - END SLEEVE JOINER MET-1381212943.A4 1381212943	£3.82	£4.59
155 - INDICATION LABEL LASER RADIATION MET-338125960.A1 338125960	-

Attribute Name	Value
Brand	Metabo
