Metabo KFMPB 15-10 F / 01755391 / GB 110V Spare Parts

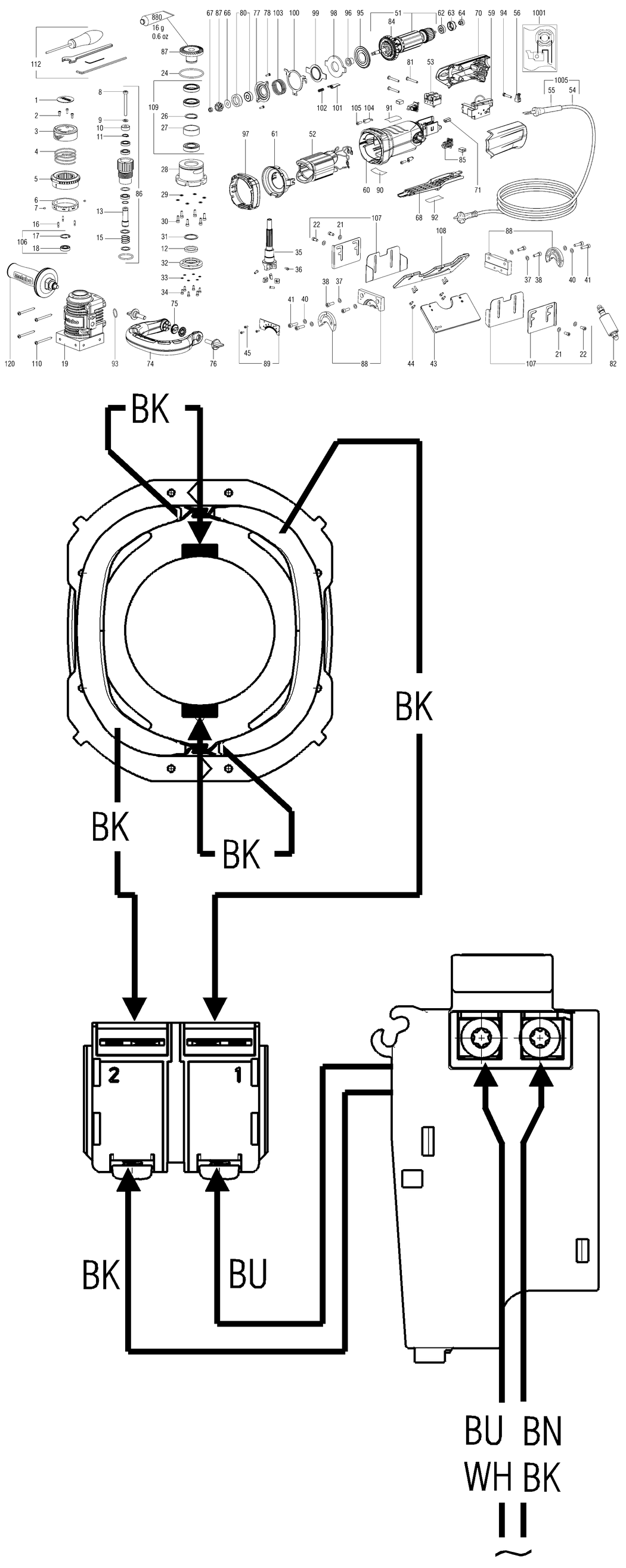

An exploded diagram and spare parts listing for the Metabo KFMPB 15-10 F / 01755391 / GB 110V

	Ex VAT	Inc VAT
1 - TYPE LABEL MET-338129290.A8 338129290	-
2 - CAP SCREW MET-141121980.A56 141121980	£2.94	£3.53
3 - CAP MET-341211660.A0 341211660	£63.36	£76.03
4 - PRESSURE SPRING MET-342004090.A18 342004090	-
5 - ADJUSTING RING MET-341211670.A25 341211670	£94.04	£112.85
6 - SCALE MET-341211680.A0 341211680	-
7 - GRUB SCREW MET-141124550.A2 141124550	£2.94	£3.53
8 - SCREW M6X55 MET-341705370.A11 341705370	-
9 - SPRING WASHER MET-141150280.A4 141150280	£1.50	£1.80
10 - SPACER SLEEVE MET-341211690.A25 341211690	-
11 - RETAINING RING MET-141180060.A116 141180060	£1.50	£1.80
12 - FELT RING MET-344071080.A11 344071080	£9.62	£11.54
13 - SLEEVE MET-341211710.A0 341211710	-
15 - PRESSURE SPRING MET-342004100.A7 342004100	-
16 - PIN MET-341520350.A8 341520350	-
17 - RETAINING RING MET-141180660.A6 141180660	£3.20	£3.84
18 - BALL BEARING 10X 22X 6 MET-143115370.A3 143115370	-
19 - GEAR HOUSING MET-315105570.A15 315105570	-
21 - SERRATED LOCK WASHER MET-6304084039.A57 6304084039	-
22 - CAP SCREW MET-141113670.A2 141113670	£3.20	£3.84
24 - O-RING MET-344113520.A0 344113520	£3.20	£3.84
26 - RETAINING RING MET-141180150.A4 141180150	£1.50	£1.80
27 - TRANSFORMATION RING MET-341211760.A25 341211760	-
28 - HOUSING MET-341211740.A25 341211740	-
29 - SERRATED LOCK WASHER MET-141150410.A16 141150410	£3.20	£3.84
30 - CAP SCREW MET-141113590.A58 141113590	£3.20	£3.84
31 - RETAINING RING MET-141180370.A35 141180370	£1.50	£1.80
32 - FLANGE MET-341211750.A0 341211750	-
33 - SERRATED LOCK WASHER MET-141152270.A7 141152270	£1.50	£1.80
34 - CAP SCREW MET-141121980.A58 141121980	£2.94	£3.53
35 - SPINDLE MET-341605070.A17 341605070	-
36 - SCREW M4X10 TX15 MET-341705330.A3 341705330	£3.20	£3.84
37 - SERRATED LOCK WASHER MET-6304084039.A56 6304084039	-
38 - CAP SCREW MET-141113690.A9 141113690	£3.20	£3.84
40 - SPRING WASHER MET-141150270.A39 141150270	£1.50	£1.80
41 - CAP SCREW MET-141113710.A8 141113710	£3.20	£3.84
43 - GUIDE RAIL A MET-341162150.A7 341162150	-
44 - CAP SCREW MET-141121980.A59 141121980	£2.94	£3.53
45 - SREW MET-341722580.A1 341722580	-
51 - ARMATURE COMPL. 120V MET-310011150.A24 310011150	£55.90	£67.08
52 - FIELD COIL W.FIELD COIL 120 V MET-311012270.A42 311012270	£48.88	£58.66
53 - SWITCH 2-POLE MET-343410280.A72 343410280	£11.78	£14.13
54 - CABLE W. UK PLUG 110V MET-344499700.A4 344499700	£36.59	£43.91
55 - CABLE SLEEVE MET-344101220.A46 344101220	£3.20	£3.84
56 - CABLE CLIP MET-343362490.A68 343362490	£3.20	£3.84
59 - ELECTRONIC UNIT 120V / 50/60HZ MET-343083760.A7 343083760	-
60 - MOTOR HOUSING MET-315013710.A33 315013710	£13.63	£16.36
61 - BAFFLE MET-339151210.A98 339151210	£2.94	£3.53
62 - BALL BEARING 6X19X6 MET-143115690.A163 143115690	£3.82	£4.59
63 - RUBBER BUSHING MET-344097870.A455 344097870	£1.50	£1.80
64 - TACHO DISC MET-343433060.A253 343433060	£3.82	£4.59
66 - WASHER MET-339006390.A359 339006390	£1.50	£1.80
67 - HEXAGON NUT W.RECESS MET-341100940.A15 341100940	£3.20	£3.84
68 - SHIFT LEVER MET-343434570.A2 343434570	£4.76	£5.71
70 - MOTOR CAP 2 PARTS BLACK MET-316070220.A65 316070220	£15.41	£18.49
71 - LIGHT GUIDE MET-343435170.A52 343435170	£2.94	£3.53
74 - LOOP HANDLE COMPL. MET-343399690.A10 343399690	£19.18	£23.02
75 - SLOTTED DISC MET-341071240.A12 341071240	£17.55	£21.06
76 - THUMBSCREW COMPL. MET-341112850.A25 341112850	£3.82	£4.59
77 - FIXED BEARING COVER MET-339137240.A15 339137240	-
78 - FILLISTER HEAD SCREW MET-141124170.A8 141124170	-
80 - BUSHING COMPL. MET-316063730.A15 316063730	£30.06	£36.07
81 - SELF-TAP. FILL. H. SCREW MET-141116980.A235 141116980	£1.50	£1.80
82 - ROLLER COMPL. MET-316063390.A22 316063390	-
84 - FAN W. DUST GUARD MET-316054850.A168 316054850	£5.62	£6.75
85 - CARBONBRUSH WITH BRUSHOLDER SET 110V MET-316066670.A42 316066670	£17.55	£21.06
86 - THREADED RING INSIDE COMPL. MET-316094170.A16 316094170	-
87 - BEVEL GEAR MET-316094190.A19 316094190	£198.70	£238.44
88 - HOUSING COMPL. MET-316094210.A16 316094210	-
89 - ANGLE COMPL. MET-316094230.A19 316094230	-
90 - RATING PLATE MET-338066400.A3 338066400	-
91 - INDICATION LABEL WARNING MET-338127220.A19 338127220	-
92 - PART NOT NEEDED MET-399999990.A238 399999990	-
93 - O-RING MET-143196040.A9 143196040	-
94 - SELF-TAP. FILL. H. SCREW MET-141117060.A612 141117060	£3.20	£3.84
95 - BRAKE DISC MET-341013460.A14 341013460	£17.55	£21.06
96 - SPACER SLEEVE MET-341212170.A52 341212170	£3.82	£4.59
97 - INTERMEDIATE FLANGE MET-343435920.A6 343435920	£7.36	£8.83
98 - BUTTING PLATE MET-339011590.A45 339011590	£9.62	£11.54
99 - SUPPORTING PLATE MET-343433710.A26 343433710	£2.94	£3.53
100 - SHIFT LEVER MET-339136010.A27 339136010	£3.20	£3.84
101 - SHIFT ELEMENT MET-343433700.A75 343433700	£2.94	£3.53
102 - PRESSURE SPRING MET-342003420.A99 342003420	£1.50	£1.80
103 - PRESSURE SPRING MET-342003930.A1 342003930	£2.94	£3.53
104 - PART NOT NEEDED MET-399999990.A232 399999990	-
105 - PART NOT NEEDED MET-399999990.A233 399999990	-
106 - BALL BEARING COMPL. MET-316094890.A5 316094890	-
107 - PROTECTION PLATE COMPL. MET-316094900.A20 316094900	£64.30	£77.16
108 - GUIDE RAIL COMPL. MET-316094910.A5 316094910	-
109 - BALL BEARING COMPL. MET-316094920.A20 316094920	£60.03	£72.04
110 - SELF-TAP. FILL. H. SCREW MET-341701470.A97 341701470	£1.50	£1.80
112 - SCREWDRIVER SET MET-316064340.A28 316064340	-
120 - SIDE SUPPORT HANDLE COMPL. MET-316046590.A133 316046590	£11.78	£14.13
880 - GREASE 50GR 1.8oz MET-344130970.A37 344130970	£15.41	£18.49
1001 - DIAGRAM MET-338505950.A11 338505950	-
