Metabo KFM 9-3 RF / 01751393 / GB 110V Spare Parts

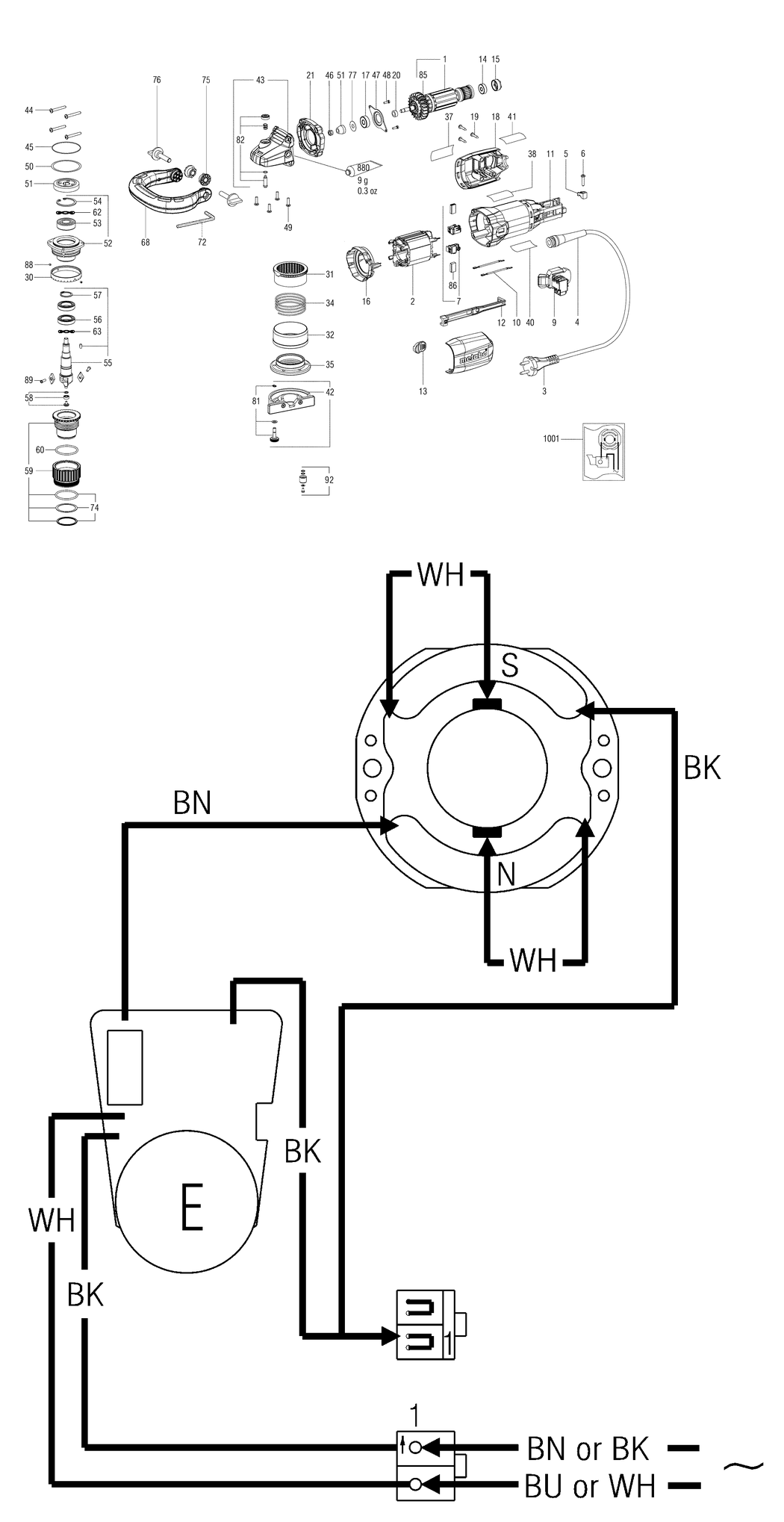

An exploded diagram and spare parts listing for the Metabo KFM 9-3 RF / 01751393 / GB 110V

	Ex VAT	Inc VAT
1 - ARMATURE CPL. 120V MET-310011840.A2 310011840	-
2 - FIELD COIL 120 V EL MET-311009780.A11 311009780	£54.94	£65.93
3 - CABLE WITH PLUG MET-344495270.A1 344495270	-
4 - CABLE SLEEVE MET-344097360.A196 344097360	£2.94	£3.53
5 - CABLE CLIP MET-343362490.A400 343362490	£3.20	£3.84
6 - SELF-TAP. FILL. H. SCREW MET-141117060.A408 141117060	£3.20	£3.84
7 - BRUSH HOLDER COMPL. CUT OUT MET-316046890.A59 316046890	£15.42	£18.51
9 - SWITCH WITH ELEKTRONIC 120 V / 50-60 HZ MET-316050310.A2 316050310	-
10 - STRAND COMPL. MET-344498880.A18 344498880	£1.50	£1.80
11 - MOTOR HOUSING MET-315013660.A58 315013660	£15.41	£18.49
12 - SWITCH ROD MET-343430940.A49 343430940	£1.50	£1.80
13 - SWITCH SLIDE H/L MET-343397810.A16 343397810	£1.50	£1.80
14 - BALL BEARING 6X19X6 MET-143115690.A40 143115690	£3.82	£4.59
15 - RUBBER BUSHING MET-344097870.A288 344097870	£1.50	£1.80
16 - BAFFLE MET-343436590.A12 343436590	£3.82	£4.59
17 - BALL BEARING 8X22X7 MET-143115700.A80 143115700	£4.76	£5.71
18 - 2 PART MOTOR CAP MET-343432950.A9 343432950	-
19 - SELF-TAP. FILL. H. SCREW MET-141113180.A108 141113180	£1.50	£1.80
20 - SPACER BUSH MET-341006070.A11 341006070	-
21 - INTERMEDIATE FLANGE GREEN MET-343431740.A11 343431740	-
30 - SCALE MET-341211520.A0 341211520	£36.59	£43.91
31 - ADJUSTING RING MET-341211530.A21 341211530	£64.30	£77.16
32 - HOUSING MET-341211540.A0 341211540	£51.54	£61.85
34 - PRESSURE SPRING MET-342004080.A1 342004080	£22.61	£27.13
35 - BASE PLATE MET-341211550.A21 341211550	£67.04	£80.45
37 - RATING PLATE MET-338068210.A2 338068210	-
38 - INDICATION LABEL WARNING MET-338127220.A11 338127220	-
40 - PART NOT NEEDED MET-399999990.A1145 399999990	-
41 - INDICATION LABEL MET-338128450.A4 338128450	-
42 - PARALLEL GUIDE COMPL. MET-316062870.A11 316062870	£71.39	£85.67
43 - GEAR HOUSING COMPL. MET-316068180.A0 316068180	-
44 - SELF-TAP. FILL. H. SCREW MET-141116980.A414 141116980	£1.50	£1.80
45 - O-RING MET-143195320.A4 143195320	£2.94	£3.53
46 - HEXAGON NUT W.RECESS MET-341102140.A20 341102140	£2.94	£3.53
47 - FIXED BEARING COVER MET-315417490.A101 315417490	-
48 - FILLISTER HEAD SCREW MET-141124170.A28 141124170	-
49 - FILLISTER HEAD SCREW MET-141124090.A39 141124090	£2.94	£3.53
50 - COMPENSATING WASHER MET-339011860.A43 339011860	£2.94	£3.53
51 - BEVEL GEAR MET-316093360.A11 316093360	£32.88	£39.45
52 - FLANGE COMPL. MET-316093280.A0 316093280	£67.04	£80.45
53 - BALL BEARING MET-320054130.A1 320054130	£17.55	£21.06
54 - RETAINING RING MET-141180390.A40 141180390	£3.20	£3.84
55 - SPINDLE COMPL. MET-316093290.A21 316093290	£184.46	£221.35
56 - BALL BEARING MET-320054160.A20 320054160	£48.88	£58.66
57 - RETAINING RING MET-141180130.A47 141180130	£1.50	£1.80
58 - GUIDE RING COMPL. MET-316093300.A19 316093300	£26.35	£31.62
59 - HEIGHT-ADJUSTMENT CPL. MET-316093370.A10 316093370	£128.14	£153.77
60 - O-RING MET-143191930.A4 143191930	£3.20	£3.84
62 - LOCK WASHER MET-339007910.A19 339007910	£4.76	£5.71
63 - LOCK WASHER MET-339007920.A2 339007920	£4.76	£5.71
68 - LOOP HANDLE COMPL. MET-343399690.A30 343399690	£19.18	£23.02
72 - HEXAGONAL KEY MET-344161510.A19 344161510	£3.20	£3.84
74 - RETAINING RING CPL. MET-316096620.A19 316096620	-
75 - SLOTTED DISC MET-341070990.A10 341070990	£2.94	£3.53
76 - THUMBSCREW COMPL. MET-341112690.A1 341112690	£2.94	£3.53
77 - WASHER MET-339012280.A3 339012280	-
81 - SCREW COMPL. MET-316093380.A11 316093380	£4.76	£5.71
82 - SPINDLE STOP COMPL. MET-316040610.A128 316040610	£4.76	£5.71
85 - LUEFTER MIT STAUBSCHUTZKORB MET-316051700.A31 316051700	£7.36	£8.83
86 - CARBON BRUSH SET CUT-OFF MET-316046900.A18 316046900	£15.41	£18.49
88 - GRUB SCREW MET-141124550.A36 141124550	£2.94	£3.53
89 - SCREW SET MET-341723160.A10 341723160	£15.41	£18.49
92 - GUIDE RING COMPL. MET-316066080.A9 316066080	£36.59	£43.91
880 - GREASE 100G MET-344130920.A440 344130920	£19.18	£23.02
1001 - WIRING DIAGRAM MET-338505710.A14 338505710	-
