1 - CABLE WITH PLUG
MET-344494270.A1
344494270
|
-
|
|
|
|
2 - CABLE SLEEVE
MET-344101140.A10
344101140
|
£3.82
|
£4.59
|
|
|
3 - FILLISTER HEAD SCREW
MET-141123450.A3
141123450
|
-
|
|
|
|
4 - CABLE CLIP
MET-343392970.A2
343392970
|
-
|
|
|
|
5 - TERMINAL RAIL
MET-343050140.A6
343050140
|
£3.20
|
£3.84
|
|
|
6 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311010580.A9
311010580
|
£13.63
|
£16.36
|
|
|
7 - STRAND SET CONDENSOR
MET-344496860.A11
344496860
|
£3.82
|
£4.59
|
|
|
8 - SWITCH
MET-343408380.A12
343408380
|
£4.76
|
£5.71
|
|
|
9 - HOUSING COVER
MET-343392670.A5
343392670
|
-
|
|
|
|
10 - METABO LABEL FSR 200 INTEC
MET-338120500.A2
338120500
|
-
|
|
|
|
11 - DUST COLLECTOR CARTRIDGE COMPL.
MET-316040720.A3
316040720
|
-
|
|
|
|
12 - FELT SEAL
MET-344070880.A2
344070880
|
£1.50
|
£1.80
|
|
|
13 - SWIVEL PIN
MET-344097690.A6
344097690
|
£2.94
|
£3.53
|
|
|
14 - FILL. HEAD SCREW
MET-141123440.A4
141123440
|
-
|
|
|
|
15 - CLAMP CPL.
MET-316040710.A2
316040710
|
£3.20
|
£3.84
|
|
|
16 - WASHER
MET-141156300.A4
141156300
|
£1.50
|
£1.80
|
|
|
17 - BALL BEARING 12X28X8
MET-143111440.A45
143111440
|
£26.35
|
£31.62
|
|
|
18 - RETAINING RING
MET-141180360.A22
141180360
|
£3.20
|
£3.84
|
|
|
19 - WASHER
MET-339006950.A4
339006950
|
£1.50
|
£1.80
|
|
|
20 - COUNTERSUNK SCREW
MET-141112180.A33
141112180
|
£1.50
|
£1.80
|
|
|
21 - SANDING BASE PLATE COMPL.
MET-339160730.A5
339160730
|
£22.96
|
£27.55
|
|
|
22 - SERRATED LOCK WASHER
MET-141150410.A51
141150410
|
£3.20
|
£3.84
|
|
|
23 - FILLISTER HEAD SCREW
MET-141113220.A61
141113220
|
£1.50
|
£1.80
|
|
|
24 - HOLE PUNCH
MET-343392820.A5
343392820
|
£3.20
|
£3.84
|
|
|
25 - OSCILLATING PLATE COMPL.
MET-315416150.A6
315416150
|
£9.62
|
£11.54
|
|
|
26 - FILLISTER HEAD SCREW
MET-141123430.A14
141123430
|
£1.50
|
£1.80
|
|
|
27 - RATING PLATE
MET-338051470.A0
338051470
|
-
|
|
|
|
28 - RUBBER PLUG
MET-344097680.A8
344097680
|
£4.76
|
£5.71
|
|
|
29 - BRUSH HOLDER COMPLETE
MET-316040700.A12
316040700
|
£1.50
|
£1.80
|
|
|
30 - CARBON BRUSH SET
MET-316040690.A1
316040690
|
£8.37
|
£10.04
|
|
|
31 - BALL BEARING 6X19X6
MET-143115690.A297
143115690
|
£3.82
|
£4.59
|
|
|
32 - WASHER
MET-141156290.A5
141156290
|
£1.50
|
£1.80
|
|
|
33 - ARMATURE CPL. 230 V
MET-310008990.A11
310008990
|
£26.35
|
£31.62
|
|
|
34 - SWITCH GUARD
MET-344097640.A14
344097640
|
£1.50
|
£1.80
|
|
|
35 - WASHER
MET-141151070.A11
141151070
|
£3.20
|
£3.84
|
|
|
36 - BALL BEARING 9X26X8
MET-143114990.A49
143114990
|
£19.18
|
£23.02
|
|
|
37 - FAN
MET-330001750.A4
330001750
|
£11.78
|
£14.13
|
|
|
38 - BAFFLE
MET-343392700.A0
343392700
|
£3.82
|
£4.59
|
|
|
39 - SELF-TAPP. FILL. H. SCREW
MET-141119900.A84
141119900
|
£1.50
|
£1.80
|
|
|
40 - RUBBER PACKING
MET-344097880.A0
344097880
|
-
|
|
|
|

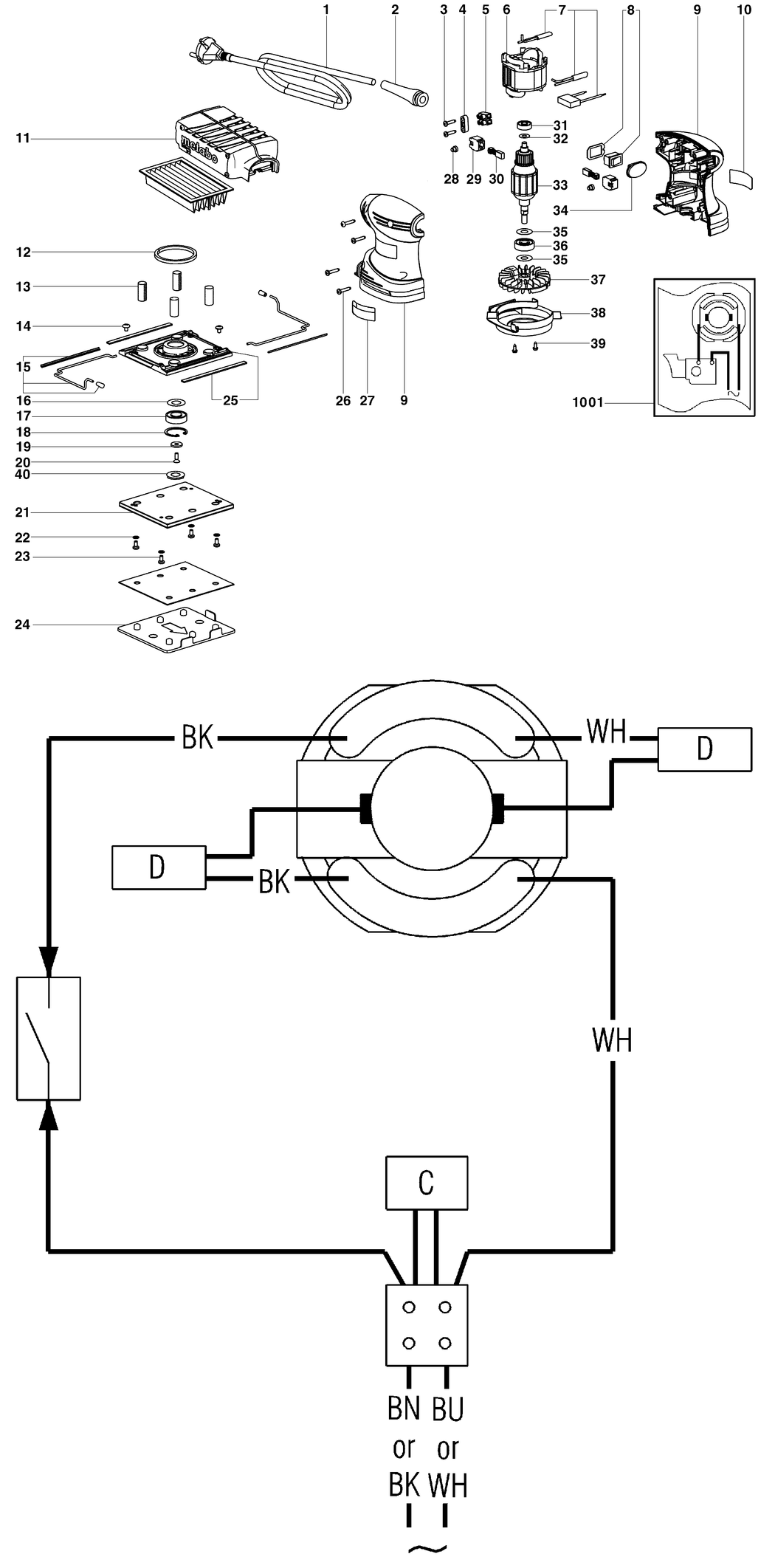

1001 - WIRING DIAGRAM
MET-338504500.A13
338504500
|
-
|
|
|
