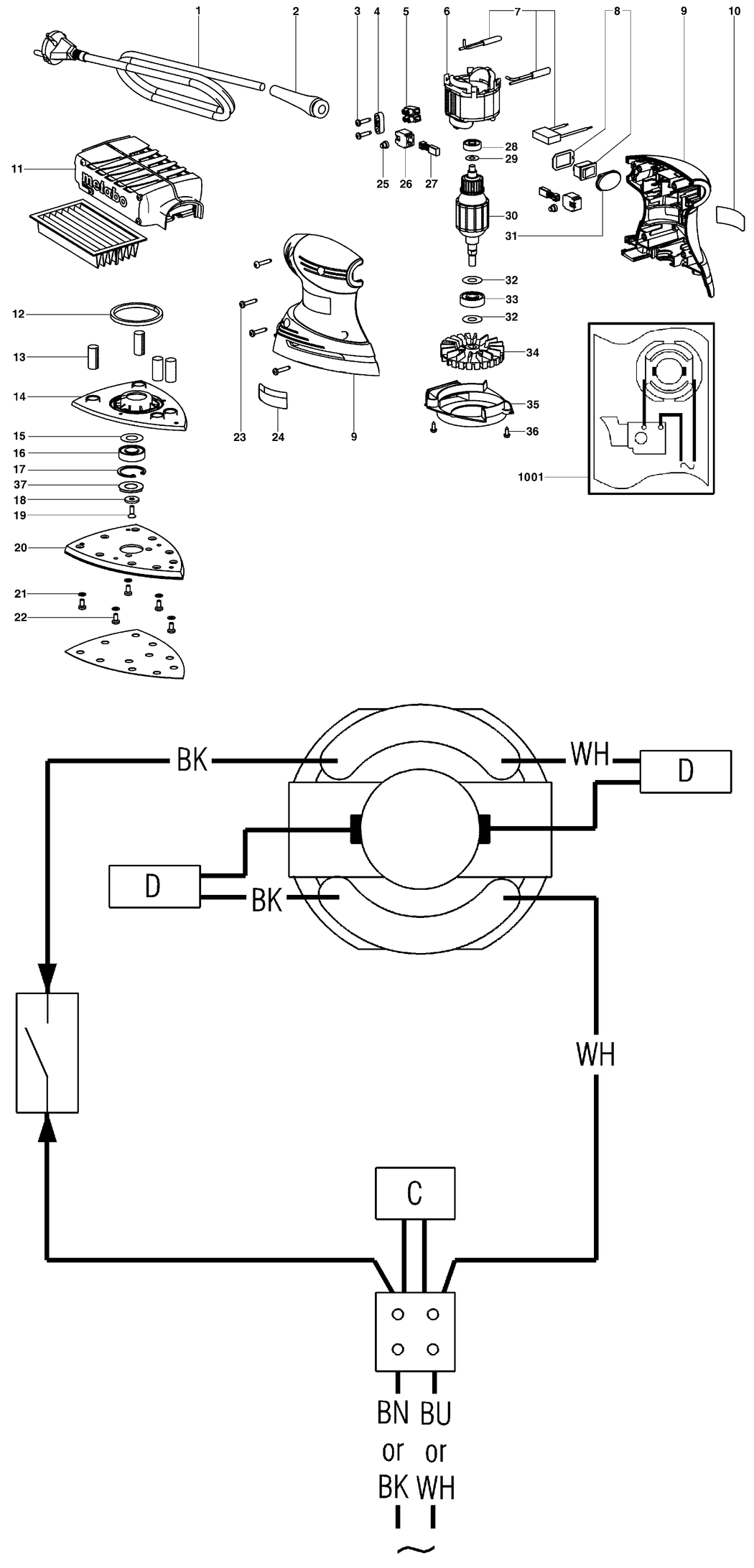

1 - CABLE WITH PLUG
MET-344487620.A2
344487620
|
-
|
|
|
|
2 - CABLE SLEEVE
MET-344101140.A44
344101140
|
£3.82
|
£4.59
|
|
|
3 - FILLISTER HEAD SCREW
MET-141123450.A7
141123450
|
-
|
|
|
|
4 - CABLE CLIP
MET-343392970.A11
343392970
|
-
|
|
|
|
5 - TERMINAL RAIL
MET-343050140.A25
343050140
|
£3.20
|
£3.84
|
|
|
6 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311010580.A4
311010580
|
£13.63
|
£16.36
|
|
|
7 - STRAND SET CONDENSOR
MET-344496860.A2
344496860
|
£3.82
|
£4.59
|
|
|
8 - SWITCH
MET-343408380.A3
343408380
|
£4.76
|
£5.71
|
|
|
9 - HOUSING COVER
MET-343392660.A2
343392660
|
-
|
|
|
|
10 - METABO LABEL FMS 200 INTEC
MET-338120530.A1
338120530
|
-
|
|
|
|
11 - DUST COLLECTOR CARTRIDGE COMPL.
MET-316040720.A7
316040720
|
-
|
|
|
|
12 - FELT SEAL
MET-344070880.A8
344070880
|
£1.50
|
£1.80
|
|
|
13 - SWIVEL PIN
MET-344097690.A8
344097690
|
£2.94
|
£3.53
|
|
|
14 - OSCILLATING PLATE COMPL.
MET-315416160.A2
315416160
|
£9.62
|
£11.54
|
|
|
15 - WASHER
MET-141156300.A1
141156300
|
£1.50
|
£1.80
|
|
|
16 - BALL BEARING 12X28X8
MET-143111440.A37
143111440
|
£26.35
|
£31.62
|
|
|
17 - RETAINING RING
MET-141180360.A14
141180360
|
£3.20
|
£3.84
|
|
|
18 - WASHER
MET-339006950.A12
339006950
|
£1.50
|
£1.80
|
|
|
19 - COUNTERSUNK SCREW
MET-141112180.A23
141112180
|
£1.50
|
£1.80
|
|
|
20 - SANDING BASE PLATE COMPL.
MET-339160710.A2
339160710
|
£22.96
|
£27.55
|
|
|
21 - SERRATED LOCK WASHER
MET-141150410.A34
141150410
|
£3.20
|
£3.84
|
|
|
22 - FILLISTER HEAD SCREW
MET-141113220.A49
141113220
|
£1.50
|
£1.80
|
|
|
23 - FILLISTER HEAD SCREW
MET-141123430.A10
141123430
|
£1.50
|
£1.80
|
|
|
24 - RATING PLATE
MET-338047650.A0
338047650
|
-
|
|
|
|
25 - RUBBER PLUG
MET-344097680.A3
344097680
|
£4.76
|
£5.71
|
|
|
26 - BRUSH HOLDER COMPLETE
MET-316040700.A7
316040700
|
£1.50
|
£1.80
|
|
|
27 - CARBON BRUSH SET
MET-316040690.A6
316040690
|
£8.37
|
£10.04
|
|
|
28 - BALL BEARING 6X19X6
MET-143115690.A169
143115690
|
£3.82
|
£4.59
|
|
|
29 - WASHER
MET-141156290.A8
141156290
|
£1.50
|
£1.80
|
|
|
30 - ARMATURE CPL. 230 V
MET-310008990.A2
310008990
|
£26.35
|
£31.62
|
|
|
31 - SWITCH GUARD
MET-344097640.A1
344097640
|
£1.50
|
£1.80
|
|
|
32 - WASHER
MET-141151070.A3
141151070
|
£3.20
|
£3.84
|
|
|
33 - BALL BEARING 9X26X8
MET-143114990.A37
143114990
|
£19.18
|
£23.02
|
|
|
34 - FAN
MET-330001750.A2
330001750
|
£11.78
|
£14.13
|
|
|
35 - BAFFLE
MET-343392690.A2
343392690
|
£3.20
|
£3.84
|
|
|
36 - SELF-TAPP. FILL. H. SCREW
MET-141119900.A75
141119900
|
£1.50
|
£1.80
|
|
|
37 - RUBBER PACKING
MET-344097880.A7
344097880
|
-
|
|
|
|
1001 - WIRING DIAGRAM
MET-338504500.A6
338504500
|
-
|
|
|
