Makita LS1216 Slide Compound Saw Spare Parts

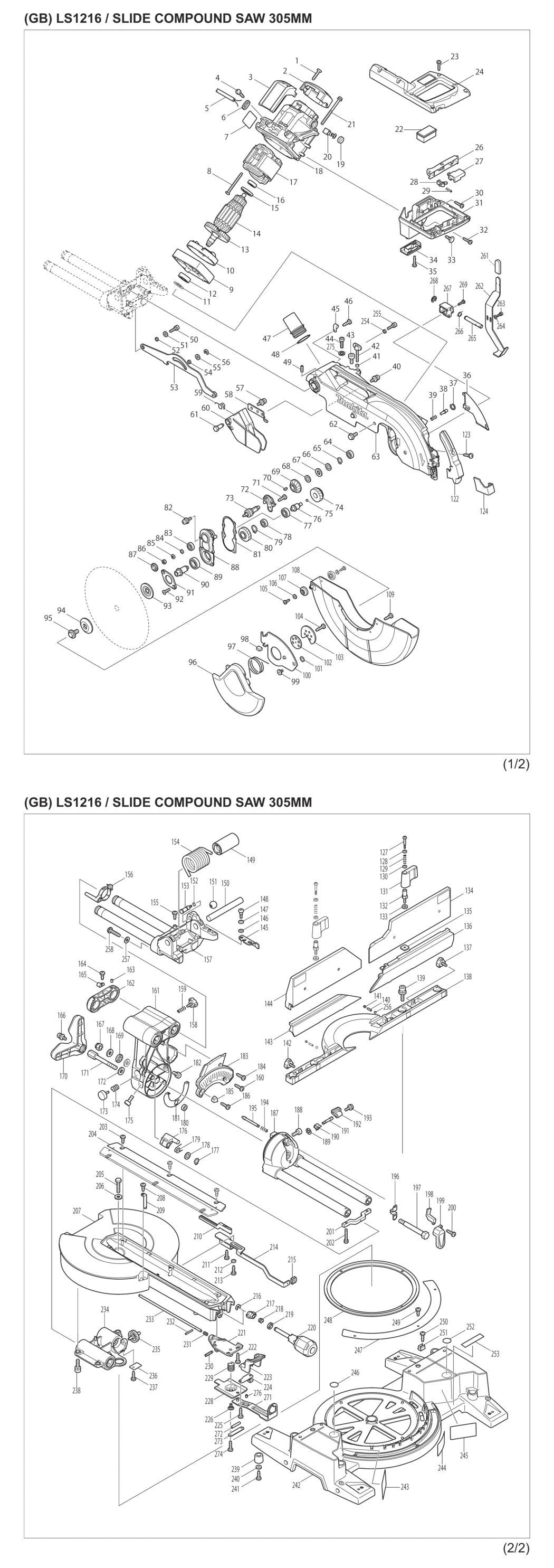

An exploded drawing and spare parts listing for the Makita LS1216 Slide Compound Saw

	Ex VAT	Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A226 265995-6	£1.44	£1.73
2 - REAR COVER LC1216 MSP-450999-3.A2 450999-3	£2.18	£2.62
3 - CONTROLLER 110V LS1019/LS1019L MSP-631864-7.A2 631864-7	£44.35	£53.22
3 - CONTROLLER 240V LS1216/ 1019&L MSP-631866-3.A0 631866-3	£40.03	£48.04
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A227 265995-6	£1.44	£1.73
5 - POWER SUPPLY CORD 110V 5903R MSP-665550-8.A16 665550-8	£29.38	£35.25
5 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A96 692527-0	£29.38	£35.25
6 - STRAIN RELIEF 3612C/5103R/411 MSP-687054-0.A16 687054-0	£1.44	£1.73
6 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A22 687052-4	£1.44	£1.73
7 - NAME PLATE LS1216 MSP-866946-8 866946-8	£1.44	£1.73
9 - MOTOR BRACKET LS1216 LS1219/L MSP-318471-0.A1 318471-0	£11.08	£13.29
10 - BAFFLE PLATE LS1216 LS1219/L MSP-451194-8.A1 451194-8	£1.44	£1.73
11 - EXT DIN 471 CIRCLIP-17/DHR171D MSP-961057-5.A35 961057-5	£1.44	£1.73
12 - BALL BEARING 6003DDW LS1019 MSP-211275-8.A12 211275-8	£12.63	£15.16
13 - FAN 80 LS1019/LS1019L/UC3530A MSP-240001-8.A2 240001-8	£4.06	£4.87
14 - ARMATURE ASSY 110V LS1216 MSP-510159-0.A0 510159-0	£68.54	£82.25
14 - ARMATURE ASSY 240V LS1216 MSP-517844-6.A1 517844-6	£67.03	£80.44
15 - INSULATION WASHER HM1317C-CB/ MSP-681642-5.A16 681642-5	£10.77	£12.92
16 - BALL BEARING 6000ZZ MT431/SMA MSP-210067-2.A22 210067-2	£4.19	£5.03
17 - FIELD ASSY 240V LS1216/1219&L MSP-596359-6.A1 596359-6	£44.09	£52.91
17 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A5 654502-4	£1.44	£1.73
17 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A6 654020-2	£1.44	£1.73
17 - FIELD ASSY 110V LS1216/1219&L MSP-590026-5.A1 590026-5	£49.37	£59.24
18 - MOTOR HOUSING LS1216/101 MSP-158958-8.A1 158958-8	£28.51	£34.21
18 - BRUSH HOLDER 6.5-13.5 LS1019&L MSP-643660-1.A16 643660-1	£3.28	£3.93
19 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A41 643650-4	£1.44	£1.73
19-1 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A52 643650-4	£1.44	£1.73
20 - CARBON BRUSH CB-153 (CB-22)/9 MSP-194985-1.A24 194985-1	£5.42	£6.51
21 - PAN HD SCREW M6X80 LS1216 MSP-911948-0.A5 911948-0	£1.44	£1.73
22 - COVER LS1216/ LS1019L/LS1219 MSP-451015-4.A1 451015-4	£1.44	£1.73
23 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A225 265995-6	£1.44	£1.73
24 - HANDLE COVER LS1216 MSP-450998-5.A0 450998-5	£6.40	£7.68
26 - SWITCH LEVER LS1216/ LS1019&L MSP-451003-1.A3 451003-1	£1.44	£1.73
27 - SWITCH TG72B 110V BUC121/122 MSP-651938-8.A2 651938-8	£17.86	£21.43
27 - SWITCH TG72G-1 LS1216 MSP-650618-3.A3 650618-3	£11.23	£13.48
28 - LOCK OFF LEVER LF1000/ 1019&L MSP-416356-5.A4 416356-5	£1.44	£1.73
29 - COMPRESSION SPRING 4 8402D MSP-231026-3.A5 231026-3	£1.44	£1.73
30 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A223 265995-6	£1.44	£1.73
31 - HANDLE LS1016/1216 MSP-140049-9.A0 140049-9	£7.18	£8.61
31 - LABEL/CAUTION LC1216/ LS1019&L MSP-810486-8.A14 810486-8	£1.44	£1.73
32 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A224 265995-6	£1.44	£1.73
33 - SWITCH BUTTON LS1216/ LS1019&L MSP-451037-4.A5 451037-4	£2.08	£2.50
34 - *COVER HOLDER LS1216 MSP-451017-0.A0 451017-0	£1.44	£1.73
35 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A222 265995-6	£1.44	£1.73
36 - LEAD COVER LS1216 MSP-451199-8.A1 451199-8	£1.44	£1.73
37 - RING SPRING 4110C/LS1016 MSP-231928-3.A11 231928-3	£1.58	£1.89
38 - SHAFT LOCK PIN 6 LS1019/DLS110 MSP-256633-1.A11 256633-1	£1.44	£1.73
39 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A12 231240-1	£1.44	£1.73
40 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A62 911113-1	£1.44	£1.73
41 - URETHANE RING 5 TW0250/6905B MSP-262190-9.A17 262190-9	£1.44	£1.73
42 - WING SCREW M6X43 LS1013/DLS7 MSP-265717-4.A14 265717-4	£2.50	£3.00
43 - HEX SOCKET HD BOLT M8X20 LS12 MSP-266488-6.A0 266488-6	£1.44	£1.73
44 - H S HD BOLT M6X20/1219&L MSP-922332-4.A6 922332-4	£1.44	£1.73
45 - STRAIN RELIEF LS1013/2012NB MSP-687042-7.A9 687042-7	£1.44	£1.73
45 - STRAIN RELIEF LF1000 MSP-687049-3.A1 687049-3	£1.44	£1.73
46 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A70 266026-4	£1.44	£1.73
47 - DUST NOZZLE LS1013/LS800D/BLS8 MSP-419277-0.A12 419277-0	£2.82	£3.39
48 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A10 213460-9	£2.18	£2.62
49 - HSS SET SCREW M6X16 LS0714FL MSP-266321-2.A4 266321-2	£1.44	£1.73
50 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A19 922331-6	£1.44	£1.73
51 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A70 253804-1	£1.44	£1.73
52 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A9 257461-7	£1.66	£1.99
53 - LINK PLATE LS1216 MSP-140164-9.A0 140164-9	£15.55	£18.66
54 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A10 257461-7	£1.66	£1.99
55 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A71 253804-1	£1.44	£1.73
56 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A58 961018-5	£1.64	£1.97
57 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A63 911113-1	£1.44	£1.73
58 - GUARD HOLDER LS1216 MSP-346050-4.A3 346050-4	£1.44	£1.73
59 - TORSION SPRING 11 LH1040/F MSP-231675-6.A1 231675-6	£1.44	£1.73
60-1 - GUARD LS1216 MSP-453635-0.A0 453635-0	£4.52	£5.43
61 - GUARD SHAFT LS1216 MSP-325645-6.A1 325645-6	£1.44	£1.73
62 - HEX HD SCREW M8X12 WITH COLLA MSP-265324-3.A6 265324-3	£1.44	£1.73
62-1 - HEX SOCKET HD BOLT M8X20 HS61 MSP-266283-4.A3 266283-4	£1.44	£1.73
63 - BLADE CASE LS1216 MSP-140152-6 140152-6	£191.76	£230.11
63 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A406 263005-3	£1.44	£1.73
64 - BALL BEARING 608DDW GA5020 MSP-210005-4.A92 210005-4	£8.42	£10.11
65 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A127 961052-5	£1.44	£1.73
66 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A63 253744-3	£1.44	£1.73
67 - RUBBER WASHER LS1216/ LS1019&L MSP-261104-5.A6 261104-5	£1.44	£1.73
68 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A64 253744-3	£1.44	£1.73
69 - SPIRAL BEVEL GEAR 32 LS1019/L MSP-227550-2.A2 227550-2	£7.80	£9.36
70 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A1 254001-2	£1.44	£1.73
71 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A71 266026-4	£1.44	£1.73
72 - GREASE HOLDER LS1216/ LS1019&L MSP-451002-3.A1 451002-3	£1.44	£1.73
73 - HELICAL GEAR 14 LS1019/DLS110 MSP-227701-7.A1 227701-7	£6.55	£7.86
74 - HELICAL GEAR 27 LS1019/DLS110 MSP-227702-5.A5 227702-5	£6.71	£8.05
75 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A54 216024-8	£1.44	£1.73
76 - GEAR SHAFT LS1216/ LS1019&L MSP-325643-0.A1 325643-0	£4.21	£5.05
77 - BALL BEARING 6000ZZ MT431/SMA MSP-210067-2.A19 210067-2	£4.19	£5.03
78 - BALL BEARING 608DDW GA5020 MSP-210005-4.A93 210005-4	£8.42	£10.11
79 - EXT DIN 471 CIRCLIP-15 9217SP MSP-961055-9.A57 961055-9	£1.44	£1.73
80 - HELICAL GEAR 28 LS1019/DLS110 MSP-227703-3.A1 227703-3	£6.55	£7.86
81 - GASKET LS1216/ LS1019/DLS110 MSP-442147-8.A0 442147-8	£2.34	£2.81
82 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A18 911223-4	£1.44	£1.73
83 - BALL BEARING 608DDW GA5020 MSP-210005-4.A94 210005-4	£8.42	£10.11
84 - BLUE WASHER 5 JS1660/PM7651H MSP-267010-2.A6 267010-2	£1.44	£1.73
85 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A0 253427-5	£1.44	£1.73
86 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A55 931202-6	£1.44	£1.73
87 - BEARING RETAINER 14-23 BHS630 MSP-285847-5.A4 285847-5	£4.68	£5.62
88 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A254 263002-9	£1.44	£1.73
88 - BEARING BOX LS1019/DLS110 MSP-158957-0.A5 158957-0	£8.58	£10.30
89 - BALL BEARING 6002DDW GA5020/2 MSP-211236-8.A8 211236-8	£8.42	£10.11
90 - SPINDLE LS1216/DLS110 LS1219/L MSP-325644-8.A5 325644-8	£5.78	£6.93
91 - BEARING RETAINER 51 LS1019/L MSP-285732-2.A0 285732-2	£1.44	£1.73
92 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A29 265034-2	£1.44	£1.73
93-1 - INNER FLANGE 62 LS1216 MSP-224464-6.A1 224464-6	£8.27	£9.92
94 - OUTER FLANGE 62 LS1216 MSP-224433-7.A0 224433-7	£5.62	£6.74
95-1 - HEX SOCKET HD BOLT M10X20 MSP-266755-9.A1 266755-9	£2.56	£3.07
96 - SAFETY COVER A LS1016/12 MSP-158959-6.A1 158959-6	£12.32	£14.79
97 - TORSION SPRING 45 LS1216 MSP-233554-4.A0 233554-4	£1.44	£1.73
98 - CUSHION LS1216/ LS1019L/DLS110 MSP-424190-9.A1 424190-9	£1.44	£1.73
99 - PIVOT SCREW M6 DLS/LS/DLS110 MSP-265985-9.A16 265985-9	£3.28	£3.93
100 - CENTRE COVER LS1018L/LS1216 MSP-346048-1.A3 346048-1	£4.83	£5.80
101 - WAVE WASHER 10 3600B/CA5000 MSP-253932-2.A2 253932-2	£1.57	£1.88
102 - CENTRE WASHER LS1216 MSP-344539-6.A1 344539-6	£1.44	£1.73
103 - CENTRE PLATE LS1018L/LS1216 MSP-346047-3.A0 346047-3	£2.29	£2.75
104 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A150 266034-5	£1.44	£1.73
105 - PT SCREW 4X12 BUR181/BUR141 MSP-266020-6.A61 266020-6	£1.44	£1.73
106 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A40 941051-3	£1.44	£1.73
107 - ROLLER LS1216/ LS1019/DLS110 MSP-424193-3.A1 424193-3	£1.44	£1.73
108 - SAFETY COVER B LS1216 MSP-451197-2.A0 451197-2	£31.68	£38.02
109 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A77 266026-4	£1.44	£1.73
122 - BLADE CASE COVER LS1216/1219&L MSP-451196-4 451196-4	£2.97	£3.56
123 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A149 266034-5	£1.44	£1.73
124 - PROTECTOR LS1216 MSP-451038-2.A0 451038-2	£1.20	£1.44
127 - SHOULDER SCREW M4 3901/SMA400 MSP-265026-1.A1 265026-1	£1.75	£2.10
128 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A15 941102-2	£1.44	£1.73
129 - COMPRESSION SPRING 7 AN504 MSP-233267-7.A5 233267-7	£1.44	£1.73
130 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A16 941102-2	£1.44	£1.73
131 - LEVER 45 LS1016 MSP-272261-4.A0 272261-4	£1.44	£1.73
132 - JOINT LS1216 MSP-325651-1.A1 325651-1	£2.02	£2.43
133 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A65 253804-1	£1.44	£1.73
134 - LABEL/CAUTION LS1216/ LS1019&L MSP-810503-4.A0 810503-4	£1.44	£1.73
134-1 - UPPER FENCE R LS1216 MSP-142815-0.A0 142815-0	£16.22	£19.47
134-1 - LABEL/CAUTION LS1216/ LS1019&L MSP-810503-4.A1 810503-4	£1.44	£1.73
135 - GUIDE PLATE LS1216 MSP-346058-8.A3 346058-8	£1.44	£1.73
136-1 - LOWER FENCE R LS1216 MSP-318476-0.A0 318476-0	£14.00	£16.80
136 - LOWER FENCE R LS1216 MSP-318476-0.A3 318476-0	£14.00	£16.80
137 - THUMB SCREW M6X18 LS1216 MSP-265783-1.A6 265783-1	£1.66	£1.99
138-1 - GUIDE FENCE LS1216 MSP-318411-8.A1 318411-8	£35.82	£42.99
138 - GUIDE FENCE LS1216 MSP-318411-8.A6 318411-8	£35.82	£42.99
139 - HSH BOLT M8X25 WITH WR LS1216 MSP-922443-5.A1 922443-5	£1.44	£1.73
140 - PIN 4 6805BV/2012NB MSP-256226-4.A4 256226-4	£1.44	£1.73
141 - GRUB SCREW M5X6 BPJ140/BPJ180 MSP-266264-8.A11 266264-8	£1.44	£1.73
142 - THUMB SCREW M6X18 LS1216 MSP-265783-1.A5 265783-1	£1.66	£1.99
143-1 - LOWER FENCE L LS1216 MSP-318863-3.A0 318863-3	£13.12	£15.75
143-2 - LOWER FENCE L LS1216 MSP-318863-3.A1 318863-3	£13.12	£15.75
144-1 - UPPER FENCE L LS1216 MSP-142814-2 142814-2	£21.53	£25.84
144-1 - LABEL/CAUTION LS1216/ LS1019&L MSP-810503-4.A14 810503-4	£1.44	£1.73
144 - LABEL/CAUTION LS1216/ LS1019&L MSP-810503-4.A21 810503-4	£1.44	£1.73
145 - STOPPER ARM LS1216 MSP-346049-9.A0 346049-9	£1.44	£1.73
146 - WAVE WASHER 8 UM140DST/DLS714 MSP-253948-7.A11 253948-7	£1.44	£1.73
147 - FLAT WASHER 8 GA5020/GA5021 MSP-253835-0.A21 253835-0	£1.44	£1.73
148 - PAN HD SHOULDER SCREW M6 2400 MSP-251267-5.A3 251267-5	£1.44	£1.73
149 - SLEEVE 17 LS1216 MSP-451202-5 451202-5	£2.18	£2.62
150 - ROD 16 LS1216 MSP-323740-6.A1 323740-6	£2.81	£3.37
151 - KNOB 20 LS1030/LS800D/BLS820 MSP-271601-3.A15 271601-3	£2.04	£2.45
152 - O RING 7 ML900/LS1214/EA3601F MSP-213011-8.A0 213011-8	£1.44	£1.73
153 - STOP PIN LS1211 MSP-322629-5.A1 322629-5	£3.90	£4.68
154 - TORSION SPRING 40 LS1216 MSP-233542-1 233542-1	£24.48	£29.38
155 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A78 266026-4	£1.44	£1.73
156 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A253 263002-9	£1.44	£1.73
156 - STOPPER LEVER LS1016/121 MSP-158962-7.A1 158962-7	£1.44	£1.73
157-2 - FRONT ARM LS1216 MSP-140976-0.A0 140976-0	£97.15	£116.58
157-3 - FRONT ARM LS1216 MSP-140976-0.A1 140976-0	£97.15	£116.58
158 - THUMB SCREW M6X18 LS1216 MSP-265783-1.A4 265783-1	£1.66	£1.99
159 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A10 231240-1	£1.44	£1.73
160 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A148 266034-5	£1.44	£1.73
161 - ARM LS1216 MSP-140155-0 140155-0	£107.10	£128.52
161 - CAP LS0714/FL/DLS714 MSP-344638-4.A6 344638-4	£1.44	£1.73
161 - FELT RING 25 DLS714/FL/LS714 MSP-262077-5.A3 262077-5	£2.18	£2.62
161 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A409 263005-3	£1.44	£1.73
162 - HOLDER LS1216/LS1016 MSP-318403-7.A2 318403-7	£11.39	£13.67
162-1 - HOLDER LS1216/LS1016 MSP-318403-7.A3 318403-7	£11.39	£13.67
163 - HSS BOLT M6X8 BHS630/LS0714/ MSP-266208-8.A7 266208-8	£1.44	£1.73
164 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A79 266026-4	£1.44	£1.73
165 - STRAIN RELIEF LF1000 MSP-687049-3.A2 687049-3	£1.44	£1.73
165 - STRAIN RELIEF LS1013/2012NB MSP-687042-7.A12 687042-7	£1.44	£1.73
166 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A72 911113-1	£1.44	£1.73
167 - NYLON INSERT NUT M10X17 2414B MSP-252130-5.A2 252130-5	£1.44	£1.73
168 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A18 253024-7	£1.44	£1.73
169 - THRUST NEEDLE GAUGE 1023/LF10 MSP-216413-7.A9 216413-7	£2.34	£2.81
170 - LEVER 105 LS1216 MSP-451019-6.A1 451019-6	£4.28	£5.14
171 - HEX BOLT M10 LS1216 MSP-265589-7.A2 265589-7	£4.68	£5.62
172 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A39 253024-7	£1.44	£1.73
173 - RELEASE BUTON LS1216/ LS1019&L MSP-415208-7.A3 415208-7	£1.44	£1.73
174 - COMPRESSION SPRING 12 9079 MSP-233031-6.A3 233031-6	£1.44	£1.73
175 - HEX SOCKET HD BOLT M8X20 LS12 MSP-266488-6.A5 266488-6	£1.44	£1.73
176 - STOPPER LS1216 MSP-318405-3.A2 318405-3	£3.59	£4.31
177 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A12 961052-5	£1.44	£1.73
178 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A53 253744-3	£1.44	£1.73
179 - TORSION SPRING 14 LS1016/1216 MSP-231646-3.A2 231646-3	£1.44	£1.73
180 - RUBBER RING 9 LS1216 MSP-262158-5.A1 262158-5	£1.44	£1.73
181 - PLATE LS1216 MSP-346071-6.A0 346071-6	£1.44	£1.73
182 - HEX SOCKET HD BOLT M8X20 LS12 MSP-266488-6.A3 266488-6	£1.44	£1.73
183 - ARM COVER LS1216 MSP-451200-9 451200-9	£4.37	£5.24
184 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A48 266034-5	£1.44	£1.73
185 - POINTER LS0714/FL/DLS714 MSP-343678-9.A5 343678-9	£1.44	£1.73
186 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A47 266034-5	£1.44	£1.73
187 - ARM HOLDER LS1216 /1016 MSP-158964-3.A1 158964-3	£49.37	£59.24
187 - LABEL/BEVEL SCALE LS121 MSP-816927-2.A0 816927-2	£1.44	£1.73
187 - LABEL/INDICATION LS1216 MSP-816937-9.A0 816937-9	£1.44	£1.73
187 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A626 263005-3	£1.44	£1.73
188 - HEX SOCKET HD BOLT M8X20 LS12 MSP-266488-6.A4 266488-6	£1.44	£1.73
189 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A96 961011-9	£1.44	£1.73
190 - CAM LS1216 MSP-451044-7.A1 451044-7	£1.44	£1.73
191 - ROD 6 LS1216 MSP-325656-1.A1 325656-1	£1.44	£1.73
192 - LEVER 22 LS1216 MSP-272262-2.A1 272262-2	£1.44	£1.73
193 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A41 911113-1	£1.44	£1.73
194 - COMPRESSION SPRINGN 6 LS1216 MSP-234122-6.A2 234122-6	£1.44	£1.73
195 - LOCK PIN 8 LS1216 MSP-325865-2.A0 325865-2	£1.44	£1.73
197 - CENTRE SHAFT LS1018L/1216 MSP-325646-4.A0 325646-4	£2.81	£3.37
198 - POSITION PLATE LS1216 MSP-451039-0.A0 451039-0	£1.44	£1.73
199 - ARM HOLDER COVER LS1216 MSP-451070-6.A0 451070-6	£1.44	£1.73
200 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A51 266034-5	£1.44	£1.73
201 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A627 263005-3	£1.44	£1.73
201 - SQUARE ROD LS1016/1216 MSP-158967-7.A0 158967-7	£3.74	£4.49
202 - HEX BOLT M5X30 DLS714/FL/DLS7 MSP-925251-3.A2 925251-3	£1.44	£1.73
203 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A171 266026-4	£1.44	£1.73
204 - KERF BOARD LS1216 LS1219/L MSP-451201-7.A0 451201-7	£5.15	£6.18
205 - HEX BOLT M8X45 LS1216 MSP-265585-5.A1 265585-5	£1.44	£1.73
206 - HARD WASHER 8 DST111/DST112 MSP-253762-1.A12 253762-1	£1.44	£1.73
207 - TURN BASE LS1216 MSP-140166-5 140166-5	£88.58	£106.29
207 - LABEL/INDICATION LS1216 MSP-816930-3.A1 816930-3	£1.44	£1.73
208 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A172 266026-4	£1.44	£1.73
209 - INDICATION PLATE LS1216 MSP-451009-9.A1 451009-9	£1.44	£1.73
210 - RACK BLOCK LS1216 MSP-451011-2.A0 451011-2	£1.44	£1.73
211 - TAPPING SCREW 4X14 M8701 MSP-266385-6.A41 266385-6	£1.44	£1.73
212 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A22 941051-3	£1.44	£1.73
213 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A173 266026-4	£1.44	£1.73
214 - SLIDE LOCK PLATE LS1216 MSP-346052-0.A0 346052-0	£7.02	£8.42
215 - *CAP HS7100/6100/SP6000/5008MB MSP-286039-9.A5 286039-9	£1.44	£1.73
216 - EXT E-RING JIS JE-7 VC3211M MSP-961013-5.A0 961013-5	£1.44	£1.73
217 - CAM LS1216 MSP-313165-2.A0 313165-2	£4.21	£5.05
218 - COMPRESSION SPRING 11 MSP-231131-6.A1 231131-6	£1.44	£1.73
219 - NARROW WASHER 10 RP0900/6905D MSP-267047-9.A7 267047-9	£1.44	£1.73
221 - PIN HOLDER LS1216 MSP-318410-0.A0 318410-0	£5.78	£6.93
222 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A49 266034-5	£1.44	£1.73
223 - LOCK LEVER LS1216 MSP-451010-4.A0 451010-4	£3.33	£4.00
224 - LOCK LEVER PLATE LS0714/FL MSP-345272-3.A5 345272-3	£2.08	£2.50
225 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A50 266034-5	£1.44	£1.73
226 - HS BINDING HD SCREW M6X14 LS1 MSP-266505-2.A0 266505-2	£1.44	£1.73
228 - MITER LOCK PLATE A LS1216 MSP-346094-4 346094-4	£5.15	£6.18
229 - COMPRESSION SPRINGN 13 LS1216 MSP-234104-8.A1 234104-8	£1.44	£1.73
230 - SHOULDER SCREW M5 LS0714FL MSP-266306-8.A2 266306-8	£2.18	£2.62
231 - COMPRESSION SPRING 6 LS0714/F MSP-231325-3.A8 231325-3	£1.59	£1.91
232 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A62 256158-5	£1.44	£1.73
233 - LOCK PIN 6 LS1216 MSP-325695-1 325695-1	£1.44	£1.73
234 - LINEAR BEARING BOX LS101 MSP-158968-5.A0 158968-5	£68.54	£82.25
235 - SPUR GEAR 43 LS1216 MSP-451018-8.A0 451018-8	£2.18	£2.62
236 - LEAF SPRING LS1216 LS1219/L MSP-232249-6.A3 232249-6	£1.44	£1.73
237 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A164 266026-4	£1.44	£1.73
238 - HEX SOCKET HD BOLT M8X25 PC50 MSP-922441-9.A0 922441-9	£1.44	£1.73
239 - FOOT LS1216/ LS1019L/DLS110 MSP-421845-7.A4 421845-7	£1.44	£1.73
240 - FLAT WASHER 4 UC3530A/DCS230T MSP-267195-4.A2 267195-4	£1.44	£1.73
241 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A165 266026-4	£1.44	£1.73
242-1 - BASE LS1216/1016 MSP-140054-6.A3 140054-6	£112.77	£135.32
243 - LABEL/CAUTION LC1216 MSP-810495-7.A3 810495-7	£1.44	£1.73
246 - LABEL/CAUTION LS1013BLS820 MSP-817283-3.A8 817283-3	£1.44	£1.73
247 - LABEL/MITER SCALE LS1216 MSP-816920-6.A0 816920-6	£4.52	£5.43
248 - SLIDE PLATE LS1216 MSP-451012-0.A0 451012-0	£1.44	£1.73
249 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A163 266026-4	£1.44	£1.73
250 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A56 266034-5	£1.44	£1.73
251 - LEAF SPRING LF1000 MSP-232075-3.A2 232075-3	£1.44	£1.73
252 - LABEL/CAUTION LS1013BLS820 MSP-817283-3.A9 817283-3	£1.44	£1.73
254 - SLEEVE LS1216/ LS1019/DLS110 MSP-257785-1.A2 257785-1	£1.44	£1.73
255 - HEX SOCKET HD BOLT M5X18 EBH2 MSP-922226-3.A28 922226-3	£1.44	£1.73
256 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A15 216024-8	£1.44	£1.73
257 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A21 253874-0	£1.44	£1.73
258 - CT SCREW M4X20 BHS630/5703R MSP-266042-6.A21 266042-6	£1.44	£1.73
261 - CAP LS1013/LS800D/BLS820/LS10 MSP-421589-9.A10 421589-9	£1.44	£1.73
262 - LOCK LEVER LS1216 MSP-346097-8 346097-8	£2.02	£2.43
263 - HEX SOCKET HEAD BOLT M4X10 90 MSP-922111-0.A0 922111-0	£1.44	£1.73
264 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A23 941051-3	£1.44	£1.73
265 - ROD 8 LS1216 MSP-325664-2.A0 325664-2	£1.44	£1.73
266 - TORSION SPRING 8 LS1040/1214 MSP-231633-2.A8 231633-2	£1.44	£1.73
267 - ROD HOLDER LS1216 MSP-451129-9.A1 451129-9	£1.44	£1.73
268 - EXT E-RING JIS JE-6 MSP-961012-7.A26 961012-7	£1.44	£1.73
269 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A58 266034-5	£1.44	£1.73
271 - MITER LOCK PLATE B LS121 MSP-140165-7 140165-7	£6.24	£7.49
272 - PIN 6 LS1216/HR2630 MSP-256246-8.A3 256246-8	£1.44	£1.73
273 - PLATE LS1216 MSP-346096-0 346096-0	£1.44	£1.73
274 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A57 266034-5	£1.44	£1.73
275 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A18 253428-3	£1.44	£1.73
276 - HSS SET SCREW M4X6 LS0714FL MSP-266318-1.A21 266318-1	£1.44	£1.73
277 - THIN WASHER BJV140/180/SMA400 MSP-253313-0.A11 253313-0	£1.44	£1.73
278 - PLATE LS1216 MSP-346474-4 346474-4	£3.59	£4.31
279 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A162 266026-4	£1.44	£1.73
280 - DUST FILLER LS1216 MSP-424438-9 424438-9	£1.44	£1.73
A01 - DUST BAG ASSY LS1019/LS1019L MSP-122852-0.A14 122852-0	£8.32	£9.99
A01 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A28 410602-8	£1.66	£1.99
A02 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A13 253804-1	£1.44	£1.73
A02 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A161 266026-4	£1.44	£1.73
A02 - KNOB 40 LS1216 MSP-271328-5.A1 271328-5	£1.78	£2.13
A02 - NUT HOLDER LS1216 MSP-346053-8.A0 346053-8	£1.20	£1.44
A02 - PAN HD SHOULDER SCREW M5 LS80 MSP-251370-2.A11 251370-2	£1.44	£1.73
A02 - PROTECTOR LS1216 MSP-346054-6.A1 346054-6	£1.20	£1.44
A02 - VISE ARM B LS1016 MSP-140038-4.A1 140038-4	£3.87	£4.64
A02 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A32 251887-5	£2.34	£2.81
A02 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A11 961052-5	£1.44	£1.73
A02 - VISE ARM A LS1016 MSP-140037-6.A0 140037-6	£5.56	£6.67
A02 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A51 253744-3	£1.44	£1.73
A02 - RELEASE NUT L LS1216 MSP-313164-4.A1 313164-4	£1.20	£1.44
A02 - RELEASE NUT R LS1216 MSP-313163-6.A0 313163-6	£1.20	£1.44
A02 - VISE ASSY LS1016/1216 MSP-122854-6.A1 122854-6	£15.07	£18.08
A02 - VISE PLATE LS1030/LS800D/BLS8 MSP-343651-9.A2 343651-9	£1.44	£1.73
A03 - TRIANGLE LS1019/2030/LF1000 MSP-762001-3.A3 762001-3	£1.20	£1.44
A04 - SCREW M5X16 LS1216/ LS1019&L MSP-265786-5.A3 265786-5	£1.44	£1.73
A05 - HOLDER 200 LS1216 MSP-325673-1.A1 325673-1	£2.24	£2.69
A06-1 - HEX WRENCH 6 HS6100/7100/4157 MSP-783204-6.A22 783204-6	£2.49	£2.99
E01 - RING 16 LS1214/LS1013/LS1040 MSP-257262-3.A6 257262-3	£1.44	£1.73
E02 - SWITCH V-15-2A5 LS1019/LS1040 MSP-651941-9.A0 651941-9	£4.83	£5.80
E03 - TERMINAL BLOCK 2P UH45/55/65 MSP-654531-7.A4 654531-7	£2.18	£2.62
E04 - LINE FILTER LF1000/BCV01/LS MSP-688140-0.A0 688140-0	£4.83	£5.80
E06 - WRENCH HOLDER 5.6 TM3000C MSP-410047-0.A13 410047-0	£1.44	£1.73

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita LS1216 Slide Compound Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
