Makita LS1214F Slide Compound Saw Spare Parts

Home Details Reviews Delivery

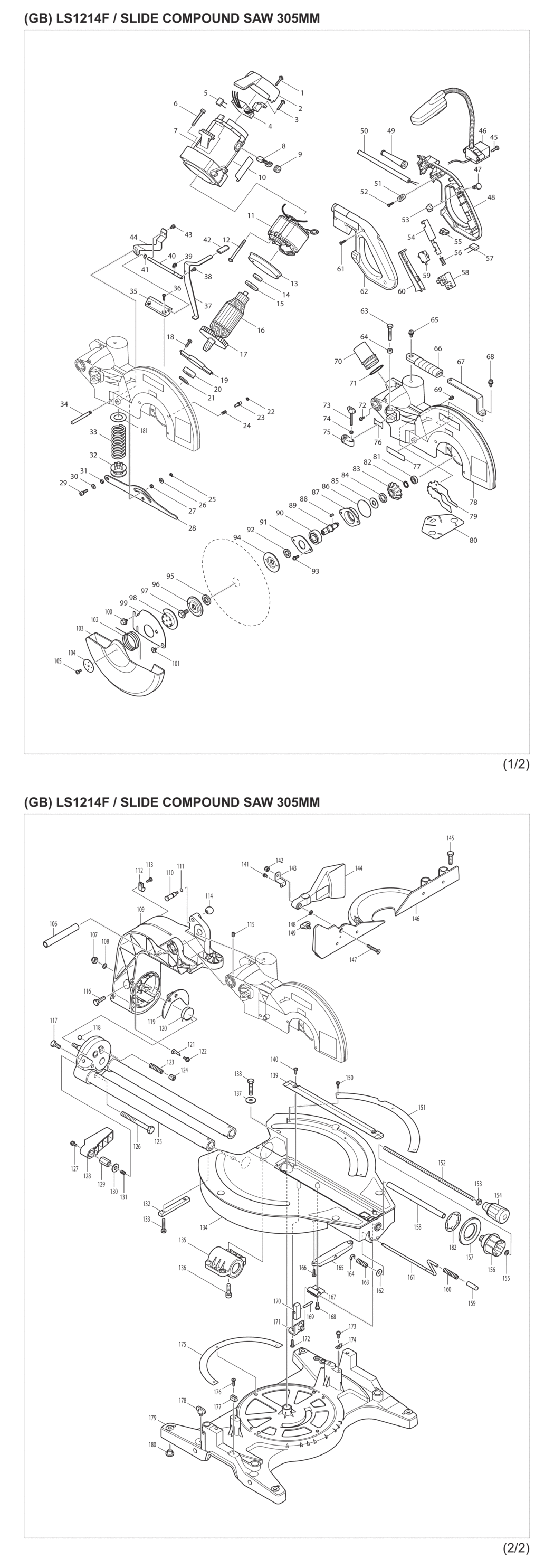

An exploded drawing and spare parts listing for the Makita LS1214F Slide Compound Saw

	Ex VAT	Inc VAT
1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1158 265995-6	£1.66	£1.99
2 - REAR COVER LS1013/LS1214 MSP-416075-3.A0 416075-3	£4.94	£5.93
3 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1159 265995-6	£1.66	£1.99
4 - CONTROLLER 110V LS1214 MSP-631237-4.A1 631237-4	£54.43	£65.32
4 - CONTROLLER 240V LS1214 MSP-631238-2.A1 631238-2	£54.43	£65.32
5 - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A0 645105-5	£2.49	£2.99
6 - PAN HD SCREW M6X50 LS1013 MSP-911373-5.A5 911373-5	£1.66	£1.99
7 - BRUSH HOLDER 6.5-13.5 LS1019&L MSP-643660-1.A2 643660-1	£2.49	£2.99
7 - MOTOR HOUSING LS1214 MSP-153907-0.A0 153907-0	£18.04	£21.65
8 - CARBON BRUSH CB-153 (CB-22)/9 MSP-194985-1.A13 194985-1	£4.87	£5.84
9 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A27 643650-4	£1.66	£1.99
9-1 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A66 643650-4	£1.66	£1.99
10 - NAME PLATE LS1214 MSP-860634-9 860634-9	£1.66	£1.99
11 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A56 654502-4	£1.66	£1.99
11 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A70 654020-2	£1.66	£1.99
11 - FIELD ASSY 110V LS1214 MSP-599517-3.A1 599517-3	£46.64	£55.97
11 - FIELD ASSY 240V LS1214/L MSP-599508-4.A0 599508-4	£46.64	£55.97
12 - PT SCREW 5X75 2414B MSP-266059-9.A3 266059-9	£1.66	£1.99
13 - BAFFLE PLATE LS1214 MSP-416264-0.A2 416264-0	£2.49	£2.99
14 - BALL BEARING 6000LLB BTW200 MSP-211061-7.A29 211061-7	£7.28	£8.74
15 - INSULATION WASHER HM1317C-CB/ MSP-681642-5.A1 681642-5	£8.97	£10.76
16 - ARMATURE ASSY 110V LS1214 MSP-516736-6.A1 516736-6	£91.80	£110.16
16 - ARMATURE ASSY 240V LS1214 MSP-516739-0.A0 516739-0	£91.80	£110.16
17 - FAN 80 LS1019/LS1019L/UC3530A MSP-240001-8.A8 240001-8	£3.38	£4.06
18 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A27 911223-4	£1.66	£1.99
19 - BEARING RETAINER 94 LS1013 MSP-285686-3.A1 285686-3	£3.64	£4.37
20 - BALL BEARING 6003LLB 4603DW MSP-211251-2.A1 211251-2	£9.49	£11.39
21 - EXT DIN 471 CIRCLIP-17/DHR171D MSP-961057-5.A15 961057-5	£1.66	£1.99
22 - RING SPRING 4110C/LS1016 MSP-231928-3.A0 231928-3	£1.66	£1.99
23 - SHAFT LOCK PIN 6 LS1019/DLS110 MSP-256633-1.A0 256633-1	£1.66	£1.99
24 - COMPRESSION SPRING 7 RP0900/ MSP-231240-1.A30 231240-1	£1.66	£1.99
25 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A27 961018-5	£1.66	£1.99
26 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A41 253804-1	£1.66	£1.99
27 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A35 257461-7	£1.66	£1.99
28 - LINK PLATE LS1214 MSP-345419-9.A0 345419-9	£4.68	£5.62
29 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A15 922331-6	£1.66	£1.99
30 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A40 253804-1	£1.66	£1.99
31 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A36 257461-7	£1.66	£1.99
32 - SPRING HOLDER LS1214 MSP-316470-6.A0 316470-6	£3.64	£4.37
33 - COMPRESSION SPRING LS1214 MSP-233424-7.A0 233424-7	£7.80	£9.36
34 - LOCK PIN 8 LS1214 MSP-324458-2.A1 324458-2	£2.49	£2.99
35 - ROD HOLDER LS1214 MSP-418610-3.A0 418610-3	£4.03	£4.84
36 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A8 266034-5	£1.66	£1.99
37-1 - LOCK LEVER LS1214 MSP-345855-9.A1 345855-9	£4.55	£5.46
38 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A17 911113-1	£1.66	£1.99
38-1 - CAP HD SCREW M4X8 4320/JV101D MSP-922107-1.A20 922107-1	£1.66	£1.99
39 - EXT E-RING JIS JE-6 MSP-961012-7.A33 961012-7	£1.66	£1.99
40 - ROD 8 LS1214 MSP-324459-0.A0 324459-0	£6.24	£7.49
41 - TORSION SPRING 8 LS1040/1214 MSP-231633-2.A4 231633-2	£1.66	£1.99
42 - CAP LS1013/LS800D/BLS820/LS10 MSP-421589-9.A11 421589-9	£1.66	£1.99
43 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A16 911113-1	£1.66	£1.99
44 - LOCK PLATE LS1214 MSP-345417-3.A1 345417-3	£1.66	£1.99
45 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1156 265995-6	£1.66	£1.99
46 - FLOURESCENT LIGHT SET LS1040F MSP-193730-1.A1 193730-1	£5.18	£6.21
46 - LIGHT ASSY 110V LS1040F MSP-125179-7.A1 125179-7	£20.32	£24.38
46 - LIGHT ASSY 240V LS1040F MSP-125180-2.A0 125180-2	£21.94	£26.33
46 - LAMP BOX LS1040F MSP-152923-9.A0 152923-9	£2.49	£2.99
47 - SWITCH BUTTON REMOVABLE LS121 MSP-411478-6.A14 411478-6	£1.66	£1.99
48 - HANDLE SET LS1214F MSP-183842-8.A0 183842-8	£14.30	£17.16
48 - LABEL/CAUTION LS1214LS0714 MSP-810966-4.A3 810966-4	£2.49	£2.99
49 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A12 682505-8	£1.66	£1.99
49 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A5 682540-6	£1.66	£1.99
49-1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A13 682505-8	£1.66	£1.99
50 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A47 692527-0	£22.44	£26.93
50 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A42 695217-4	£10.40	£12.48
51 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A131 687052-4	£1.66	£1.99
51 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A68 687053-2	£1.66	£1.99
52 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1157 265995-6	£1.66	£1.99
53 - CAM LS1013/LS1040F MSP-414546-4.A4 414546-4	£1.66	£1.99
54 - LOCK OFF LEVER LS1013 MSP-416000-4.A4 416000-4	£2.49	£2.99
55 - TERMINAL BLOCK PC5000/5001C MSP-654575-7.A1 654575-7	£2.49	£2.99
56 - COMPRESSION SPRING 3 HM1303B/ MSP-231457-6.A9 231457-6	£1.66	£1.99
57-1 - NOISE SUPPRESSOR GD0801C/0811 MSP-645089-7.A14 645089-7	£2.49	£2.99
57 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A101 645141-1	£1.66	£1.99
58 - SWITCH TG70B UC3530A/5903R MSP-651923-1.A11 651923-1	£14.30	£17.16
59 - SWITCH V-15-2A5 LS1019/LS1040 MSP-651941-9.A3 651941-9	£4.03	£4.84
60 - SWITCH LEVER LS1013 MSP-415999-0.A2 415999-0	£2.49	£2.99
61 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1155 265995-6	£1.66	£1.99
62 - HANDLE SET LS1214F MSP-183842-8.A1 183842-8	£14.30	£17.16
62 - LABEL/CAUTION LS1214LS0714 MSP-810966-4.A4 810966-4	£2.49	£2.99
63 - HEX HD SCREW M8X45 MSP-921467-8.A5 921467-8	£1.66	£1.99
64 - RUBBER RING 6 HM1400/1304 MSP-262003-4.A3 262003-4	£1.66	£1.99
65 - PAN HD SCREW M6X16 LS1013 MSP-911323-0.A11 911323-0	£1.66	£1.99
66 - GRIP LS1013 MSP-421562-9.A4 421562-9	£2.49	£2.99
67 - GRIP HOLDER LS1013 MSP-344420-1.A4 344420-1	£2.49	£2.99
68 - PAN HD SCREW M6X16 LS1013 MSP-911323-0.A10 911323-0	£1.66	£1.99
69 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A18 911114-9	£1.66	£1.99
70-1 - DUST NOZZLE LS1013/LS800D/BLS8 MSP-419277-0.A6 419277-0	£2.49	£2.99
71 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A23 213460-9	£2.49	£2.99
72 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A15 911113-1	£1.66	£1.99
73 - WING SCREW M6X43 LS1013/DLS7 MSP-265717-4.A2 265717-4	£2.49	£2.99
74 - URETHANE RING 5 TW0250/6905B MSP-262190-9.A9 262190-9	£1.66	£1.99
75 - STOPPER ARM LS1013 MSP-317176-9.A0 317176-9	£6.89	£8.27
76 - STOPPER ARM PLATE LS1013 MSP-344045-1.A1 344045-1	£1.66	£1.99
77 - LABEL/MAKITA LS10305603R241 MSP-819064-1.A26 819064-1	£2.49	£2.99
77-1 - LABEL/MAKITA LOGO LS1214L MSP-819215-6.A1 819215-6	£2.49	£2.99
78-1 - BLADE CASE LS1214 MSP-188377-4.A0 188377-4	£106.95	£128.34
78 - LABEL/CAUTION LS1230LS800DW MSP-810968-0.A18 810968-0	£2.49	£2.99
78 - LABEL/CAUTION MLS100LF1000 MSP-817667-5.A20 817667-5	£1.66	£1.99
78-1 - LABEL/CAUTION MLS100LF1000 MSP-817667-5.A23 817667-5	£1.66	£1.99
78-1 - LABEL/CAUTION LC1230MLS100 MSP-810964-8.A9 810964-8	£2.49	£2.99
78 - LABEL/CAUTION LC1230MLS100 MSP-810964-8.A10 810964-8	£2.49	£2.99
78-1 - LABEL/CAUTION LS1230LS800DW MSP-810968-0.A0 810968-0	£2.49	£2.99
79-1 - GUARD PLATE LS1214L MSP-345611-7.A1 345611-7	£2.49	£2.99
80-1 - GUARD LS1214L/LS1013 MSP-421916-0.A2 421916-0	£1.66	£1.99
81 - BALL BEARING 608LLB(/608VV) 6 MSP-211031-6.A1 211031-6	£3.25	£3.90
82 - EXT DIN 471 CIRCLIP-14 MSP-961054-1.A6 961054-1	£1.66	£1.99
83 - SPIRAL BEVEL GEAR 35 LS1214 MSP-226750-1.A0 226750-1	£26.18	£31.42
84 - RUBBER RING 20 LS1013 MSP-262074-1.A1 262074-1	£1.66	£1.99
85 - HARD WASHER 14 6805BV MSP-267035-6.A2 267035-6	£2.49	£2.99
86 - O RING 54 LS1214 MSP-213675-8.A1 213675-8	£1.66	£1.99
87 - BEARING BOX LS1214 MSP-316473-0.A0 316473-0	£8.97	£10.76
88 - KEY 4-10 9401/9900B/9402/LF10 MSP-254202-2.A4 254202-2	£1.66	£1.99
89 - SPINDLE LS1214 MSP-322989-5.A1 322989-5	£13.64	£16.37
90 - BALL BEARING 6203DDW RP0900/9 MSP-211278-2.A0 211278-2	£8.58	£10.30
91 - BEARING RETAINER 66 LS1013 MSP-285828-9.A3 285828-9	£2.49	£2.99
92 - RING 16-25 LS1040F/2400/B MSP-257022-3.A5 257022-3	£3.38	£4.06
93 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A9 911223-4	£1.66	£1.99
94 - FLANGE 61 LS1214 MSP-224398-3.A0 224398-3	£6.24	£7.49
95 - RING 16 LS1214/LS1013/LS1040 MSP-257262-3.A1 257262-3	£1.66	£1.99
96 - FLANGE 61 LS1214 MSP-224398-3.A1 224398-3	£6.24	£7.49
98 - CENTRE PLATE LS1214 MSP-344473-0.A1 344473-0	£29.70	£35.64
99 - CENTRE COVER LS1214 MSP-344038-8.A0 344038-8	£2.49	£2.99
100 - HEX HD SCREW M8X12 WITH COLLA MSP-265324-3.A1 265324-3	£1.66	£1.99
101 - PIVOT SCREW M5 LS800/ LS1019&L MSP-265008-3.A8 265008-3	£2.49	£2.99
102 - TORSION SPRING 45 LS1214 MSP-231613-8.A1 231613-8	£2.49	£2.99
103-1 - SAFETY COVER LS1214 MSP-450131-9.A1 450131-9	£14.96	£17.95
104 - FLAT WASHER 6 M241 MSP-253977-0.A3 253977-0	£1.66	£1.99
105 - PAN HEAD SCREW M5X12 ER2550 MSP-911213-7.A23 911213-7	£1.66	£1.99
106-1 - PIN 16-113 2414B/NB MSP-331428-4.A7 331428-4	£7.54	£9.05
106 - PIN 16-113 2414B/NB MSP-331428-4.A8 331428-4	£7.54	£9.05
107 - NYLON INSERT NUT M8-13 LS800D MSP-252105-4.A8 252105-4	£1.66	£1.99
108 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A2 941201-0	£1.66	£1.99
110 - STOP PIN LS1211 MSP-322629-5.A2 322629-5	£3.25	£3.90
111 - O RING 7 ML900/LS1214/EA3601F MSP-213011-8.A3 213011-8	£1.66	£1.99
112 - STRAIN RELIEF LS1013/2012NB MSP-687042-7.A16 687042-7	£1.66	£1.99
113 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A48 266026-4	£1.66	£1.99
114 - KNOB 20 LS1030/LS800D/BLS820 MSP-271601-3.A17 271601-3	£1.66	£1.99
115 - SOCKET FLAT GRUB SCREW M6X10 MSP-251961-9.A7 251961-9	£1.66	£1.99
116 - HEX HD SCREW M8X30 MSP-265455-8.A6 265455-8	£2.49	£2.99
117 - HEX HD SCREW M8X20 MSP-265412-6.A5 265412-6	£1.66	£1.99
118 - STEEL BALL 10 LS1013 MSP-216003-6.A2 216003-6	£1.66	£1.99
119 - GUIDE PLATE LS1214 MSP-345418-1.A4 345418-1	£7.15	£8.58
120 - TORSION SPRING 28 LS1013/1214 MSP-231626-9.A2 231626-9	£2.49	£2.99
121 - INDICATION PLATE LS1013 MSP-413067-3.A4 413067-3	£1.66	£1.99
122 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A11 911114-9	£1.66	£1.99
123 - COMPRESSION SPRING 5 LS1013 MSP-233168-9.A0 233168-9	£1.66	£1.99
124 - HEX SOCKET HD BOLT M12XX12 LS MSP-266131-7.A4 266131-7	£1.66	£1.99
125 - ARM HOLDER LS1013/24 MSP-151459-5.A3 151459-5	£135.78	£162.94
125 - LABEL/BEVEL SCALE LS1013 MSP-816771-7.A3 816771-7	£2.49	£2.99
126 - HEX BOLT M10X100 LS1214 MSP-251662-9.A2 251662-9	£1.66	£1.99
127 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A87 911113-1	£1.66	£1.99
128 - LEVER 100 LS1013/LS800D/BLS82 MSP-416006-2.A1 416006-2	£4.81	£5.77
129 - HEX NUT M10-17 LS1013/LS800DW MSP-252144-4.A9 252144-4	£3.90	£4.68
130 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A5 253024-7	£1.66	£1.99
131 - COMPRESSION SPRING 5/DLS714 MSP-231266-3.A5 231266-3	£1.66	£1.99
132 - SQUARE ROD LS1013/12 MSP-152542-1.A0 152542-1	£6.37	£7.64
132 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A5 263005-3	£1.66	£1.99
133 - HEX HD SCREW M6X35 W/SP WASHE MSP-921356-7.A2 921356-7	£1.66	£1.99
134 - CAP LS1013 MSP-343676-3.A5 343676-3	£1.66	£1.99
134 - LABEL/CAUTION LS1013BLS820 MSP-817283-3.A13 817283-3	£1.66	£1.99
134 - LINEAR BALL BEARING LS1013/12 MSP-211444-1.A5 211444-1	£43.01	£51.61
134 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A6 263005-3	£1.66	£1.99
134 - TURN BASE LS1013/121 MSP-153832-5.A4 153832-5	£123.70	£148.44
134 - FELT RING 30 LS1013 MSP-262048-2.A8 262048-2	£2.49	£2.99
135 - BEARING BOX LS1013 MSP-316837-8.A4 316837-8	£22.44	£26.93
135 - BEARING BOX LS1013/LS1214 MSP-152540-5.A0 152540-5	£67.28	£80.74
135 - FELT RING 30 LS1013 MSP-262048-2.A9 262048-2	£2.49	£2.99
135 - LINEAR BALL BEARING LS1013/12 MSP-211444-1.A4 211444-1	£43.01	£51.61
135 - CAP LS1013 MSP-343676-3.A4 343676-3	£1.66	£1.99
136 - HEX SOCKET HD BOLT M8 X 30 MSP-922451-6.A8 922451-6	£1.66	£1.99
137 - LARGE WASHER 8 LS1013/ 1019&L MSP-253852-0.A9 253852-0	£1.66	£1.99
138 - HEX HD SCREW M8X40/ LS1019&L MSP-265442-7.A0 265442-7	£1.66	£1.99
139 - KERF BOARD LS1013 MSP-415209-5.A0 415209-5	£2.62	£3.15
140 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A46 266026-4	£1.66	£1.99
141 - PAN HEAD SCREW M4X8 BDF453 MSP-911108-4.A35 911108-4	£1.66	£1.99
142 - NYLON INSERT NUT M6-10 LS1013 MSP-252014-7.A17 252014-7	£1.66	£1.99
143 - SUB FENCE PLATE LS1013 MSP-344463-3.A3 344463-3	£1.66	£1.99
144 - SUB FENCE LS1214 MSP-153890-1.A2 153890-1	-
144 - LABEL/CAUTION LS1214 MSP-810967-2.A5 810967-2	£1.66	£1.99
145 - HEX BOLT M8X30 LS1040F MSP-265488-3.A7 265488-3	£1.66	£1.99
146 - GUIDE FENCE LS1214 MSP-317757-9.A1 317757-9	£23.65	£28.38
147 - COUNTERSUNK SCREW M6X35 MSP-912357-6.A6 912357-6	£1.66	£1.99
148 - HARD WASHER 6 EA3500/3501 MSP-253715-0.A25 253715-0	£1.66	£1.99
149 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A55 251887-5	£2.49	£2.99
150 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A47 266026-4	£1.66	£1.99
151 - LABEL/MITER SCALE LS1013 MSP-816326-8.A4 816326-8	£5.98	£7.18
152 - SCREW M8X320 LS1013 MSP-266132-5.A0 266132-5	£2.49	£2.99
153 - HEX FULLNUT M8 LS1013/HR1840 MSP-931402-8.A41 931402-8	£1.66	£1.99
154 - GRIP 40 LS1214 MSP-271314-6.A1 271314-6	£7.80	£9.36
155 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A1 941201-0	£1.66	£1.99
156 - KNOB 48 LS1013 MSP-152541-3.A4 152541-3	£7.15	£8.58
157 - CAP LS1214/LS1013 MSP-421863-5.A1 421863-5	£2.49	£2.99
158 - PIN 9-200 LS1013 MSP-331491-7.A3 331491-7	£2.49	£2.99
158-1 - PIN 9-200 LS1013 MSP-331491-7.A8 331491-7	£2.49	£2.99
159 - CAP 10 LS1013 MSP-421563-7.A2 421563-7	£1.66	£1.99
160 - COIL SPRING LS1013 MSP-322924-3.A2 322924-3	£1.66	£1.99
161 - LOCK PIN LS1013 MSP-322909-9.A2 322909-9	£9.88	£11.86
162 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A93 253804-1	£1.66	£1.99
163 - COMPRESSION SPRING 6 MSP-231307-5.A4 231307-5	£1.66	£1.99
164 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A43 961018-5	£1.66	£1.99
165 - PIN HOLDER LS1013 MSP-316899-6.A2 316899-6	£10.27	£12.32
166 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A125 266034-5	£1.66	£1.99
167 - SLIDE STOPPER LS1013 MSP-344411-2.A2 344411-2	£2.49	£2.99
168 - PAN HD SHOULDER SCREW M6 2400 MSP-251267-5.A9 251267-5	£1.66	£1.99
169 - PIN 5 LS1013 EB5300TH/MG5300.4 MSP-256196-7.A2 256196-7	£1.66	£1.99
170 - TURN STOPPER LS1013 MSP-331493-3.A2 331493-3	£77.11	£92.53
171 - STOPPER HOLDER LS1013 MSP-344412-0.A2 344412-0	£10.01	£12.01
172 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A126 266034-5	£1.66	£1.99
173 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A45 266026-4	£1.66	£1.99
174 - INDICATION PLATE/POINTER LC12 MSP-816128-2.A4 816128-2	£1.66	£1.99
175 - SLIDE PLATE LS1013 MSP-344477-2.A2 344477-2	£2.49	£2.99
176 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A127 266034-5	£1.66	£1.99
177 - LEAF SPRING LF1000 MSP-232075-3.A9 232075-3	£2.49	£2.99
178 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A57 251887-5	£2.49	£2.99
179 - LABEL/CAUTION LS800DBLS820 MSP-810965-6.A1 810965-6	£1.66	£1.99
179 - BASE LS1214/LS1013 MSP-153889-6.A0 153889-6	£44.22	£53.06
180 - CAP 20 LS1030/LC1230/LS800DWB MSP-286212-1.A17 286212-1	£1.66	£1.99
181 - FLAT WASHER 25 LS1214 MSP-253791-4.A1 253791-4	£1.66	£1.99
182 - STOPPER LS1214/LS1013 MSP-345494-5.A1 345494-5	£1.66	£1.99
A01 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A7 410602-8	£1.66	£1.99
A02 - VISE PLATE LS1030/LS800D/BLS8 MSP-343651-9.A15 343651-9	£1.66	£1.99
A01-1 - DUST BAG ASSY LS1019/LS1019L MSP-122852-0.A7 122852-0	£8.32	£9.99
A02 - KNOB 30 LS1214/LF1000 MSP-271303-1.A0 271303-1	£5.59	£6.71
A02 - PAN HD SHOULDER SCREW M5 LS80 MSP-251370-2.A2 251370-2	£1.66	£1.99
A02 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A90 253804-1	£1.66	£1.99
A02 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A56 251887-5	£2.49	£2.99
A01-1 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A8 410602-8	£1.66	£1.99
A02 - VICE ASSY LS1030/LS1214 MSP-122540-9.A2 122540-9	£10.97	£13.16
A02 - VISE ARM LS1030/LS800D/BLS82 MSP-316938-2.A8 316938-2	£19.25	£23.10
A02 - VISE ROD LS1214/LF1000 MSP-322983-7.A0 322983-7	£5.07	£6.08
A03 - LABEL/CAUTION LS1214 MSP-817319-8.A0 817319-8	£1.66	£1.99
A03 - SUB FENCE R SET LS1214/LS1013L MSP-153896-9.A0 153896-9	£30.90	£37.08
A04 - SWITCH BUTTON REMOVABLE LS121 MSP-411478-6.A1 411478-6	£1.66	£1.99
A05 - TRIANGLE LS1019/2030/LF1000 MSP-762001-3.A19 762001-3	£1.20	£1.44
A06 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A58 251887-5	£2.49	£2.99
A07 - HOLDER 255 LS1013 MSP-322932-4.A2 322932-4	£4.81	£5.77
A09 - SOCKET WRENCH 13 24B/27/DUP361 MSP-782212-4.A12 782212-4	£5.11	£6.13
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A289 654091-9	£1.66	£1.99

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita LS1214F Slide Compound Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita LS1214F Slide Compound Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita LS1214F Slide Compound Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
