Makita DSS501Z Cordless Circular Saw Spare Parts

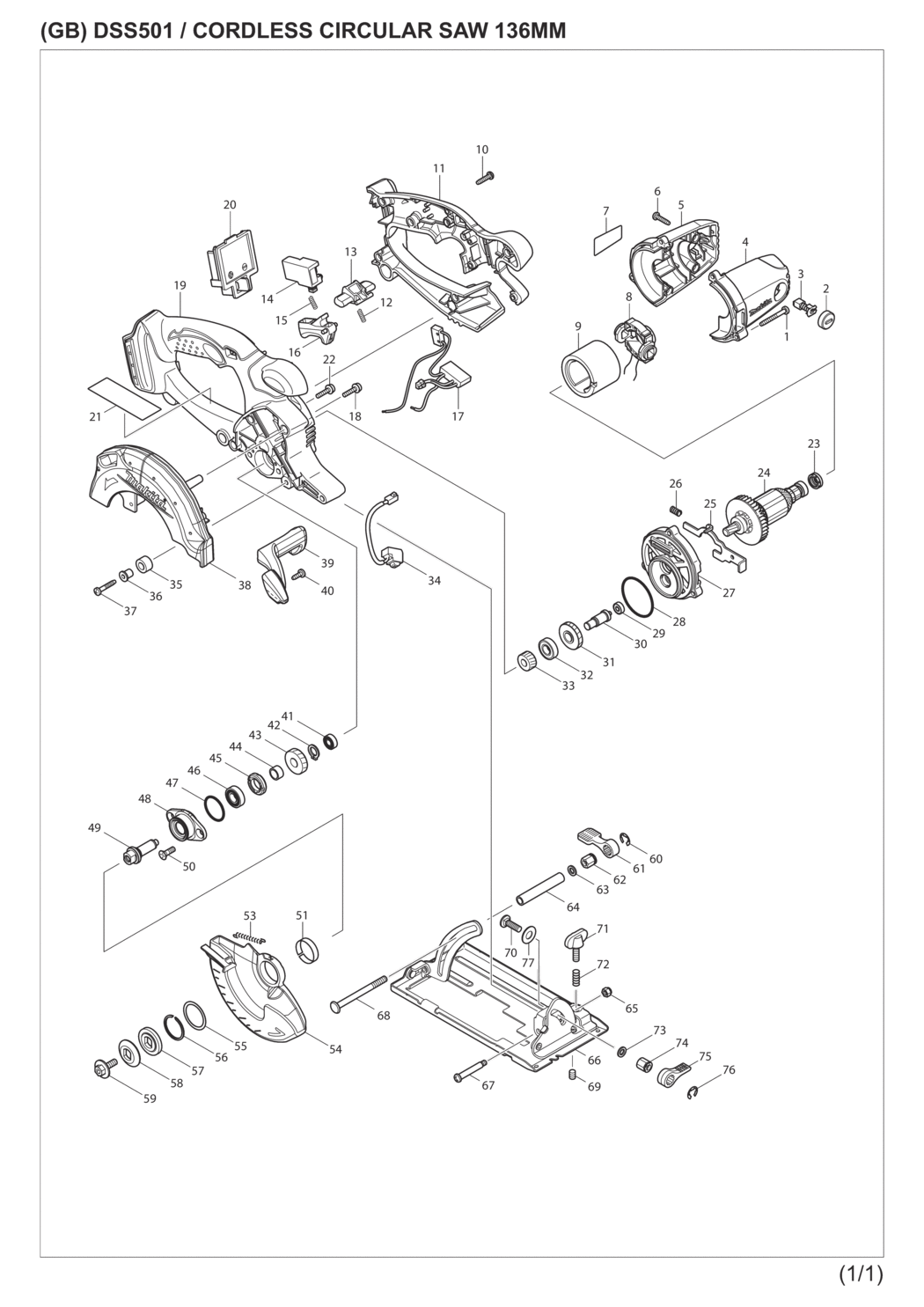

An exploded drawing and spare parts listing for the Makita DSS501Z Cordless Circular Saw

	Ex VAT	Inc VAT
1 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A30 266053-1	£1.44	£1.73
2 - HOLDER CAP 6347D/BSS500/BSS50 MSP-643807-7.A3 643807-7	£1.54	£1.85
3 - CARBON BRUSH SET CB-430 MSP-191971-3.A45 191971-3	£5.78	£6.93
4 - HOUSING SET BCS550/BSS500/501 MSP-188209-5.A7 188209-5	£11.86	£14.23
5 - HOUSING SET BCS550/BSS500/501 MSP-188209-5.A8 188209-5	£11.86	£14.23
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A966 265995-6	£1.44	£1.73
7 - NAME PLATE DSS501 MSP-815T90-8.A1 815T90-8	£1.44	£1.73
8 - ENDBELL BCS550/BSS500/50 MSP-638925-4.A1 638925-4	£4.52	£5.43
9 - YOKE UNIT DPB180/CS550/BSS500 MSP-638420-4.A3 638420-4	£30.96	£37.15
10 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A967 265995-6	£1.44	£1.73
11 - *HANDLE L BCS550/BSS500/BSS501 MSP-453426-9.A5 453426-9	£21.60	£25.92
12 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A42 231469-9	£1.44	£1.73
13 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A29 419664-3	£1.44	£1.73
14 - SWITCH TG72BD BUC122/BSS501 MSP-651956-6.A4 651956-6	£14.51	£17.41
15 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A43 231469-9	£1.44	£1.73
16 - SWITCH LEVER BHS630/DCS550/DK MSP-419665-1.A3 419665-1	£1.44	£1.73
18 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A6 911133-5	£1.44	£1.73
19 - *HANDLE R BCS550/BSS501 MSP-453154-6.A2 453154-6	£25.06	£30.07
20 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A78 644808-8	£4.28	£5.14
22 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A7 911133-5	£1.44	£1.73
23 - RUBBER RING 13 BPJ140/BPJ180 MSP-421977-0.A16 421977-0	£1.44	£1.73
24 - ARMATURE DSS501 MSP-619202-3.A2 619202-3	£23.48	£28.17
25 - SHAFT LOCK DCS550/BSS500/501 MSP-345643-4.A1 345643-4	£1.44	£1.73
26 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A14 233117-6	£1.44	£1.73
27 - GEAR HOUSING BCS550/BSS500/50 MSP-419656-2.A3 419656-2	£3.90	£4.68
28 - O RING 44 HS6100/7100/BSS500 MSP-213560-5.A3 213560-5	£1.44	£1.73
29 - BALL BEARING 604ZZ CC300D/BCS MSP-210036-3.A11 210036-3	£3.74	£4.49
30 - GEAR SHAFT BCS550/BSS500/501 MSP-324729-7.A5 324729-7	£1.44	£1.73
31 - HELICAL GEAR 35 BSS500/BSS501 MSP-226643-2.A3 226643-2	£4.99	£5.99
32 - BALL BEARING 6900ZZ BCS550 MSP-210080-0.A1 210080-0	£6.08	£7.30
33 - HELICAL GEAR 15 BCS550/BSS500 MSP-226635-1.A4 226635-1	£5.46	£6.55
34 - LED CIRCUIT BCS550/BSS500-501 MSP-631550-0.A7 631550-0	£10.14	£12.17
35 - RUBBER SLEEVE 6 BCS550/BSS500 MSP-262566-0.A2 262566-0	£1.44	£1.73
36 - SLEEVE 4 DCS550/BSS500/BSS501 MSP-262563-6.A5 262563-6	£1.44	£1.73
37 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A13 265999-8	£1.44	£1.73
38 - BLADE CASE BSS500/501 MSP-318152-6.A0 318152-6	£11.39	£13.67
39 - BLOWER NOZZLE BSS500/501 MSP-419935-8.A4 419935-8	£2.81	£3.37
40 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A129 266026-4	£1.44	£1.73
41 - BALL BEARING 696ZZ GA4541/BU MSP-210006-2.A25 210006-2	£3.28	£3.93
42 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A33 961006-2	£1.44	£1.73
43 - HELICAL GEAR 23 BCS550/BSS500 MSP-226640-8.A1 226640-8	£5.46	£6.55
44 - SLEEVE 10 DCS550/BSS500/BSS50 MSP-257760-7.A5 257760-7	£1.44	£1.73
45 - BEARING RETAINER 14-23 BHS630 MSP-285847-5.A16 285847-5	£4.68	£5.62
46 - BALL BEARING 6900DDW BHS630 MSP-210069-8.A1 210069-8	£6.55	£7.86
47 - O RING 26 CC300D/HR3000/BSS50 MSP-213435-8.A10 213435-8	£1.44	£1.73
48 - BEARING BOX BCS550/BSS500-501 MSP-318087-1.A5 318087-1	£3.59	£4.31
49 - SPINDLE DCS550/DCS500/BSS501 MSP-324730-2.A1 324730-2	£3.59	£4.31
50 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A17 265034-2	£1.44	£1.73
51 - THICKNESS RING BHS630/DCS550 MSP-345470-9.A0 345470-9	£1.44	£1.73
53 - TENSION SPRING 4 BSS500/501 MSP-231835-0.A1 231835-0	£2.18	£2.62
54 - SAFETY COVER BSS500/501 MSP-419933-2.A0 419933-2	£4.52	£5.43
55 - NARROW BLUE WASHER 26 BHS630 MSP-267127-1.A8 267127-1	£1.44	£1.73
56 - RETAINING RING WR-26 (EXT) MSP-257938-2.A3 257938-2	£1.44	£1.73
57 - INNER FLANGE 30 BCS550/BSS500 MSP-224391-7.A1 224391-7	£1.44	£1.73
58 - OUTER FLANGE 30 BCS550/BSS500 MSP-224404-4.A6 224404-4	£3.28	£3.93
59 - HEX SOCKET HD BOLT M6X18 BHS6 MSP-266458-5.A8 266458-5	£1.44	£1.73
60 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A34 961014-3	£1.44	£1.73
61 - LEVER 40 BSS500/BSS501/3901/ MSP-272229-0.A9 272229-0	£4.52	£5.43
62 - HEX NUT M6 BPJ140/180/BSS500/ MSP-252159-1.A21 252159-1	£2.34	£2.81
63 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A31 941151-9	£1.44	£1.73
64 - PIPE 6 BCS550/BSS500/BSS501 MSP-331733-9.A3 331733-9	£1.44	£1.73
65 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A3 252103-8	£1.58	£1.89
66 - BASE BSS500/501 MSP-158252-8.A4 158252-8	£21.89	£26.27
67 - SHOULDER SCREW M5 CC300D/BSS5 MSP-265056-2.A21 265056-2	£1.44	£1.73
68 - FLAT H SQ NECK BOLT M6X75 BCS MSP-266405-6.A1 266405-6	£1.44	£1.73
69 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A2 266225-8	£1.44	£1.73
70 - SQ NECK SETSCREW M6X20 BCS550 MSP-251919-8.A3 251919-8	£1.66	£1.99
71 - WING SCREW M5X20 BSS500/8406C MSP-251896-4.A23 251896-4	£2.34	£2.81
72 - COMPRESSION SPRING 6 BCS500 MSP-231007-7.A17 231007-7	£1.44	£1.73
73 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A30 941151-9	£1.44	£1.73
74 - SPECIAL HEX NUT M6-10 3901 MSP-252133-9.A7 252133-9	£4.06	£4.87
75 - LEVER 30 BSS500/BSS501/BSS61 MSP-272251-7.A1 272251-7	£1.97	£2.36
76 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A35 961014-3	£1.44	£1.73
77 - FLAT WASHER 9 BSS500-501/2450 MSP-267231-6.A16 267231-6	£1.44	£1.73
78 - CONTROLLER BSS500/BSS501/BCS5 MSP-620260-4.A5 620260-4	£41.62	£49.94
A01 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A28 164095-8	£4.20	£5.04
A02 - DUST NOZZLE SET DSS500/501 MSP-194415-2.A4 194415-2	£2.01	£2.41
A02 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A7 911128-8	£1.44	£1.73
A05 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A28 783203-8	£1.20	£1.44
A08 - TCT BLADE CCC13616E BSS500/501 MSP-B-10643.A4 B-10643	£28.20	£33.84
E01 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A51 688131-1	£1.44	£1.73
E02 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A84 688161-2	£1.44	£1.73

Attribute Name	Value
Brand	Makita
