Makita DJV181RMJ Cordless Jig Saw Spare Parts

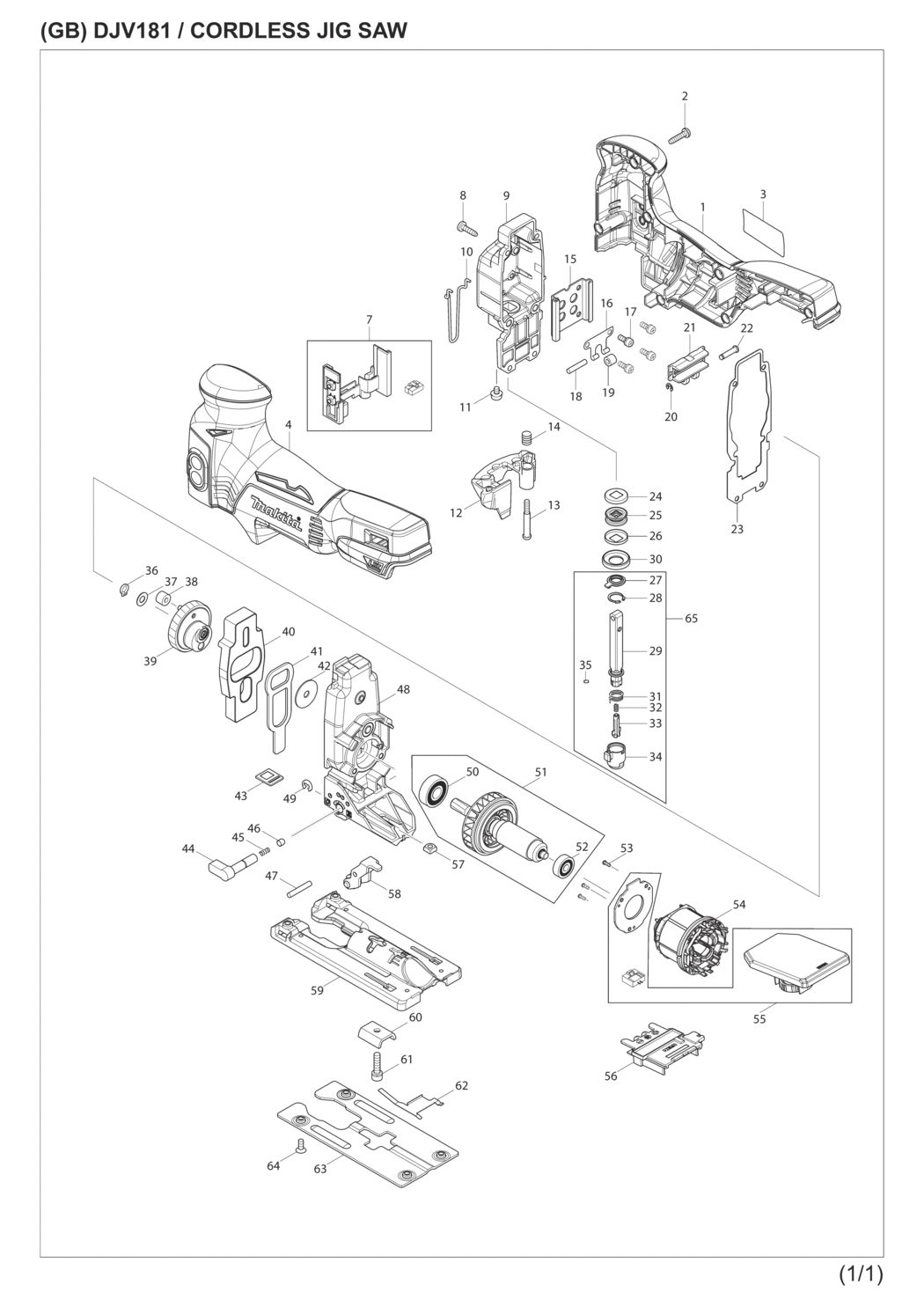

An exploded drawing and spare parts listing for the Makita DJV181RMJ Cordless Jig Saw

	Ex VAT	Inc VAT
1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A232 263005-3	£1.44	£1.73
1 - HOUSING SET DJV141/DJV181 MSP-187704-2.A3 187704-2	£29.81	£35.77
1 - LABEL/SWITCH DJV142181 MSP-801V48-5.A0 801V48-5	£2.18	£2.62
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A147 265995-6	£1.44	£1.73
3 - NAME PLATE DJV181 MSP-814S24-2.A1 814S24-2	£1.44	£1.73
4 - HOUSING SET DJV141/DJV181 MSP-187704-2.A2 187704-2	£29.81	£35.77
4 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A233 263005-3	£1.44	£1.73
4 - LABEL/SWITCH DJV142181 MSP-801V48-5.A1 801V48-5	£2.18	£2.62
7 - SWITH UNIT DJV142/181 MSP-632A96-5.A2 632A96-5	£27.50	£33.00
8 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A170 266034-5	£1.44	£1.73
9 - GEAR HOUSING COVER DJV MSP-142112-4.A0 142112-4	£15.91	£19.09
10 - SAFETY WIRE DJV MODELS MSP-326302-9.A1 326302-9	£1.44	£1.73
11 - PAN HEAD SCREW M4X6 DJV MODEL MSP-911104-2.A0 911104-2	£1.44	£1.73
12 - TOOL OPENER DJV MODELS MSP-454483-0.A4 454483-0	£3.27	£3.92
13 - SHOULDER SCREW M4 3901/SMA400 MSP-265026-1.A4 265026-1	£1.75	£2.10
14 - TORSION SPRING 6 4340/4350 SE MSP-231659-4.A18 231659-4	£1.44	£1.73
15 - LINEAR GUIDE DJV MODELS MSP-346687-7.A5 346687-7	£6.55	£7.86
16 - LEAF SPRING 4340/SMA400 MSP-232207-2.A11 232207-2	£1.71	£2.05
17 - PAN HEAD SCREW M4X10 BO3710/1 MSP-911111-5.A6 911111-5	£1.46	£1.75
18 - PIN 2 4340/4323/SMA400/JV101D MSP-256117-9.A7 256117-9	£1.44	£1.73
19 - PLANE BEARING 4 6913DW/4340CT MSP-214031-5.A5 214031-5	£1.44	£1.73
20 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A17 961017-7	£1.44	£1.73
21 - *SLIDER DJV MODELS MSP-310837-0.A6 310837-0	£16.77	£20.12
21-1 - SLIDER DJV MODELS MSP-310837-0.A4 310837-0	£16.77	£20.12
22 - PIN 4 4340/SMA400 MSP-268090-1.A16 268090-1	£1.44	£1.73
23 - GASKET DJV MODELS MSP-442195-7.A5 442195-7	£2.18	£2.62
24 - CAP WASHER 8 DJV MODELS MSP-267854-0.A0 267854-0	£1.44	£1.73
25 - DUST SEAL 8 BJV140/180/SMA400 MSP-421815-6.A18 421815-6	£1.62	£1.95
26 - CAP WASHER 8 DJV MODELS MSP-267854-0.A1 267854-0	£1.44	£1.73
27 - DUST COVER DJV MODELS MSP-424569-4.A5 424569-4	£1.44	£1.73
28 - RETAINING RING R-13 JV0600K/DJ MSP-962063-3.A9 962063-3	£1.44	£1.73
29 - ROD DJV MODELS MSP-165724-6.A5 165724-6	£23.90	£28.68
30 - RING 21 DJV MODELS MSP-257347-5.A0 257347-5	£2.02	£2.43
31 - TORSION SPRING 10G JV0600K MSP-233591-8.A6 233591-8	£1.44	£1.73
32 - COMPRESSION SPRING 4 6827 MSP-233314-4.A1 233314-4	£1.44	£1.73
33 - LOCKPIN JV0600K/BUH550RD MSP-310485-5.A1 310485-5	£6.24	£7.49
34 - BLADE HOLDER DJV MODELS MSP-310547-9.A5 310547-9	£10.14	£12.17
35 - PIN 2 JV0600K MSP-256528-8.A0 256528-8	£1.44	£1.73
36 - RETAINING RING S-6 M9502R MSP-961002-0.A19 961002-0	£1.44	£1.73
37 - HARD WASHER 6 EA3500/3501 MSP-253715-0.A35 253715-0	£1.44	£1.73
38-1 - NEEDLE BEARING 407 DJV180/434 MSP-212092-9.A1 212092-9	£1.44	£1.73
39 - GEAR DJV MODELS MSP-142109-3.A5 142109-3	£38.88	£46.66
40 - BALANCE PLATE DJV MODELS MSP-313260-8.A5 313260-8	£9.67	£11.61
41 - PUSH PLATE DJV MODELS MSP-346688-5.A0 346688-5	£1.44	£1.73
42 - LARGE WASHER 6 9741 MSP-253196-8.A7 253196-8	£1.44	£1.73
43 - SEAL PLATE DJV MODELS MSP-454484-8.A0 454484-8	£1.44	£1.73
44-1 - LEVER 17 4340/SMA400 MSP-272280-0.A0 272280-0	£1.44	£1.73
45 - COMPRESSION SPRING 3 4340 MSP-233139-6.A19 233139-6	£1.44	£1.73
46 - CAP 5 4340/SMA400 MSP-286032-3.A15 286032-3	£1.44	£1.73
47 - PIN 4 4340/SMA400 MSP-268063-4.A18 268063-4	£1.44	£1.73
48 - GEAR HOUSING DJV MODELS MSP-142111-6.A5 142111-6	£33.27	£39.92
49 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A62 961018-5	£1.64	£1.97
50 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A55 210059-1	£3.74	£4.49
51 - ROTOR ASSY DJV MODELS MSP-519329-8.A5 519329-8	£69.55	£83.46
52 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A15 210022-4	£3.59	£4.31
53 - TAPPING SCREW PT 2X6 DJV MSP-266490-9.A62 266490-9	£1.44	£1.73
54 - STATOR DJV181 MSP-629996-2.A1 629996-2	£38.59	£46.31
55 - CONTROLLER DJV181 MSP-620214-1.A1 620214-1	£125.64	£150.77
56 - TERMINAL BCV01/02 DGA454/504 MSP-643899-6.A28 643899-6	£4.37	£5.24
57 - SQUARE NUT 4340/SMA400 MSP-252171-1.A0 252171-1	£1.54	£1.85
58 - RETAINER DJV MODELS MSP-142110-8.A0 142110-8	£23.18	£27.82
59 - BASE DJV MODELS MSP-319016-7.A0 319016-7	£11.70	£14.04
60 - CRANK PLATE 4340/SMA400 MSP-345237-5.A17 345237-5	£1.66	£1.99
61 - CAP HD SCREW M5X20 EBH341U MSP-922231-0.A44 922231-0	£1.44	£1.73
62 - LEAF SPRING 4340CT/SMA400 MSP-232208-0.A2 232208-0	£1.66	£1.99
63 - BASE PLATE DJV MODELS MSP-346685-1.A0 346685-1	£2.81	£3.37
64 - COUNTERSUNK SCREW M4X8 ADHISI MSP-265085-5.A1 265085-5	£1.44	£1.73
65 - ROD ASSY DJV MODELS MSP-135602-4.A5 135602-4	£34.85	£41.82
A01 - DUST NOZZLE ASS DJV MODELS MSP-126331-0.A5 126331-0	£3.24	£3.89
A02 - ANTI-SPLINTERING DEVICE 4304/4 MSP-415524-7.A20 415524-7	£1.50	£1.80
A03 - COVER PLATE 4340T/SMA400 MSP-417852-6.A4 417852-6	£1.98	£2.37
A04 - JIGSAW BLADE B22 (5PK) 4301BV MSP-A-85737.A4 A-85737	£3.71	£4.45
A05 - JIGSAW BLADE B10 (5PK) 4301BV MSP-A-85628.A37 A-85628	£3.71	£4.45
A06 - JIGSAW BLADE BR13 4301BV PK5 MSP-A-85793.A20 A-85793	£2.62	£3.15
A07 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A29 783202-0	£1.20	£1.44
A08 - STACKING CASE TYPE 3 210MM MSP-821551-8.A0 821551-8	£39.40	£47.28
A08 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A30 453974-8	£1.71	£2.05
A09 - MAKPAC TRAY TYPE 2 DJV181RMJ MSP-837789-5 837789-5	£7.34	£8.81
A11 - DC18RC COMPACT CHARGER MSP-*DC18RC.A89 *DC18RC	-
A12-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A18 197265-4	£173.82	£208.58
A13 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A56 450128-8	£1.20	£1.44
