Makita DHS680ZB Cordless Circular Saw Spare Parts

Home Details Reviews Delivery

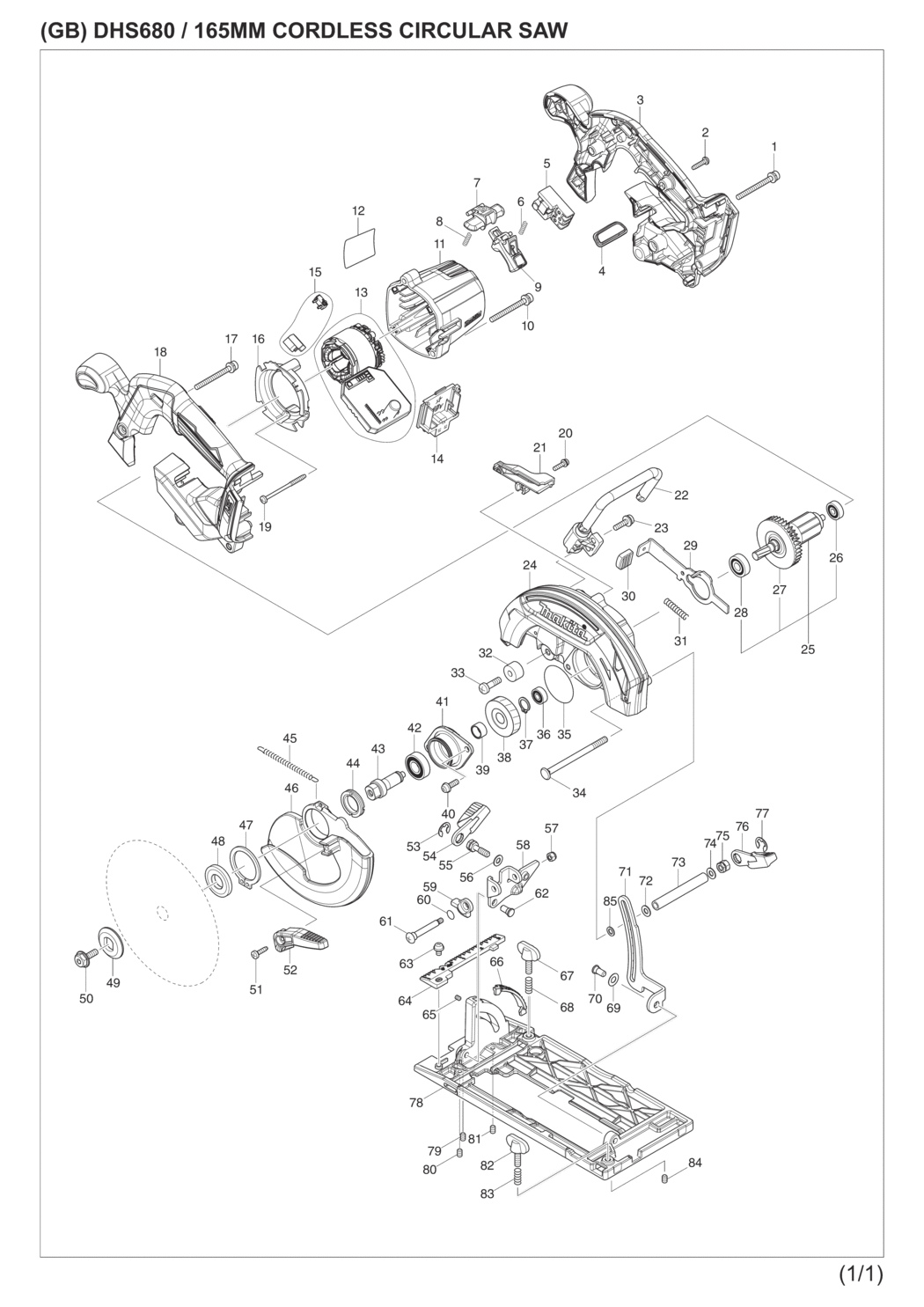

An exploded drawing and spare parts listing for the Makita DHS680ZB Cordless Circular Saw

	Ex VAT	Inc VAT
1 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A27 911263-2	£1.66	£1.99
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A771 265995-6	£1.66	£1.99
3 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A589 263005-3	£1.66	£1.99
4 - INDICATION PLATE DHS680 MSP-142948-1.A6 142948-1	£1.66	£1.99
5 - SWITCH TG73BDS-2 DHS680/DCS55 MSP-650734-1.A7 650734-1	£12.76	£15.31
6 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A67 231469-9	£1.66	£1.99
7 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A26 419664-3	£1.66	£1.99
8 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A68 231469-9	£1.66	£1.99
9 - SWITCH LEVER DHS680/DCS551 MSP-455480-9.A4 455480-9	£1.66	£1.99
10 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A28 911263-2	£1.66	£1.99
12 - NAME PLATE DHS680 MSP-850H69-0.A5 850H69-0	£1.66	£1.99
13-1 - STATOR UNIT DHS680 MSP-629348-7.A4 629348-7	£126.25	£151.50
14 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A106 644808-8	£3.38	£4.06
15 - SWITCH UNIT DHS680 MSP-632D81-6.A1 632D81-6	£13.86	£16.63
16 - BAFFLE PLATE DHS680 MSP-455440-1.A1 455440-1	£1.66	£1.99
17 - PAN HD SCREW M5X40 W/CP WASHE MSP-911263-2.A26 911263-2	£1.66	£1.99
18 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A588 263005-3	£1.66	£1.99
19 - PT SCREW M4X50 HR1830/SMA400 MSP-266091-3.A2 266091-3	£1.66	£1.99
20 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A49 911128-8	£1.66	£1.99
21 - DUCT DHS680 MSP-455483-3.A3 455483-3	£1.66	£1.99
22 - HOOK ASSEMBLY DHS680 MSP-123269-0.A3 123269-0	£9.36	£11.23
23 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A93 911233-1	£1.66	£1.99
24-1 - BLADE CASE DHS680 MSP-141P24-4.A3 141P24-4	£33.12	£39.75
24-1 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A0 213953-6	£1.66	£1.99
25 - ROTOR ASSY DHS680 MSP-519359-9.A4 519359-9	£82.30	£98.76
26 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A48 210022-4	£2.49	£2.99
27 - FAN 55 BUH550RD/DHS680 MSP-240045-8.A10 240045-8	£2.49	£2.99
28 - BALL BEARING 609LLB BHS630/68 MSP-210051-7.A5 210051-7	£5.85	£7.02
29 - SHAFT LOCK DHS680 MSP-346837-4.A3 346837-4	£1.66	£1.99
30 - *CAP HS7100/6100/SP6000/5008MB MSP-286039-9.A8 286039-9	£1.66	£1.99
31 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A2 233117-6	£1.66	£1.99
32 - RUBBER SLEEVE 6 HS6100/7100/5 MSP-262552-1.A4 262552-1	£1.66	£1.99
33 - PAN HEAD SCREW M6X20 5600D MSP-251247-1.A2 251247-1	£1.66	£1.99
34 - FLAT HD SCREW M6X90 DHS680/BS MSP-266194-3.A4 266194-3	£2.49	£2.99
35 - O RING 42 LS0714/FL/DHS680 MSP-213565-5.A5 213565-5	£1.66	£1.99
36 - BALL BEARING 606ZZ MT431/CC30 MSP-210028-2.A80 210028-2	£2.49	£2.99
36-1 - BALL BEARING 606ZZ M8701 MSP-210137-7.A1 210137-7	£1.66	£1.99
37 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A67 961052-5	£1.66	£1.99
38 - HELICAL GEAR 50 DHS680 MSP-227794-4.A2 227794-4	£5.85	£7.02
39 - SLEEVE 12 DHS710DJ/DHS680 MSP-257349-1.A2 257349-1	£2.49	£2.99
40 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A44 911223-4	£1.66	£1.99
41 - BEARING BOX DHS680 MSP-319212-7.A3 319212-7	£4.29	£5.15
42 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A34 211131-2	£6.50	£7.80
43 - SPINDLE DHS680 MSP-326459-6.A3 326459-6	£2.49	£2.99
44 - BEARING RETAINER 19-29 BSS610 MSP-285845-9.A5 285845-9	£2.49	£2.99
45 - TENSION SPRING 4 HS6100/DHS68 MSP-231878-2.A3 231878-2	£1.66	£1.99
46 - SAFETY COVER DHS680 MSP-319211-9.A2 319211-9	£18.81	£22.57
47 - RETAINING RING S-3 DHS680/BS MSP-961152-1.A7 961152-1	£1.66	£1.99
48-1 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A5 224593-5	£2.48	£2.98
49 - OUTER FLANGE 35 HS6100/7100 MSP-224409-4.A14 224409-4	£2.49	£2.99
50 - HSH BOLT M6X18 DHS680 MSP-266924-2.A3 266924-2	£1.66	£1.99
51 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A100 266034-5	£1.66	£1.99
52 - LEVER 39 DHS680 MSP-272281-8.A1 272281-8	£1.66	£1.99
53 - BOW STOP RING E-8 HS6100/7100 MSP-257982-9.A2 257982-9	£1.66	£1.99
54 - LEVER 45 HS7100/DHS680/DCS551 MSP-272272-9.A3 272272-9	£2.49	£2.99
55 - HEX BOLT M6X20 DHS680 MSP-266735-5.A8 266735-5	£2.49	£2.99
56 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A65 941151-9	£1.66	£1.99
57 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A41 252103-8	£1.66	£1.99
58 - ANGULAR GUIDE DHS680 MSP-346836-6.A1 346836-6	£2.49	£2.99
59 - STOPPER BSS610/DHS680 MSP-317986-4.A5 317986-4	£2.49	£2.99
60 - O RING 9 BSR730S/DHS680 MSP-213062-1.A10 213062-1	£1.66	£1.99
61 - SPARE PART MSP-265084-7.A5 265084-7	£1.66	£1.99
62 - SHOUDER PIN 6-7 BHS630/BSS611 MSP-256480-0.A12 256480-0	£1.66	£1.99
63-1 - PAN HD SCREW M5X10 W/CP WASHE MSP-911208-0.A10 911208-0	£1.66	£1.99
64 - TOP GUIDE DHS680 MSP-455516-4.A0 455516-4	£2.49	£2.99
65 - HSS SET SCREW M4X6 LS0714FL MSP-266318-1.A16 266318-1	£1.66	£1.99
66 - BEVEL GUIDE DHS680 MSP-455517-2.A5 455517-2	£2.49	£2.99
67 - WING SCREW M5X20 BSS500/8406C MSP-251896-4.A18 251896-4	£2.49	£2.99
68 - COMPRESSION SPRING 6 BCS500 MSP-231007-7.A3 231007-7	£1.66	£1.99
69 - WASHER 7 AN942/9030 MSP-253058-0.A3 253058-0	£1.66	£1.99
70 - SHOULDER PIN 6-7 5008MB/DHS68 MSP-256511-5.A5 256511-5	£1.66	£1.99
71 - DEPTH GUIDE DHS680 MSP-346838-2.A1 346838-2	£2.49	£2.99
72 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A67 941151-9	£1.66	£1.99
73 - PIPE 6 DHS680 MSP-332126-3.A4 332126-3	£1.66	£1.99
74 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A66 941151-9	£1.66	£1.99
75 - HEX NUT M6 DHS680 MSP-264103-6.A2 264103-6	£1.66	£1.99
76 - LEVER 45 HS7100/DHS680/DCS551 MSP-272272-9.A4 272272-9	£2.49	£2.99
77 - BOW STOP RING E-8 HS6100/7100 MSP-257982-9.A1 257982-9	£1.66	£1.99
78 - BASE DHS680 MSP-312B04-5.A3 312B04-5	£26.29	£31.55
79 - HS SET SCREW/FLAT POINT M5X8 MSP-266436-5.A15 266436-5	£1.66	£1.99
80 - HS SET SCREW/FLAT POINT M5X8 MSP-266436-5.A20 266436-5	£1.66	£1.99
81 - HS SET SCREW/FLAT POINT M5X8 MSP-266436-5.A27 266436-5	£1.66	£1.99
82 - WING SCREW M5X20 BSS500/8406C MSP-251896-4.A19 251896-4	£2.49	£2.99
83 - COMPRESSION SPRING 6 BCS500 MSP-231007-7.A0 231007-7	£1.66	£1.99
84 - HS SET SCREW/FLAT POINT M5X8 MSP-266436-5.A7 266436-5	£1.66	£1.99
85 - NARROW WASHER 6 4300BV/9564DZ MSP-253077-6.A23 253077-6	£1.66	£1.99
A01 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A11 783203-8	£1.20	£1.44
A03 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A18 164095-8	£4.20	£5.04
A04 - DUST NOZZLE SET DHS680 MSP-196961-1.A1 196961-1	£2.79	£3.35
A04 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A46 911128-8	£1.66	£1.99

Attribute Name	Value
Brand	Makita
