Makita AN711H Construction Coil Nailer Spare Parts

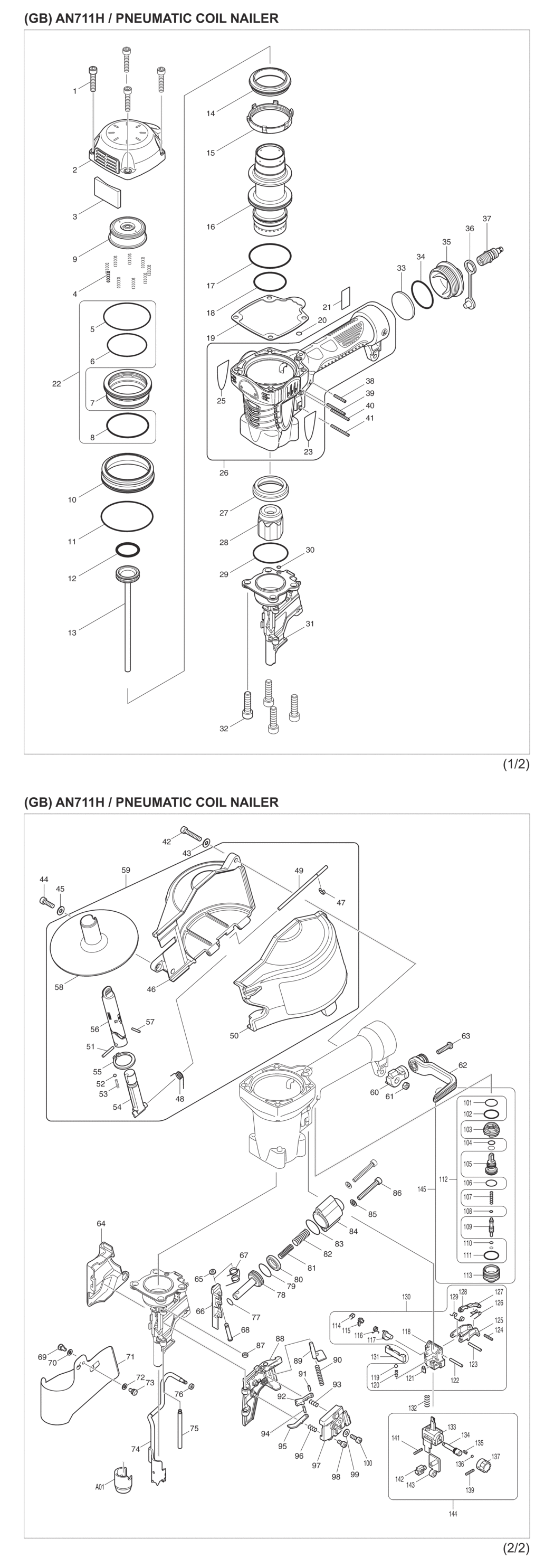

An exploded drawing and spare parts listing for the Makita AN711H Construction Coil Nailer

	Ex VAT	Inc VAT
1 - HEX SOCKET HD BOLT M6X30 AN71 MSP-265566-9.A1 265566-9	£1.44	£1.73
2 - TOP CAP AN711 MSP-158219-6 158219-6	£102.82	£123.38
3 - FILTER AN711 MSP-413112-4 413112-4	£29.38	£35.25
4 - COMPRESSION SPRING 3 AN610/62 MSP-233484-9.A2 233484-9	£2.50	£3.00
5 - O RING 60 AN711 MSP-213668-5.A3 213668-5	£1.44	£1.73
6 - O-RING 50 AN711/AN635H MSP-213612-2.A0 213612-2	£1.44	£1.73
7 - HEAD VALVE AN711H/911H MSP-419842-5.A0 419842-5	£48.58	£58.29
8 - O RING 53 AN711 MSP-213657-0.A5 213657-0	£1.44	£1.73
9 - REAR CUSHION AN711 MSP-424012-3.A0 424012-3	£27.65	£33.18
10 - HEAD VALVE GUIDE AN711 MSP-331764-8 331764-8	£34.28	£41.13
11 - O RING 67 GA7050/GA9050/ MSP-213720-9.A23 213720-9	£1.44	£1.73
12 - O-RING 26 AN711 MSP-213982-9.A0 213982-9	£6.40	£7.68
13 - DRIVER AN711 MSP-168439-4 168439-4	£285.72	£342.86
14 - VALVE SEAT AN711 MSP-424013-1.A1 424013-1	£18.72	£22.46
15 - CYLINDER STAY AN711/911H MSP-331759-1.A0 331759-1	£20.30	£24.36
16 - CYLINDER AN711 MSP-331763-0 331763-0	£112.77	£135.32
17 - O RING 53 AN711 MSP-213657-0.A6 213657-0	£1.44	£1.73
18 - O-RING 39 AN711 MSP-213531-2.A1 213531-2	£1.44	£1.73
19 - TOP CAP GASKET AN711 MSP-162254-8.A0 162254-8	£11.39	£13.67
20 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A7 213045-1	£1.44	£1.73
21 - NAME PLATE AN711 MSP-866122-4 866122-4	£1.44	£1.73
22 - AIR LEAK REPAIR SET AN911H MSP-194737-0.A0 194737-0	£10.20	£12.24
23 - LABEL/MAKITA ROGO L AN911H MSP-819324-1.A1 819324-1	£4.83	£5.80
25 - LABEL/MAKITA ROGO R AN711 MSP-819323-3.A0 819323-3	£4.83	£5.80
26 - LABEL/INDICATION AN51061062 MSP-816919-1.A2 816919-1	£1.44	£1.73
26 - HOUSING SET AN711H/911H MSP-188603-1.A1 188603-1	£238.08	£285.70
27 - CYLINDER GUIDE AN711/911H MSP-331758-3.A1 331758-3	£17.86	£21.43
28 - FRONT CUSHION AN711/911H MSP-424011-5.A1 424011-5	£34.28	£41.13
29 - O RING 44 AN711/HR2210/HM1100 MSP-213554-0.A7 213554-0	£1.44	£1.73
30 - O RING 4 BPJ140/180/BURAT1827H MSP-213023-1.A13 213023-1	£1.54	£1.85
31 - DRIVER GUIDE AN711 MSP-310224-3 310224-3	£625.92	£751.10
32 - HEX.SOCKT HD BOLT M8X30 AN711 MSP-265565-1.A0 265565-1	£2.34	£2.81
33 - INLET FILTER AN510/711/AN911H MSP-413105-1.A0 413105-1	£2.24	£2.69
34-1 - O RING 36 AN510/620/711 MSP-213506-1.A1 213506-1	£1.44	£1.73
35 - INLET CAP AN510/610/711/911H MSP-318108-9.A2 318108-9	£35.86	£43.03
36 - CAP 9 AN510/610/711/911/AN635H MSP-286280-4.A4 286280-4	£2.34	£2.81
37 - 1 TOUCH JOINT H22PM AN510/711 MSP-243105-5.A5 243105-5	£29.38	£35.25
39 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A7 951078-5	£1.44	£1.73
40 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A12 951078-5	£1.44	£1.73
41 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A18 951078-5	£1.44	£1.73
42 - HEX.SOCKT HD BOLT M5X28 AN510 MSP-265570-8.A1 265570-8	£1.44	£1.73
43 - FLAT WASHER 5 AN510/610/620/7 MSP-267343-5.A1 267343-5	£1.44	£1.73
44 - HEX.SOCKT HD BOLT M5X16 AN711 MSP-265563-5.A1 265563-5	£1.44	£1.73
45 - FLAT WASHER 5 AN510/610/620/7 MSP-267343-5.A2 267343-5	£1.44	£1.73
46 - MAGAZINE AN711 MSP-419853-0 419853-0	£21.89	£26.27
47 - STOP RING E-3 AN510/711/AN635H MSP-259042-3.A5 259042-3	£1.44	£1.73
48 - TORSION SPRING 7 AN510/711 MSP-233505-7.A2 233505-7	£3.90	£4.68
49 - PIN 4 AN620/711/AN635H MSP-256773-5.A1 256773-5	£4.99	£5.99
50 - MAGAZINE CAP AN711 MSP-158920-3 158920-3	-
51 - PIN 3 AN711 MSP-268181-8 268181-8	£1.44	£1.73
52 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A46 216001-0	£1.59	£1.91
53 - COMPRESSION SPRING 2 AN510/71 MSP-233492-0.A2 233492-0	£1.44	£1.73
54 - ADJUST SHAFT AN711 MSP-419863-7 419863-7	£2.18	£2.62
55 - EXT DIN 471 CIRCLIP-25/AN635H MSP-961105-0.A16 961105-0	£1.44	£1.73
56 - ADJUST SLEEVE AN711 MSP-419864-5 419864-5	£3.28	£3.93
57-1 - PIN 2.5 AN510/711 MSP-268272-5.A0 268272-5	£1.44	£1.73
58 - CHANGE PLATE AN711 MSP-419851-4 419851-4	£8.42	£10.11
60 - HOOK BASE AN510/711/911H MSP-162255-6.A1 162255-6	£4.52	£5.43
61 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A38 931202-6	£1.44	£1.73
62 - HOOK AN711H/911H MSP-168499-6.A0 168499-6	£12.48	£14.98
63 - PAN.HD.SCREW M5X22 AN510/711 MSP-265176-2.A1 265176-2	£1.44	£1.73
64 - CONTACT ARM COVER AN711 MSP-419852-2 419852-2	£5.46	£6.55
65 - URETHANE RING 4 AN711/AR411HR MSP-262130-7.A2 262130-7	£1.44	£1.73
66 - FEEDING CLAW AN711/911H MSP-310231-6.A1 310231-6	£53.07	£63.68
67 - TORSION SPRING 9 AN711 MSP-233515-4.A1 233515-4	£4.52	£5.43
68 - PIN 4.5 AN711 MSP-268180-0.A0 268180-0	£2.50	£3.00
69 - PUSH RIVET AN711/AN635H MSP-255174-4.A3 255174-4	£1.44	£1.73
70 - FLAT WASHER 4 DIN125-A AN711 MSP-941052-1.A0 941052-1	£1.44	£1.73
71 - COVER AN711 MSP-413113-2 413113-2	£12.01	£14.41
72 - FLAT WASHER 4 DIN125-A AN711 MSP-941052-1.A1 941052-1	£1.44	£1.73
73 - PUSH RIVET AN711/AN635H MSP-255174-4.A4 255174-4	£1.44	£1.73
74 - CONTACT ARM AN711 MSP-165462-0 165462-0	£66.40	£79.68
75 - PIN 5 AN711 MSP-268179-5 268179-5	£2.65	£3.18
76 - URETHANE RING 3 AN510/711 MSP-262120-0.A10 262120-0	£1.44	£1.73
77 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A8 213054-0	£1.44	£1.73
78 - PISTON AN711 MSP-324766-1.A1 324766-1	£9.98	£11.98
79 - O RING 14 AN510/620/711 8406C MSP-213154-6.A4 213154-6	£1.44	£1.73
80 - RUBBER RING 13 AN711 MSP-262129-2.A0 262129-2	£1.44	£1.73
81 - COMPRESSION SPRING 6 AN711/91 MSP-234007-6.A0 234007-6	£4.52	£5.43
82 - COMPRESSION SPRING 9 AN711/91 MSP-234008-4.A1 234008-4	£3.90	£4.68
83 - O RING 22.4 HR140D/HR171D MSP-213008-7.A0 213008-7	£1.44	£1.73
84 - CYLINDER AN711/911H MSP-419840-9.A0 419840-9	£2.18	£2.62
85 - FLAT WASHER 5 AN711 MSP-267345-1.A0 267345-1	£2.34	£2.81
86 - HEX.SOCKT HD BOLT M5X35 AN711 MSP-265562-7.A0 265562-7	£1.44	£1.73
87 - URETHANE RING 3 AN510/711 MSP-262120-0.A9 262120-0	£1.44	£1.73
88 - DOOR AN711 MSP-310317-6 310317-6	£193.20	£231.84
89 - LOCK LEVER AN711 MSP-310233-2.A0 310233-2	£27.65	£33.18
90 - COMPRESSION SPRING 5 AN620/71 MSP-233486-5.A2 233486-5	£1.44	£1.73
91 - PIN 2.5 AN711 MSP-268177-9.A0 268177-9	£1.44	£1.73
93 - COMPRESSION SPRING 4 AN711/91 MSP-234009-2.A0 234009-2	£2.18	£2.62
94 - PIN 2.5 AN711 MSP-268177-9.A1 268177-9	£1.44	£1.73
95 - CHECK CLAW AN711H/911 MSP-345802-0.A0 345802-0	£1.44	£1.73
96 - COMPRESSION SPRING 5 AN711/91 MSP-234010-7.A1 234010-7	£1.44	£1.73
97 - DOOR COVER AN711/911H MSP-419861-1.A1 419861-1	£3.90	£4.68
98-1 - CAP HD SCREW M4X8 4320/JV101D MSP-922107-1.A1 922107-1	£1.44	£1.73
98 - HEX SOCKET HD BOLT M4X8 AN711 MSP-265911-8.A4 265911-8	£1.44	£1.73
99 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A29 941051-3	£1.44	£1.73
100-1 - HEX SOCKET HD BOLT M4X14 BPT3 MSP-922122-5.A0 922122-5	£1.44	£1.73
100 - HX SOCKET HEAD BOLT M4X14 AN7 MSP-266201-2.A4 266201-2	£1.44	£1.73
101 - O-RING 15 AN510/620/711/AN635H MSP-213233-0.A3 213233-0	£1.44	£1.73
102 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A35 213275-4	£1.44	£1.73
103 - TRIGGER VALVE GUIDE AN711 MSP-419841-7.A1 419841-7	£48.58	£58.29
104 - O-RING 7 AN510/620/711/AN635H MSP-213968-3.A5 213968-3	£2.65	£3.18
106 - O-RING 12.5 AN510/620/711 MSP-213185-5.A0 213185-5	£1.44	£1.73
108 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A13 213034-6	£1.44	£1.73
108-1 - O RING 3 AN942/AN635H MSP-213044-3.A1 213044-3	£1.44	£1.73
109-1 - TRIGGER BULB STEM AN910 ETC MSP-326189-9.A4 326189-9	£8.11	£9.73
110-1 - O RING 3 AN942/AN635H/AR411HR MSP-213640-7.A5 213640-7	£4.37	£5.24
110 - O-RING 3 AN510/620/711/AN635H MSP-213979-8.A0 213979-8	£2.34	£2.81
111 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A36 213275-4	£1.44	£1.73
112 - AIR LEAK REPAIR SET AN911H MSP-194737-0.A1 194737-0	£10.20	£12.24
113 - TRIGGER VALVE CASE AN510/620 MSP-331741-0.A1 331741-0	£17.86	£21.43
114 - TORSION SPRING 5 AN510/711 MSP-233501-5.A4 233501-5	£1.44	£1.73
115 - STOPPER PLATE AN510/620/711 MSP-310199-6.A2 310199-6	£7.49	£8.99
116 - TORSION SPRING 6 AR411HR MSP-233502-3.A1 233502-3	£1.44	£1.73
117 - LEVER AN510/620/711/AR411HR MSP-310310-0.A0 310310-0	£7.64	£9.17
118 - TRIGGER BASE AN510/620/711 MSP-419844-1.A1 419844-1	£6.55	£7.86
119 - STEEL BALL 4 BFL080/121FZ MSP-216024-8.A67 216024-8	£1.44	£1.73
119-1 - LOCK PIN AN911H/AR411HR MSP-326144-1.A4 326144-1	£2.50	£3.00
120 - COMPRESSION SPRING 2 AN510/61 MSP-233490-4.A3 233490-4	£1.44	£1.73
121 - SPRING COVER AN510/620/711 MSP-419743-7.A1 419743-7	£1.44	£1.73
122 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A6 268168-0	£1.44	£1.73
123 - PIN 3 AN510/620/711/AR411HR MSP-268168-0.A9 268168-0	£1.44	£1.73
124 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A4 951007-8	£1.44	£1.73
125 - TRIGGER AN510/620/711 MSP-310294-2.A1 310294-2	£33.41	£40.09
126 - TORSION SPRING 4 AN510/620/71 MSP-231699-2.A5 231699-2	£1.44	£1.73
127 - TRIP LEVER AN510/620/711 MSP-310196-2.A2 310196-2	£8.27	£9.92
128 - LEVER AN510/610/620/711/911 MSP-310198-8.A3 310198-8	£7.49	£8.99
129 - TORSION SPRING 7 AN510/711 MSP-233503-1.A4 233503-1	£3.28	£3.93
130-1 - TRIGGER ASSY AN911H MSP-135494-1.A0 135494-1	£72.82	£87.39
131 - CHANGE ROD AN510/610/620/711/ MSP-310293-4.A4 310293-4	£18.72	£22.46
132 - COMPRESSION SPRING 6 AN610/62 MSP-233489-9.A1 233489-9	£1.44	£1.73
133 - UPPER YOKE AN711 MSP-310227-7.A0 310227-7	£27.65	£33.18
134 - ADJUSTER SHAFT AN911H MSP-324767-9.A0 324767-9	£2.81	£3.37
135 - COMPRESSION SPRING 2 AN510/61 MSP-233491-2.A4 233491-2	£1.44	£1.73
136 - STEEL BALL 2.3 AN610H/DUP361 MSP-216031-1.A1 216031-1	£1.44	£1.73
137 - ADJUSTER AN510/610/620/7 MSP-158747-1.A3 158747-1	£1.44	£1.73
139 - SPRING PIN 2 14 AG125 MSP-951010-9.A13 951010-9	£1.44	£1.73
141 - SPRING PIN 2 14 AG125 MSP-951010-9.A16 951010-9	£1.44	£1.73
142 - ADJUSTER PIECE AN510/610/620/ MSP-310201-5.A3 310201-5	£7.49	£8.99
143 - SLIDE PLATE AN711 MSP-345801-2.A1 345801-2	£3.90	£4.68
144 - ADJUSTER ASSY AN711/AN911H MSP-135228-2.A0 135228-2	£41.98	£50.37
A01 - NOSE ADAPTER AN711 MSP-424136-5.A0 424136-5	£1.54	£1.85
A02 - PLASTIC CASE AN711 MSP-824792-5.A1 824792-5	£47.04	£56.45
A02 - SLIDE LATCH RL SET AN711 MSP-188610-4.A0 188610-4	£3.74	£4.49
A03-1 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A7 195246-2	£2.55	£3.06
A04 - OIL SUPPLY SET AN510/620/711 MSP-194381-3.A4 194381-3	£2.01	£2.41

Attribute Name	Value
Brand	Makita
