Makita AN635H Pneumatic Coil Nailer Spare Parts

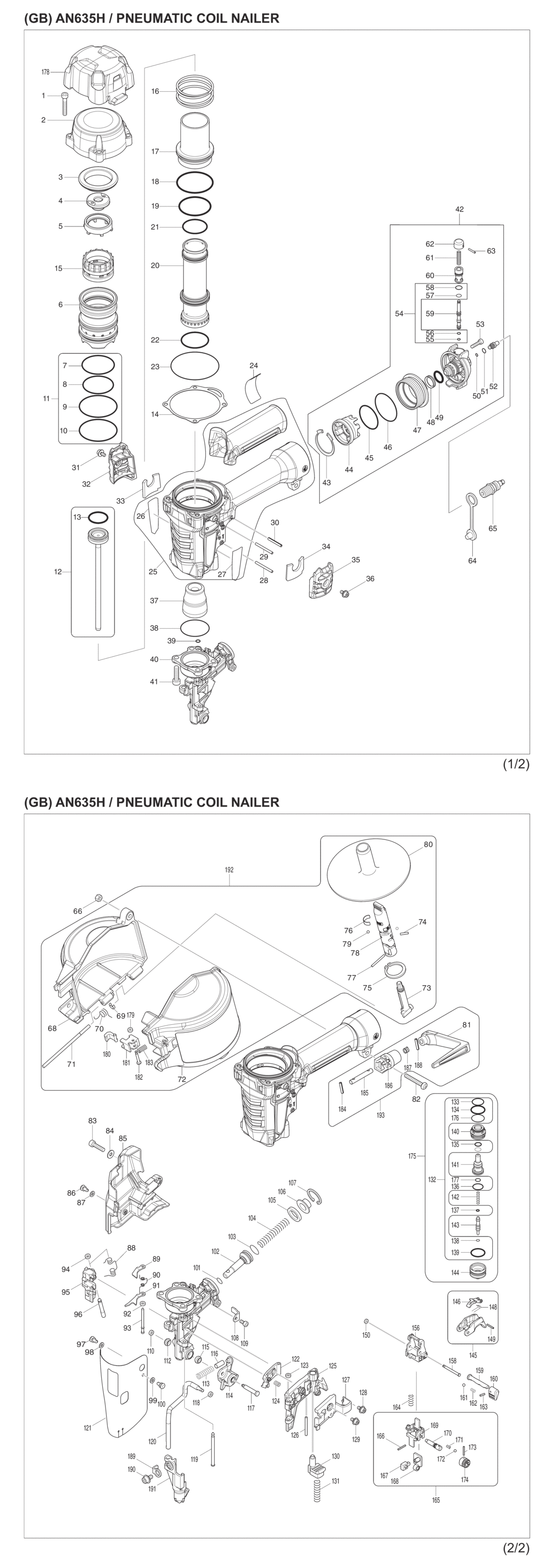

An exploded drawing and spare parts listing for the Makita AN635H Pneumatic Coil Nailer

	Ex VAT	Inc VAT
5 - CYLINDER STAY AN635H MSP-454313-5 454313-5	£1.44	£1.73
7 - O RING 42 AN620/AN635H/AR411HR MSP-213558-2.A1 213558-2	£1.44	£1.73
8 - O-RING 40 AN620/AN635H/AR411HR MSP-213509-5.A6 213509-5	£1.44	£1.73
9 - O-RING 50 AN711/AN635H MSP-213612-2.A2 213612-2	£1.44	£1.73
10 - O-RING 50 AN711/AN635H MSP-213612-2.A3 213612-2	£1.44	£1.73
13 - O-RING 22.5 AN620/AN635H MSP-213967-5.A1 213967-5	£10.77	£12.92
15 - HEAD VALVE GUIDE AN635H MSP-454307-0 454307-0	£4.52	£5.43
17 - CYLINDER SEPARATOR AN635H MSP-326851-6 326851-6	£23.04	£27.65
18 - O RING 47 AN621/AN635H MSP-213608-3.A1 213608-3	£1.44	£1.73
21 - O RING 32 DA4031/4157KB/5903R MSP-213459-4.A25 213459-4	£2.18	£2.62
22 - O RING 36 AN510/HR2010/HM1202 MSP-213510-0.A0 213510-0	£1.44	£1.73
23 - O RING 65 HM1303/HR1800/AN635H MSP-213707-1.A7 213707-1	£1.44	£1.73
28 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A9 951078-5	£1.44	£1.73
29 - SPRING PIN AN510/620/711/AN635 MSP-951078-5.A10 951078-5	£1.44	£1.73
30 - SPRING PIN 3-26 AN635H MSP-258037-3 258037-3	£1.44	£1.73
38 - O-RING 38 AN620/AN635H MSP-213528-1.A1 213528-1	£1.44	£1.73
39 - O-RING 4 AN620/AN635H MSP-213970-6.A1 213970-6	£1.44	£1.73
42 - DUSTER SET AN935H/AN635H MSP-196452-2.A0 196452-2	£115.17	£138.20
44 - INLET HOLDER AN635H MSP-318983-3.A0 318983-3	£8.73	£10.48
45 - O RING 33 AN510/AN635H MSP-213462-5.A2 213462-5	£1.44	£1.73
46 - O-RING 40 AN620/AN635H/AR411HR MSP-213509-5.A5 213509-5	£1.44	£1.73
47 - INLET FLANGE AN635H MSP-331929-2.A1 331929-2	£10.61	£12.73
49 - O RING 14 AN510/620/711 8406C MSP-213154-6.A2 213154-6	£1.44	£1.73
50 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A16 213034-6	£1.44	£1.73
53 - HEX SOCKET HD BOLT M4X16 MSP-922127-5.A7 922127-5	£1.44	£1.73
55 - O RING 3 AN510/620/711 DA3010 MSP-213034-6.A17 213034-6	£1.44	£1.73
56 - O-RING 3 AN510/620/711/AN635H MSP-213979-8.A2 213979-8	£2.34	£2.81
58 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A36 213030-4	£1.44	£1.73
61 - COMPRESSION SPRING 5 DUR361U MSP-234003-4.A0 234003-4	£1.44	£1.73
63 - SPRING PIN 2-8 BPT350/AN635H MSP-951001-0.A3 951001-0	£1.44	£1.73
64 - CAP 9 AN510/610/711/911/AN635H MSP-286280-4.A3 286280-4	£2.34	£2.81
65 - 1 TOUCH JOINT H22PM AN510/711 MSP-243105-5.A3 243105-5	£29.38	£35.25
66 - HEX ROCK NUT M5-8 AN610/620H MSP-264008-0.A0 264008-0	£1.44	£1.73
69 - STOP RING E-3 AN510/711/AN635H MSP-259042-3.A6 259042-3	£1.44	£1.73
70 - TORSION SPRING 8 AN610H/AN635H MSP-233504-9.A0 233504-9	£2.34	£2.81
71 - PIN 4 AN620/711/AN635H MSP-256773-5.A0 256773-5	£4.99	£5.99
74 - PIN 2.5 AN620/AN635H MSP-268166-4.A0 268166-4	£1.44	£1.73
75 - EXT DIN 471 CIRCLIP-25/AN635H MSP-961105-0.A20 961105-0	£1.44	£1.73
76 - LEAF SPRING AN610H/620/AN635H MSP-232233-1.A2 232233-1	£1.44	£1.73
77 - PIN 2.5 AN510/620/AN635H MSP-268167-2.A2 268167-2	£1.44	£1.73
78 - ADJUST SLEEVE AN635H MSP-456961-6 456961-6	£9.98	£11.98
79 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A82 216001-0	£1.59	£1.91
80 - CHANGE PLATE AN610/620H/AN635H MSP-419745-3.A2 419745-3	£3.90	£4.68
81 - HOOK AN635H MSP-456889-8 456889-8	£4.37	£5.24
82 - PAN HD SCREW M5X35 W/CP WASHE MSP-911258-5.A11 911258-5	£1.44	£1.73
83 - HSS BOLT M5X20 AN942/AG125 MSP-265973-6.A1 265973-6	£1.44	£1.73
84 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A65 941101-4	£1.44	£1.73
86 - PUSH RIVET AN711/AN635H MSP-255174-4.A0 255174-4	£1.44	£1.73
87 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A47 941051-3	£1.44	£1.73
88 - TORSION SPRING 6 AN620/AN635H MSP-231632-4.A2 231632-4	£5.46	£6.55
92 - URETHANE RING 3 AN942/6837 MSP-262054-7.A32 262054-7	£1.44	£1.73
94 - URETHANE RING 3 AN942/6837 MSP-262054-7.A33 262054-7	£1.44	£1.73
96 - PIN 4.5 AN620/AN635H MSP-268165-6.A1 268165-6	£3.59	£4.31
97 - PUSH RIVET AN711/AN635H MSP-255174-4.A1 255174-4	£1.44	£1.73
98 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A53 941051-3	£1.44	£1.73
99 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A56 941051-3	£1.44	£1.73
100 - PUSH RIVET AN711/AN635H MSP-255174-4.A2 255174-4	£1.44	£1.73
101 - O RING 9 VC3211/HR2210/AN635H MSP-213054-0.A19 213054-0	£1.44	£1.73
103 - O RING 14 AN510/620/711 8406C MSP-213154-6.A1 213154-6	£1.44	£1.73
104 - COMPRESSION SPRING 9 AN620/62 MSP-233198-0.A2 233198-0	£1.44	£1.73
105 - RUBBER RING 16 AN620/AN635H MSP-262075-9.A2 262075-9	£1.44	£1.73
106 - CUP WASHER 5 AN610/620H/AN635H MSP-344452-8.A1 344452-8	£6.55	£7.86
107 - RETAINING RING R-24 AN620 MSP-962103-7.A14 962103-7	£1.44	£1.73
109 - CAP HD SCREW M4X8 4320/JV101D MSP-922107-1.A8 922107-1	£1.44	£1.73
110 - URETHANE RING 3 AN942/6837 MSP-262054-7.A27 262054-7	£1.44	£1.73
112 - URETHANE RING 5 AN635H MSP-262162-4.A0 262162-4	£2.97	£3.56
113 - COMPRESSION SPRING 6 AN635H MSP-232307-8 232307-8	£1.44	£1.73
114 - NAIL GUIDE AN635H MSP-310726-9 310726-9	£15.84	£19.01
115 - URETHANE RING 5 AN635H MSP-262162-4.A1 262162-4	£2.97	£3.56
118 - URETHANE RING 3 AN942/6837 MSP-262054-7.A26 262054-7	£1.44	£1.73
119 - PIN 4 AN901/AN635H MSP-268026-0.A0 268026-0	£2.65	£3.18
123 - URETHANE RING 3 AN942/6837 MSP-262054-7.A25 262054-7	£1.44	£1.73
125 - DOOR AN635H MSP-310724-3 310724-3	£43.60	£52.32
133 - O-RING 15 AN510/620/711/AN635H MSP-213233-0.A0 213233-0	£1.44	£1.73
134 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A24 213275-4	£1.44	£1.73
135 - O-RING 7 AN510/620/711/AN635H MSP-213968-3.A4 213968-3	£2.65	£3.18
136 - O-RING 12.5 AN510/620/711 MSP-213185-5.A3 213185-5	£1.44	£1.73
137 - O RING 3 AN942/AN635H MSP-213044-3.A4 213044-3	£1.44	£1.73
138 - O RING 3 AN942/AN635H/AR411HR MSP-213640-7.A7 213640-7	£4.37	£5.24
139 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A25 213275-4	£1.44	£1.73
139-1 - O RING 20 6805BV/6826/AR411HR MSP-213310-8.A3 213310-8	£1.44	£1.73
149 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A0 951007-8	£1.44	£1.73
150 - URETHANE WASHER AN635H/AR411HR MSP-261118-4.A1 261118-4	£1.44	£1.73
161 - STEEL BALL 3.5 BPJ/DTD154/TL06 MSP-216001-0.A81 216001-0	£1.59	£1.91
162 - *COMPRESSION SPRING 3/AN635H MSP-231236-2.A4 231236-2	£1.44	£1.73
163 - SPRING PIN 2-8 BPT350/AN635H MSP-951001-0.A4 951001-0	£1.44	£1.73
164 - COMPRESSION SPRING 5 AN621 MSP-233265-1.A0 233265-1	£1.44	£1.73
166 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A1 951007-8	£1.44	£1.73
172 - STEEL BALL 2.3 AN610H/DUP361 MSP-216031-1.A5 216031-1	£1.44	£1.73
173 - SPRING PIN 2-12 AN510/620/711 MSP-951007-8.A2 951007-8	£1.44	£1.73
179 - URETHANE WASHER AN635H/AR411HR MSP-261118-4.A0 261118-4	£1.44	£1.73
183 - COMPRESSION SPRING 5 BO6050 MSP-231490-8.A0 231490-8	£1.44	£1.73
184 - TENSION PIN 3-16 DIN1481/AN635 MSP-951063-8.A8 951063-8	£1.44	£1.73
188 - TENSION PIN 3-16 DIN1481/AN635 MSP-951063-8.A9 951063-8	£1.44	£1.73
190 - HSH BOLT M5X10 AN935H/AN635H MSP-266912-9.A0 266912-9	£1.44	£1.73
191 - CONTACT TOP AN635H MSP-310725-1 310725-1	£20.88	£25.06
A02 - OIL SUPPLY SET AN510/620/711 MSP-194381-3.A5 194381-3	£2.01	£2.41
A03 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A9 195246-2	£2.55	£3.06
A04 - LATCH FOR 868960-0/821508-9 MSP-162315-4.A34 162315-4	£1.32	£1.58
A04-1 - LATCH FOR 868960-0/821508-9 MSP-162315-4.A35 162315-4	£1.32	£1.58

Attribute Name	Value
Brand	Makita
