Makita AN451 Pneumatic Roofing Coil Nailer Spare Parts

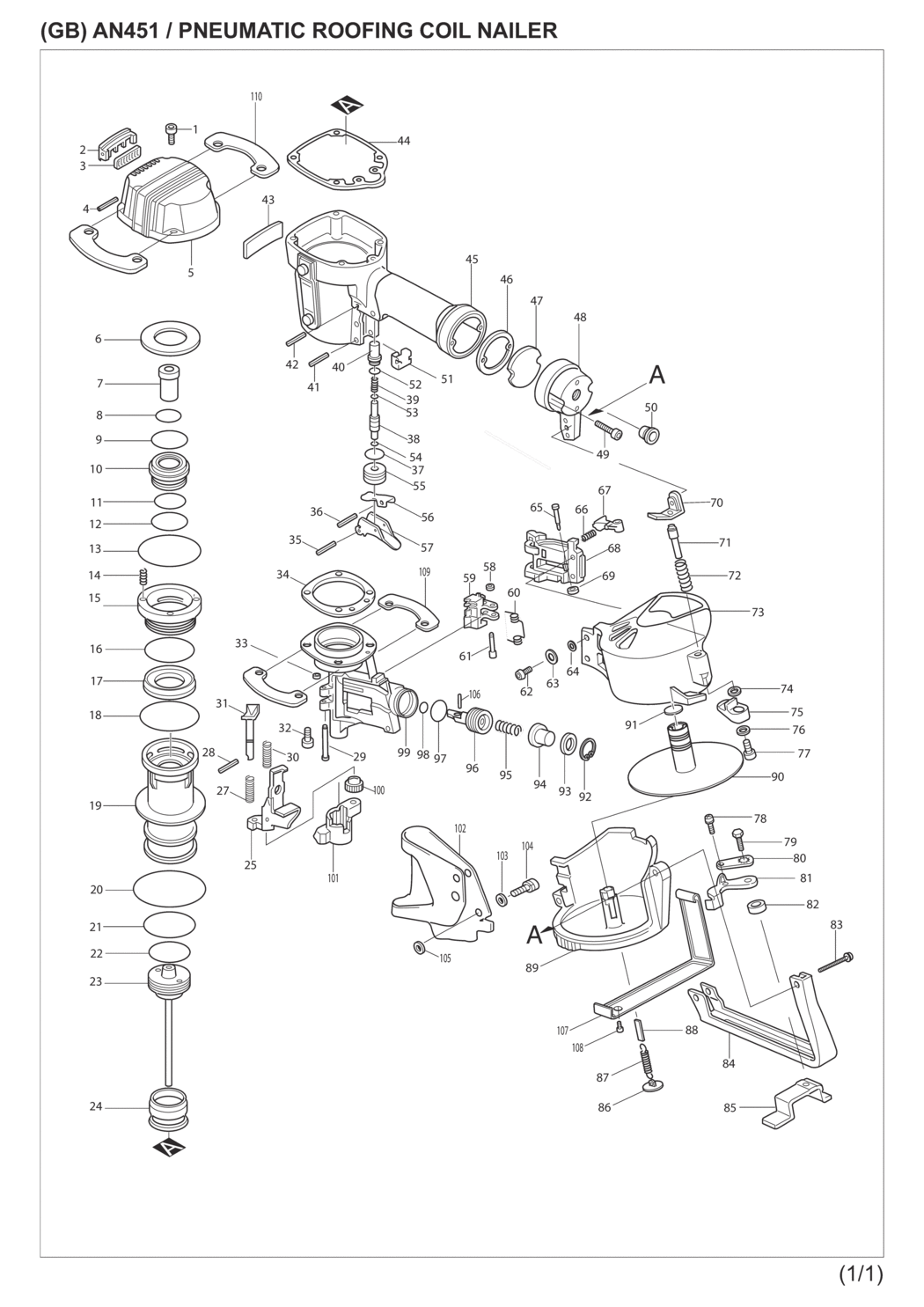

An exploded drawing and spare parts listing for the Makita AN451 Pneumatic Roofing Coil Nailer

	Ex VAT	Inc VAT
1-1 - HEX SOCKET HD BOLT M5X25/365U MSP-922241-7.A28 922241-7	£1.44	£1.73
2 - COVER AN451 MSP-414957-3 414957-3	£2.81	£3.37
3 - MUFFLER AN451 MSP-415235-4 415235-4	£1.44	£1.73
4 - SPRING PIN 2 5-8 JR3000V MSP-258018-7.A0 258018-7	£1.44	£1.73
5-3 - LABEL/INDICATION AN451 MSP-819734-2 819734-2	£3.59	£4.31
5-3 - TOP CAP AN451 MSP-151605-0 151605-0	£57.55	£69.06
6 - URETHANE WASHER 32 AN451 MSP-261093-4 261093-4	£1.44	£1.73
7 - CUSHION R AN451 MSP-421399-4 421399-4	£3.59	£4.31
8 - O RING 26 AN451 MSP-213416-2 213416-2	£1.44	£1.73
9 - O RING 33 AN510/AN635H MSP-213462-5.A0 213462-5	£1.44	£1.73
10 - MAIN VALVE AN451 MSP-414935-3 414935-3	£46.33	£55.60
11 - O RING 27 AN451 MSP-213424-3 213424-3	£1.44	£1.73
12 - O RING 30 SG1250/2702/SG1251J MSP-213423-5.A3 213423-5	£1.44	£1.73
13 - O RING 56 AN451 MSP-213665-1 213665-1	£1.44	£1.73
14 - COMPRESSION SPRING 5 AN942/94 MSP-233038-2.A2 233038-2	£1.44	£1.73
15 - SUB VALVE AN451 MSP-316380-7 316380-7	£34.28	£41.13
16 - O RING 42 AN620/AN635H/AR411HR MSP-213558-2.A2 213558-2	£1.44	£1.73
17 - VALVE SHEET AN451 MSP-421400-5 421400-5	£12.32	£14.79
18-1 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A4 213656-2	£1.44	£1.73
19 - CYLINDER AN451 MSP-316409-9 316409-9	£44.88	£53.86
20 - O RING 67 AN451 MSP-213706-3.A2 213706-3	£1.44	£1.73
21-1 - O RING 45 AN451 MSP-213613-0 213613-0	£1.44	£1.73
22 - O RING 34 AN620 MSP-213475-6.A2 213475-6	£1.44	£1.73
23 - DRIVER AN451 MSP-150383-9 150383-9	£69.93	£83.92
24 - CUSHION F AN451 MSP-421491-6 421491-6	£8.42	£10.11
25-1 - CONTACT ARM AN504 MSP-165207-6 165207-6	£51.61	£61.93
27 - COMPRESSION SPRING 7 AN451 MSP-233097-6 233097-6	£1.44	£1.73
28 - SPRING PIN 2-9 AN451 MSP-258021-8 258021-8	£1.44	£1.73
29 - PIN 4 AN451 MSP-256678-9 256678-9	£1.44	£1.73
30 - COMPRESSION SPRING 5 AN451 MSP-233096-8 233096-8	£1.44	£1.73
31 - LEVER PIN 6 AN451 MSP-162170-4 162170-4	£7.64	£9.17
32-1 - HEX SOCKET HD BOLT M6X22 AN4 MSP-265929-9 265929-9	£1.44	£1.73
33 - URETHANE RING 3 AN942/6837 MSP-262054-7.A19 262054-7	£1.44	£1.73
34 - DRIVER GUIDE GASKET AN451 MSP-442118-5 442118-5	£3.28	£3.93
35 - SPRING PIN 3-24 AN451 MSP-951072-7.A1 951072-7	£1.44	£1.73
36 - SPRING PIN 2.5-16 AN942/943 MSP-258004-8.A3 258004-8	£1.44	£1.73
37 - O RING 16 2414K/HK1820L MSP-213218-6.A5 213218-6	£1.44	£1.73
38 - TRIGGER VALVE STEM AN451 MSP-322530-4 322530-4	£3.59	£4.31
39-1 - COMPRESSION SPRING 3 AN451 MSP-233425-5 233425-5	£1.44	£1.73
40 - PILOT VALVE AN451 MSP-322531-2 322531-2	£8.89	£10.67
41 - SPRING PIN 3-24 AN451 MSP-951072-7.A2 951072-7	£1.44	£1.73
42 - SPRING PIN 2.5-22 AN451 MSP-258020-0 258020-0	£1.44	£1.73
43 - NAME PLATE AN451 MSP-857129-1 857129-1	£1.44	£1.73
44 - TOP CAP GASKET AN451 MSP-442109-6 442109-6	£8.73	£10.48
45-3 - HOUSING AN451 MSP-151604-2 151604-2	£95.63	£114.76
45-3 - LABEL/INDICATION AN451 MSP-819733-4 819733-4	£2.50	£3.00
45-3 - LABEL/INDICATION AN451 MSP-819732-6 819732-6	£2.50	£3.00
46 - INLET CAP GASKET AN451 MSP-442110-1 442110-1	£3.28	£3.93
47 - INLET FILTER AN451 MSP-413054-2 413054-2	£3.90	£4.68
48-1 - INLET CAP AN621/AN451 MSP-317861-4 317861-4	£18.72	£22.46
49 - CAP HD SCREW M5X25 GN900 HR35 MSP-922242-5.A8 922242-5	£1.44	£1.73
50 - AIR PLUG AN902/AG125 MSP-153936-3.A1 153936-3	£7.64	£9.17
50 - CAP 8 AG125/AN901 MSP-286267-6.A0 286267-6	£1.44	£1.73
51 - HOLDER AN451 MSP-343879-9 343879-9	£2.18	£2.62
52 - O RING 8 BTM40/50/HM0871C MSP-213030-4.A22 213030-4	£1.44	£1.73
53-1 - O RING 2 AN451/DHS630DJS160 MSP-213957-8.A2 213957-8	£1.44	£1.73
54-1 - O RING 2 AN451/DHS630DJS160 MSP-213957-8.A3 213957-8	£1.44	£1.73
55 - TRIGGER VALVE CASE AN451 MSP-322380-7 322380-7	£13.58	£16.29
56-1 - IDLER AN451 MSP-344258-4 344258-4	£2.34	£2.81
57-1 - TRIGGER AN451 MSP-165133-9 165133-9	£14.20	£17.04
58 - URETHANE RING 3 AN942/6837 MSP-262054-7.A20 262054-7	£1.44	£1.73
59-1 - FEEDING CLAW AN451 MSP-310098-2 310098-2	£25.20	£30.24
60 - TORSION SPRING 6 AN451 MSP-231603-1 231603-1	£4.37	£5.24
61 - PIN 4-4.5 AN451 MSP-256432-1.A1 256432-1	£2.50	£3.00
62-1 - HEX SOCKET HD M5X12 AN510/45 MSP-265903-7.A3 265903-7	£1.44	£1.73
63 - WASHER 5 AN451 MSP-253999-0.A0 253999-0	£1.44	£1.73
64-1 - BLUE WASHER 5 JS1660/PM7651H MSP-267010-2.A4 267010-2	£1.44	£1.73
65 - PIN 4 AN451 MSP-256679-7 256679-7	£2.34	£2.81
66 - COMPRESSION SPRING 4 AN451 MSP-233095-0 233095-0	£1.44	£1.73
67 - CHECK CLAW AN451 MSP-311913-3 311913-3	£18.72	£22.46
68 - DOOR AN451 MSP-311914-1 311914-1	£43.60	£52.32
69 - URETHANE RING 3 AN942/6837 MSP-262054-7.A21 262054-7	£1.44	£1.73
70-1 - MAGAZINE LOCK AN451 MSP-344256-8 344256-8	£2.50	£3.00
71 - LOCK PIN AN451 MSP-322532-0 322532-0	£4.83	£5.80
72 - COMPRESSION SPRING 6 MSP-231307-5.A0 231307-5	£1.93	£2.32
73 - LABEL/CAUTION AN451 MSP-810072-5 810072-5	£2.65	£3.18
73 - MAGAZINE CAP AN451 MSP-154457-8 154457-8	£14.35	£17.22
74 - BLUE WASHER 5 JS1660/PM7651H MSP-267010-2.A5 267010-2	£1.44	£1.73
75 - LOCK LEVER AN451 MSP-414933-7.A0 414933-7	£1.44	£1.73
78 - PAN HD SCREW M4X6 AN451 MSP-911105-0 911105-0	£1.44	£1.73
79 - HEX HD SCREW M6X16 403/LF1000 MSP-921322-4.A0 921322-4	£1.44	£1.73
80 - LOCK PLATE 4131/SR1800 MSP-341718-7.A1 341718-7	£1.44	£1.73
81 - LEVER PLATE AN451 MSP-343977-9 343977-9	£4.52	£5.43
82 - RING 9 AN451 MSP-257166-9 257166-9	£4.06	£4.87
83 - HEX SOCKET HD BOLT M5X30 AN4 MSP-265919-2.A0 265919-2	£1.44	£1.73
84 - SINGLE GUIDE AN451 MSP-343978-7 343978-7	£18.72	£22.46
85-1 - ADJUSTER PLATE AN451 MSP-165250-5 165250-5	£5.78	£6.93
86 - HOLDER CAP AN901 MSP-414934-5.A2 414934-5	£1.44	£1.73
87 - TENSION SPRING 5 2012NB MSP-231793-0.A2 231793-0	£2.18	£2.62
88 - RUBBER PLATE 6-20 AN901 MSP-423232-6.A3 423232-6	£1.44	£1.73
89-1 - MAGAZINE AN451 MSP-415779-4 415779-4	£13.42	£16.10
90 - CHANGE PLATE AN451 MSP-415169-1 415169-1	£7.18	£8.61
91 - HOLDER CAP AN901 MSP-414934-5.A3 414934-5	£1.44	£1.73
92 - RETAINING RING S22 HM1317C-CB MSP-962112-6.A6 962112-6	£1.44	£1.73
93 - RUBBER RING 16 AN451 MSP-262055-5 262055-5	£1.44	£1.73
94-1 - CUP WASHER 5 AN451 MSP-344597-2 344597-2	£2.65	£3.18
95 - COMPRESSION SPRING 11 AN451 MSP-233057-8 233057-8	£1.44	£1.73
96 - PISTON AN451 MSP-322579-4 322579-4	£18.72	£22.46
97 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A2 213261-5	£1.44	£1.73
98 - O RING 8 AN510/AR411HR MSP-213007-9.A1 213007-9	£1.44	£1.73
99 - DRIVER GUIDE CO AN451 MSP-150386-3 150386-3	£224.52	£269.42
100 - ADJUSTER AN451 MSP-311891-7 311891-7	£27.65	£33.18
101 - CONTACT TOP AN451 MSP-165073-1 165073-1	£44.88	£53.86
102 - SAFETY COVER AN451 MSP-413060-7 413060-7	£9.05	£10.86
103 - WASHER 5 AN451 MSP-253999-0.A1 253999-0	£1.44	£1.73
104 - HEX SOCKET HD BOLT M5X30 AN4 MSP-265919-2.A1 265919-2	£1.44	£1.73
105 - WASHER 5 AN451 MSP-253999-0.A2 253999-0	£1.44	£1.73
106 - *TENSION PIN 3-10 DIN 1481 MSP-951054-9.A0 951054-9	£1.44	£1.73
107 - MAGAZINE GUARD AN451 MSP-344254-2 344254-2	£4.68	£5.62
108 - PAN HD SCREW M4X8 AN451/BHR20 MSP-911110-7.A9 911110-7	£1.44	£1.73
109 - HOUSING GUARD F AN451 MSP-344747-9 344747-9	£4.06	£4.87
110 - HOUSING GUARD R AN451 MSP-344748-7 344748-7	£4.83	£5.80
A01 - OIL SUPPLY 30CC AG125 AN451/AN MSP-181434-7.A7 181434-7	£1.20	£1.44
E02-2 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A10 195246-2	£2.55	£3.06
