Makita AF600 Pneumatic Brad Nailer Spare Parts

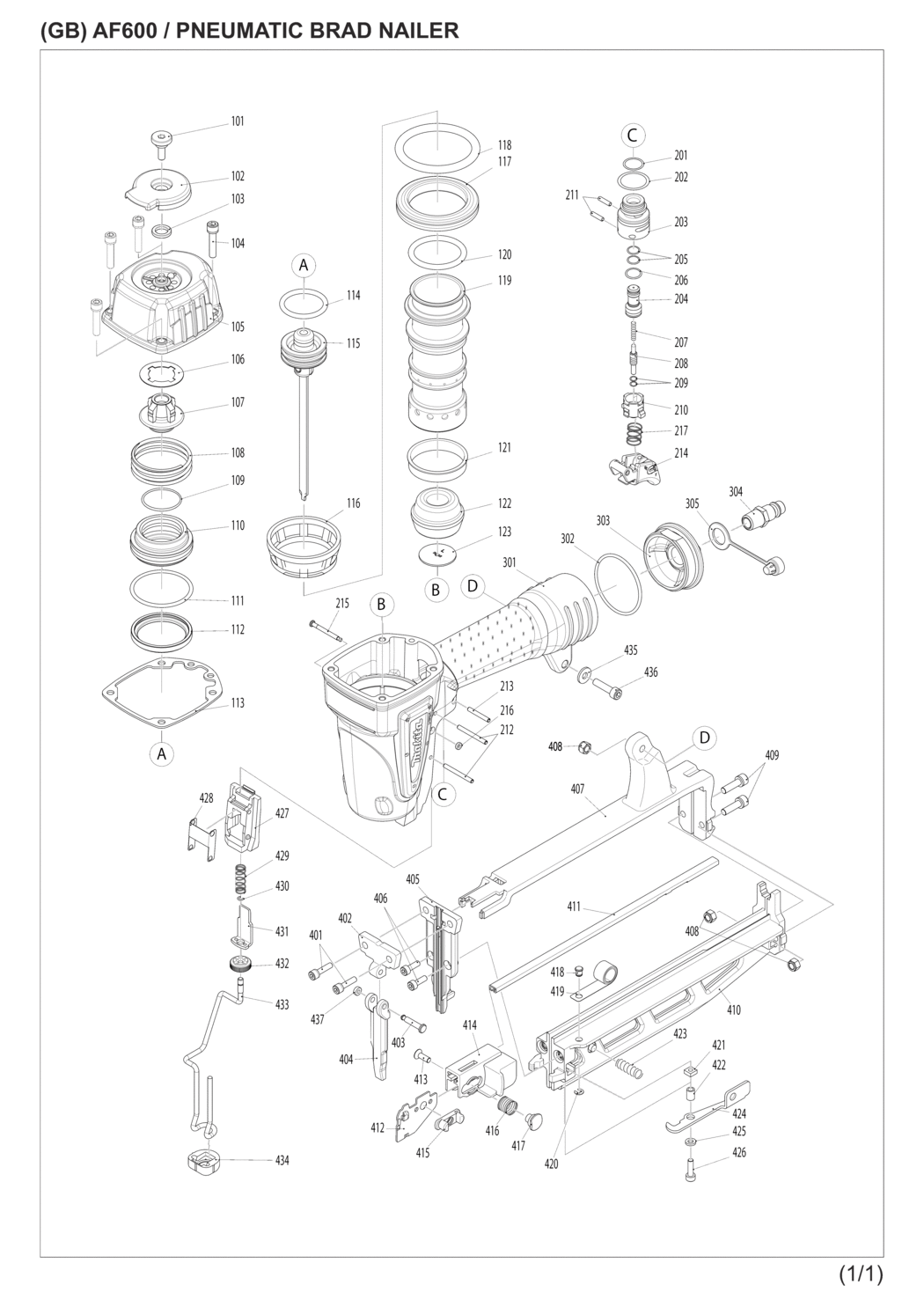

An exploded drawing and spare parts listing for the Makita AF600 Pneumatic Brad Nailer

	Ex VAT	Inc VAT
101 - DEFLECTOR BOLT 3M2353 AF600 MSP-BA00000001 BA00000001	£2.81	£3.37
102 - DEFLECTOR AF600 MSP-BA00000105 BA00000105	£1.44	£1.73
103 - RUBBER PAD AF600 MSP-BA00000005.A0 BA00000005	£1.44	£1.73
104 - BOLT ASSY M5*0.8-20 AF600 MSP-BA00000106 BA00000106	£1.44	£1.73
105 - CAP AF600 MSP-BA00000107 BA00000107	£42.19	£50.63
106 - SEAL GASKET AF600 MSP-BA00000108 BA00000108	£1.44	£1.73
107 - SEAL AF600 MSP-BA00000109 BA00000109	£13.42	£16.10
108 - COMPRESSION SPRING AF600 MSP-BA00000110 BA00000110	£1.44	£1.73
109 - O RING 29.5*2 AF600 MSP-BA00000111 BA00000111	£1.44	£1.73
110 - HD VALVE PISTON AF600 MSP-BA00000112 BA00000112	£15.26	£18.31
111 - O RING 43*2.4 AF600 MSP-BA00000113 BA00000113	£1.44	£1.73
112 - COLLAR AF600 MSP-BA00000114 BA00000114	£2.50	£3.00
113 - PACKING AF600 MSP-BA00000115 BA00000115	£4.99	£5.99
114 - O RING 29.74*3.53 AF600 MSP-BA00000116 BA00000116	£1.44	£1.73
115 - DRIVER UNIT AF600 MSP-BA00000117 BA00000117	£41.90	£50.28
116 - CYLINDER PRESS RING AF600 MSP-BA00000118 BA00000118	£1.44	£1.73
117 - CYLINDER SPACER AF600 MSP-BA00000119 BA00000119	£12.17	£14.60
118 - O RING 58*2.5 AF600 MSP-BA00000120 BA00000120	£1.44	£1.73
119 - CYLINDER AF600 MSP-BA00000121 BA00000121	£55.31	£66.37
120 - O RING 37.5*1.8 AF600 MSP-BA00000122 BA00000122	£1.44	£1.73
121 - CYLINDER RING AF600 MSP-BA00000123 BA00000123	£1.44	£1.73
122 - BUMPER AF600 MSP-BA00000124 BA00000124	£12.95	£15.54
123 - DRIVER GUIDE AF600 MSP-BA00000125 BA00000125	£1.44	£1.73
201 - O RING 12.42*1.78 AF600 MSP-BA00000026.A1 BA00000026	£1.44	£1.73
202 - O RING 18.72*2.62 AF600 MSP-BA00000028.A1 BA00000028	£1.44	£1.73
203 - PLUNGER CAP AF600 MSP-BA00000027.A0 BA00000027	£2.34	£2.81
204 - VALVE PLUNGER AF600 MSP-BA00000029.A0 BA00000029	£4.83	£5.80
205 - O RING 5.8*1.9 AF600 MSP-BA00000030.A1 BA00000030	£1.44	£1.73
206 - O RING 8.8*1.9 AF600 MSP-BA00000031.A0 BA00000031	£1.44	£1.73
207 - SPRING AF600 MSP-BA00000032.A1 BA00000032	£1.44	£1.73
208 - PLUNGER AF600 MSP-BA00000033.A0 BA00000033	£1.44	£1.73
209 - O RING 2.5*1.5 AF600 MSP-BA00000034.A1 BA00000034	£1.44	£1.73
209-1 - O RING 2.5*1.5 AF600 MSP-BA00000034.A2 BA00000034	£1.44	£1.73
210 - TRIGGER VALVE HEAD AF600 MSP-BA00000035.A1 BA00000035	£1.44	£1.73
211 - SPRING PIN 3-12 AF600 MSP-BA00000036.A0 BA00000036	£1.44	£1.73
212 - SPRING PIN 3-30 AF600 MSP-BA00000038.A0 BA00000038	£1.44	£1.73
213 - SPRING PIN 3-22 AF600 MSP-BA00000037.A1 BA00000037	£1.44	£1.73
214 - TRIGGER UNIT AF600 MSP-BA00000126 BA00000126	£5.46	£6.55
215 - TRIGGER PIVOT PIN AF600 MSP-BA00000127 BA00000127	£1.44	£1.73
216 - URETHANE RETAINER AF600 MSP-BA00000060.A0 BA00000060	£1.44	£1.73
217 - SPRING AF600 MSP-BA00000102.A0 BA00000102	£1.44	£1.73
301 - GUN BODY UNIT AF600 MSP-BA00000128 BA00000128	£120.18	£144.21
302 - O RING 43*2.8 AF600 MSP-BA00000043 BA00000043	£1.44	£1.73
303 - END CAP PT1/4""""""""-19 AF600 MSP-BA00000042 BA00000042	£11.70	£14.04
304 - *AIR PLUG AF600 MSP-BA00000130 BA00000130	-
305 - DUST COVER AF600 MSP-BA00000044 BA00000044	£1.44	£1.73
401 - BOLT ASSY M5*0.8-22 AF600 MSP-BA00000133 BA00000133	£1.44	£1.73
402 - DRIVER GUIDE COVER B AF600 MSP-BA00000134 BA00000134	£12.79	£15.35
403 - FIXED PIN AF600 MSP-BA00000135 BA00000135	£2.18	£2.62
404 - DRIVER GUIDE COVER B AF600 MSP-BA00000136 BA00000136	£20.30	£24.36
405 - DRIVER GUIDE AF600 MSP-BA00000137 BA00000137	£28.66	£34.39
406 - HEX S HD BOLT M4X0.7-12 AF600 MSP-BA00000138 BA00000138	£1.44	£1.73
407 - MAGAZINE B AF600 MSP-BA00000139 BA00000139	£8.11	£9.73
408 - LOCK NUT AF600 MSP-BA00000095 BA00000095	£1.44	£1.73
409 - BOLT ASSY M5*0.8-18 AF600 MSP-BA00000140 BA00000140	£1.44	£1.73
410 - MAGAZINE A AF600 MSP-BA00000141 BA00000141	£20.59	£24.71
411 - STEEL CHANNEL AF600 MSP-BA00000142 BA00000142	£7.18	£8.61
412 - PUSHER AF600 MSP-BA00000143 BA00000143	£2.97	£3.56
413 - TAP BOLT AF600 MSP-BA00000144 BA00000144	£1.44	£1.73
414 - PROTECTING HOOD COVER AF600 MSP-BA00000145 BA00000145	£2.18	£2.62
415 - ANCHOR BLOCK AF600 MSP-BA00000146 BA00000146	£1.44	£1.73
416 - PUSHER SPRING AF600 MSP-BA00000147 BA00000147	£1.44	£1.73
417 - DOOR LATCH AF600 MSP-BA00000148 BA00000148	£1.44	£1.73
418 - BRACKET AF600 MSP-BA00000149 BA00000149	£1.44	£1.73
419 - SPRING AF600 MSP-BA00000150 BA00000150	£4.37	£5.24
420 - E-RING AF600 MSP-BA00000151 BA00000151	£1.44	£1.73
421 - UNIT AF600 MSP-BA00000152 BA00000152	£1.44	£1.73
422 - MAGAZINE SPACER AF600 MSP-BA00000153 BA00000153	£1.44	£1.73
423 - LOCK SPRING AF600 MSP-BA00000154 BA00000154	£1.44	£1.73
424 - LATCH AF600 MSP-BA00000155 BA00000155	£3.28	£3.93
425 - FLAT WASHER D8D4.2T1.5 AF60 MSP-BA00000156 BA00000156	£1.44	£1.73
426 - HEX S HD BOLT M4X0.7-14 AF600 MSP-BA00000157 BA00000157	£1.44	£1.73
427 - SAFETY GUIDE AF600 MSP-BA00000158 BA00000158	£1.44	£1.73
428 - SAFETY DRIVER GUIDE AF600 MSP-BA00000159 BA00000159	£1.44	£1.73
429 - SAFETY SPRING AF600 MSP-BA00000160 BA00000160	£1.44	£1.73
430 - RING AF600 MSP-BA00000161 BA00000161	£1.44	£1.73
431 - SAFETY B AF600 MSP-BA00000162 BA00000162	£2.81	£3.37
432 - ADJUST AXIE AF600 MSP-BA00000163 BA00000163	£1.44	£1.73
433 - SAFETY A AF600 MSP-BA00000164 BA00000164	£11.23	£13.48
434 - PROTECTING CASING AF600 MSP-BA00000165 BA00000165	£2.18	£2.62
435 - FLAT WASHER D135.31.5 AF600 MSP-BA00000093 BA00000093	£1.44	£1.73
436 - HEX S HD BOLT M5X0.8-20 AF600 MSP-BA00000166 BA00000166	£1.44	£1.73
437 - PU RETAINER AF600 MSP-BA00000058 BA00000058	£1.44	£1.73
A01 - OIL SUPPLY 30CC AG125 AN451/AN MSP-181434-7.A1 181434-7	£1.20	£1.44
A03 - HEX WRENCH 3 JS1602/43BA/BV/ MSP-783201-2.A0 783201-2	£1.20	£1.44
A02-1 - SAFETY GOGGLE HR2450/AN MODELS MSP-195246-2.A25 195246-2	£2.55	£3.06
A04 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A95 783202-0	£1.20	£1.44
