Makita AC320H Air Compressor Spare Parts

Home Details Reviews Delivery

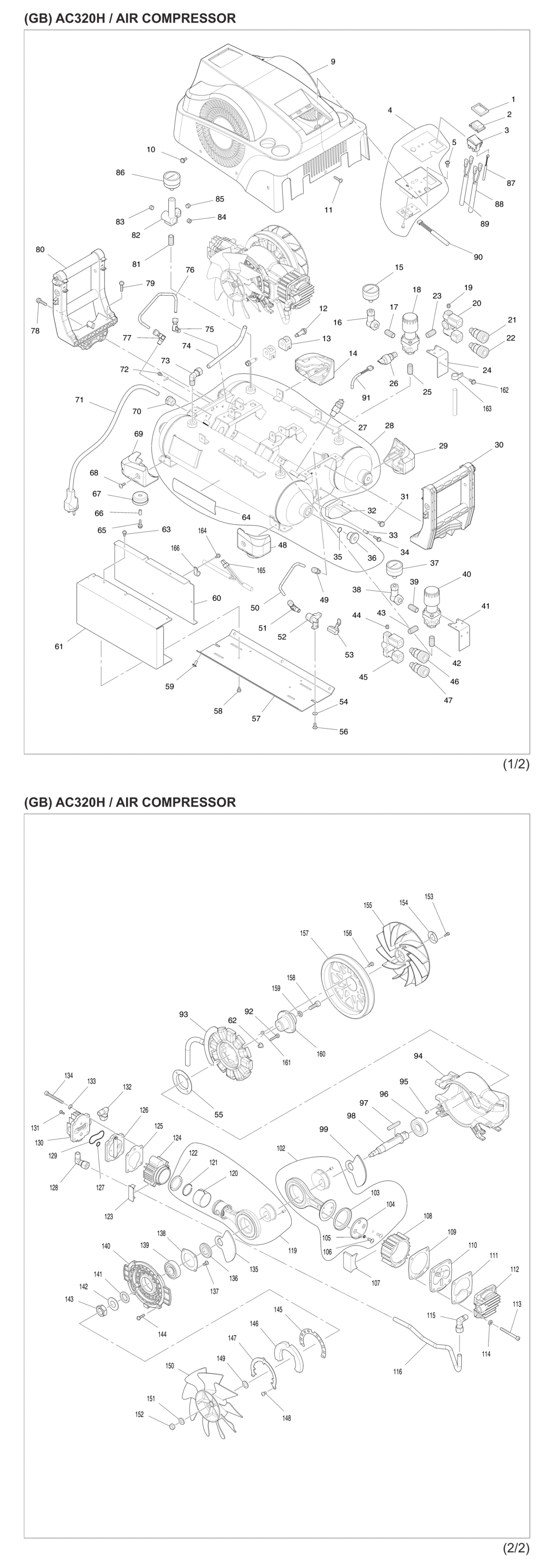

An exploded drawing and spare parts listing for the Makita AC320H Air Compressor

	Ex VAT	Inc VAT
1 - DUST COVER CAP AC320H MSP-AM1101239A AM1101239A	£3.25	£3.90
2 - DUST COVER AC320H MSP-AM1101238A AM1101238A	£3.51	£4.21
3 - SWITCH AN320H MSP-AM1101211A AM1101211A	£43.56	£52.27
4 - OPERATION PANEL ASSY AC320H MSP-AM1101280A AM1101280A	£102.92	£123.51
5 - TAPPING SCREW 5X16 AC320H MSP-AM1101254A.A0 AM1101254A	£3.77	£4.52
9 - LABEL/INDICATION AC320H MSP-AM1101245A AM1101245A	£11.96	£14.35
9 - COVER BLACK AC320H MSP-AM1101232A AM1101232A	£123.70	£148.44
9 - LABEL/INDICATION AC320H MSP-AM1101249A AM1101249A	£1.66	£1.99
9 - LABEL/MAKITA LOGO AC320H MSP-AM1101250A AM1101250A	£1.66	£1.99
9 - LABEL/NOISE AC320H MSP-AM1101247A AM1101247A	£1.66	£1.99
10 - PAN HD SCREW M5X10 AC320H MSP-AM1101231A.A0 AM1101231A	£2.49	£2.99
11 - TAPPING SCREW 5X16 AC320H MSP-AM1101254A.A1 AM1101254A	£3.77	£4.52
12 - HEX BOLT AC320H MSP-AM0802354A AM0802354A	£2.49	£2.99
13 - CUSHION AC320H MSP-AM0802278A AM0802278A	£2.49	£2.99
14 - CASTER R AC320H MSP-AM0801992A AM0801992A	£28.60	£34.32
15 - PRESSURE GAUGE 35 AC320H MSP-AM1101219A AM1101219A	£40.48	£48.58
16 - PRESSURE GAUGE MANIFOLD AC320 MSP-AM0801875C.A1 AM0801875C	£8.84	£10.61
17 - *BARREL NIPPLE R1/4 AC320H MSP-AM0207700D.A2 AM0207700D	£2.49	£2.99
18 - *REGULATOR H AC320H MSP-AM1101224A AM1101224A	£199.49	£239.39
19 - TAPER SCREW PLUG R1/16 AC320H MSP-AM0801617B.A0 AM0801617B	£3.25	£3.90
20 - COUPLER MANIFOLD H AC320H MSP-AM0801874F AM0801874F	£26.18	£31.42
21 - QUICK COUPLER H R1/4 LEFT SCR MSP-AM1101229A.A0 AM1101229A	£47.41	£56.89
22 - QUICK COUPLER H R1/4 LEFT SCR MSP-AM1101229A.A1 AM1101229A	£47.41	£56.89
24 - COVER PLATE AC320H MSP-AM1101208A.A0 AM1101208A	£5.59	£6.71
26 - PRESURE SENSOR AC320H MSP-AM1101222A AM1101222A	£121.37	£145.64
27 - RELIEF VALVE AC320H MSP-AM1101230A AM1101230A	£61.23	£73.48
28 - TANK UNIT ASSY AC320H MSP-AM1101281A AM1101281A	£820.97	£985.16
29 - FOOT B AC320H MSP-AM0801324D AM0801324D	£2.49	£2.99
30 - HANDLE AC320H MSP-AM1101221A.A0 AM1101221A	£29.26	£35.11
31 - PAN HD SCREW M6X14 AC320H MSP-AMAF350791 AMAF350791	£1.66	£1.99
32 - DRAIN GUARD AC320H MSP-AM1101209A AM1101209A	£9.75	£11.70
33 - WOUND BUSH 5-13 AC320H MSP-344222-5.A1 344222-5	£1.66	£1.99
34 - PAN HD SCREW M5X20 W/CP WASHE MSP-911234-9.A5 911234-9	£1.66	£1.99
35 - O-RING P18 AC320H MSP-AM1101241A AM1101241A	£1.66	£1.99
36 - INSPECTION HOLE PLUG AC320H MSP-AM1101240B AM1101240B	£11.96	£14.35
37 - PRESSURE GAUGE 15 AC320H MSP-AM1101218A AM1101218A	£40.48	£48.58
38 - PRESSURE GAUGE MANIFOLD AC320 MSP-AM0801875C.A0 AM0801875C	£8.84	£10.61
39 - *BARREL NIPPLE R1/4 AC320H MSP-AM0207700D.A1 AM0207700D	£2.49	£2.99
40 - *REGULATOR L AC320H 110V MSP-AM1101217A AM1101217A	£199.49	£239.39
41 - COVER PLATE AC320H MSP-AM1101208A.A1 AM1101208A	£5.59	£6.71
44 - TAPER SCREW PLUG R1/16 AC320H MSP-AM0801617B.A1 AM0801617B	£3.25	£3.90
45 - COUPLER MANIFOLD L AC320H MSP-AM0801873E AM0801873E	£24.20	£29.04
46 - QUICK COUPLER L R1/4 AC320H MSP-AM1101228A.A0 AM1101228A	£29.92	£35.90
47 - QUICK COUPLER L R1/4 AC320H MSP-AM1101228A.A1 AM1101228A	£29.92	£35.90
48 - FOOT A AC320H MSP-AM0801313D AM0801313D	£5.59	£6.71
49 - HALF UNION 6-R1/8 AC230H MSP-AM0801899A AM0801899A	£5.20	£6.24
50 - DRAIN PIPE AC320H MSP-AM1101251A AM1101251A	£11.31	£13.57
51 - ELBOW 6-R1/8 AC320H MSP-AM0801897A.A0 AM0801897A	£10.27	£12.32
52 - DRAIN SOCKET AC320H MSP-AM0801386D AM0801386D	£6.76	£8.11
53 - DRAIN COCK AC320H MSP-AM0801307D AM0801307D	£16.17	£19.40
54 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A66 941101-4	£1.66	£1.99
55 - SPACER L AC320H MSP-AM1101278B AM1101278B	£3.77	£4.52
56 - TAP TIGHT LOW HEAD 5 X 12 AC3 MSP-AM0801895A.A1 AM0801895A	£1.66	£1.99
57 - UNDER GUARD AC320H MSP-AM1101216A AM1101216A	£24.97	£29.96
58 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A17 911114-9	£1.66	£1.99
59 - PAN HD SCREW M5X10 AC320H MSP-AM1101231A.A1 AM1101231A	£2.49	£2.99
60 - DRIVER COVER AC320H MSP-AM1101258A AM1101258A	£32.45	£38.94
61 - DRIVER AC320H MSP-AM1101226C AM1101226C	£1316.20	£1579.44
62 - SPACER S AC320H MSP-AM1101279A AM1101279A	£1.66	£1.99
63 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A16 911114-9	£1.66	£1.99
64 - LABEL/MAKITA LOGO AC320H MSP-AM0801971A AM0801971A	£4.29	£5.15
65 - PAN HD SCREW M5X20 W/CP WASHE MSP-911234-9.A4 911234-9	£1.66	£1.99
66 - WOUND BUSH 5-13 AC320H MSP-344222-5.A0 344222-5	£1.66	£1.99
67 - *FOOT RUBBER AC320H MSP-AM00801626 AM00801626	-
68 - TRUSS HD SCREW M5X14 AC320H MSP-AM0801431A AM0801431A	£1.66	£1.99
69 - CASTER L AC320H MSP-AM0801993A AM0801993A	£28.60	£34.32
70 - CORD BUSHING AC320H MSP-AM1101212A AM1101212A	£5.33	£6.40
71 - POWER SUPPLY CORD AC320H MSP-AM1101243A AM1101243A	£33.00	£39.60
72 - NICKELED PAN HD SCREW M4X8 MSP-652014-1.A0 652014-1	£1.66	£1.99
73 - ELBOW 10-R1/4 AC320H MSP-AM00801598.A3 AM00801598	£11.05	£13.26
74 - PIPE 10 AC320H MSP-AM0802313A AM0802313A	£20.57	£24.68
75 - ELBOW 6-R1/8 AC320H MSP-AM0801897A.A1 AM0801897A	£10.27	£12.32
76 - PIPE 6 AC320H MSP-AM1101227A AM1101227A	£14.96	£17.95
77 - ELBOW 6-R1/8 AC320H MSP-AM0801897A.A2 AM0801897A	£10.27	£12.32
78 - PAN HD SCREW M6X25 AC320H MSP-AM0801960A.A0 AM0801960A	£1.66	£1.99
79 - PAN HD SCREW M6X25 AC320H MSP-AM0801960A.A1 AM0801960A	£1.66	£1.99
80 - HANDLE AC320H MSP-AM1101221A.A1 AM1101221A	£29.26	£35.11
81 - *BARREL NIPPLE R1/4 AC320H MSP-AM0207700D.A0 AM0207700D	£2.49	£2.99
82 - PRESSURE SWITCH MANIFOLD AC32 MSP-AM0801876C AM0801876C	£14.96	£17.95
83 - TAPER SCREW PLUG R1/8 AC320H MSP-AM0502509B.A0 AM0502509B	£1.66	£1.99
84 - TAPER SCREW PLUG R1/8 AC320H MSP-AM0502509B.A1 AM0502509B	£1.66	£1.99
85 - TAPER SCREW PLUG R1/8 AC320H MSP-AM0502509B.A2 AM0502509B	£1.66	£1.99
86 - PRESSURE GAUGE 6.0 AC320H MSP-AM1101213A AM1101213A	£54.12	£64.94
87 - RESET HARNESS AC320H MSP-AM1101252A AM1101252A	£46.09	£55.31
88 - SWITCH HARNESS AC320H MSP-AM1101244A AM1101244A	£16.17	£19.40
89 - PLUG HARNESS AC320H MSP-AM1101253A AM1101253A	£16.17	£19.40
90 - PANEL HARNESS AC320H MSP-AM1101242A AM1101242A	£17.49	£20.99
91 - SENSOR HARNESS AC320H MSP-AM1101223A AM1101223A	£34.21	£41.05
92 - PAN HD SCREW AC320H M5X25 MSP-AMAF350774 AMAF350774	£1.66	£1.99
93 - STATOR AC320H MSP-AM1101225C AM1101225C	£437.57	£525.08
94-1 - CRANK CASE AC320H MSP-AM1101275B AM1101275B	£96.66	£115.99
95 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A73 263005-3	£1.66	£1.99
96 - BALL BEARING 6204 AC320H MSP-AM0801886A.A1 AM0801886A	£21.78	£26.14
97 - KEY 6 AC320H MSP-AM0801323A AM0801323A	£2.49	£2.99
98 - MOTOR SHAFT AC320H MSP-AM0802277A AM0802277A	£59.94	£71.93
99-1 - BALANCER AC230H MSP-AM0802274A.A0 AM0802274A	£10.92	£13.10
99 - BALANCER AC230H MSP-AM0802274A.A3 AM0802274A	£10.92	£13.10
103 - LIP RING AC320H MSP-AM0801905A AM0801905A	£29.26	£35.11
104 - FIXED RING AC320H MSP-AM0503188E AM0503188E	£5.07	£6.08
105 - O-RING S5 AC320H MSP-AM00503229 AM00503229	£2.49	£2.99
106 - TRUSS HD SCREW M5X14 AC320H MSP-AM00503242 AM00503242	£1.66	£1.99
107 - STUFFING L AC320H MSP-AM0802281A AM0802281A	£2.49	£2.99
108 - CYLINDER L AC320H MSP-AM0802344A AM0802344A	£58.75	£70.50
109 - CYLINDER GASKET L AC320H MSP-AM0801359F AM0801359F	£4.16	£4.99
110 - BULB PLATE L AC320H MSP-AM0802119A AM0802119A	£41.14	£49.37
111 - HEAD GASKET L AC320H MSP-AM0801361F AM0801361F	£4.16	£4.99
112 - CYLINDER HEAD L AC320H MSP-AM0801363D AM0801363D	£19.91	£23.89
113 - HEX SOCKET HD BOLT M6X60 AC32 MSP-AM00801591.A0 AM00801591	£1.66	£1.99
114 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A68 253428-3	£1.66	£1.99
115 - ELBOW 10-R1/4 AC320H MSP-AM00801598.A2 AM00801598	£11.05	£13.26
116 - PIPE 10 AC320H MSP-AM1101273A AM1101273A	£34.98	£41.98
120 - WEARING AC320H MSP-AM0802258A AM0802258A	£16.72	£20.06
121 - LEAF SPRING 94H AC320H MSP-AM0802256A AM0802256A	£3.25	£3.90
122 - SHEET RING 41 AC320H MSP-AM0802257A AM0802257A	£16.72	£20.06
123 - STUFFING H AC320H MSP-AM0802282A AM0802282A	£2.49	£2.99
124 - CYLINDER H AC320H MSP-AM0802252A AM0802252A	£58.75	£70.50
125 - CYLINDER GASKET H AC320H MSP-AM0802268A AM0802268A	£3.64	£4.37
126 - BULB PLATE H AC320H MSP-AM0802326A AM0802326A	£46.64	£55.97
127 - O-RING S12 AC320H MSP-AM00801589 AM00801589	£2.49	£2.99
128 - ELBOW 10-R1/4 AC320H MSP-AM00801598.A1 AM00801598	£11.05	£13.26
129 - O-RING S42 AC320H MSP-AM00801578 AM00801578	£5.98	£7.18
130 - *HEAD UNIT AC320H MSP-AM0802323A AM0802323A	£79.60	£95.52
131 - TAPPING SCREW 4X12 AC320H MSP-AMAF456457 AMAF456457	£1.66	£1.99
132 - ELBOW 10-R1/4 AC320H MSP-AM00801598.A0 AM00801598	£11.05	£13.26
133 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A67 253428-3	£1.66	£1.99
134 - HEX SOCKET HD BOLT M6X60 AC32 MSP-AM00801591.A1 AM00801591	£1.66	£1.99
135-1 - BALANCER AC230H MSP-AM0802274A.A1 AM0802274A	£10.92	£13.10
135 - BALANCER AC230H MSP-AM0802274A.A2 AM0802274A	£10.92	£13.10
136 - SPACER AC320H MSP-AM0802356A AM0802356A	£12.61	£15.13
137 - TAP TIGHT LOW HEAD 5 X 12 AC3 MSP-AM0801895A.A0 AM0801895A	£1.66	£1.99
138 - BEARING RETAINER F AC320H MSP-AM0801717B AM0801717B	£3.64	£4.37
139 - BALL BEARING 6204 AC320H MSP-AM0801886A.A0 AM0801886A	£21.78	£26.14
140 - BEARING CASE F AC320H MSP-AM0802276A AM0802276A	£28.05	£33.66
141 - BEARING SPACER AC320H MSP-AM0801884A AM0801884A	£6.24	£7.49
142 - CONED DISC SPRING 18 AC320H MSP-AM0801442B AM0801442B	£3.64	£4.37
143 - HEX NUT M18 AC320H MSP-AMAF430730 AMAF430730	£2.49	£2.99
144 - PAN HD SCREW M5X20 W/CP WASHE MSP-911234-9.A3 911234-9	£1.66	£1.99
145 - FILTER GASKET AC320H MSP-AM0802290A AM0802290A	£4.03	£4.84
146 - FILTER AC320H MSP-AM0802284A AM0802284A	£7.80	£9.36
147 - FILTER COVER AC320H MSP-AM0802283A AM0802283A	£6.37	£7.64
148 - TAPPING SCREW 5X8 AC320H MSP-AM00502451 AM00502451	£1.66	£1.99
149 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A109 253744-3	£1.66	£1.99
150 - FAN 190 AC320H MSP-AM0801391E AM0801391E	£12.74	£15.29
151 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A11 941201-0	£1.66	£1.99
152 - HEX FULLNUT M8 LS1013/HR1840 MSP-931402-8.A31 931402-8	£1.66	£1.99
153 - PAN HD SCREW M4X12 AC320H MSP-AMAF350385 AMAF350385	£1.66	£1.99
154 - PLATE TURBO AC320H MSP-AM0801889A AM0801889A	£2.49	£2.99
155 - TURBO FAN AC320H MSP-AM0801926B AM0801926B	£10.66	£12.79
156 - PAN HD SCREW M5X10 AC320H MSP-AMAF350767.A1 AMAF350767	£1.66	£1.99
157 - ROTOR AC320H MSP-AM0802028A AM0802028A	£164.62	£197.54
158 - HEX SOCKET HD BOLT M8X25 AC32 MSP-AM0801940A AM0801940A	£1.66	£1.99
159 - SPRING WASHER 8 AC320H MSP-AMAF450405 AMAF450405	£1.66	£1.99
160 - ROTOR SPACER AC320H MSP-AM1101276A AM1101276A	£24.20	£29.04
161 - KEY 6 AC320H MSP-AM0802279A AM0802279A	£2.49	£2.99
162 - PAN HD SCREW M5X10 AC320H MSP-AMAF350767.A0 AMAF350767	£1.66	£1.99
163 - CABLE CLIP AC320H MSP-AM1101272A AM1101272A	£2.49	£2.99
164 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A15 911114-9	£1.66	£1.99
165 - CLOSED END CONNECTOR AC320H MSP-AM1101270A AM1101270A	£1.66	£1.99
166 - CABLE CLIP AC320H MSP-AM1101271A AM1101271A	£2.49	£2.99
167 - SWITCH COVER AC320H MSP-AM1101286A AM1101286A	£8.06	£9.67

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita AC320H Air Compressor Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Makita AC320H Air Compressor Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Makita AC320H Air Compressor Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
