Makita EX2650LHM Multi Function Power Head Spare Parts

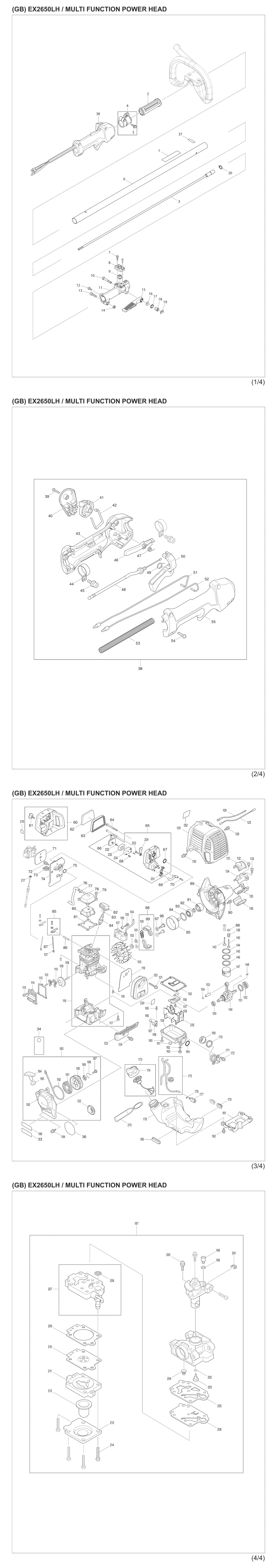

An exploded drawing and spare parts listing for the Makita EX2650LHM Multi Function Power Head

	Ex VAT	Inc VAT
1 - LABEL/CAUTION EX2650LH/CS246.4 MSP-893509-7.A0 893509-7	£1.44	£1.73
2 - SPACER EBH252L/BUX360/CS246.4 MSP-451601-1.A20 451601-1	£2.65	£3.18
3 - SHAFT B BUX360Z/CS246.4 MSP-141238-9.A5 141238-9	£32.69	£39.23
4 - HANGER SET EBH253/EM2651/CS246 MSP-195143-2.A6 195143-2	£4.21	£5.05
5 - PAN HD SCREW M5X20 W/CP WASHE MSP-911233-1.A60 911233-1	£1.44	£1.73
6 - SHAFT PIPE B EX2650/CS246 MSP-141008-6.A1 141008-6	£35.86	£43.03
7 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A36 266034-5	£1.44	£1.73
8 - RELEASE BUTTIN COVER BUX360Z MSP-452840-6.A0 452840-6	£1.44	£1.73
9 - RELEASE BUTTON BUX360Z/CS246.4 MSP-452839-1.A9 452839-1	£1.44	£1.73
10 - HEX BOLT M6X40 BUX360Z/CS246.4 MSP-265596-0.A11 265596-0	£1.44	£1.73
11 - JOINT 24 CS246.4/DUX60/BUX360 MSP-312D49-5.A5 312D49-5	£20.18	£24.21
12 - HS HEAD BOLT M5X12 EM2651LH MSP-922211-6.A3 922211-6	£1.44	£1.73
13 - CAP HD SCREW M6X25/CS246.4 MSP-922342-1.A16 922342-1	£1.44	£1.73
14 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A12 931302-2	£1.44	£1.73
15 - LEVER 94 BUX360Z/CS246.4/DUX60 MSP-272268-0.A6 272268-0	£2.50	£3.00
16 - THIN WASHER 6 6791D/CS246.4 MSP-253332-6.A9 253332-6	£1.44	£1.73
17 - O RING 11 HR2000/6835DWA/6833 MSP-213105-9.A16 213105-9	£1.58	£1.89
18 - HEX NUT M6 BPJ140/180/BSS500/ MSP-252159-1.A24 252159-1	£2.34	£2.81
19 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A31 961014-3	£1.44	£1.73
20 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A120 961052-5	£1.44	£1.73
33 - LABEL/SERIAL NO ER2650/CS246.4 MSP-816567-6.A1 816567-6	£1.44	£1.73
34 - CAUTION TAG ER2650/2550/CS246 MSP-819430-2.A4 819430-2	£1.44	£1.73
37-2 - LABEL/DATE CODE ER2650LHER25 MSP-801D19-4.A16 801D19-4	£1.44	£1.73
38-1 - CONTROL LEVER ASSY EY2650/EN4 MSP-126488-7.A7 126488-7	£29.09	£34.91
39 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A152 266130-9	£1.44	£1.73
40 - SWITCH COVER ER2650LH/ER2550 MSP-451595-0.A1 451595-0	£1.44	£1.73
41 - SWITCH LEVER ER2650LH/ER2550 MSP-451594-2.A11 451594-2	£1.44	£1.73
42 - LEAF SPRING ER2650LH/ER2550 MSP-232251-9.A6 232251-9	£1.44	£1.73
43 - LEVER CASE SET ER2650LH/ER255 MSP-188832-6.A8 188832-6	£12.48	£14.98
44-1 - CLAMP 24 ER2650/ER2550/EN4951 MSP-346248-3.A16 346248-3	£1.44	£1.73
44 - CLAMP 24 ER2650/ER2550/EN4951 MSP-346248-3.A19 346248-3	£1.44	£1.73
45 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A30 922218-2	£1.44	£1.73
46 - LOCK LEVER ER2650/ER2550/CS246 MSP-451593-4.A1 451593-4	£1.44	£1.73
47 - TORSION SPRING 7 ER2650LH/ER2 MSP-233541-3.A2 233541-3	£1.44	£1.73
48 - CONTROL CABLE ER260LH/EY2650H MSP-168571-4.A0 168571-4	£3.28	£3.93
49 - TORSION SPRING 11 ER2650LH/ER MSP-233540-5.A18 233540-5	£1.44	£1.73
50-1 - THROTTLE LEVER EY2650H/EN4951 MSP-455313-8.A6 455313-8	£2.65	£3.18
50 - *THROTTLE LEVER ER2650LH/ER25 MSP-451592-6.A4 451592-6	£2.18	£2.62
51 - LEAD UNIT ER2650/EY2650H/CS246 MSP-638714-7.A6 638714-7	£1.44	£1.73
52 - LEAD UNIT ER260/EY2650/EN4951 MSP-638713-9.A1 638713-9	£1.44	£1.73
53 - CORRUGATE TUBE ER2650/EN4951 MSP-452071-7.A1 452071-7	£2.02	£2.43
54 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A294 266326-2	£1.44	£1.73
55 - LEVER CASE SET ER2650LH/ER255 MSP-188832-6.A4 188832-6	£12.48	£14.98
60-1 - CLEANER COVER ASSY ER2650LH MSP-123499-3.A7 123499-3	£5.46	£6.55
61 - THUMB SCREW M4 EH7500/ER2650L MSP-265791-2.A3 265791-2	£1.44	£1.73
62 - AIR CLEANER ELEMENT EBH/ELM/MS MSP-443171-4.A5 443171-4	£3.01	£3.61
63 - AIR CLEANER ELEMENT EBH/ELM/MS MSP-443169-1.A6 443169-1	£7.96	£9.55
64 - HS BUTTON HD BOLT M5X60 ER265 MSP-266618-9.A3 266618-9	£1.44	£1.73
65-1 - CLEANER PLATE ASSY ER2650LH MSP-123501-2.A1 123501-2	£39.31	£47.17
66 - SEPARATOR PLATE ER2650/EN4951 MSP-162346-3.A4 162346-3	£9.67	£11.61
67 - O RING 15 ER2550/BHX2501/EBH MSP-213540-1.A15 213540-1	£1.44	£1.73
68 - CHECK VALVE ER2550/EBH251L MSP-424316-3.A4 424316-3	£4.06	£4.87
69 - PIPE ER2650LH/EY2650H/EN4951S MSP-422099-9.A10 422099-9	£5.92	£7.11
70 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A10 325665-0	£1.44	£1.73
71 - CARBURETOR GASKET ER2650/MS248 MSP-442153-3.A6 442153-3	£1.44	£1.73
72 - H.S.H BOLT M5X18 ER2650LH/EH5 MSP-266787-6.A30 266787-6	£1.44	£1.73
73 - CLAMP ER2650/EM2651/EN4951 MSP-451825-9.A11 451825-9	£1.44	£1.73
74 - INSULATOR ER2650/EM2651/MS248 MSP-451729-5.A5 451729-5	£2.81	£3.37
75 - O-RING 12 ER2650/EM2651/MS248 MSP-213547-7.A1 213547-7	£1.44	£1.73
76 - BREATHER PIPE EX2650LH/EY2650 MSP-422109-2.A1 422109-2	£7.02	£8.42
77 - HOSE CLAMP ER2550/2650/EM2511 MSP-345918-1.A2 345918-1	£1.44	£1.73
78 - ROCKER COVER OUTER ER2650LH MSP-318745-9.A6 318745-9	£3.74	£4.49
79 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A37 922222-1	£1.44	£1.73
80 - ROCKER COVER INNER ER2650LH MSP-453860-3.A1 453860-3	£1.44	£1.73
81 - ROCKER COVER GASKET ER2650LH MSP-162304-9.A2 162304-9	£1.44	£1.73
82 - PLUG CAP ER2650/2651/EN4951 MSP-424302-4.A11 424302-4	£2.81	£3.37
83 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A31 324891-8	£1.44	£1.73
84 - SPARK PLUG ER2650LH/EBH341L&U MSP-168534-0.A11 168534-0	£9.36	£11.23
85 - ROCKET ARM ASSY ER2550LH/EM26 MSP-125554-7.A11 125554-7	£4.68	£5.62
86 - PIN 5 ER2650LH/2704/EBH/BHX25 MSP-256200-2.A4 256200-2	£1.44	£1.73
87 - ROD 2.5 ER2650/EM2651/EN4951 MSP-256865-0.A3 256865-0	£1.44	£1.73
88 - SPRING RETAINER ER2650L/EBH25 MSP-325668-4.A9 325668-4	£1.44	£1.73
89 - CLUTCH CASE ER2650LH/EM2651LH MSP-451735-0.A5 451735-0	£10.30	£12.36
90 - HEX BOLT M5X18 DUR188L MSP-922228-9.A48 922228-9	£1.44	£1.73
91-1 - SPACER ER2650LH/EM2651LH/EBH2 MSP-450569-8.A5 450569-8	£1.44	£1.73
91 - SPACER ER2650LH/EM2651LH/EBH2 MSP-450569-8.A22 450569-8	£1.44	£1.73
92 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A71 961052-5	£1.44	£1.73
93 - BALL BEARING 6201LLU ER2650LH MSP-210111-5.A4 210111-5	£5.46	£6.55
94 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A7 962151-6	£1.44	£1.73
95 - CLUTCH DRUM EX2650LH MSP-165704-2.A1 165704-2	£24.48	£29.38
96-1 - SHOULDER HEX BOLT M6X25EM2651 MSP-266864-4.A5 266864-4	£1.44	£1.73
97 - WASHER 8 ER2650LH/EBH253U/ER2 MSP-267817-6.A17 267817-6	£1.44	£1.73
98 - CLUTCH ASSY ER2650LH/EY2650H MSP-126135-0.A4 126135-0	£20.30	£24.36
99-1 - CLUTCH SHOE EN4951SH/CS246.4 MSP-161332-1.A8 161332-1	£5.62	£6.74
100 - TENSION SPRING 7 ER2650/CS246 MSP-231881-3.A3 231881-3	£3.74	£4.49
101 - WASHER 6 ER2650/EBH253/EN4951 MSP-267812-6.A12 267812-6	£1.44	£1.73
102 - SPRING HEX NUT M8-13/EY2650H MSP-264039-9.A6 264039-9	£1.44	£1.73
102-1 - SPRING HEX NUT M8-13/EY2650H MSP-264039-9.A17 264039-9	£1.44	£1.73
103 - FLYWHEEL EM2651/ER2650/EN4951 MSP-318569-3.A1 318569-3	£19.58	£23.50
104 - TUBE EM2651LH/ER2650LH/EY2650H MSP-444021-6.A7 444021-6	£1.20	£1.44
105 - HEX SOCKET HD BOLT M4X2 EM265 MSP-266602-4.A11 266602-4	£1.44	£1.73
106 - SPACER EM2651/ER2650/EN4951 MSP-452049-0.A8 452049-0	£1.44	£1.73
107 - IGNITION COIL ER2650/EN4951 MSP-168559-4.A3 168559-4	£34.99	£41.99
108 - PIN 5 ER2650/EBH/BHX/EM2511 MSP-268238-5.A19 268238-5	£1.44	£1.73
109 - CAM GEAR ASSY EM2651LH/ER2650 MSP-125552-1.A14 125552-1	£12.32	£14.79
110 - CAM LIFTER ER2650LH/EM2651LH MSP-313169-4.A2 313169-4	£3.59	£4.31
112 - PIN 4 ER2650LH/EBH/BHX2501 MSP-268239-3.A1 268239-3	£1.44	£1.73
113 - CAM GEAR COVER GASKET ER2650L MSP-162274-2.A5 162274-2	£2.18	£2.62
114 - CAMGEAR COVERER2550/ER2650LH MSP-318443-5.A5 318443-5	£4.21	£5.05
115 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A34 922222-1	£1.44	£1.73
116-1 - CYLINDER BLOCK ASSY ER2650LH MSP-135478-9.A8 135478-9	£140.04	£168.05
116 - CYLINDER BLOCK ASSY ER2650LH MSP-135478-9.A9 135478-9	£140.04	£168.05
117 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A35 922222-1	£1.44	£1.73
118 - CHECK VALVE ER2650LH/EBH251L MSP-424201-0.A1 424201-0	£1.44	£1.73
119 - MUFFLER GASKET ER2650/EN4951 MSP-346331-6.A8 346331-6	£5.15	£6.18
120 - EXHAUST MUFFLER ER2650LH/EM MSP-168554-4.A5 168554-4	£8.89	£10.67
121 - HEX SOCKET HD BOLT M5X40 BHX2 MSP-266440-4.A4 266440-4	£1.44	£1.73
122 - PULLEY ER2550/BHX2501/ER2650L MSP-168483-1.A0 168483-1	£1.44	£1.73
123 - MUFFLER PLATE EM2651LH/ER2650 MSP-451731-8.A5 451731-8	£1.44	£1.73
124 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A57 922218-2	£1.44	£1.73
125 - LEAD UNIT EM2651/ER2650/MS248 MSP-638707-4.A4 638707-4	£1.44	£1.73
126 - LEAD UNIT EM2651/ER2650/MS248 MSP-638708-2.A4 638708-2	£4.06	£4.87
128 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A56 922218-2	£1.44	£1.73
129 - CYLINER COVER EM2651LH/ER2650 MSP-453266-5.A2 453266-5	£7.18	£8.61
130 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A55 922218-2	£1.44	£1.73
131 - BUFFER RUBBER ER2650LH/RBC260 MSP-424082-2.A2 424082-2	£1.44	£1.73
132 - HS HEAD BOLT M5X12 EM2651LH MSP-922211-6.A6 922211-6	£1.44	£1.73
133 - HEX SOCKET HD BOLT M5X18 EBH2 MSP-922226-3.A37 922226-3	£1.44	£1.73
134 - PIPE HOLDER ER2650LH/RBC260L/ MSP-318249-1.A6 318249-1	£3.28	£3.93
135 - PIPE HOLDER ER2650LH/RBC260L/ MSP-318250-6.A2 318250-6	£3.59	£4.31
136 - BUFFER RUBBER ER2650LH/EM2651 MSP-424083-0.A6 424083-0	£1.44	£1.73
137 - SPACKER ER2650/EM2651/EN4951 MSP-424200-2.A18 424200-2	£1.44	£1.73
138 - COMPRESSION SPRING 9 ER2550 MSP-234108-0.A7 234108-0	£1.44	£1.73
140-1 - EXHAUST VALVE ER2650LH/EM2651 MSP-326366-3.A6 326366-3	£1.44	£1.73
140 - *EXHAUST VALVE ER2650LH/EM265 MSP-325669-2.A5 325669-2	-
143-1 - INTAKE VALVE ER2650LH/BHX2501 MSP-326367-1.A8 326367-1	£4.68	£5.62
144-1 - PISTON RING SET EN4951/CS246.4 MSP-195145-8.A7 195145-8	£15.91	£19.09
147 - PISTON ER2650/EM2651//EN4951 MSP-318441-9.A6 318441-9	£7.80	£9.36
148 - WOODRUFF KEY 3 ER2650LH/EM265 MSP-254040-2.A17 254040-2	£4.06	£4.87
149 - *CRANK SHAFT ASSY ER2650LH/EM MSP-135481-0.A4 135481-0	£82.91	£99.49
149-2 - *CRANK SHAFT ASSY EN4950/4951 MSP-126359-8.A6 126359-8	£56.50	£67.80
149-3 - CRANK SHAFT ASSY EM2654LH MSP-123774-7.A6 123774-7	£44.19	£53.03
150-2 - OIL SEAL 10 UK360D/ER2650LH MSP-213769-9.A5 213769-9	£3.59	£4.31
150 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A24 213148-1	£2.81	£3.37
150-1 - OIL SEAL 10 BHX2500 2501 MSP-213148-1.A27 213148-1	£2.81	£3.37
151 - FLAT WASHER 23 ER2650LH/EM265 MSP-267400-9.A11 267400-9	£1.44	£1.73
151-1 - FLAT WASHER 23 ER2650LH/EM265 MSP-267400-9.A18 267400-9	£1.44	£1.73
152 - OIL SEAL 12 BHX2500 2501 MSP-213147-3.A13 213147-3	£2.34	£2.81
152-1 - OIL SEAL 12 BHX2500 2501 MSP-213147-3.A18 213147-3	£2.34	£2.81
152-2 - OIL SEAL 12 EM2653/EM2654/MS MSP-213089-1.A2 213089-1	£3.90	£4.68
153 - PISTON PINT ER2650LH/EM2651LH MSP-257781-9.A5 257781-9	£1.44	£1.73
154 - CLIP ER2650LH/EM2651LH/EBH253 MSP-233976-8.A29 233976-8	£1.44	£1.73
155 - OIL CASE GASKET ER2650/EN4951 MSP-162345-5.A3 162345-5	£3.70	£4.44
156 - LEAD VALVE ER2650LH/EM2651LH MSP-346083-9.A17 346083-9	£2.02	£2.43
157 - RETAINER PLATE ER2650/EN4951 MSP-318910-0.A8 318910-0	£2.02	£2.43
158 - CAP HD SCREW M4X10 BHX2501/43 MSP-922112-8.A33 922112-8	£1.44	£1.73
159 - OIL CASE EM2651/ER2650/EN4951 MSP-318588-9.A7 318588-9	£24.48	£29.38
160 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A36 922222-1	£1.44	£1.73
161 - DAMPER EM2651/ER2650/EN4951 MSP-424344-8.A1 424344-8	£1.44	£1.73
162 - GASKET EM2651/ER2650/EN4951 MSP-346305-7.A3 346305-7	£1.44	£1.73
163 - HEX BOLT M6X8 EM2651LH/ER2650 MSP-266611-3.A3 266611-3	£1.44	£1.73
164 - O-RING 20 EM2651/ER2650/MS248 MSP-213548-5.A6 213548-5	£1.44	£1.73
165 - JOINT PIPE ER2650LH/EM2651LH MSP-325665-0.A11 325665-0	£1.44	£1.73
166 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A27 282020-8	£1.44	£1.73
166-1 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A44 282020-8	£1.44	£1.73
167 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A12 325666-8	£1.44	£1.73
167-1 - OIL WEIGHT ER2650LH/EBH253L MSP-325666-8.A25 325666-8	£1.44	£1.73
168-1 - OIL TUBE EM2651LH/ER2650/MS248 MSP-424301-6.A0 424301-6	£2.08	£2.50
168-1 - OIL TUBE ASSY EM4350R/CS246.4 MSP-125805-8.A8 125805-8	£6.24	£7.49
168 - OIL TUBE EM2651LH/ER2650/MS248 MSP-424301-6.A1 424301-6	£2.08	£2.50
169 - OIL CAP ER2650/EM2651/EN4951 MSP-452047-4.A8 452047-4	£2.57	£3.08
170 - GASKET ER2650LH/EM2651LH/BHX2 MSP-424343-0.A11 424343-0	£1.44	£1.73
171 - OIL PIPE ER2650LH/EM2651/MS248 MSP-452048-2.A3 452048-2	£1.80	£2.16
172 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A53 922218-2	£1.44	£1.73
173 - FUEL TANK CAP ASSY ER2650LH MSP-125728-0.A1 125728-0	£14.20	£17.04
175 - TUBE ER26050/EM2651/MS248 MSP-168755-4.A8 168755-4	£6.40	£7.68
176 - HOSE CLAMP ER26/EM26/EA3601 MSP-282020-8.A14 282020-8	£1.44	£1.73
177 - FUEL FILTER EM2651LH/ER2650LH MSP-163518-3.A2 163518-3	£3.88	£4.65
178 - FUEL TANK EM2651/ER2650/MS248 MSP-451736-8.A4 451736-8	£11.70	£14.04
179 - BUFFER RUBBER ER2650LH/DBC260 MSP-424080-6.A2 424080-6	£1.44	£1.73
180 - BUFFER RUBBER ER2650LH/RBX260 MSP-424081-4.A9 424081-4	£1.44	£1.73
181 - TANK GUARD EM2651/ER2650/MS248 MSP-451737-6.A4 451737-6	£1.44	£1.73
182 - HEX BOLT M5X14 ER2550/EBH341U MSP-922218-2.A54 922218-2	£1.44	£1.73
183 - RECOIL STARTER SET ER2650LH MSP-195308-6.A4 195308-6	£40.03	£48.04
184 - STARTER KNOB ER2650LH/EM2651L MSP-424319-7.A22 424319-7	£2.34	£2.81
185 - DAMPER EM2651/ER2650/EN4951 MSP-424359-5.A10 424359-5	£1.44	£1.73
187 - TAPPING SCREW M5X12 ER2650LH MSP-266585-8.A18 266585-8	£1.44	£1.73
188 - SWING ARM ER2650/ER2550/CS246 MSP-325923-4.A13 325923-4	£1.44	£1.73
189 - COLLAR ER2650LH/ER2550/EY2650 MSP-451938-6.A4 451938-6	£1.44	£1.73
190 - REEL ER2550/BHX2501/ER2650LH MSP-451937-8.A7 451937-8	£5.46	£6.55
191 - SPRIAL SPRING ER2650LH/EM2651 MSP-232258-5.A2 232258-5	£9.98	£11.98
192 - STARTER ROPE ER2650LH/EY2650H MSP-444023-2.A4 444023-2	£10.14	£12.17
193 - STARTER CASE ER2650LH/EY2650H MSP-451733-4.A2 451733-4	£26.92	£32.31
194 - HSH BOLT M5X16 BHX2501/EBH251 MSP-922223-9.A1 922223-9	£1.44	£1.73
196 - LABEL/MAKITA LOGO ER2650LH MSP-816565-0.A4 816565-0	£1.44	£1.73
197 - CARBRETTOR EX2650/EY2650/MS248 MSP-168762-7.A0 168762-7	£69.30	£83.16
198 - SWIVEL ER2650LH/341U/BHX2501 MSP-325922-6.A6 325922-6	£5.46	£6.55
199 - WASHER ER2650LH/BHX2501/ER25 MSP-413140-9.A14 413140-9	£1.44	£1.73
200-1 - SCREW DCS230T/EN4951SH/CS246.4 MSP-WJ00096364.A20 WJ00096364	£2.34	£2.81
200 - PAN HD SCREW M3X8 ER2650LH/E MSP-266581-6.A6 266581-6	£1.44	£1.73
201 - SROP RING E-3 ER2650LH/BHX250 MSP-257964-1.A37 257964-1	£2.81	£3.37
202 - O RING 2 ER2650LH/EBH253L/341 MSP-213538-8.A30 213538-8	£3.59	£4.31
203 - JET ER2650/EY2650/EN4951/MS248 MSP-325985-2.A4 325985-2	£8.73	£10.48
204 - CONICAL SPRING 5-9ER2650 MSP-234183-6.A16 234183-6	£3.28	£3.93
205 - PUMP GASKET ER2650LH/BHX2501 MSP-442155-9.A22 442155-9	£2.97	£3.56
206-1 - PUMP DIAPHRAGM DCS230T/EB7600T MSP-DA00001144.A26 DA00001144	£14.21	£17.05
207 - PUMP BODY EX2650/EY2650/MS248 MSP-141737-1.A5 141737-1	£24.48	£29.38
208 - INLET SCREEN EN4950SH/EY2650H MSP-352021-1.A2 352021-1	£2.02	£2.43
209 - METERING DIAPHRAGM GASET EBH MSP-442154-1.A2 442154-1	£3.59	£4.31
210 - METERING DIAPHRAGM ER2650LH MSP-168620-7.A4 168620-7	£18.72	£22.47
211 - CAM GEAR COVER GASKET ER2650L MSP-140438-8.A6 140438-8	£2.18	£2.62
212 - PRIMER PUMP ER2650LH/BHX2501 MSP-424314-7.A4 424314-7	£4.83	£5.80
213 - PRIMER PUMP COVER ER265/EM2511 MSP-346270-0.A12 346270-0	£4.83	£5.80
214 - TAPPING SREW M3X24 ER2550/EBH MSP-266582-4.A24 266582-4	£1.44	£1.73
215 - CAUTION PLATE ER2650LH/EM2651 MSP-810455-9.A3 810455-9	£1.44	£1.73
216 - LABEL/INDICATION EX2650/CS246 MSP-800F73-7.A5 800F73-7	£1.44	£1.73
217 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A32 941152-7	£1.44	£1.73
223 - TAPPING SCREW 4X12 ER2650LH MSP-266427-6.A11 266427-6	£1.44	£1.73
224 - CHOKE PLATE ER2650LH/EY2650H MSP-452219-1.A2 452219-1	£1.44	£1.73
231 - CHOKE LEVER ER2650LH/EY2650H MSP-452220-6.A6 452220-6	£2.18	£2.62
232 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A60 266007-8	£1.44	£1.73
233 - SEPARATOR MESH ER2650/EN4951 MSP-352020-3.A9 352020-3	£4.83	£5.80
234 - SEPARATOR CASE ER2650/EN4951 MSP-453865-3.A11 453865-3	£2.97	£3.56
236 - *SHORT BLOCK ASSY EM2651/ER26 MSP-135599-7.A3 135599-7	£171.24	£205.49
236-1 - SHORT BLOCK ASSY EM2651/ER265 MSP-135668-4.A4 135668-4	£157.08	£188.50
A01 - BAND ASSY DUR365/AT1827H/MS248 MSP-125516-5.A10 125516-5	£3.48	£4.17
A03 - LOOP HANDLE SET BUX360/CS246 MSP-195515-1.A9 195515-1	£15.07	£18.08
A03 - CLAMP COVER A BUX360Z/CS246.4 MSP-452842-2.A1 452842-2	£5.78	£6.93
A03 - H.S.H BOLT M5X25 BUX360/CS246 MSP-922244-1.A9 922244-1	£1.44	£1.73
A03 - CLAMP 24 EM2511/EM2654/EM2511 MSP-347094-7.A19 347094-7	£1.44	£1.73
A02-1 - OIL SET EBH252/EM2651/EN4950 MSP-197007-6.A4 197007-6	£4.32	£5.19
A03 - *CLAMP 24 ER2650LH/ER2550/BUR3 MSP-346467-1.A3 346467-1	£1.44	£1.73
A03 - CLAMP 33 ER2650LH/2550/BUR360 MSP-346468-9.A15 346468-9	£1.44	£1.73
A04 - BOX DRIVER 16-17 EBH253L/2651 MSP-783013-3.A3 783013-3	£2.93	£3.52
A05 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A87 783202-0	£1.20	£1.44
A06 - ACCESSORY BAG ER2650LH/EBH34 MSP-831304-7.A0 831304-7	£2.32	£2.78
A07 - CUTTER ASSY EM400 MSP-122936-4 122936-4	£22.32	£26.79
A09 - HEX WRENCH 5 EBH341U/EBH253L MSP-783217-7.A10 783217-7	£1.20	£1.44
A10 - TOOL BAG EX2650L MSP-195638-5 195638-5	£53.53	£64.24

Attribute Name	Value
Brand	Makita

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Makita EX2650LHM Multi Function Power Head Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
