Makita CC301DWAE Cordless Cutter Spare Parts

Home Details Reviews Delivery

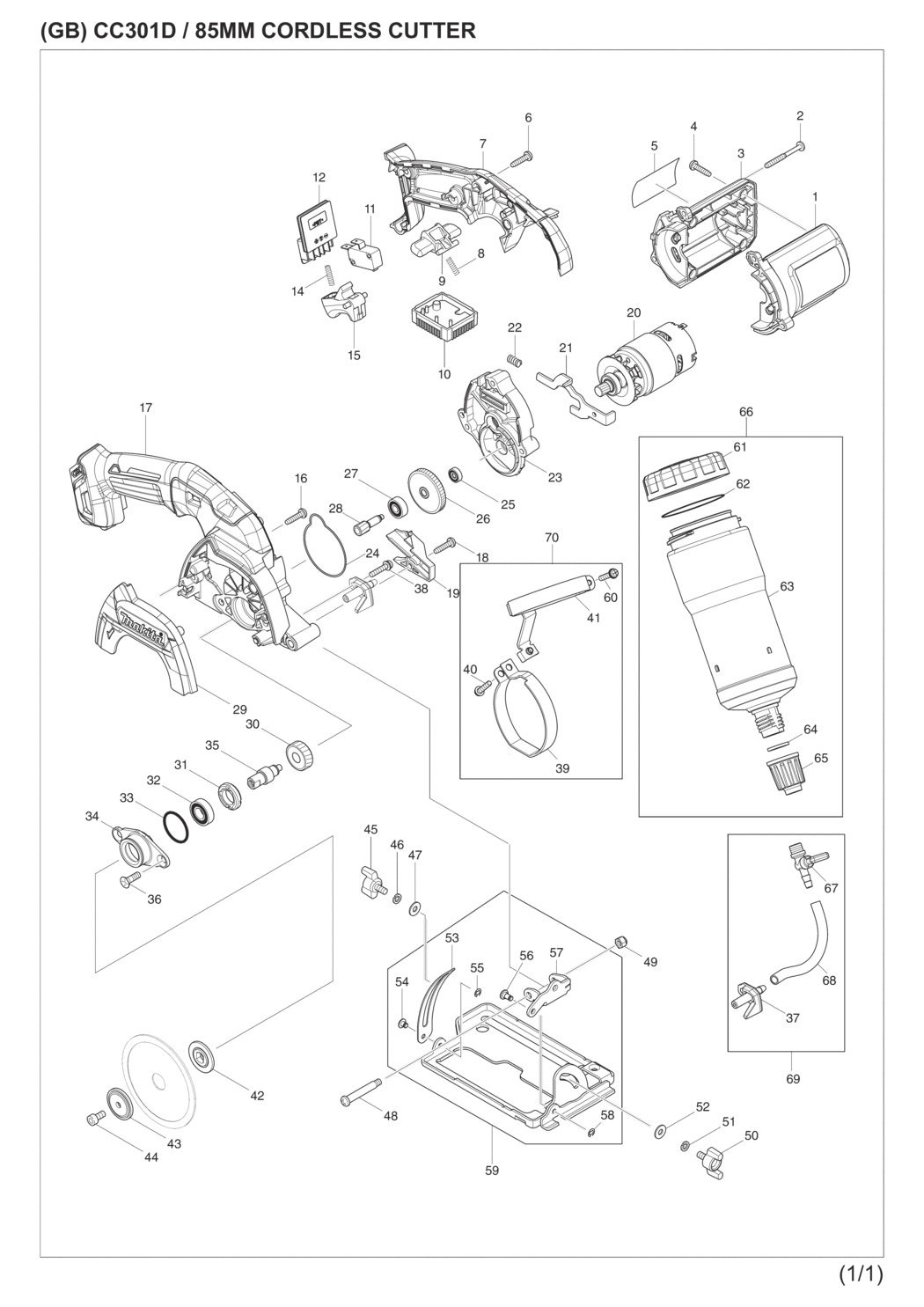

An exploded drawing and spare parts listing for the Makita CC301DWAE Cordless Cutter

	Ex VAT	Inc VAT
1 - MOTOR HOUSING SET CC300D/HS30 MSP-188941-1.A14 188941-1	£3.90	£4.68
2 - TAPPING SCREW 4X40 CC300D MSP-266560-4.A16 266560-4	£1.66	£1.99
3 - MOTOR HOUSING SET CC300D/HS30 MSP-188941-1.A15 188941-1	£3.90	£4.68
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1199 265995-6	£1.66	£1.99
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1250 265995-6	£1.66	£1.99
7 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A62 931202-6	£1.66	£1.99
7 - HEX FULL NUT M4 DUR181/ML123 MSP-931102-0.A19 931102-0	£1.66	£1.99
7 - HANDLE SET CC300D/CC301D MSP-183D87-2.A0 183D87-2	£14.19	£17.03
7 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A319 263002-9	£1.66	£1.99
8 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A34 231469-9	£1.66	£1.99
9 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A16 419664-3	£1.66	£1.99
10 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A54 688165-4	£1.66	£1.99
10 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A33 688161-2	£1.66	£1.99
10 - CONTROLLER UNIT HS301D/HS301 MSP-632F49-4.A3 632F49-4	£27.94	£33.53
10-1 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A34 688161-2	£1.66	£1.99
10-1 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A53 688165-4	£1.66	£1.99
11 - SWITCH SD-006-BB2AA-AA UC4020 MSP-650577-1.A9 650577-1	£2.49	£2.99
12 - TERMINAL DF331/HP331/TD110D MSP-644813-5.A40 644813-5	£2.49	£2.99
14 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A35 231469-9	£1.66	£1.99
15 - SWITCH LEVER BHS630/DCS550/DK MSP-419665-1.A12 419665-1	£1.66	£1.99
16 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A87 265995-6	£1.66	£1.99
17 - HEX FULL NUT M4 DUR181/ML123 MSP-931102-0.A56 931102-0	£1.66	£1.99
17 - HANDLE SET CC300D/CC301D MSP-183D87-2.A1 183D87-2	£14.19	£17.03
17 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A27 931202-6	£1.66	£1.99
17 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A320 263002-9	£1.66	£1.99
18 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A86 265995-6	£1.66	£1.99
19 - DUCT CC300D/HS300D/HS301 MSP-452234-5.A8 452234-5	£1.66	£1.99
20 - DC MOTOR CC300D/HS300D/HS301 MSP-629885-1.A7 629885-1	£31.13	£37.36
21 - SHAFT LOCK CC300D/HS300D MSP-346337-4.A4 346337-4	£1.66	£1.99
22 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A29 233117-6	£1.66	£1.99
23 - GEAR HOUSING CC300D/HS30 MSP-140625-9.A6 140625-9	£2.49	£2.99
23 - O RING 19 CC300/CC301 MSP-213325-5.A6 213325-5	£1.66	£1.99
24 - PACKING CC300D/HS300D/HS301 MSP-424358-7.A4 424358-7	£1.66	£1.99
25 - BALL BEARING 604ZZ CC300D/BCS MSP-210036-3.A0 210036-3	£2.49	£2.99
26 - HELICAL GEAR 47 CC300D/HS300D MSP-227737-6.A8 227737-6	£3.90	£4.68
27 - BALL BEARING 606ZZ MT431/CC30 MSP-210028-2.A18 210028-2	£2.49	£2.99
28 - HELICAL GEAR 9B HS300D/CC300D MSP-227735-0.A8 227735-0	£3.38	£4.06
29 - BLADE COVER CC301D MSP-456906-4.A1 456906-4	£2.49	£2.99
30 - HELICAL GEAR 28 HS300D/CC300D MSP-227736-8.A0 227736-8	£2.49	£2.99
31 - BEARING RETAINER 14-23 BHS630 MSP-285847-5.A3 285847-5	£3.90	£4.68
32 - BALL BEARING 6900DDW BHS630 MSP-210069-8.A9 210069-8	£5.46	£6.55
33 - O RING 26 CC300D/HR3000/BSS50 MSP-213435-8.A1 213435-8	£1.66	£1.99
34 - BEARING BOX HS300D/CC300D MSP-318660-7.A7 318660-7	£2.49	£2.99
35 - SPINDLE HS300D/CC300D/HS301 MSP-325983-6.A4 325983-6	£2.49	£2.99
36 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A25 265034-2	£1.66	£1.99
37 - NOZZLE CC300D MSP-453555-8.A0 453555-8	£2.49	£2.99
38 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A52 911138-5	£1.66	£1.99
40 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A53 911138-5	£1.66	£1.99
42 - INNER FLANGE HS300D/CC300D MSP-224435-3.A4 224435-3	£2.49	£2.99
43 - OUTER FLANGE 28 CC300D/5093DW MSP-224177-9.A9 224177-9	£1.66	£1.99
44 - CAP HD SCREW M5X12 AN620/CC30 MSP-922212-4.A6 922212-4	£1.66	£1.99
45 - THUMB SCREW M5X10 CC300D MSP-265760-3.A3 265760-3	£1.66	£1.99
46 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A16 253427-5	£1.66	£1.99
47 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A48 941101-4	£1.66	£1.99
48 - SHOULDER SCREW M5 CC300D/BSS5 MSP-265056-2.A0 265056-2	£1.66	£1.99
49 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A51 252103-8	£1.66	£1.99
50 - THUMB SCREW M5X10 CC300D MSP-265760-3.A2 265760-3	£1.66	£1.99
51 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A15 253427-5	£1.66	£1.99
52 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A49 941101-4	£1.66	£1.99
54 - CLEVIS PIN 4 5093D/HS301 MSP-268004-0.A8 268004-0	£2.49	£2.99
55 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A9 961017-7	£1.66	£1.99
56 - CLEVIS PIN 5 5093D/HS301 MSP-268028-6.A7 268028-6	£2.49	£2.99
58 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A8 961017-7	£1.66	£1.99
59 - BASE ASSY CC301D/CC301D MSP-135503-6.A3 135503-6	£11.99	£14.39
60 - PAN HD SCREW M4X20 9032/LS081 MSP-911138-5.A12 911138-5	£1.66	£1.99
61 - CAP B CC300D MSP-453557-4.A3 453557-4	£2.49	£2.99
62 - O RING 50 AN901 CC300D/CC301 MSP-213605-9.A1 213605-9	£1.66	£1.99
64 - RUBBER WASHER CC300D/4103DW MSP-261056-0.A4 261056-0	£1.66	£1.99
66 - WATER SUPPLY TANK SET CC300D MSP-187277-5.A2 187277-5	£6.76	£8.11
67 - WATER SUPPY COCK CPL CC300D MSP-152536-6.A2 152536-6	£4.07	£4.88
68 - VINYL TUBE 5 CC300D MSP-412107-4.A3 412107-4	£1.66	£1.99
69 - WATER SUPPLY COCK SET CC300D MSP-187278-3.A1 187278-3	£7.02	£8.42
70 - TANK HOLDER SET CC300/CC301D MSP-187276-7.A1 187276-7	£6.50	£7.80
A01 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A49 783202-0	£1.20	£1.44
A02 - DIAMOND WHEEL 85X15 CC300D MSP-B-21098.A6 B-21098	£32.83	£39.40
A03 - BATTERY COVER DF&HP331/TD110D MSP-456128-6.A0 456128-6	£1.66	£1.99
A04-1 - DC10WD LI-ION CHARGER 197371-5 MSP-*DC10WD.A4 *DC10WD	-
A05-1 - BATTERY SET BL1021B MSP-197396-9.A8 197396-9	£80.34	£96.41
