Makita HK0500 Power Scraper Spare Parts

Home Details Reviews Delivery

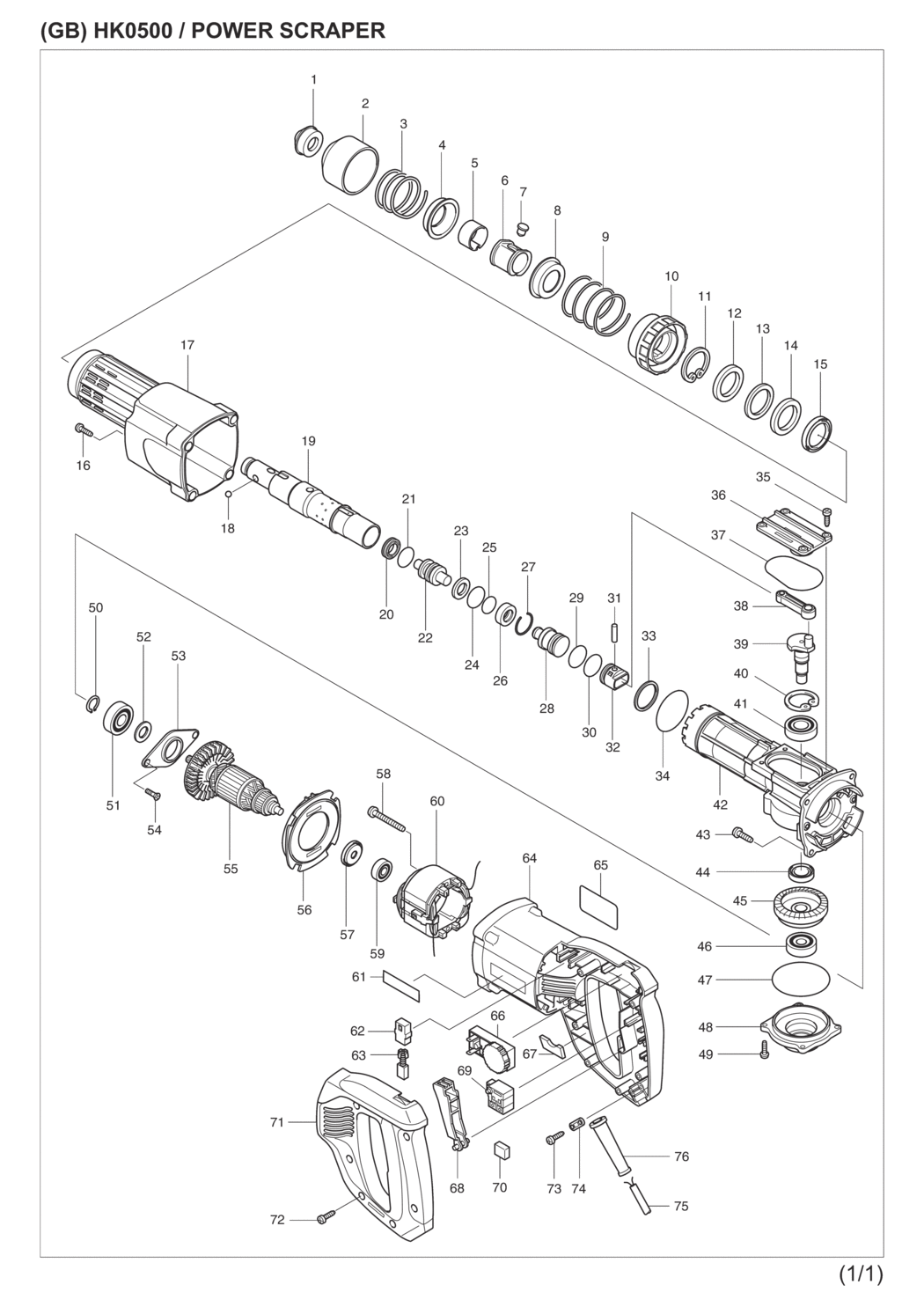

An exploded drawing and spare parts listing for the Makita HK0500 Power Scraper

	Ex VAT	Inc VAT
1-1 - CAP 31 HR160DW/HR2410/2420 MSP-286265-0.A5 286265-0	£1.66	£1.99
2 - CHUCK COVER HK0500 MSP-416729-2 416729-2	£2.49	£2.99
3 - COMPRESSION SPRING 38 HR160DW MSP-233203-3.A7 233203-3	£1.66	£1.99
4 - SPRING GUIDE HK0500 MSP-344691-0.A0 344691-0	£1.66	£1.99
5 - LEAF SPRING 26 HK0500/HR2400/ MSP-232192-9 232192-9	£2.49	£2.99
6 - CHUCK RING HR160DW MSP-323724-4 323724-4	£14.30	£17.16
7 - PIN 8 HR160DW/2410/HR3000C MSP-256447-8.A6 256447-8	£2.49	£2.99
8 - SPRING GUIDE HK0500 MSP-344691-0.A1 344691-0	£1.66	£1.99
9 - COMPRESSION SPRING 38 HK0500 MSP-233238-4 233238-4	£1.66	£1.99
10 - CHANGE RING HK0500 MSP-416733-1 416733-1	£2.49	£2.99
11 - RETAINING RING HK0500 MSP-962156-6 962156-6	£1.66	£1.99
12 - RING 27 HK0500 MSP-257218-6.A0 257218-6	£5.98	£7.18
13 - URETHANE WASHER HK0500 MSP-261113-4 261113-4	£3.25	£3.90
14 - RING 27 HK0500 MSP-257218-6.A1 257218-6	£5.98	£7.18
15 - OIL SEAL 30 HK0500 MSP-213433-2 213433-2	£2.49	£2.99
16 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A808 265995-6	£1.66	£1.99
17 - CRANK HOUSING COVER HK0500 MSP-416734-9 416734-9	£11.18	£13.42
18 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A99 216022-2	£1.66	£1.99
19-1 - TOOL HOLDER HK0500 MSP-324063-5 324063-5	£69.77	£83.72
20 - X RING 13 HK0500 MSP-213173-2 213173-2	£3.25	£3.90
21 - O RING 16 HR1800/HR160DWH/HR MSP-213214-4.A0 213214-4	£2.49	£2.99
22-1 - IMPACT BOLT HK0500 MSP-324012-2 324012-2	£9.23	£11.08
24 - O RING 14 HK0500 MSP-213175-8 213175-8	£1.66	£1.99
25 - O RING 11 HR2410/HR2420/HR1840 MSP-213117-2.A6 213117-2	£2.49	£2.99
26 - O RING CASE HK0500/BHR200S MSP-323846-0.A6 323846-0	£2.49	£2.99
27 - RING SPRING 32 HK0500/BHR200S MSP-231987-7.A0 231987-7	£1.66	£1.99
28 - STRIKER HK0500 MSP-323848-6 323848-6	£4.81	£5.77
29 - O RING 16 HK0500/HR2450/2432 MSP-213227-5.A46 213227-5	£1.66	£1.99
30 - O RING 16 HK0500/HR2450/2432 MSP-213227-5.A47 213227-5	£1.66	£1.99
31 - PIN 5 BLS710/HR1800/BUC250 MSP-256123-4.A5 256123-4	£1.66	£1.99
32 - PISTON HK0500 MSP-416726-8 416726-8	£2.49	£2.99
33 - NARROW BLUE WASHER 27 HR2410 MSP-267129-7.A2 267129-7	£1.66	£1.99
34 - O RING 44 HS6100/7100/BSS500 MSP-213560-5.A8 213560-5	£1.66	£1.99
35 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A37 266034-5	£1.66	£1.99
36 - CRANK CAP HK0500 MSP-416732-3 416732-3	£2.49	£2.99
37 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A17 213656-2	£2.49	£2.99
38 - ROD HK0500 MSP-416727-6 416727-6	£1.66	£1.99
39 - CRANK SHAFT HK0500 MSP-323826-6 323826-6	£11.18	£13.42
40 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A22 962151-6	£1.66	£1.99
41 - BALL BEARING 6002LLU HK1800 MSP-211232-6.A4 211232-6	£4.94	£5.93
42 - CRANK HOUSING HK0500 MSP-151543-6 151543-6	£34.98	£41.98
42 - SLEEVE 27 HK0500 MSP-262079-1 262079-1	£1.66	£1.99
43 - PT SCREW 5X20 HM1303 MSP-266021-4.A16 266021-4	£1.66	£1.99
44 - OIL SEAL 15 HK1800/HK1820L MSP-213219-4.A2 213219-4	£3.38	£4.06
45 - SPIRAL BEVAL GEAR 41 HK0500 MSP-226779-7 226779-7	£19.25	£23.10
46 - BALL BEARING 6200LLB MSP-211066-7.A13 211066-7	£4.94	£5.93
47-1 - O RING 55 HR5000K/HK0500 MSP-213663-5.A0 213663-5	£2.49	£2.99
47 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A18 213656-2	£2.49	£2.99
48 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A12 263002-9	£1.66	£1.99
48 - GEAR COVER CO HK0500 MSP-151579-5 151579-5	£3.38	£4.06
49 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A38 266034-5	£1.66	£1.99
50 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A0 961052-5	£1.66	£1.99
51 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A42 211129-9	£8.45	£10.14
52 - WASHER 12 9035SB MSP-253069-5.A2 253069-5	£1.66	£1.99
53 - BEARING RETAINER HK0500 MSP-285690-2 285690-2	£2.49	£2.99
54 - COUNTERSUNK HEAD SCREW M4X12 MSP-251304-5.A1 251304-5	£1.66	£1.99
55 - ARMATURE ASSY 110V HK0500 MSP-518625-1 518625-1	£49.94	£59.93
55A - ARMATURE ASSY 240V HK0500 MSP-516359-0 516359-0	£49.94	£59.93
56 - BAFFLE PLATE HK0500 MSP-416730-7 416730-7	£1.66	£1.99
57 - INSULATED WASHER GA5020/GA501 MSP-681644-1.A11 681644-1	£1.66	£1.99
58 - PT SCREW 5X40 M6600 MSP-266211-9.A2 266211-9	£1.66	£1.99
59 - BALL BEARING 608DDW GA5020 MSP-210005-4.A42 210005-4	£7.02	£8.42
60A - FIELD ASSY 240V HK0500 MSP-594319-2 594319-2	£12.61	£15.13
60 - RECEPTACLE KP0810C/KP0810/UM1 MSP-654069-2.A32 654069-2	£1.66	£1.99
60A - RECEPTACLE KP0810C/KP0810/UM1 MSP-654069-2.A33 654069-2	£1.66	£1.99
60 - FIELD ASSY 110V HK0500 MSP-599010-7 599010-7	£12.61	£15.13
61 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A66 819063-3	£1.66	£1.99
62 - BRUSH HOLDER HR2000 MSP-643605-9.A0 643605-9	£1.66	£1.99
63 - CARBON BRUSH/AUTO CUT CB-113 MSP-191904-8 191904-8	£5.98	£7.18
64 - MOTOR HOUSING HK0500 MSP-416736-5 416736-5	£15.51	£18.61
65 - NAME PLATE HK0500 MSP-851374-0 851374-0	£1.66	£1.99
66 - CONTROLLER 110V HK0500 MSP-631290-0 631290-0	£21.12	£25.34
66A - CONTROLLER 240V HK0500 MSP-631291-8 631291-8	£21.12	£25.34
67 - SPONGE SHEET HK0500 MSP-423308-9 423308-9	£1.66	£1.99
68 - SWITCH LEVER HK0500 MSP-416728-4 416728-4	£1.66	£1.99
69 - SWITCH SINGLE HK0500 MSP-651969-7 651969-7	£7.28	£8.74
70 - NOISE SUPPRESSOR 110V MSP-645253-0.A52 645253-0	£4.16	£4.99
70A - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A96 645141-1	£1.66	£1.99
71 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A13 263002-9	£1.66	£1.99
71 - HANDLE COVER CO HK0500 MSP-151544-4 151544-4	£8.32	£9.98
72 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1195 265995-6	£1.66	£1.99
73 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1254 265995-6	£1.66	£1.99
74C - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A42 687063-9	£1.66	£1.99
74C1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A86 687052-4	£1.66	£1.99
75A - POWER SUPPLY CORD 1.00-2-5.0 MSP-692541-6.A7 692541-6	£21.01	£25.21
76 - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A29 682540-6	£1.66	£1.99
76-1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A16 682505-8	£1.66	£1.99
77 - RING SPRING 19 HR160DW/HR2420 MSP-231979-6.A17 231979-6	£1.66	£1.99
A02 - PLASTIC CASE HK0500 MSP-824523-2 824523-2	£24.72	£29.66
A02 - LATCH AN510/BDF453/BUC121/2 MSP-163455-1.A48 163455-1	£2.49	£2.99
A02 - LATCH/PLASTIC CASE 150676-4) MSP-416401-6.A21 416401-6	£1.20	£1.44
E01 - CLAMP WASHER 9403/5604R/4340 MSP-652257-5.A2 652257-5	£1.66	£1.99
E02 - TERMINAL BLOCK HS7100/KP0800 MSP-654532-5.A50 654532-5	£2.49	£2.99
E05 - CHOKE COIL HK0500 ORANGE MSP-646047-6.A1 646047-6	£5.33	£6.40
E07 - TERMINAL 1.25-M4 4323/3706K MSP-654002-4.A1 654002-4	£1.66	£1.99
E08 - INSULATED TERMINAL FV2-M3 MSP-654077-3.A0 654077-3	£2.49	£2.99
E09 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A116 654091-9	£1.66	£1.99
E11 - CONNECTOR P-1.25 MT582/CA5000 MSP-654501-6.A77 654501-6	£1.66	£1.99
E12 - CONNECTOR 2-SD 5103R/1902/LS1 MSP-654509-0.A1 654509-0	£1.66	£1.99
E17 - CHOKE COIL PURPLE MSP-646048-4.A0 646048-4	£5.33	£6.40

Attribute Name	Value
Brand	Makita
