Makita DHR162RFE Cordless Rotary Hammer Spare Parts

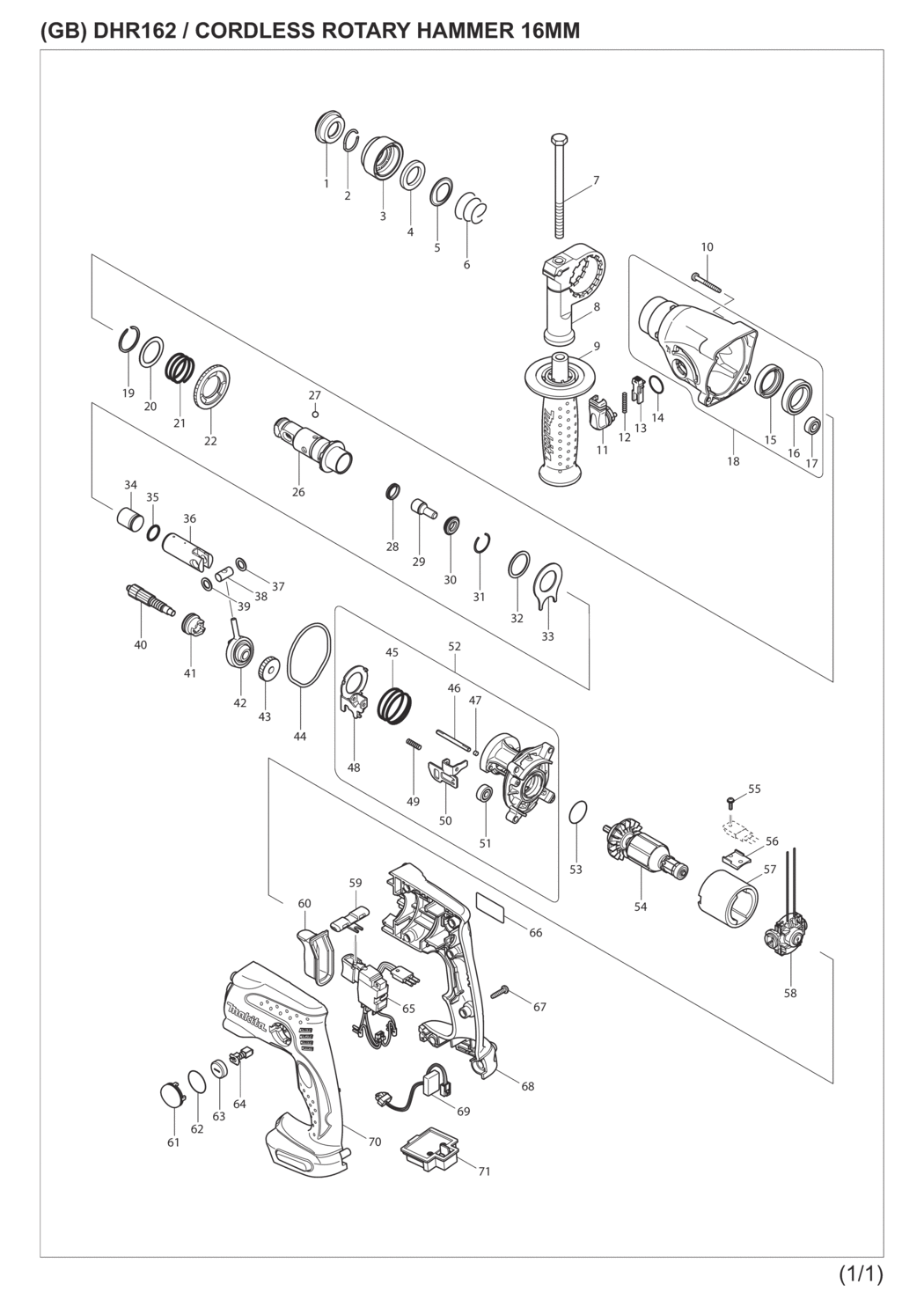

An exploded drawing and spare parts listing for the Makita DHR162RFE Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - CAP 35 DHR164/DHR165/2440/245 MSP-286263-4.A15 286263-4	£1.71	£2.05
2 - RING SPRING 19 DHR164/165 HR MSP-233940-9.A32 233940-9	£1.44	£1.73
3 - CHUCK COVER DHR164/DHR165 MSP-419220-9.A1 419220-9	£1.44	£1.73
4 - RING 21 DHR164/DHR165/HR1830 MSP-257241-1.A11 257241-1	£1.44	£1.73
5 - GUIDE WASHER DHR164/DHR165 MSP-345187-4.A27 345187-4	£1.44	£1.73
6 - CONICAL SPRING 21-29 DHR MSP-233916-6.A83 233916-6	£1.66	£1.99
7 - *HEX BOLT M8X120 DHR164/DHR165 MSP-265583-9.A40 265583-9	£5.78	£6.93
8 - GRIP BASE HR1830/DHR164/165 MSP-417911-6.A10 417911-6	£2.18	£2.62
9 - HEX FULLNUT M8 LS1013/HR1840 MSP-931402-8.A48 931402-8	£1.44	£1.73
10 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A72 266053-1	£1.44	£1.73
11 - CHANGE LEVER DHR164/165 MSP-162242-5.A3 162242-5	£1.44	£1.73
12 - COMPRESSION SPRING 3 DHR164 MSP-233459-8.A0 233459-8	£1.44	£1.73
13 - LOCK BUTTON BHR162/HR1830 MSP-419192-8.A19 419192-8	£1.44	£1.73
14 - O RING 17 DHR164/DHR165/2440 MSP-213278-8.A49 213278-8	£1.44	£1.73
15 - O RING 25 BHR162 MSP-213956-0.A0 213956-0	£2.81	£3.37
16 - BALL BEARING VC3211M/BHR162/ MSP-211375-4.A19 211375-4	£19.58	£23.50
17 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A56 211012-0	£13.88	£16.66
18 - GEAR HOUSING BHR162/BHR1 MSP-154840-9.A5 154840-9	£21.89	£26.27
19 - RETAINING EXT WR-25 HR1840/DHR MSP-961135-1.A6 961135-1	£1.44	£1.73
20 - FLAT WASHER 25 DHR164/HR1840 MSP-267304-5.A2 267304-5	£1.44	£1.73
21 - COMPRESSION SPRING 25 BHR162 MSP-233457-2.A0 233457-2	£1.44	£1.73
22 - SPUR GEAR 46 DHR164/165 MSP-331707-0.A0 331707-0	£12.95	£15.54
26 - TOOL HOLDER DHR164/DHR16 MSP-154843-3.A5 154843-3	£20.30	£24.36
27 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A13 216022-2	£1.66	£1.99
28 - X RING 13 HR1830/DHR164/DHR16 MSP-213183-9.A2 213183-9	£1.44	£1.73
29 - IMPACT BOLTDHR164/DHR165 MSP-324611-0.A2 324611-0	£2.34	£2.81
30 - RING 11 DHR164/165//HR1830 MSP-257275-4.A2 257275-4	£2.50	£3.00
31 - RING SPRING 22 DHR164/DHR165 MSP-233942-5.A3 233942-5	£1.44	£1.73
32 - FLAT WASHER 24 HR1840/HR1841F MSP-267175-0.A54 267175-0	£1.44	£1.73
33 - JOINT PLATE DHR164/DHR165 MSP-345681-6.A7 345681-6	£1.44	£1.73
34 - STRIKER DHR164/DHR165/HR1830 MSP-324613-6.A2 324613-6	£1.44	£1.73
35 - O RING 14 DHR164/165/HR1830 MSP-213182-1.A3 213182-1	£1.44	£1.73
36 - PISTON CYLINDER DHR164/DHR165 MSP-331708-8.A5 331708-8	£14.51	£17.41
37 - BLUE WASHER 9 HR2410/BHR162 MSP-267130-2.A8 267130-2	£1.44	£1.73
38 - PISTON JOINTDHR164/DHR165 MSP-324612-8.A5 324612-8	£1.44	£1.73
39 - BLUE WASHER 9 HR2410/BHR162 MSP-267130-2.A9 267130-2	£1.44	£1.73
40 - SPUR GEAR 10 DHR164/DHR165 MSP-227152-4.A1 227152-4	£7.18	£8.61
41 - CLUTCH CAM DHR164/DHR165 MSP-331706-2.A5 331706-2	£4.99	£5.99
42 - SWASH BEARING 9 DHR164/DHR165 MSP-219019-0.A3 219019-0	£43.30	£51.96
43 - HELICAL GEAR 22 DHR164/165 MSP-226623-8.A1 226623-8	£14.82	£17.78
44 - SEAL RING HR1830/DHR164/165 MSP-423346-1.A1 423346-1	£1.44	£1.73
45 - COMPRESSION SPRING 32 BHR162 MSP-233458-0.A7 233458-0	£1.44	£1.73
46 - PIN 4 DHR164/165//HR1830 MSP-268147-8.A4 268147-8	£1.44	£1.73
47 - FELT 4X3 DHR164/DHR165/HR1830 MSP-443123-5.A4 443123-5	£1.44	£1.73
48 - CHANGE PLATED DHR164/DHR165 MSP-345645-0.A5 345645-0	£7.49	£8.99
49 - COMPRESSION SPRING 3 DHR164 MSP-233460-3.A5 233460-3	£1.44	£1.73
50 - STOPPER PLATE DHR164/DHR165 MSP-345654-9.A3 345654-9	£4.37	£5.24
51 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A55 211012-0	£13.88	£16.66
52 - INNER HOUSING DHR164/165 MSP-154841-7.A0 154841-7	£23.62	£28.34
53 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A19 213953-6	£1.44	£1.73
54 - ARMATURE BHR162/DHR164 MSP-619182-3.A2 619182-3	£54.65	£65.58
55 - PAN HD SCREW M3X10 MSP-911011-9.A10 911011-9	£1.44	£1.73
57 - YOKE UNIT DHR164/165/BHR162 MSP-638446-6.A4 638446-6	£8.58	£10.30
58 - ENDBELL DHR162 MSP-632A30-5.A1 632A30-5	£14.35	£17.22
59 - F/R CHANGE LEVER DHR164/165 MSP-419457-8.A0 419457-8	£2.50	£3.00
60 - SWITCH COVER BHR162 MSP-421957-6.A3 421957-6	£4.68	£5.62
61 - HOLDER CAP COVER BHR162 MSP-419456-0.A1 419456-0	£2.18	£2.62
62 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A20 213953-6	£1.44	£1.73
63 - HOLDER CAP DUB361/BUB360/BDG MSP-643929-3.A19 643929-3	£1.44	£1.73
64 - CARBON BRUSH SET CB-430 MSP-191971-3.A27 191971-3	£5.78	£6.93
65 - SWITCH UNIT DHR162 MSP-638878-7.A0 638878-7	£53.99	£64.79
66 - NAME PLATE DHR162 MSP-815V65-9.A0 815V65-9	£1.44	£1.73
67 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A168 265995-6	£1.44	£1.73
68 - HOUSING SET DHR162 MSP-187379-7.A0 187379-7	£52.28	£62.73
69 - LIGHT CIRCUIT BHR162 MSP-631711-2.A0 631711-2	£21.89	£26.27
70 - HOUSING SET DHR162 MSP-187379-7.A1 187379-7	£52.28	£62.73
71 - TERMINAL 14.4V MODELS ONLY MSP-643867-9.A5 643867-9	£6.08	£7.30
A01 - STOPPER POLE DHR164/DHR165 MSP-415486-9.A4 415486-9	£1.44	£1.73
A02 - DC18RC COMPACT CHARGER MSP-*DC18RC.A108 *DC18RC	-
A04 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A63 419216-0	£1.44	£1.73
A04 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A86 417724-5	£1.20	£1.44
A04 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A12 413098-2	£1.44	£1.73
A04 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A34 419215-2	£7.18	£8.61
A04 - PLASTIC CASE BHR162/BST221 MSP-141074-3.A0 141074-3	£69.52	£83.43
A04 - SHAFT BST221/BHP451/BDF451 MSP-324667-3.A3 324667-3	£2.18	£2.62
A06 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A42 450128-8	£1.20	£1.44
E01 - HEAT SINK 6503DW DHR164/DHR16 MSP-689098-6.A8 689098-6	£1.44	£1.73
E02 - CONDUCTIVE GASKET DHR162 MSP-654645-2.A1 654645-2	£1.44	£1.73
