Makita DSP600Z Cordless Plunge Cut Saw Spare Parts

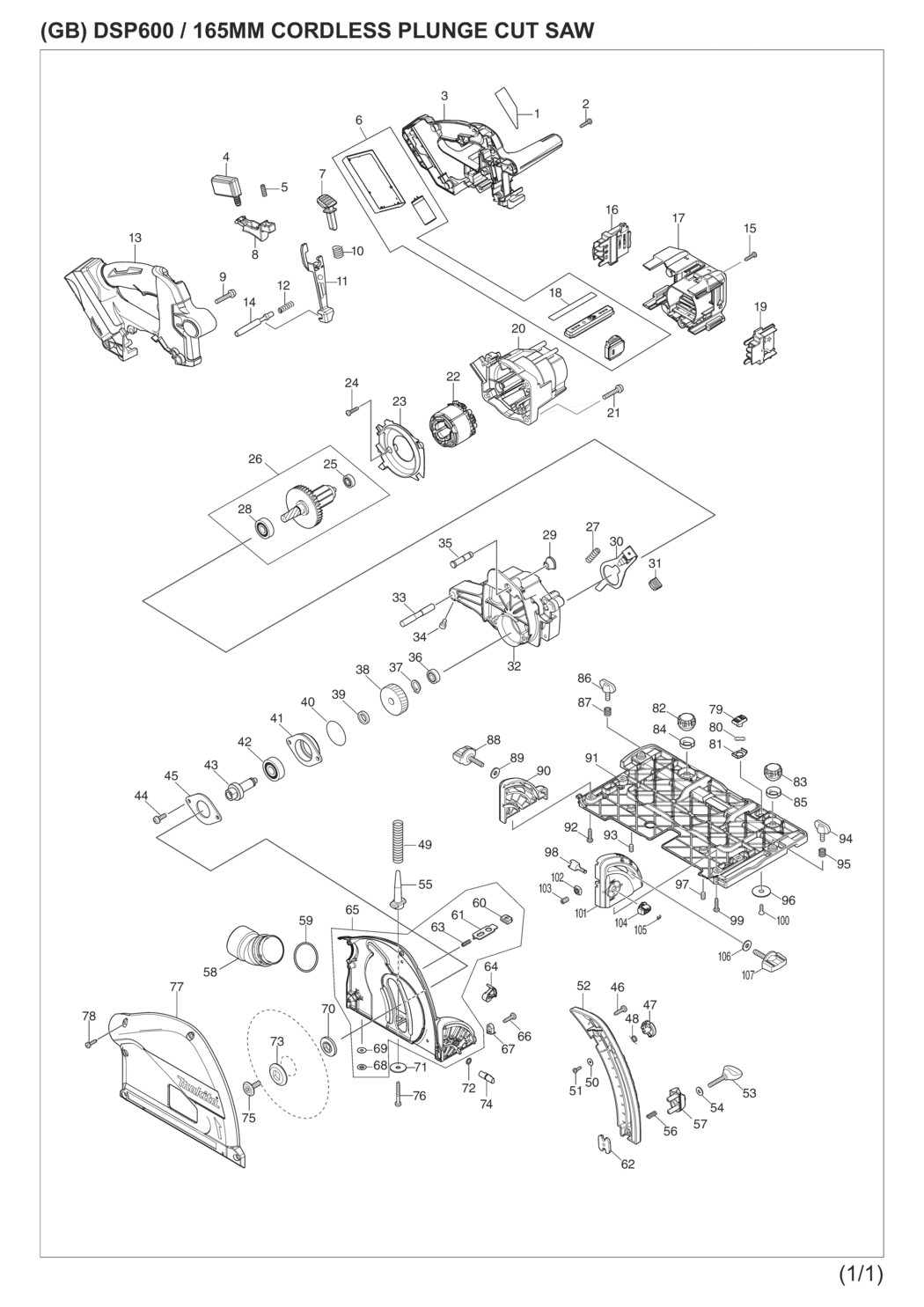

An exploded drawing and spare parts listing for the Makita DSP600Z Cordless Plunge Cut Saw

	Ex VAT	Inc VAT
2 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A156 265995-6	£1.44	£1.73
3 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A210 263005-3	£1.44	£1.73
4 - SWITCH C3XA-1PSPM DSP600 MSP-651083-9.A2 651083-9	£27.50	£33.00
6 - *CONTROLLER ASSY DSP600 MSP-135900-6.A0 135900-6	£188.40	£226.08
7 - LOCK OFF BUTTON SP6000/CA5000 MSP-419629-5.A0 419629-5	£2.34	£2.81
9 - PAN HD SCREW M5X30 W/CP WASHE MSP-911253-5.A14 911253-5	£1.44	£1.73
10 - COMPRESSION SPRING 12 HR2420 MSP-233089-5.A11 233089-5	£1.44	£1.73
12 - COMPRESSION SPRING 7 AN504 MSP-233267-7.A4 233267-7	£1.44	£1.73
13 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A208 263005-3	£1.44	£1.73
14 - LOCK PIN 8 SP6000 MSP-324709-3.A2 324709-3	£5.92	£7.11
15 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A157 265995-6	£1.44	£1.73
16 - TERMINAL DJR187/DHP483/DDP483 MSP-643874-2.A16 643874-2	£4.52	£5.43
17 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A211 263005-3	£1.44	£1.73
18 - LABEL/INDICATION DSP600 MSP-813D03-7.A2 813D03-7	£2.50	£3.00
19 - TERMINAL DJR187/DHP483/DDP483 MSP-643874-2.A15 643874-2	£4.52	£5.43
21 - PAN HD SCREW M5X30 W/CP WASHE MSP-911253-5.A13 911253-5	£1.44	£1.73
22 - STATOR DSP600 MSP-629275-8.A0 629275-8	£49.50	£59.40
24 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A155 265995-6	£1.44	£1.73
25 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A16 210022-4	£3.59	£4.31
27 - COMPRESSION SPRING 6 5903R MSP-233084-5.A2 233084-5	£1.44	£1.73
28 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A21 211131-2	£7.80	£9.36
29 - CAP DSP600 CA5000/SP6000 MSP-286040-4.A2 286040-4	£2.58	£3.09
30 - SHAFT LOCK SP6000/CA5000 MSP-345742-2.A0 345742-2	£8.27	£9.92
32 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A281 263002-9	£1.44	£1.73
32 - GEAR HOUSING SP6000 MSP-144586-5.A0 144586-5	£48.44	£58.13
33-1 - PIN 8 SP6000/CA5000 MSP-327B66-0.A0 327B66-0	£4.38	£5.25
34 - HEX SOCKET HD BOLT M5X10 AN50 MSP-265907-9.A0 265907-9	£1.44	£1.73
35 - STOPPER PIN 8 SP6000/CA5000 MSP-324708-5.A2 324708-5	£4.52	£5.43
36 - BALL BEARING HP1631/607LLB/43 MSP-211021-9.A0 211021-9	£8.42	£10.11
37 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A161 961052-5	£1.44	£1.73
39 - RING 12 5600NB/5621RDW/CA5000 MSP-257010-0.A7 257010-0	£1.44	£1.73
40 - O RING 39 HK1800/CA5000 MSP-213512-6.A16 213512-6	£2.34	£2.81
41 - BEARING BOX SP6000/CA5000 MSP-318088-9.A3 318088-9	£8.27	£9.92
42 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A105 211129-9	£10.14	£12.17
43 - SPINDLE SP6000 MSP-324707-7.A2 324707-7	£22.90	£27.48
44 - PAN HD SCREW M5X16 W/WASHER MSP-911221-8.A21 911221-8	£1.44	£1.73
45 - BEARING RETAINER 55 SP6000 MSP-285689-7.A0 285689-7	£1.44	£1.73
46 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A185 266034-5	£1.44	£1.73
47 - LOCK LEVER SP6000 MSP-419630-0.A3 419630-0	£2.65	£3.18
48 - TORSION SPRING SP6000 MSP-231665-9.A2 231665-9	£1.44	£1.73
49 - COMPRESSION SPRING 11 SP6000 MSP-233479-2.A0 233479-2	£2.79	£3.35
50 - BLUE WASHER 3 6791D MSP-253821-1.A0 253821-1	£1.44	£1.73
51 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A23 266007-8	£1.44	£1.73
52 - DEPTH GUIDE SP6000 MSP-457756-0.A2 457756-0	£2.81	£3.37
53 - WING SCREW M5X30 MSP-251867-1.A4 251867-1	£2.77	£3.32
54 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A55 941101-4	£1.44	£1.73
55 - SPRING HOLDER SP6000/CA5000 MSP-419624-5.A2 419624-5	£2.50	£3.00
56 - COMPRESSION SPRING 5 5016NB MSP-231372-4.A7 231372-4	£1.44	£1.73
57 - STOPPER BLOCK SP6000 MSP-419623-7.A2 419623-7	£3.59	£4.31
58 - DUST NOZZLE DSP600 MSP-457752-8.A0 457752-8	£2.02	£2.43
59 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A2 213460-9	£2.18	£2.62
61 - SPACER PLATE SP6000 MSP-345747-2.A6 345747-2	£4.52	£5.43
62 - NUT PLATE SP6000 MSP-345744-8.A3 345744-8	£2.40	£2.88
63 - COMPRESSION SPRING 2 6702D/67 MSP-232472-3.A100 232472-3	£1.44	£1.73
64 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A280 263002-9	£1.44	£1.73
65-1 - BLADE CASE DSP600 MSP-140D56-6.A2 140D56-6	£55.11	£66.13
66 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A186 266034-5	£1.44	£1.73
67 - POSITION PLATE SP6000 MSP-419632-6.A2 419632-6	£1.44	£1.73
68 - PUSH NUT MSP-259008-3.A1 259008-3	£1.44	£1.73
69 - LARGE BLUE WASHER 4 PS32TLC MSP-253874-0.A1 253874-0	£1.44	£1.73
70-1 - INNER FLANGE 35 5008MG/DSS611 MSP-224593-5.A20 224593-5	£2.56	£3.07
71 - LARGE FLAT WSHER 6 5100BR MSP-253010-8.A21 253010-8	£1.44	£1.73
72 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A22 213021-5	£1.44	£1.73
73 - OUTER FLANGE 35 HS6100/7100 MSP-224409-4.A21 224409-4	£2.77	£3.32
74 - PIN 8 SP6000 MSP-324710-8.A1 324710-8	£2.34	£2.81
75 - HEX SOCKET HEAD BOLT M6 SP600 MSP-266403-0.A3 266403-0	£2.65	£3.18
76 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A68 266053-1	£1.44	£1.73
78 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A187 266034-5	£1.44	£1.73
80 - WAVE WASHER 10 3600B/CA5000 MSP-253932-2.A3 253932-2	£1.57	£1.88
81 - NARROW WASHER 10 SP6000 MSP-345977-5.A4 345977-5	£1.44	£1.73
82 - THUMB SCREW M4X3 SP6000 MSP-265775-0.A6 265775-0	£2.41	£2.89
83 - THUMB SCREW M4X3 SP6000 MSP-265775-0.A11 265775-0	£2.41	£2.89
84 - HOLDER SP6000/CA5000 MSP-419627-9.A6 419627-9	£2.36	£2.83
85 - HOLDER SP6000/CA5000 MSP-419627-9.A11 419627-9	£2.36	£2.83
86 - WING SCREW M6X14 HS7611 MSP-265701-9.A2 265701-9	£2.18	£2.62
87 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A18 231316-4	£1.44	£1.73
88 - THUMB SCREW M6X26 SP6000 MSP-265776-8.A0 265776-8	£2.53	£3.04
89 - FLAT WASHER 6 UK360D/SP6000 MSP-253111-2.A10 253111-2	£1.44	£1.73
90 - REAR ANGULAR GUIDE SP6000 MSP-419596-4.A3 419596-4	£7.49	£8.99
91 - BASE DSP600 MSP-312B95-6.A2 312B95-6	£42.97	£51.56
92 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A160 265995-6	£1.44	£1.73
93 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A10 266225-8	£1.44	£1.73
94 - WING SCREW M6X14 HS7611 MSP-265701-9.A3 265701-9	£2.18	£2.62
95 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A17 231316-4	£1.44	£1.73
96 - LOCK WASHER SP6000/CA5000 MSP-345748-0.A4 345748-0	£2.81	£3.37
97 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A11 266225-8	£1.44	£1.73
98 - STOPPER PIN SP6000 MSP-324731-0.A2 324731-0	£6.71	£8.05
99 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A159 265995-6	£1.44	£1.73
100 - COUNTERSUNK SCREW M4X10 RP090 MSP-912112-6.A22 912112-6	£1.44	£1.73
101 - FRONT ANGULAR GUIDE SP6000 MSP-419595-6.A1 419595-6	£9.82	£11.79
102 - SQUARE NUT M6 2107F HS7611 MSP-252157-5.A3 252157-5	£1.44	£1.73
103 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A12 266225-8	£1.44	£1.73
105 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A19 961017-7	£1.44	£1.73
106 - FLAT WASHER 6 UK360D/SP6000 MSP-253111-2.A9 253111-2	£1.44	£1.73
107 - THUMB SCREW M6X26 SP6000 MSP-265776-8.A1 265776-8	£2.53	£3.04
108 - *O-RING 6 AN711/BO3710/11/BBC2 MSP-213045-1.A10 213045-1	£1.44	£1.73
A02 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A43 783203-8	£1.20	£1.44
A01-3 - TCT SAW BLADE 165X20X56 SP600D MSP-B-57320.A1 B-57320	£30.03	£36.04
A03 - GUIDE RULE/SUB BASE SP6000 MSP-165447-6.A1 165447-6	£13.72	£16.47
