Makita RBL500 Petrol Blower Spare Parts

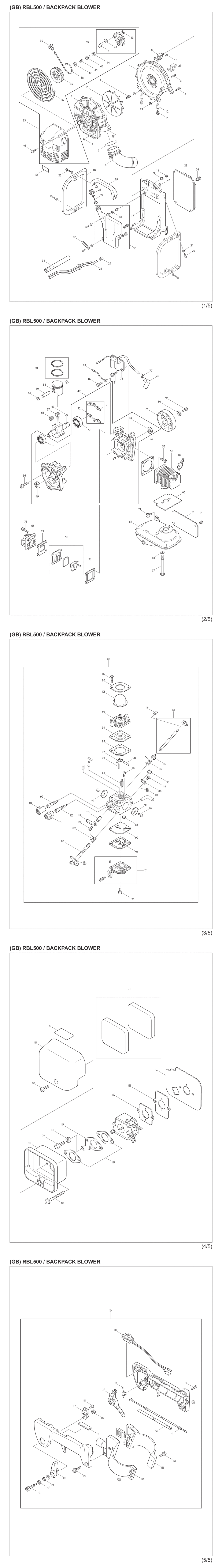

An exploded drawing and spare parts listing for the Makita RBL500 Petrol Blower

	Ex VAT	Inc VAT
2-2 - VOLUTE CASE 2 RBL500 MSP-6621004003 6621004003	£55.62	£66.74
3 - TAPP SCREW M5X25 RBL500 MSP-0150059870 150059870	£1.66	£1.99
4 - *PAN HEAD SCREW M5X25 RBK410 MSP-0043605250.A1 0043605250	£1.66	£1.99
5-1 - NUT M5 EPH1000/RBL500/MH2556 MSP-264086-0.A3 264086-0	£1.66	£1.99
6 - ELBOW_RBL500 MSP-6621006001 6621006001	£14.60	£17.52
7 - O RING RBL500 MSP-0062630850 62630850	£5.59	£6.71
8 - BRACKET RBL500 MSP-6621005000 6621005000	£13.64	£16.37
9-1 - SPACER RBL500/PB500R MSP-6621500900 6621500900	£2.49	£2.99
10 - TAPP SCREW M5X10 RBL500 MSP-0150059910 150059910	£1.66	£1.99
11 - FLANGE NUT M5 RBL50/EH7500 MSP-0023705000.A3 0023705000	£1.66	£1.99
12 - DAMPER RBL500 MSP-6621500401 6621500401	£7.54	£9.05
13 - NUT G1700I/G2400R MSP-0021706000 21706000	£1.66	£1.99
14-1 - FLANGE NUT RBC221/RST250/BBX7 MSP-264092-5.A0 264092-5	£1.66	£1.99
14 - *FLANGE NUT RBC221/RST250/BBX MSP-0023706000.A0 0023706000	£1.66	£1.99
15 - IMPELLER RBL500 MSP-6821500201 6821500201	£78.41	£94.09
16 - BOLT & WASHER ASSY RBL500 MSP-0011306250.A0 0011306250	£1.66	£1.99
17 - FRAME RBL500 MSP-6622008001 6622008001	£43.01	£51.61
18 - SIDE FRAME RBL500 MSP-6622500600 6622500600	£22.44	£26.93
19 - KNOB RBL500 MSP-6622500701 6622500701	£14.30	£17.16
20-1 - PAN HD SCREW M5X20 RBL500 MSP-0140059430.A1 0140059430	£2.49	£2.99
21 - *WASHER RBL500/RBL250 MSP-0031205000.A1 0031205000	£1.66	£1.99
22 - FLANGE NUT M5 RBL50/EH7500 MSP-0023705000.A4 0023705000	£1.66	£1.99
23-1 - CUSHION RBL500/PB500R MSP-6622010001 6622010001	£26.18	£31.42
24 - LOCK RIVET RBL500 MSP-6822500200 6822500200	£1.66	£1.99
25-1 - PAN HD SCREW M5X20 RBL500 MSP-0140059430.A0 0140059430	£2.49	£2.99
25 - *PAN HEAD SCREW M5X25 RBK410 MSP-0043605250.A0 0043605250	£1.66	£1.99
26-2 - FUEL TANK CAP MS221/PB25 MSP-452920-8.A15 452920-8	£7.15	£8.58
27-3 - STRAP ER2550/EBH341U MSP-140436-2.A22 140436-2	£3.96	£4.75
28 - TUBE RBL500 MSP-6623003001 6623003001	£27.39	£32.87
29-1 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A16 163447-0	£2.49	£2.99
29-2 - GASOLIN FILTER ER2550/DCS230T MSP-163447-0.A57 163447-0	£2.49	£2.99
30-2 - FUEL TANK ASSY RBL500 MSP-6623005000 6623005000	£37.40	£44.88
32 - CLAMP M6 RBL500 MSP-8558501100 8558501100	£2.49	£2.99
33 - ENGINE COVER RBL500 MSP-6628002002 6628002002	£71.07	£85.28
34 - SCREW RBC230/260/525E MSP-5105015110.A1 5105015110	£1.66	£1.99
35 - REEL RBC260 MSP-5415003010 5415003010	£10.66	£12.79
36 - SPIRAL SPRING RBC260/MS3200 MSP-5415003020.A0 5415003020	£10.66	£12.79
37 - WASHER RBC260 MSP-5415003030 5415003030	£1.66	£1.99
39 - *STARTER KNOB G1700I MSP-5305002110.A1 5305002110	£7.41	£8.89
40 - PULLEY UNIT RBL500 MSP-5415011000 5415011000	£15.51	£18.61
41 - RATCHET RBL500/MH2556 MSP-5415011010 5415011010	£2.49	£2.99
42 - RETURN SPRING RBL500 MSP-5415011020 5415011020	£1.66	£1.99
43 - E RING RBL500/MH2556 MSP-5215003040 5215003040	£1.66	£1.99
45 - BOLT ASSY RBC230/EM4251/4340L MSP-0011306160.A2 0011306160	£1.66	£1.99
46-1 - *HEX SOCKET HD BOLT M6X20 BHX2 MSP-265584-7.A0 265584-7	£1.66	£1.99
47-2 - CRANK CASE ASS'Y RBL500 MSP-5411012000 5411012000	£122.64	£147.17
48-1 - OIL SEAL RBL500 MSP-0440179920 440179920	£7.28	£8.74
49-1 - *OIL SEAL RBL500/RBC420E/525E MSP-0440159950 440159950	£7.80	£9.36
50 - BALL BEARING 6203C3 RBL500 MSP-0600179830.A1 0600179830	£11.77	£14.12
51-3 - BALL BEARING 6202C3 RBC525 MSP-210202-2.A2 210202-2	£10.27	£12.32
52-1 - CRANK CASE GASKET RBC410/RBC4 MSP-442157-5.A0 442157-5	£2.49	£2.99
53-1 - CYLINDER RBL500 MSP-319241-0 319241-0	£85.53	£102.64
54-2 - CYLINDER GASKET RBC410/RBC420 MSP-442156-7.A3 442156-7	£2.49	£2.99
55 - HEX SOCKET HEADBOLT M6X18 RB MSP-0119069990.A0 0119069990	£1.66	£1.99
56 - HEX SOCKET HEAD BOLT M5X30 R MSP-0119059940.A4 0119059940	£1.66	£1.99
57 - *CRANK SHAFT COMPL RBL500 MSP-5412024000 5412024000	£153.91	£184.69
58 - *PISTON RBL500 MSP-5412500700 5412500700	£32.45	£38.94
59 - PISTON PIN RBL500 MSP-5602501100.A0 5602501100	£7.54	£9.05
60 - PISTON RING RBL500 MSP-5602500900.A2 5602500900	£6.37	£7.64
61 - NEEDLE ROLLER BEARING RBL500 MSP-0610129950 610129950	£10.14	£12.17
62-1 - RING SPRING 12 EK7650HK/EB765 MSP-233995-4.A6 233995-4	£1.66	£1.99
65-1 - INSULATOR RBL500 MSP-5413046002 5413046002	£10.01	£12.01
66 - MUFFLER GASKET RBL500 MSP-5413501700 5413501700	£12.35	£14.82
67 - BOLT M6X13 RBL500 MSP-5413502001 5413502001	£4.16	£4.99
68 - WASHER M6 RBL500 MSP-0200099990 200099990	£1.66	£1.99
69 - BOLT M6X16 RBL500 MSP-0011506160 11506160	£1.66	£1.99
70 - LEAD VALVE ASSY RBL500 MSP-5413036000 5413036000	£36.08	£43.30
71-1 - BRACKET GASKET RBC410/420E MSP-442160-6.A4 442160-6	£1.66	£1.99
72 - *INSULATOR GASKET RBL500/RBC4 MSP-5403500600.A2 5403500600	£1.66	£1.99
72-1 - INSULATOR GASKET RBL500/RBC42 MSP-442189-2.A2 442189-2	£1.66	£1.99
74 - FLYWHEEL RBL500 MSP-5417021010 5417021010	£81.98	£98.37
75 - COIL RBL500 MSP-5417024021 5417024021	£115.43	£138.52
77-1 - PLUG CAP SPRING ER2650LH/BHX2 MSP-324891-8.A16 324891-8	£1.66	£1.99
78A1 - SPARK PLUG DBC260L/U/RBC351/4 MSP-168648-5.A1 168648-5	£4.03	£4.84
79 - BOLT & WASHERASSY G5500/5501 MSP-0011308160 11308160	£1.66	£1.99
80-1 - FLAT WASHER 8 DIN125-B HS7611 MSP-941201-0.A3 941201-0	£1.66	£1.99
82 - BOLT & WASHER ASSY RBL500 MSP-0011306250.A1 0011306250	£1.66	£1.99
83 - WIRE CPL RBL500 MSP-6628003000 6628003000	£4.55	£5.46
84-2 - CARBURETOR RBL500/PB500R MSP-5416043003 5416043003	£115.43	£138.52
85 - STRAINER SCREEN 123/133/S/143 MSP-5416043430 5416043430	£3.64	£4.37
86-1 - RETAINER RBL500 MSP-5416043860 5416043860	£5.07	£6.08
87 - THROTTLE SHAFT ASSY RBL500 MSP-5416043020 5416043020	£23.65	£28.38
88 - THROTTLE LEVER RBL500 MSP-5416043520 5416043520	£5.07	£6.08
89 - THROTTLE RETURN SPRING RBL500 MSP-5416043030 5416043030	£4.16	£4.99
90 - THROTTLE VALVE RBL500 MSP-5416043040 5416043040	£6.50	£7.80
91 - DIAPHRAGM RBL500 MSP-5416043260 5416043260	£27.39	£32.87
92 - PUMP DIAPHRAGM RBL500 MSP-5416043110 5416043110	£8.19	£9.83
93 - METERING CHAMBER GASKET RBL50 MSP-5416043310 5416043310	£3.64	£4.37
94 - PUMP GASKET RBL500 MSP-5416043120 5416043120	£3.64	£4.37
95 - INLET NEEDLE VALVE RBL500 MSP-5416043210 5416043210	£16.72	£20.06
96 - METERING LEVER SPRING RBL500 MSP-5416043220 5416043220	£5.85	£7.02
97 - METERING LEVER RBL500 MSP-5416043230 5416043230	£6.89	£8.27
98 - PIN RBL500 MSP-5416043240 5416043240	£2.49	£2.99
99 - MAIN MIXTURE SCREW RBL500 MSP-5416043350 5416043350	£14.30	£17.16
100 - IDLE MIXTURE SCREW RBL500 MSP-5416043360 5416043360	£14.30	£17.16
101-1 - CHOKE SHAFT ASSY RBL500/PB500 MSP-5416043551 5416043551	£30.58	£36.70
102 - CHOKE VALVE RBL500 MSP-5416043620 5416043620	£6.24	£7.49
103 - POST RBL500 MSP-5416043540 5416043540	£10.53	£12.64
104-1 - PRIMER BASE ASSY RBL500 MSP-5416043920 5416043920	£54.12	£64.94
105 - SYRINGE RBL500 MSP-5416043510 5416043510	£8.19	£9.83
106 - SCREW RBL500 MSP-5416043250 5416043250	£1.66	£1.99
107 - SCREW RBL500 MSP-5416043050 5416043050	£1.66	£1.99
109 - SCREW RBL500 MSP-5416043160 5416043160	£1.66	£1.99
110 - SCREW RBL500 MSP-5416043530 5416043530	£1.66	£1.99
111 - E RING RBL500 MSP-5416043060 5416043060	£1.66	£1.99
112-1 - RETAINER SCREW RBL500 MSP-5416043910 5416043910	£1.66	£1.99
113-1 - COLLAR RBL500/PB500R MSP-5416043850 5416043850	£2.49	£2.99
114 - TAMPER RESIST LIMITER RBL500 MSP-5416043760 5416043760	£6.24	£7.49
115 - TAMPER RESIST LIMITER RBL500 MSP-5416043810 5416043810	£6.24	£7.49
116 - CHOKE RETURN SPRING RBL500 MSP-5416043640 5416043640	£4.16	£4.99
117 - CHOKE CONTROL LEVER RBL500 MSP-5416043560 5416043560	£4.55	£5.46
118 - CHOKE LEVER RBL500 MSP-5416043660 5416043660	£5.07	£6.08
119 - CHOKE SHAFT COLLAR RBL500 MSP-5416043610 5416043610	£1.66	£1.99
120 - CHOKE LEVER SCREW RBL500 MSP-5416043710 5416043710	£1.66	£1.99
121 - PUMP COVER KIT RBL500 MSP-5416043820 5416043820	£19.25	£23.10
122 - CLEANER PLATE RBL500 MSP-5413048001 5413048001	£9.49	£11.39
123 - AIR CLEANER CASE RBL500 MSP-5413507001 5413507001	£4.68	£5.62
124 - AIR CLEANER ELEMENT RBL500 MSP-5413507101 5413507101	£4.68	£5.62
125 - AIR CLEANER GASKET RBL500 MSP-5413507200 5413507200	£5.59	£6.71
127 - CARBURETOR GASKET RBL500 MSP-5416504302 5416504302	£2.49	£2.99
128 - *SCREW RBL500/PB250 MSP-0043605550 43605550	£1.66	£1.99
128-2 - PAN HD SCREW M5X55 5703R/560 MSP-911278-9.A2 911278-9	£1.66	£1.99
130-1 - CABLE ADJUST SCREW RBC230/260 MSP-266795-7.A4 266795-7	£3.51	£4.21
131 - NUT M6 EPH1000/RBL500/EM4251 MSP-0022706000.A1 0022706000	£1.66	£1.99
132 - CARBURETOR GASKET RBL500 MSP-5413507900 5413507900	£1.66	£1.99
133 - PLATE RBL500 MSP-5413507800 5413507800	£2.49	£2.99
134-1 - CONTROL LEVER ASSY RBL500 MSP-6625001003 6625001003	£51.15	£61.38
135 - CASE COVER RBL500 MSP-6625500500 6625500500	£3.64	£4.37
136 - *SWITCH RBL500 MSP-6625003001 6625003001	£10.79	£12.95
137-1 - THROTTLE LEVER 1 RBL500/BBX76 MSP-453716-0.A1 453716-0	£12.10	£14.52
138-1 - THROTTLE LEVER 2 RBL500/BBX76 MSP-453717-8.A0 453717-8	£10.92	£13.10
139 - PLATE RBL500 MSP-6625004000 6625004000	£5.46	£6.55
140-1 - TORSION SPRING RBL500/BBX7600 MSP-233602-9.A1 233602-9	£3.25	£3.90
141 - CONTROL CABLE RBL500 MSP-0630139901 630139901	£11.66	£13.99
142 - CABLE TUBE RBL500 MSP-6625501001 6625501001	£12.87	£15.44
143 - SOCKET HEAD BOLT RBL500 MSP-6625501700 6625501700	£6.89	£8.27
144 - TAPP SCREW RBL500 MSP-0150049970 150049970	£1.66	£1.99
146-1 - WAVE WASHER RBL500/BBX7600 MSP-267841-9.A1 267841-9	£1.66	£1.99
146 - *WAVE WASHER RBL500/BBX7600 MSP-0032206000.A0 0032206000	£1.66	£1.99
147 - NUT M6 EPH1000/RBL500/EM4251 MSP-0022706000.A2 0022706000	£1.66	£1.99
148 - TAPP SCREW M6X14 RBL500 MSP-0150049940 150049940	£1.66	£1.99
149 - *PAN HEAD SCREW M5X25 RBK410 MSP-0043605250.A3 0043605250	£1.66	£1.99
154-2 - SPARE PART MSP-266572-7.A1 266572-7	£1.66	£1.99
154-1 - *SCREW M5X8 EPH1000/RBC310/ML MSP-0140059921.A0 0140059921	£1.66	£1.99
155 - TANK PROTECTOR RBL500 MSP-5413506001 5413506001	£8.19	£9.83
156 - HANDLE HOLDER 1 PBL500 PB500R MSP-6625500802 6625500802	£10.53	£12.64
157 - HANDLE HOLDER 1 PBL500 PB500 MSP-6625005002 6625005002	£10.53	£12.64
A01-1 - *BAND SET BVF154RF/RBL500 MSP-6709026000 6709026000	£11.57	£13.88
A01-2 - *BAND SET BVF154RF/RBL500 MSP-6709026001 6709026001	£17.93	£21.52
A02 - HOSE CLAMP RBL500 MSP-6629019000 6629019000	£10.66	£12.79
A03 - HOSE CLAMP RBL500 MSP-6629020000 6629020000	£9.88	£11.86
A04 - FLEXIBLE PIPE RBL500 MSP-6989506900 6989506900	£22.44	£26.93
A05 - PIPE 1 RBL500 MSP-6709017010 6709017010	£36.08	£43.30
A06 - PIPE 2 RBL500 MSP-6709017020 6709017020	£18.04	£21.65
A07 - END PIPE RBL500 MSP-6629506700 6629506700	£16.72	£20.06
A08 - TOOL KIT EH561/LT250/PB250 MSP-5019001000.A1 5019001000	£3.94	£4.73

Attribute Name	Value
Brand	Makita
